CD player TOYOTA SEQUOIA 2011 2.G Quick Reference Guide

24
FEATURES/OPERATIONS

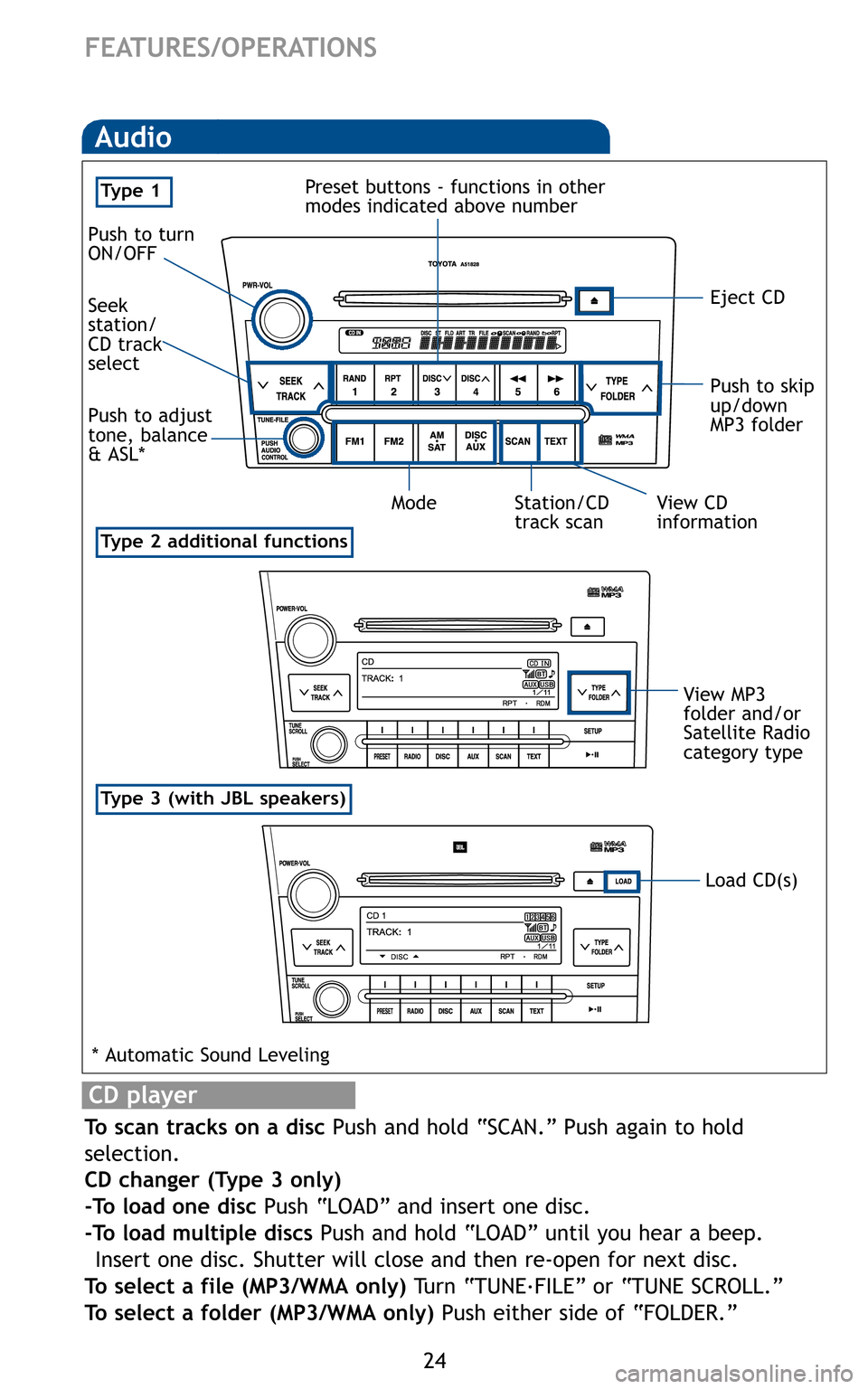

Audio
Type 2 additional functions
Type 3 (with JBL speakers)
Eject CD
Push to turn
ON/OFF
View CD
information
Push to adjust
tone, balance
& ASL* Seek
station/
CD track
select
Station/CD
track scan
Mode
View MP3
folder and/or
Satellite Radio
category type
Preset buttons - functions in other
modes indicated above number
Load CD(s)
Type 1
Push to skip
up/down
MP3 folder
CD player
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Type 3 only)
-To load one disc
Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE” or “TUNE SCROLL.”
To select a folder (MP3/WMA only) Push either side of “FOLDER.”
* Automatic Sound Leveling
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 24

31
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Front consoleBack of the front console
Rear console box (if equipped)
Front audio system
DVD player
DVD screen
Remote control
A/V input port
115V AC Power outlet
Headphone volume controls and headphone jacks
Vehicles with navigation system: for details, refer to the “ Navigation
System Owner’s Manual .”
Rear side trim
