TOYOTA SEQUOIA 2012 2.G Navigation Manual

AUDIO/VIDEO SYSTEM
171
(f) Playing a MP3/WMA disc
U6095GS
Push the “AUDIO” button and touch the
“CD” tab, then touch “Change Discs”.
Choose a MP3/WMA disc number to
display this screen.
SELECTING A DESIRED FOLDER
“Folder \b”: Touch this touch −screen but-
ton to go to the next folder.
“Folder ”: Touch this touch −screen but-
ton to go to the previous folder.
“Select” for Folder: The desired folder
can be selected in a list. This function is
available only when the vehicle is not mov-
ing.
Touch “Select” . The folder list is dis-
played.
U6026GS
Touch the desired folder number. The
changer will start playing the first file of the
selected folder.
: By touching this touch−screen but-
ton, the list moves up by 5 folder groups.
If this touch−screen button is touched
when the top page of the list is displayed,
the last page is displayed.
: By touching this touch−screen but-
ton, the list moves down by 5 folder
groups. If this touch−screen button is
touched when the last page of the list is
displayed, the top page is displayed.

AUDIO/VIDEO SYSTEM
172
U019ADNS
SELECTING A DESIRED FILE
“SEEK/TRACK” button: Use for direct
access to a desired file.
Push either side of the “SEEK/TRACK”
button and repeat it until the desired file
number appears on the display. As you re-
lease the button, the changer will start
playing the selected file from the begin-
ning. When “RAND” or “FLD.RPT” is on,
the file number within the folder you are
currently listening to appears.
Fast forward: Push “ ” side of the
“SEEK/TRACK” button and hold it to fast
forward the disc. When you release the
button, the changer will resume playing
from that position.
Reverse: Push “ ” side of the “SEEK/
TRACK” button and hold it to reverse the
disc. When you release the button, the
changer will resume playing.
U014ADNS
“TUNE·FILE” knob: Use for direct access
to a desired file in the disc.
Turn the “TUNE·FILE” knob to step up or
down all the files in the disc you are cur-
rently listening to. The file number ap-
pears on the display. When “RAND” or
“FLD.RPT” is on, all the files in the folder
you are currently listening to can be
stepped up or down.

AUDIO/VIDEO SYSTEM
173
U6095GS
“Select” for File: The desired file can be
selected in a list. This function is available
only when the vehicle is not moving.
Touch “Select” . The file list is displayed.
U6027GS
Touch the desired file number . The chang-
er will start playing the selected file from
the beginning.
: By touching this touch−screen but-
ton, the list moves up by 5 file groups. If
this touch −screen button is touched when
the top page of the list is displayed, the last
page is displayed.
: By touching this touch−screen but-
ton, the list moves down by 5 file groups.
If this touch−screen button is touched
when the last page of the list is displayed,
the top page is displayed.

AUDIO/VIDEO SYSTEM
174
U6096GS
SEARCHING FOR A DESIRED FILE
Touch “SCAN” on the screen briefly
while the disc is playing.
“SCAN” appears on the screen. The
changer will play the next file in the folder
for 10 seconds, then scan again. To select
a file, touch “SCAN” on the screen a sec-
ond time. If the changer reaches the end
of the folder, it will continue scanning from
file 1.
After all the files are scanned in one pass,
normal play resumes.
U6097GS
SEARCHING FOR A DESIRED FOLDER
Touch “SC AN” on the screen for longer
than a second while the disc is playing.
“FLD.SCAN” appears on the screen. The
program at the beginning of each folder will
be played for 10 seconds. To continue lis-
tening to the program of your choice, touch
“SCAN” on the screen a second time.
After all the folders are scanned in one
pass, normal play resumes.

AUDIO/VIDEO SYSTEM
175
U6098GS
OTHER FUNCTIONS
“RPT”: Use it for automatic repeat of the
file or folder you are currently listening to.
Repeating a file —
Touch “RPT” briefly while the file is play-
ing. “RPT” appears on the screen. When
the file is finished, the changer will auto-
matically go back to the beginning of the
file and play the file again. To cancel it,
touch “RPT” once again.
Repeating a folder —
Touch “RPT” for longer than a second
while the folder is playing. “FLD.RPT” ap-
pears on the screen. When the folder is
finished, the changer will automatically go
back to the beginning of the folder and play
the folder again. To cancel it, touch “RPT”
once again. “RAND”:
Use it for automatic and random
selection of the folder or the disc which you
are currently listening to.
Playing the files in one folder in random
order —
Touch “RAND” briefly while the disc is
playing. “RAND” appears on the screen.
The system selects a file in the folder you
are currently listening to. To cancel it,
touch “RAND” once again.
Playing the files in all the folders on one
disc in random order —
Touch “RAND” for longer than a second
while the disc is playing. “FLD.RAND” ap-
pears on the screen. The system selects
a file in all the folders. To cancel it, touch
“RAND” once again.
When a file is skipped or the system is in-
operative, touch “RAND” to reset.

AUDIO/VIDEO SYSTEM
176
(g) If the player malfunctions
If “CD Error” appears on the screen, audio
signals of the disc cannot be read or the
system has trouble. Push the
“DISC/AUX” button once again.
If the changer does not operate, check that
the disc surface is not soiled or damaged.
If the disc is O.K., the temperature of the
changer’s internal mechanism may be
raised because of high external tempera-
ture. Remove the disc from the changer to
cool it.
If the changer still does not operate, have
it checked by your dealer.
If an MP3/WMA disc contains CD −DA
files, only CD−DA files are played. If an
MP3/WMA disc contains files other than
CD−DA, only MP3/WMA files are played. The Bluetooth
audio system enables
users to enjoy music played on a porta-
ble player from the vehicle speaker via
wireless communication.
U6086GS
This audio system supports
Bluetooth , a wireless data system
capable of playing portable audio
music without cables. If your portable
player does not support Bluetooth ,
the Bluetooth audio system will not
function.
—Bluetooth  audio
operation

AUDIO/VIDEO SYSTEM
177
INFORMATION
Portable players must correspond to
the following specifications in order
to be connected to the Bluetooth au-
dio system. However, please note
that some functions may be limited
depending on the type of portable
player.
 Bluetooth  Specification
Ver.1.1 or higher
(Recommended: Ver.2.0+EDR or
higher)
 Profile
 A2DP (Advanced Audio Dis-
tribution Profile) Ver.1.0
 AVRCP (Audio/Video Remote
Control Profile) Ver.1.0 or higher
(Recommended: Ver.1.3 or higher)
Please go to “http://www.toyota.lets-
talk.com/” to find approved
Bluetooth  phones for this system.
Bluetooth is a trademark owned by
Bluetooth SIG. Inc.
CAUTION
Do not operate the player’s controls
or connect to the Bluetooth  audio
system while driving.
NOTICE
Do not leave your portable player in
the car. In particular, high tempera-
tures inside the vehicle may damage
the portable player.
INFORMATION
In the following conditions, the
system may not function.
 The portable player is turned off.
 The portable player is not con-
nected.
 The portable player has a low bat-
tery.
If phone connection is carried out
during Bluetooth audio play, addi-
tional time may be required.

AUDIO/VIDEO SYSTEM
178
U6099GS
1Indicates the condition of the
Bluetooth connection.
“Blue” indicates an excellent connection
to Bluetooth .
“Yellow” indicates a bad connection to
Bluetooth , resulting in possible deteriora-
tion of audio quality.
: No connection to Bluetooth .
2Indicates the amount of battery
charge left.
Empty Full
Remaining charge is not displayed while
the Bluetooth is connecting.
The amount left does not always corre-
spond with the one of your portable player.
This system doesn’t have a charging func-
tion. An antenna for the Bluetooth
connection is built in to the display. The
indication of the Bluetooth
connection may turn yellow and the
system
may not function when you use
the Bluetooth portable player in the
following conditions.
Your portable player is hiding behind
from the display (behind the seat or in
the glove box or console box).
Your portable player touches or is cov-
ered with metal materials.
Leave the Bluetooth  portable player in a
place where the “Blue” indication is dis-
played.
The portable player information is regis-
tered when the Bluetooth audio system is
connected. When you release possession
of your vehicle, remove your portable play-
er. (See “(a) Removing a Bluetooth  au-
dio” on page 297.)

AUDIO/VIDEO SYSTEM
179

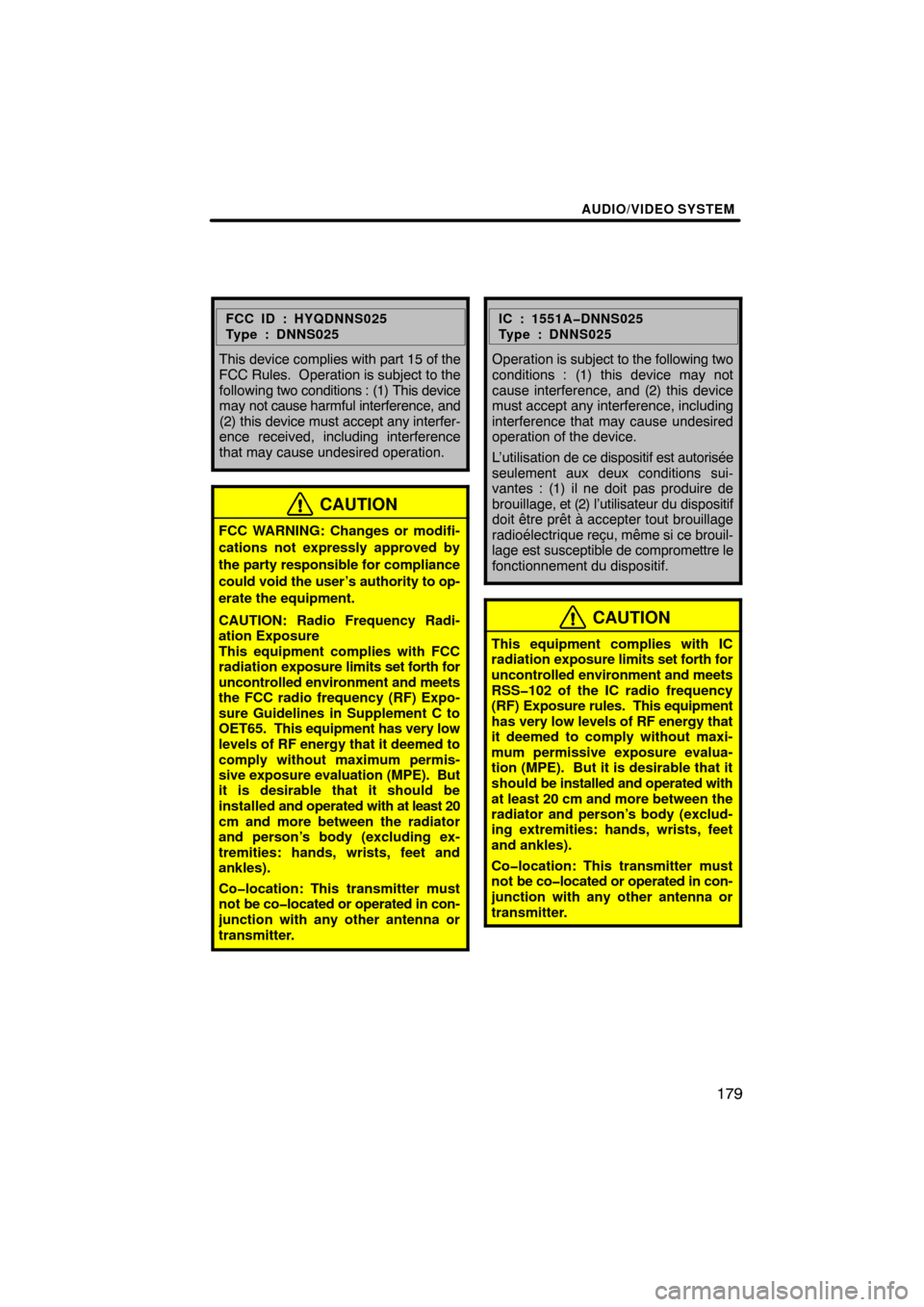

FCC ID : HYQDNNS025
Type : DNNS025
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions : (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
CAUTION
FCC WARNING: Changes or modifi-
cations not expressly approved by
the party responsible for compliance
could void the user’s authority to op-
erate the equipment.
CAUTION: Radio Frequency Radi-
ation Exposure
This equipment complies with FCC
radiation exposure limits set forth for
uncontrolled environment and meets
the FCC radio frequency (RF) Expo-
sure Guidelines in Supplement C to
OET65. This equipment has very low
levels of RF energy that it deemed to
comply without maximum permis-
sive exposure evaluation (MPE). But
it is desirable that it should be
installed and operated with at least 20
cm and more between the radiator
and person’s body (excluding ex-
tremities: hands, wrists, feet and
ankles).
Colocation: This transmitter must
not be colocated or operated in con-
junction with any other antenna or
transmitter.
IC : 1551ADNNS025
Type : DNNS025
Operation is subject to the following two
conditions : (1) this device may not
cause interference, and (2) this device
must accept any interference, including
interference that may cause undesired
operation of the device.
L’utilisation de ce dispositif est autorisée
seulement aux deux conditions sui-
vantes : (1) il ne doit pas produire de
brouillage, et (2) l’utilisateur du dispositif
doit être prêt à accepter tout brouillage
radioélectrique reçu, même si ce brouil-
lage est susceptible de compromettre le
fonctionnement du dispositif.
CAUTION
This equipment complies with IC
radiation exposure limits set forth for
uncontrolled environment and meets
RSS102 of the IC radio frequency
(RF) Exposure rules. This equipment
has very low levels of RF energy that
it deemed to comply without maxi-
mum permissive exposure evalua-
tion (MPE). But it is desirable that it
should be installed and operated with
at least 20 cm and more between the
radiator and person’s body (exclud-
ing extremities: hands, wrists, feet
and ankles).
Colocation: This transmitter must
not be colocated or operated in con-
junction with any other antenna or
transmitter.

AUDIO/VIDEO SYSTEM
180
Cet équipement se conforme aux
limites d’exposition aux radiations
établies par Industrie Canada pour
un environnement non contrôlé ainsi
qu’aux directives d’exposition aux
fréquences radioélectriques (RF)
émises par Industrie Canada dans la
norme CNR102. Cet équipement
émet un niveau d’énergie RF faible à
un point tel qu’il se conforme sans
devoir effectuer d’évaluation
d’exposition maximum admissible
(MPE). Lorsque l’équipement est
utilisé, il est toutefois souhaitable de
laisser au moins 20 cm entre
l’antenne et le corps (à l’exception
des extrémités: mains, poignets,
pieds et chevilles).
Emplacement: Cet émetteur ne doit
pas être utilisé ni placé à proximité
d’une autre antenne ou d’un autre
émetteur.(a) Connecting Bluetooth audio play-
er
To use the Bluetooth audio system,
you need to enter your portable player
into the system. Once you have
registered it, you can enjoy your music
on the vehicle’s audio system. (See
“—Setting Bluetooth audio” on page
295.)
For the operation procedure for the
portable player, see the instruction
manual that comes with it.
When the connection method is
“From Vehicle”.
When the auto connection is on
When the portable player is
standby for the connection, it
will be automatically connected
whenever the engine switch is in
either “ACC” or “ON” position.
When the auto connection is off
Manually connect the portable
player in accordance with the fol-
lowing procedure.
