buttons TOYOTA SEQUOIA 2012 2.G Navigation Manual

ROUTE GUIDANCE
86

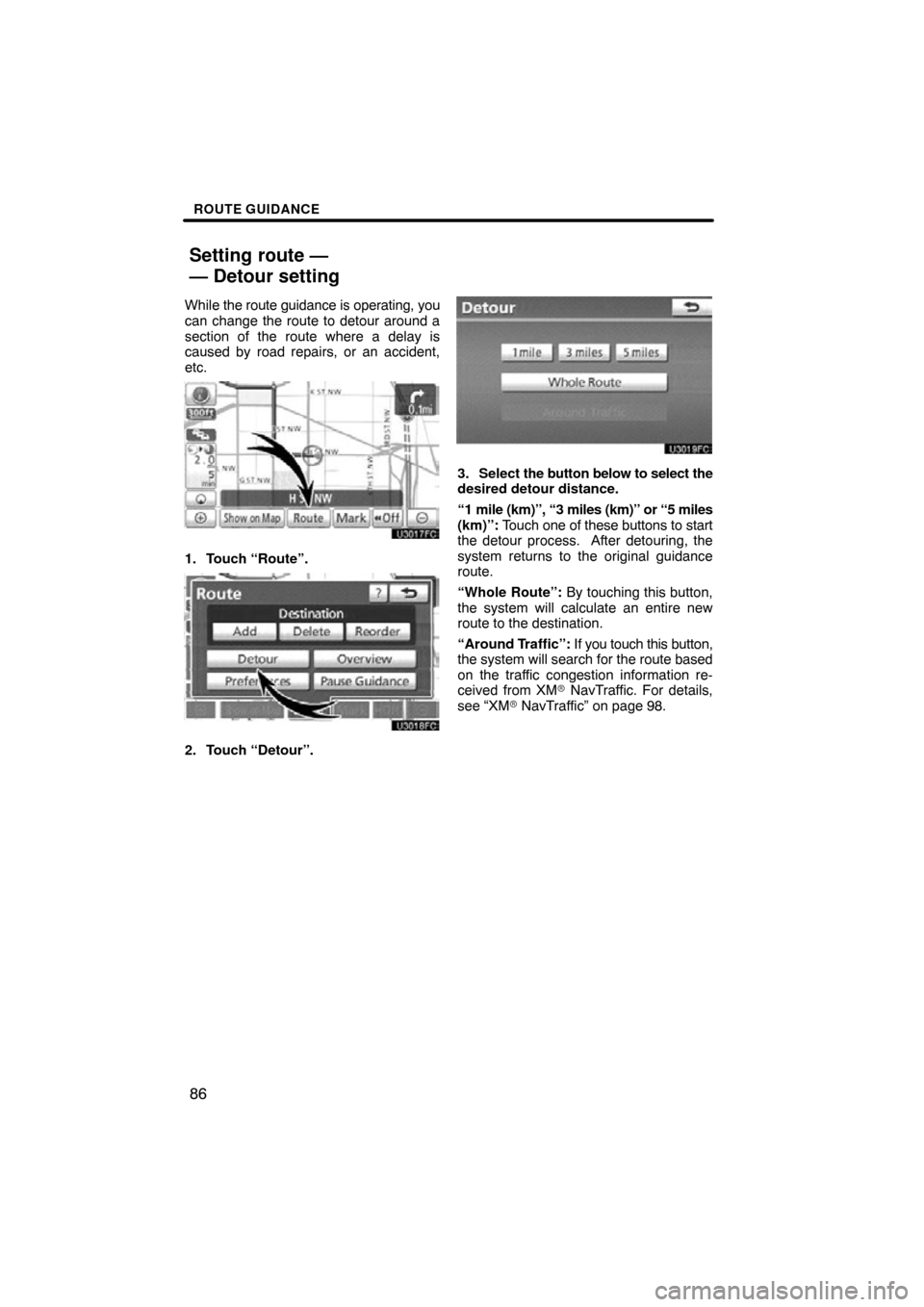

While the route guidance is operating, you
can change the route to detour around a
section of the route where a delay is
caused by road repairs, or an accident,
etc.
1. Touch “Route”.
2. Touch “Detour”.
3. Select the button below to select the
desired detour distance.
“1 mile (km)”, “3 miles (km)” or “5 miles
(km)”: Touch one of these buttons to start
the detour process. After detouring, the
system returns to the original guidance
route.
“Whole Route”: By touching this button,
the system will calculate an entire new
route to the destination.
“Around Traffic”: If you touch this button,
the system will search for the route based
on the traffic congestion information re-
ceived from XM NavTraffic. For details,
see “XM NavTraffic” on page 98.
Setting route —
— Detour setting

MY PLACES
11 3

To change “Location”
1. Touch “Edit” of “Location”.
2. Touch
one of the 8 directional touch
screen buttons to move the cursor
to the desired point on the map.
3. Touch “OK”.
The previous screen will be displayed.
To change “Phone #” (telephone
number)
1. Touch “Edit” of “Phone #”.
2. Enter the number using number
keys.
3. Touch “OK”.
The previous screen will be displayed.

AUDIO/VIDEO SYSTEM
144
Operations such as selecting a preset station and adjusting the sound balance are c\
ar-
ried out on the touch screen. To display the audio screen, push the “AUDIO” button.
U6001AD
STN
1Function menu display screen
To control the radio, CD changer,
DVD player
∗, Bluetooth audio
player, AUX or USB memory/iPod,
touch the touch− screen buttons. For
details, see page 148.
2Function menu tab
To control the radio, CD changer,
DVD player
∗, Bluetooth audio
player, AUX or USB memory/iPod,
touch the touch −screen tabs. For
details, see page 147.
3“TUNE·FILE” knob
Turn this knob to move the station
band and files up or down. For de-
tails, see pages 154, 159 and 172.
4“FM” button
Push this button to choose an FM sta-
tion. Each time this button is pushed,
the mode switches between FM1 and
FM2. For details, see pages 147 and
153.
5“AM” button
Push this button to choose an AM sta-
tion. For details, see pages 147 and
153.
∗: Vehicles with rear seat entertainment system
Quick reference

AUDIO/VIDEO SYSTEM
147
(b) Turning the system on and off
U023ADNS
“AUDIO”: Push this button to display
touch−screen buttons for audio system
(audio control mode).
“PWR·VOL”: Push this knob to turn the
audio system on and off. Turn this knob to
adjust the volume. The system turns on in
the last mode used.
You can select the function that enables
automatic return to the previous screen
from the audio screen. See page 236 for
details. (c) Switching between functions
U030ADNS
Push the “AM”, “FM”, “SAT” or
“DISC/AUX” button to turn on the
desired mode.
U6080GS
Push
the “AUDIO” button and touch the
“AM”, “FM”, “SAT”, “CD”, “DVD∗”,
“BT”, “AUX”or “USB” tab to turn on the
desired mode.
∗: Vehicles with rear seat entertainment system

AUDIO/VIDEO SYSTEM
148
Push these buttons or tabs if you want to
switch from one mode to another.
If the disc is not set, the CD changer/DVD
player
∗ does not turn on.
You can turn of f the CD changer/DVD play-
er
∗ by ejecting all the discs. If the audio
system was previously off, then the entire
audio system will be turned off when you
eject all the discs. If the other function was
previously playing, it will come on again.U6081GS
U6080GS
U6082GS
U6083GS
∗: Vehicles with rear seat entertainment system

AUDIO/VIDEO SYSTEM
149
U6084GS
U6086GS
U6085GS
U6078GS
U6079GS
The touchscreen buttons for radio, CD
changer, DVD player∗, Bluetooth au-
dio player, AUX and USB memory/iPod
operation are displayed on the function
touchscreen button display screen
when the audio control mode is se-
lected. Touch them lightly and directly
on the screen.
Touch the tab to select the desired mode
when the audio control mode is selected.
The selected switch is highlighted.
INFORMATION
If the system does not respond to a
touch of a touchscreen button,
move your finger away from the
screen and then touch it again.
You cannot operate dimmed
touchscreen buttons.
Wipe off fingerprints using a glass
cleaning cloth. Do not use chemi-
cal cleaners to clean the touch
screen.
∗: Vehicles with rear seat entertainment system

AUDIO/VIDEO SYSTEM
153
(h) Your DVD player
(with rear seat entertainment system)
The sound of the rear seat entertainment
system can be enjoyed by pushing the
“DISC/AUX” button or touching the
“DVD” tab on AUDIO screen.
(i) AUX port
The sound of portable audio players
connected to the AUX port can be enjoyed.
Push the “DISC/AUX” button or push the
“AUDIO” button to display audio screen
and touch the “AUX” tab to switch to AUX
mode. When the portable audio player is
not connected to the AUX port, the tab will
tone down. For details, refer to the
“Owner’s Manual”.
(j) USB port
It is necessary to connect the USB
memory/iPod with the USB port. When the
USB memory/iPod is not connected to the
USB port, the tab will tone down. (a) Listening to the radio
U013ADNS
Push
the “AM” or “FM” buttons or push
the “AUDIO” button to display audio
screen and touch the “AM” or “FM”
tabs to choose either an AM or FM sta-
tion.
“AM”, “FM1” or “FM2” appears on the
screen.
If your vehicle is equipped with a satellite
radio broadcast system, when you push
the “SAT” button or touch the “SAT” tab
on AUDIO screen, “SAT1”, “SAT2”, “SAT3”
station appears on the display. For details
about satellite radio broadcast, see
“—Radio operation (XM  Satellite Radio
broadcast)” on page 158.
— Radio operation

AUDIO/VIDEO SYSTEM
160
(e) Presetting a channel
1. Tune in the desired channel.
U6082GS
2. Touch one of the channel selector
buttons (1 — 6) and hold it until a beep
is heard.
This sets the channels to the touch −
screen button and the name and number
of the channel appears on the touch −
screen button.
Each touch− screen button can store three
SAT channels. To change the preset chan-
nel to a different one, follow the same pro-
cedure.
The preset channel memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse. (f) Selecting a channel
Tune in the desired channel using one of
the following methods.
Preset tuning:
Touch the channel selec-
tor button (1 — 6) for the channel you want.
The button (1 — 6) is highlighted and chan-
nel number appears on the display.
To select channel within the current
category: Push the “ ” or “” side of the
“SEEK/TRACK” button. The radio will
step up or down the channel within the cur-
rent channel category. Touch “Type-
Seek”. The radio will step up the channel
within the current channel category.
U6082GS
To scan the currently selected channel
category: Touch “SCAN” briefly. “SCAN”
appears on the display. The radio will find
the next channel in the same channel cate-
gory, stay there for a few seconds, and
then scan again. To select a channel,
touch “SCAN” a second time.
To scan the preset channels: Touch
“SCAN” and hold it until you hear a beep.
“P.SCAN” appears on the display. The ra-
dio will find the next preset channel, stay
there for a few seconds, and then move to
the next preset channel. To select a chan-
nel, touch “SCAN” a second time.

AUDIO/VIDEO SYSTEM
198
DESCRIPTION OF DVD CONTROLS
“Menu” and “Top Menu”: If you touch
any of the above controls, the menu
screen for DVD video appears. (For the
operation, see the manual that come with
the DVD video disc provided separately.)
: The menu control key appears on the
screen. (See page 198.)
: Touching this will pause the video
screen.
: Touching this will fast reverse dur-
ing playback.
: Touching this will stop the video
screen.
: Touching this will resume normal
play during pause.
: Touching this will fast forward dur-
ing playback and forward frame by frame
during pause.
U6052GS
U6053GS
SELECTING A MENU ITEM
Enter the menu item using
,
, and and touch
“Enter”. The player starts playing vid-
eo for that menu item. (For details, see
the manual that comes with the DVD
video disc provided separately.)
Each time you touch “Move Buttons”,
the controls on the screen move up-
ward and downward.
When you touch the screen, the controls
will disappear. To display them again,
touch the screen.
When you touch
, the previous
screen returns.

AUDIO/VIDEO SYSTEM
201
U6058GS
SETUP MENU
There are initial setting touchscreen
buttons on the “Setup Menu” screen.
After you change the initial setting, touch
. The initial setting screen will be
turned off and return to the picture
previously.
When “Default” is touched, all menus are
initialized.
The initial setting can be changed.
Audio language
You can change the audio language.
1. Touch “Audio Language”.
2. Touch the language you want to
hear on the “Audio Language” screen.
If you cannot find the language you want to
hear on this screen, touch “Other” and
enter a language code. For the entry of
language code, see the following “ENTER
AUDIO LANGUAGE CODE”.
To return to the “Setup Menu” screen,
touch the
.
Subtitle language
You can change the subtitle language.
1. Touch “Subtitle Language”.
2. Touch a language you want to read
on the “Subtitle Language” screen.
If you cannot find the language you want to
read on this screen, touch “Other” and
enter a language code. For the entry of
language code, see the following “ENTER
AUDIO LANGUAGE CODE”.
To return to the “Setup Menu” screen,
touch the
.
DVD language
You can change the language on the
DVD video menu.
1. Touch “DVD Language”.
2. Touch the language you want to
read on the “DVD Language” screen.
If you cannot find the language you want to
read on this screen, touch “Other” and
enter a language code. For the entry of
language code, see the following “ENTER
AUDIO LANGUAGE CODE”.
To return to the “Setup Menu” screen,
touch
.
