TOYOTA SEQUOIA 2012 2.G Owners Manual

401
3-4. Using the rear audio/video system
3
Interior features

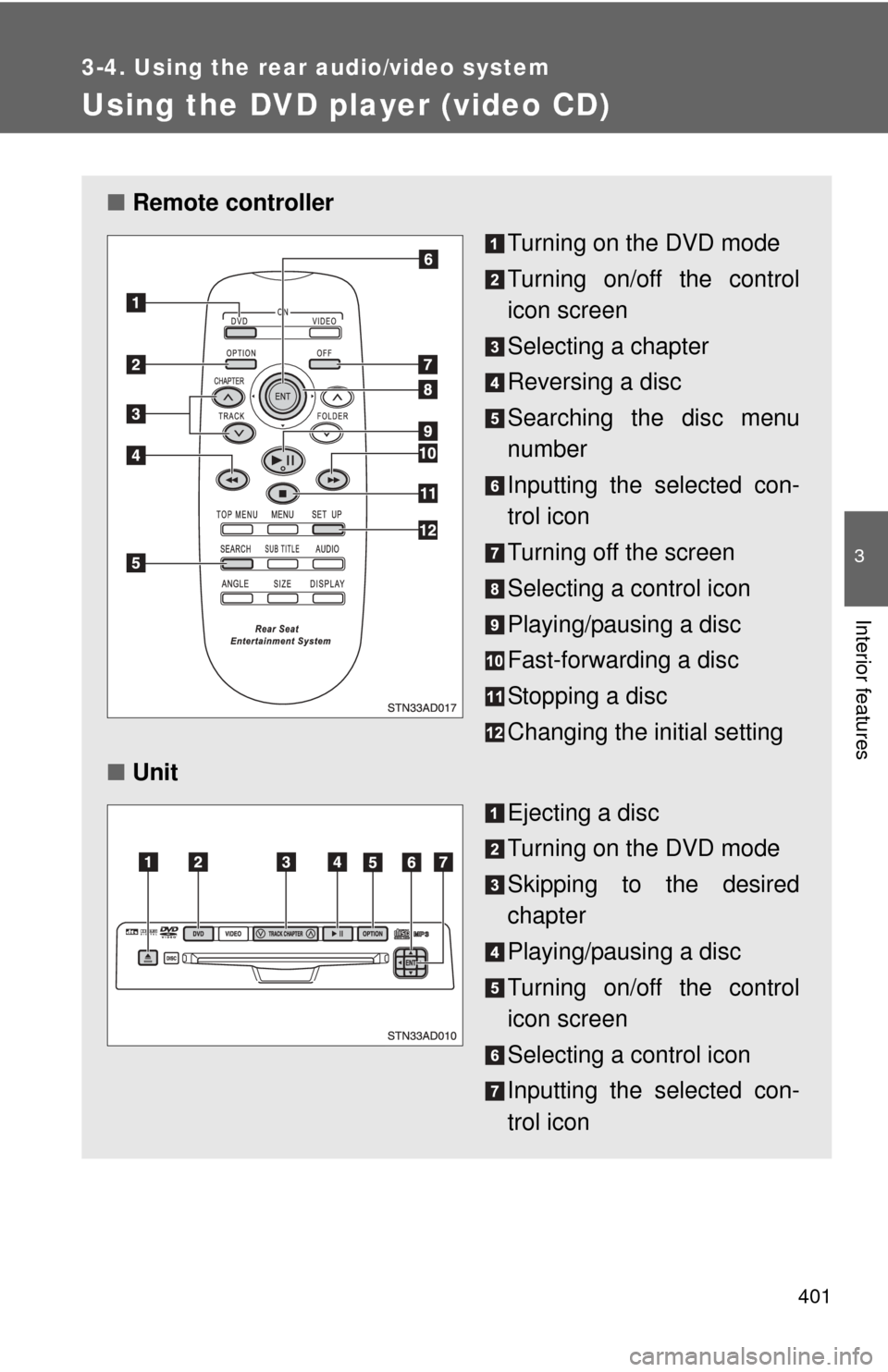

Using the DVD player (video CD)
â– Remote controller
Turning on the DVD mode
Turning on/off the control
icon screen
Selecting a chapter
Reversing a disc
Searching the disc menu
number
Inputting the selected con-
trol icon
Turning off the screen
Selecting a control icon
Playing/pausing a disc
Fast-forwarding a disc
Stopping a disc
Changing the initial setting
â–  Unit
Ejecting a disc
Turning on the DVD mode
Skipping to the desired
chapter
Playing/pausing a disc
Turning on/off the control
icon screen
Selecting a control icon
Inputting the selected con-
trol icon

402 3-4. Using the rear audio/video system

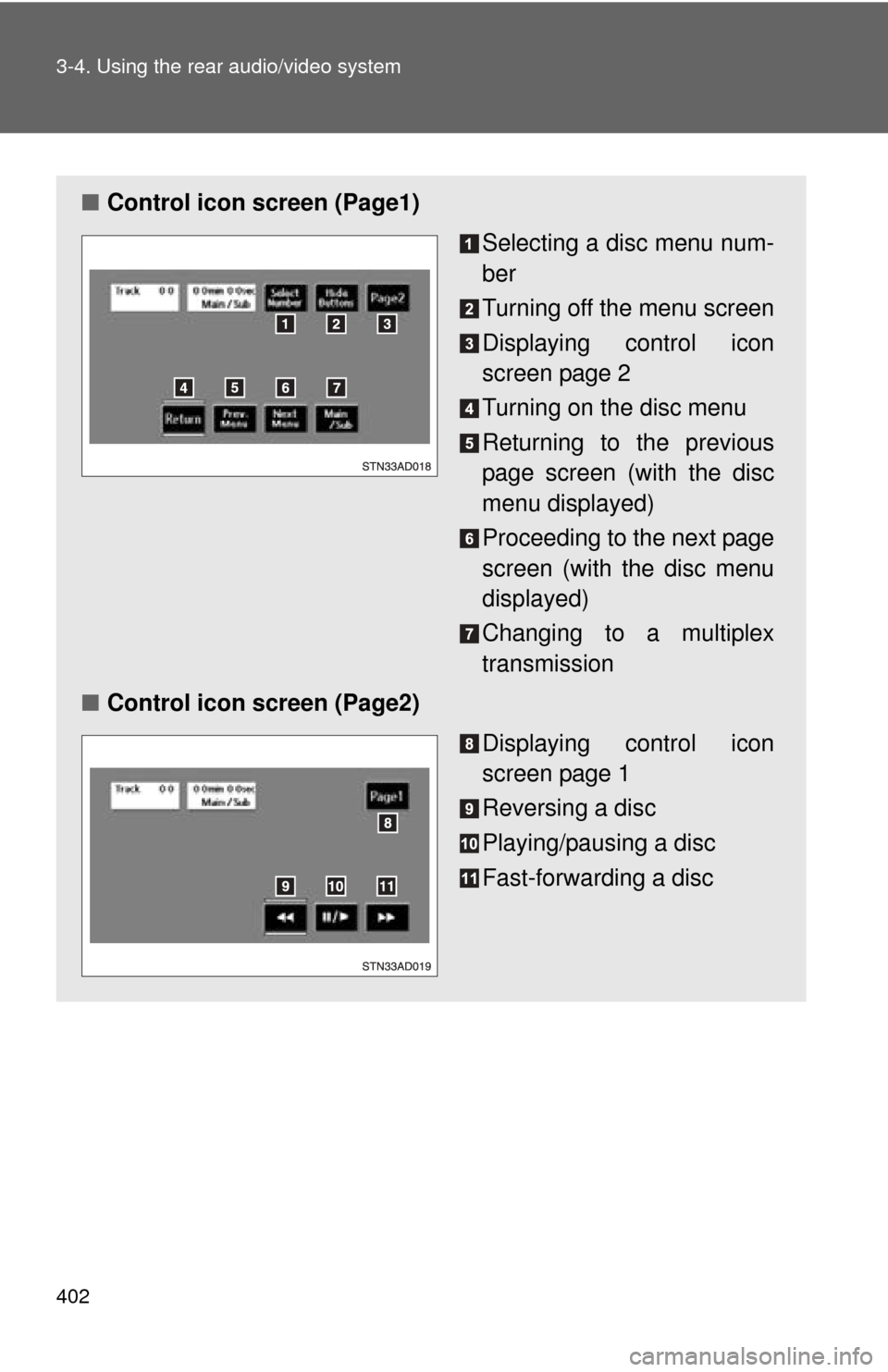

â– Control icon screen (Page1)
Selecting a disc menu num-
ber
Turning off the menu screen
Displaying control icon
screen page 2
Turning on the disc menu
Returning to the previous
page screen (with the disc
menu displayed)
Proceeding to the next page
screen (with the disc menu
displayed)
Changing to a multiplex
transmission
â–  Control icon screen (Page2)
Displaying control icon
screen page 1
Reversing a disc
Playing/pausing a disc
Fast-forwarding a disc

403
3-4. Using the rear audio/video system
3
Interior features
Selecting a disc menu number
Select
to display the disc menu number search screen.
Select the disc menu number, and press or to input it.
Select to return to the previous screen.
â–  Operating from the front audio system
Press: Selecting a chapter
Press and hold: Fast-for-
warding/reversing a disc
Stopping/playing a disc
Selecting the DVD mode
Starting a disc
Displaying a elapsed time
Playing/pausing a disc

404
3-4. Using the rear audio/video system

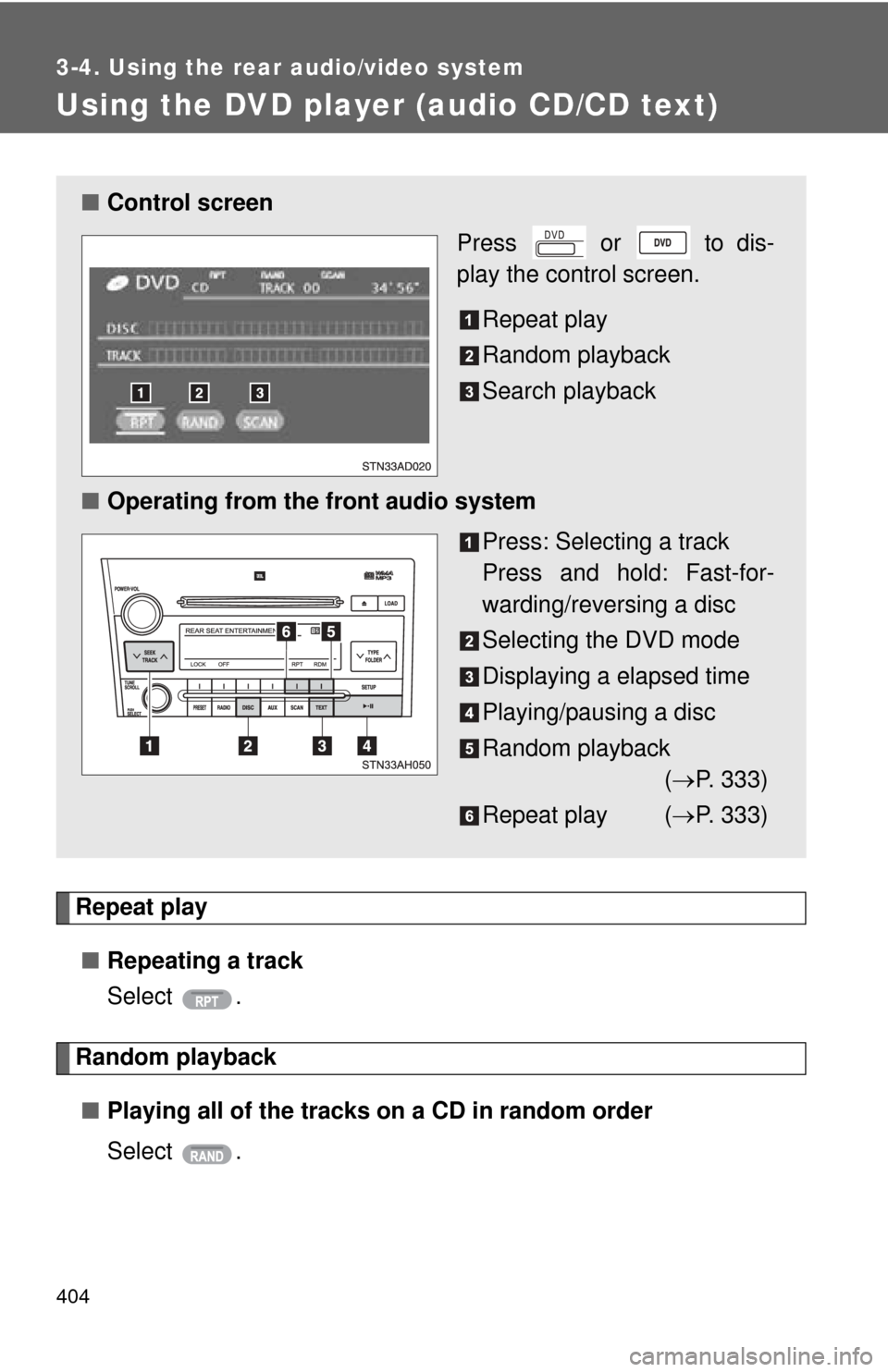

Using the DVD player (audio CD/CD text)
Repeat playâ–  Repeating a track
Select .
Random playback
â–  Playing all of the tracks on a CD in random order
Select .
â– Control screen
Press or to dis-
play the control screen.
Repeat play
Random playback
Search playback
â–  Operating from the front audio system
Press: Selecting a track
Press and hold: Fast-for-
warding/reversing a disc
Selecting the DVD mode
Displaying a elapsed time
Playing/pausing a disc
Random playback(ï‚® P. 333)
Repeat play ( ï‚®P. 333)

405
3-4. Using the rear audio/video system
3
Interior features
Search playback
â–  Scanning tracks
Select .
The first 10 seconds of each track will be played.
Select again when the desired track is reached.
â– Canceling repeat play and random playback
Select or once again.

406
3-4. Using the rear audio/video system
Using the DVD player (MP3 discs)
Repeat playâ–  Repeating a file
Select .
â–  Repeating all of the files in the folder
Select , and press and hold or .
â– Control screen
Press or to dis-
play the control screen.
Repeat play
Random playback
Search playback
Displaying file information
Selecting a folder
â–  Operating from the front audio system
Press: Selecting a file
Press and hold: Fast-for-
warding/reversing a file
Selecting the DVD mode
Displaying a elapsed time
Playing/pausing a disc
Random playback(ï‚® P. 340)
Repeat play ( ï‚®P. 341)

407
3-4. Using the rear audio/video system
3
Interior features
Random playback
â–  Playing files from a particular folder in random order
Select .
â–  Playing all of the files on a disc in random order
Select , and press and hold or .
Selecting and scanning folders
â–  Selecting folders one at a time
To select the desired folder, select or .
â–  Scanning the desired folder by cueing the first file of each
folder
Select , and press and hold or .
The first 10 seconds of the first file in each folder will be played.
When the desired folder is reached, select once
again.
Scanning filesâ–  Scanning the desired file by cueing the files in the folder
Select .
The first 10 seconds of all files in the folder will be played.
When the desired file is reached, select once again.
Displaying file information.
Select .

408 3-4. Using the rear audio/video system
â– Canceling repeat play and random playback
Select or once again.

409
3-4. Using the rear audio/video system
3
Interior features
Using the video mode
Using the A/V input portOpen the cover.
The A/V input port is composed of
3 input adapters.
Yellow: Image input adapter
White: Left channel audio input
adapter
Red: Right channel audio input
adapter
Press or to select
the video mode.
Before switching to the video
mode, connect the audio
source to the A/V input port.
â– A/V input port
The rear seat entertainment system plays videos and sound when audio-
visual equipment is connected to the A/V input port. For details, refer to the
manufacturer’s instructions.
â–  Power outlet
The power outlet can be used to connect the audio-visual device. ( ï‚®P. 483)

410 3-4. Using the rear audio/video system
NOTICE
â– When the A/V input port is not in use
Keep the A/V input port cover closed.
Inserting anything other than an appropriate plug may cause electrical fail-
ure or a short circuit.
