check engine light TOYOTA SEQUOIA 2012 2.G Quick Reference Guide

6
Indicator symbols
Charging system warning1
Brake system warning1
AIR BAG ON indicator
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
AIR BAG OFF indicator
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2012 Owner’s
Manual .
Headlight low/high beam indicator
Turn signal indicator
Low Tire Pressure Warning1
Power steering warning1
Open door warning
Airbag SRS warning1
Master warning
Theft deterrent/Engine immobilizer system indicator Malfunction/Check Engine indicator
1
Engine oil replacement reminder
Low fuel level warning
Roll Sensing of Curtain shield Airbag OFF indicator1
Shift position and shift range indicators
Vehicle Stability Control OFF indicator1
TOW/HAUL mode indicator
Low windshield washer fluid level warning
OVERVIEW
1If in
mal
2012-Sequoia-QRG.qxd 8/16/11 7:41 PM Page 6

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
9
for

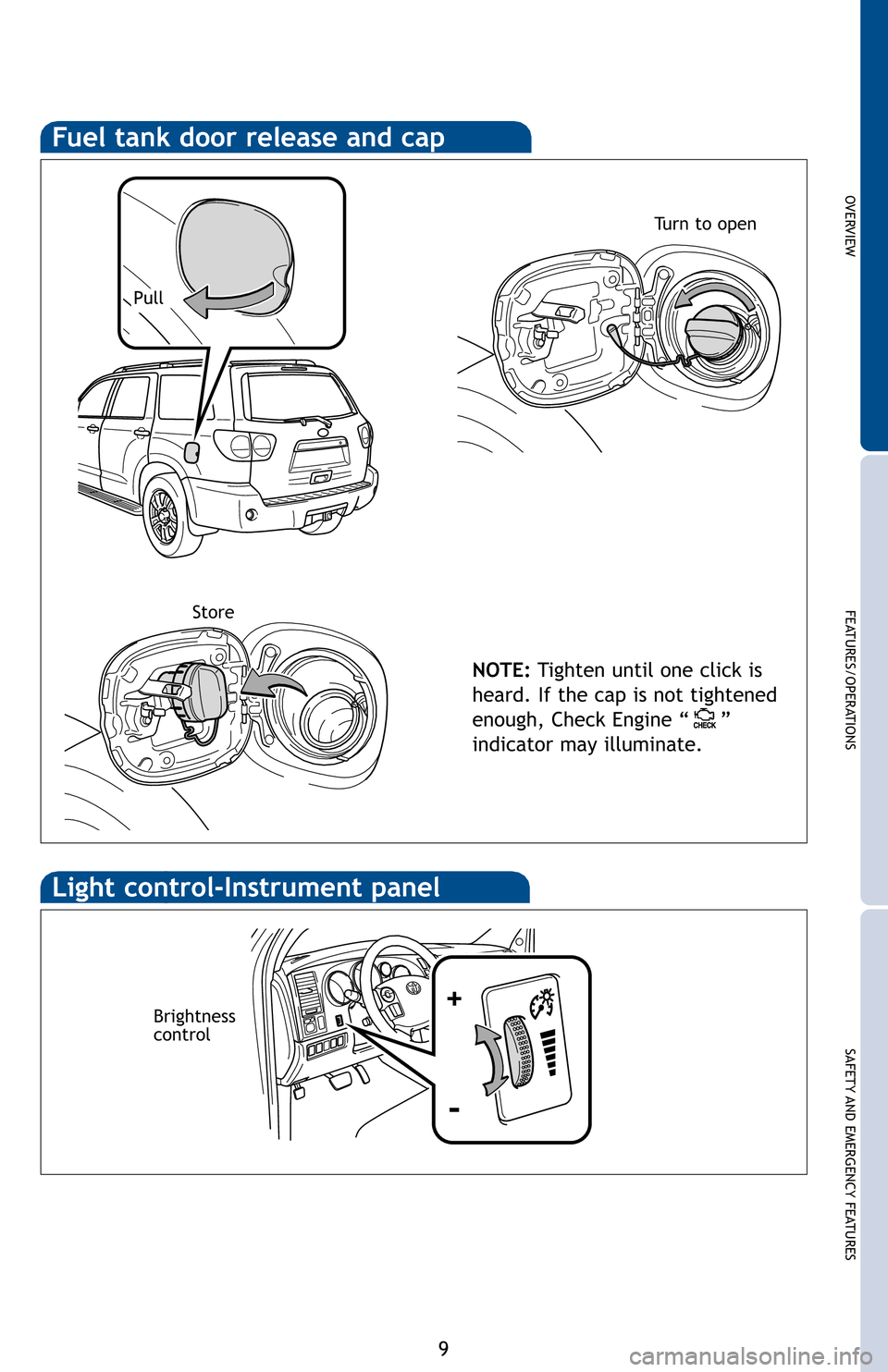

Fuel tank door release and cap
NOTE:Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Turn to open
Store
Pull
Light control-Instrument panel
Brightness
control
-
+
2012-Sequoia-QRG.qxd 8/16/11 7:42 PM Page 9
