differential TOYOTA SEQUOIA 2012 2.G Quick Reference Guide

4
Accessory meter
Theft deterrent/Engine immobilizer system indicator
Audio system or navigation system
1,2
Air Conditioning controls
Outside rearview mirrors/Back window defogger/Windshield wiper de-icer
button
1
12V DC Power outlet
Seat heater1and ventilator1controls
Cigarette lighter
AUX audio jack/USB port
1
Height control switch1
AVS switch1
“TOW/HAUL” button1
Center differential lock/unlock switch1
Front-wheel drive control switch1
Intuitive parking assist button1
Multi-information display control buttons1 and/or accessory meter control
buttons1
Emergency flasher button
1If equipped2Vehicles with navigation system: for details, refer to the “ Navigation
System Owner’s Manual .”
OVERVIEW
Ins
Wit
Wit
Center panel area
2012-Sequoia-QRG.qxd 8/16/11 7:39 PM Page 4

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7
Anti-lock Brake System warning1
Slip indicator1
High/Low speed four-wheel drive indicator
Center differential lock indicator
Cruise control indicator AUTO Limited Slip Differential indicator
1
Height control indicator1
Height control/MANUAL indicator1
1If indicator does not turn off within a few seconds of starting engine, \
there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
Automatic Transmission fluid temperature warning1
Traction Control OFF indicator1
2012-Sequoia-QRG.qxd 8/16/11 7:41 PM Page 7

12

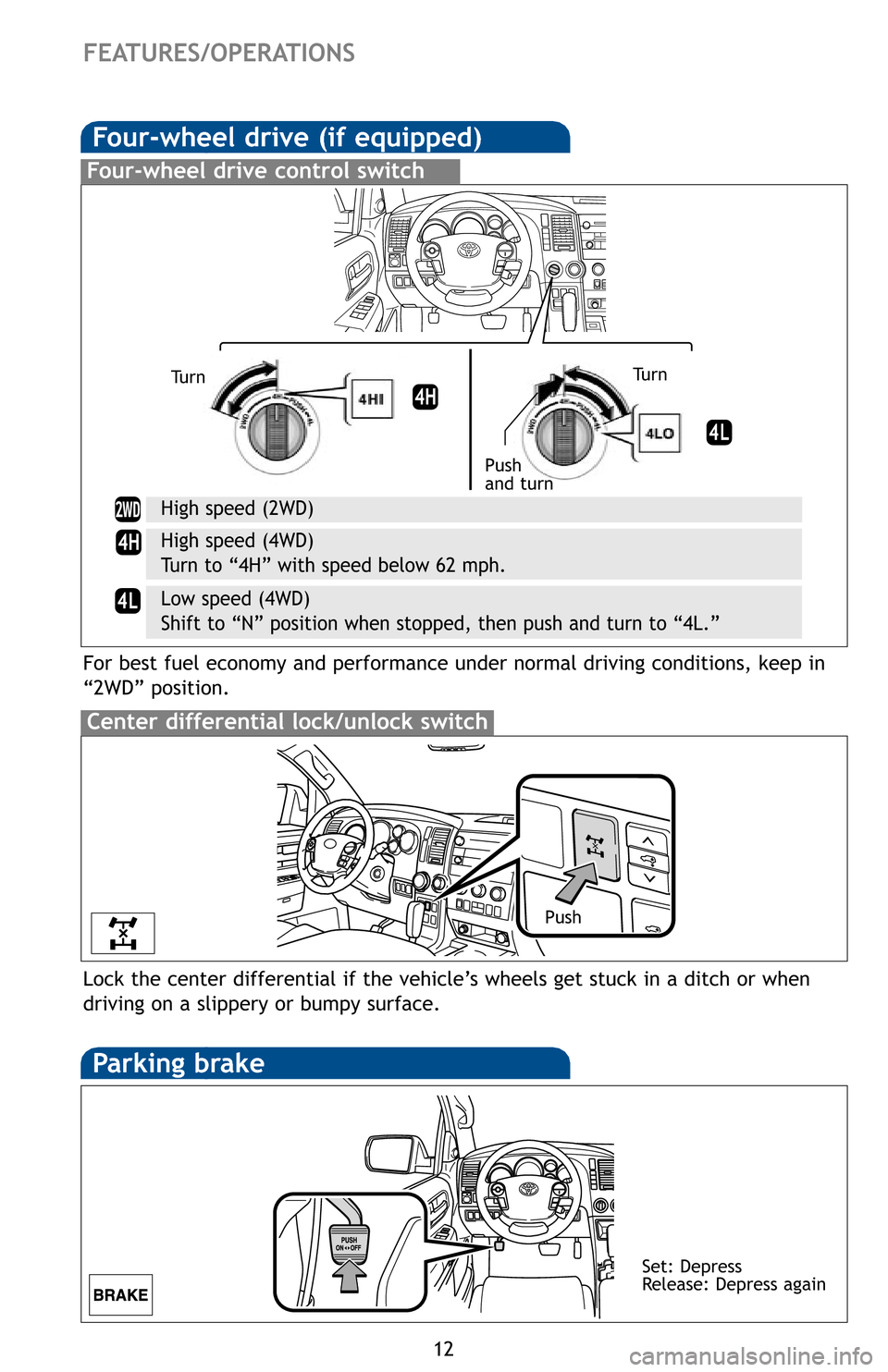

FEATURES/OPERATIONS
Lock the center differential if the vehicle’s wheels get stuck in a ditch or when
driving on a slippery or bumpy surface.
Center differential lock/unlock switch
Four-wheel drive (if equipped)
High speed (2WD)
High speed (4WD)
Turn to “4H” with speed below 62 mph.
Low speed (4WD)
Shift to “N” position when stopped, then push and turn to “4L.”\
WD
For best fuel economy and performance under normal driving conditions, k\
eep in
“2WD” position.
Push
and turn
Turn
Turn
Push
Four-wheel drive control switch
BS
The
chan
in an
(the
rear
Refe
to u
Parking brake
Set: Depress
Release: Depress again
Se
L
2012-Sequoia-QRG.qxd 8/16/11 7:43 PM Page 12
