lock TOYOTA SEQUOIA 2012 2.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
1
INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Engine maintenance 10Fuel tank door release and cap 9Hood release 10Indicator symbols6-7Instrument cluster 5Instrument panel2-4Keyless entry18
Light control-Instrument panel 9
Accessory meter20Air Conditioning/Heating22-23Audio 24-25Auto lock/unlock111Automatic Transmission 11BSM (Blind Spot Monitor)13Cruise control 26Cup holders31Door locks 28Door-Power back19Dynamic Laser Cruise Control27Four-wheel drive 12Garage door opener (HomeLink®)326Lights1& turn signals17Moonroof 20Multi-information display228Parking brake12Power outlets-12V DC30Power outlets-120V AC30Rear seat entertainment system31Seat adjustments-Front 15Seat adjustments-Rear14Seat ventilators/heaters23Seats-Folding second row seats 15Seats-Folding third row seats16Seats-Head restraints13Steering wheel switches25Telephone controls (Bluetooth®)29Tilt and telescopic steering wheel21“TOW/HAUL” switch 11VSC OFF button21Window-Back19Windows 18
Windshield wipers & washers 18
Doors-Child safety locks 33Floor mat installation35Seat belts32Seat belts-Shoulder belt anchor33Spare tire & tools 33Star Safety SystemTM34-35
Tire Pressure Monitoring (warning) System 32
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
2012-Sequoia-QRG.qxd 8/16/11 7:37 PM Page 1

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
Tilt and telescopic steering control switch1
Tilt and telescopic steering lock release lever1
Roll Sensing of Curtain shield Airbag OFF switch1
“REVERSE TILT” (side mirrors) switch1
Headlight cleaner1
Power back door button1
BSM (Blind Spot Monitor) main switch1
Power rearview mirror controls
1If equipped2Vehicles with navigation system: for details, refer to the “Navigation System
Owner’s Manual .”
Details on the center panel
area on next page
2012-Sequoia-QRG.qxd 8/16/11 7:38 PM Page 3

4
Accessory meter
Theft deterrent/Engine immobilizer system indicator
Audio system or navigation system
1,2
Air Conditioning controls
Outside rearview mirrors/Back window defogger/Windshield wiper de-icer
button
1
12V DC Power outlet
Seat heater1and ventilator1controls
Cigarette lighter
AUX audio jack/USB port
1
Height control switch1
AVS switch1
“TOW/HAUL” button1
Center differential lock/unlock switch1
Front-wheel drive control switch1
Intuitive parking assist button1
Multi-information display control buttons1 and/or accessory meter control
buttons1
Emergency flasher button
1If equipped2Vehicles with navigation system: for details, refer to the “ Navigation
System Owner’s Manual .”
OVERVIEW
Ins
Wit
Wit
Center panel area
2012-Sequoia-QRG.qxd 8/16/11 7:39 PM Page 4

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7
Anti-lock Brake System warning1
Slip indicator1
High/Low speed four-wheel drive indicator
Center differential lock indicator
Cruise control indicator AUTO Limited Slip Differential indicator
1
Height control indicator1
Height control/MANUAL indicator1
1If indicator does not turn off within a few seconds of starting engine, \
there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
Automatic Transmission fluid temperature warning1
Traction Control OFF indicator1
2012-Sequoia-QRG.qxd 8/16/11 7:41 PM Page 7

8
OVERVIEW
Keyless entry
Push
Push ONCE: Driver door TWICE: All doors
Locking operation
Unlocking operation
Power back door operation (if equipped)
Push and hold
NOTE:If a door is not opened within 60 seconds of unlocking, all doors will r\
elock for
safety.
With power back door Without power back door
With power back door Without power back door
Panic button
Push and hold
Fu
Lig
2012-Sequoia-QRG.qxd 8/16/11 7:41 PM Page 8

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
fer
FEATURES/OPERATIONS
Automatic Transmission
* The ignition switch must be “ON” and the brake pedal depressed to \
shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshift (push and release)
-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking do\
wnhill.
For best fuel economy during normal driving conditions, always drive wit\
h the
shift lever in the “D” position.
“S” (Sequential) mode
Park*
Reverse
Neutral
Drive
“S” mode
“S”“D”
“TOW/HAUL” switch (if equipped)
“TOW/HAUL” mode can be used when carrying heavy loads. As fuel economy is
reduced while in “TOW/HAUL” mode, deactivating when driving without a load is
recommended.
Refer to the Owner‘s Manual for more details on this system before attempting
to use it.
System ON/OFF
Auto lock/unlock
Automatic door locks can be programmed to operate in four different mode\
s, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the iginition switch to the “ACC” or “LOCK” position.
Refer to the Owner’s Manual for more details.
2012-Sequoia-QRG.qxd 8/16/11 7:43 PM Page 11

12
FEATURES/OPERATIONS
Lock the center differential if the vehicle’s wheels get stuck in a ditch or when
driving on a slippery or bumpy surface.
Center differential lock/unlock switch
Four-wheel drive (if equipped)
High speed (2WD)
High speed (4WD)
Turn to “4H” with speed below 62 mph.
Low speed (4WD)
Shift to “N” position when stopped, then push and turn to “4L.”\
WD
For best fuel economy and performance under normal driving conditions, k\
eep in
“2WD” position.
Push
and turn
Turn
Turn
Push
Four-wheel drive control switch
BS
The
chan
in an
(the
rear
Refe
to u
Parking brake
Set: Depress
Release: Depress again
Se
L
2012-Sequoia-QRG.qxd 8/16/11 7:43 PM Page 12

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13
n
in
BSM (Blind Spot Monitor)(if equipped)
The Blind Spot Monitor is a system that assists the driver to confirm sa\
fety when
changing lanes. The system uses radar sensors to detect vehicles that are traveling
in an adjacent lane in the area that is not reflected in the outside rea\
rview mirror
(the blind spot), and advises the driver of the vehicles’ existence via the outside
rearview mirror indicator.
Refer to the Owner‘s Manualfor more details on this system before attempting
to use it.
System ON/OFF
ain
Seats-Head restraints
Front
Third row (center)
Lock release button
Lock release button
Second row
Lock release button * 8-passenger models only
*
Third row (outside)
2012-Sequoia-QRG.qxd 8/16/11 7:44 PM Page 13

14
FEATURES/OPERATIONS

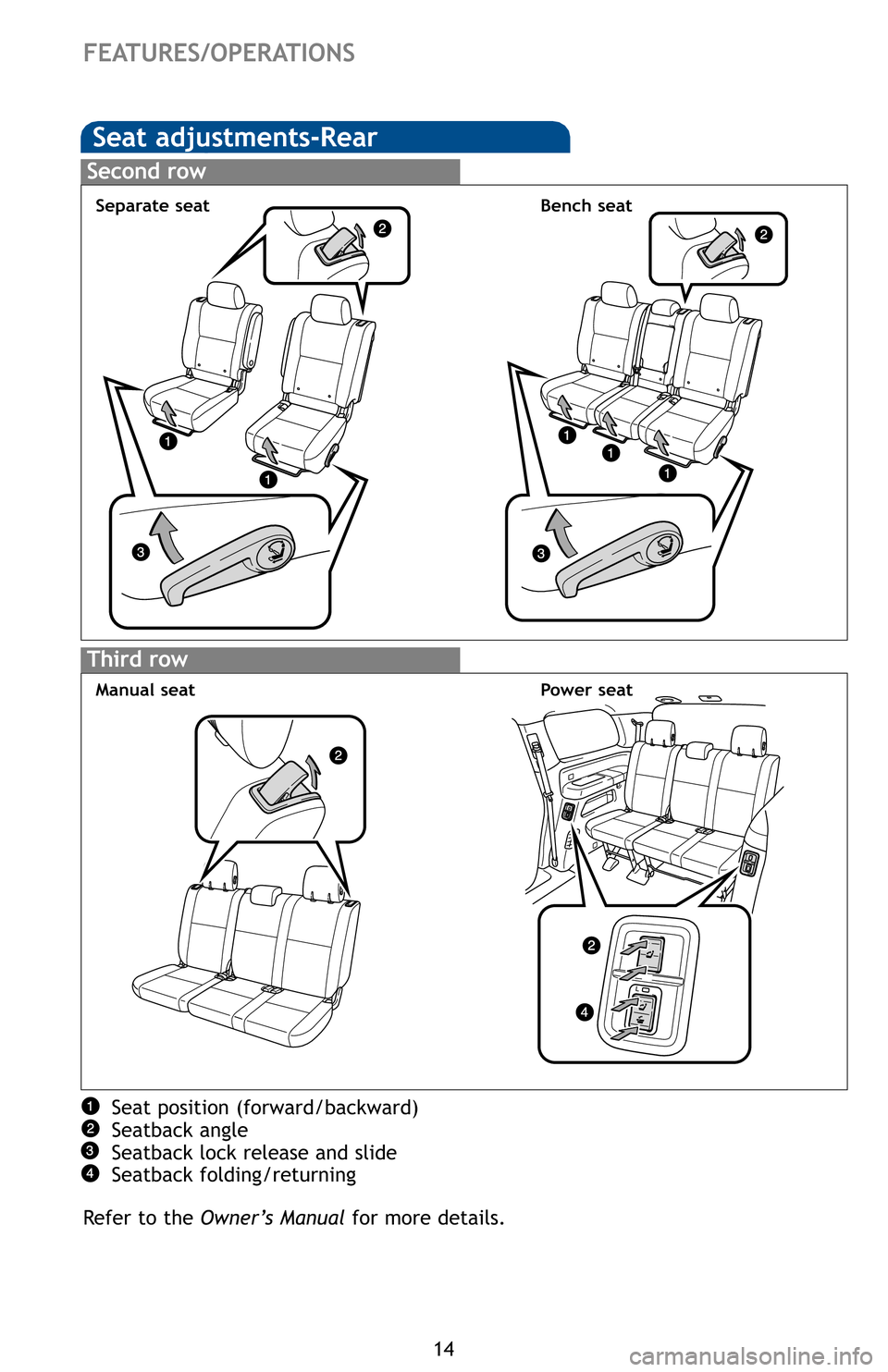

Seat adjustments-Rear
Seat position (forward/backward)
Seatback angle
Seatback lock release and slide
Seatback folding/returning
Refer to the Owner’s Manual for more details.
(1) L
(2) S
(3) F
(4) F
(1)
(3)
Se
(4)
Second row
Third row
Separate seat Bench seat
Manual seat Power seat
Se
S
S
S
S
L
P
L
Man
2012-Sequoia-QRG.qxd 8/16/11 7:45 PM Page 14

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17
Lights & turn signals
Turn signals
Headlights
High beamLow beam
Front fog lights (if equipped)
-Daytime Running Light system (DRL)
Automatically turns on the front turn
signal lights upon starting engine and releasing parking brake.
-Automatic light cut off system Automatically turns lights off after a delay of
30 seconds, or the lock switch on remote may be pushed after locking.
Front fog lights come on only when the
headlights are on low beam.
Right turn
Lane change
Lane change Left turn High beam flasher
Auto
Headlights
Parking lights
Turn
Type A
Type C
Auto
Headlights
Parking lights
DRL OFF
Auto
Headlights
Parking lights
Type B
Type D
Auto
Headlights
Parking lights
Type A
Type B
Turn
