spare tire TOYOTA SEQUOIA 2012 2.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
1
INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Engine maintenance 10Fuel tank door release and cap 9Hood release 10Indicator symbols6-7Instrument cluster 5Instrument panel2-4Keyless entry18
Light control-Instrument panel 9
Accessory meter20Air Conditioning/Heating22-23Audio 24-25Auto lock/unlock111Automatic Transmission 11BSM (Blind Spot Monitor)13Cruise control 26Cup holders31Door locks 28Door-Power back19Dynamic Laser Cruise Control27Four-wheel drive 12Garage door opener (HomeLink®)326Lights1& turn signals17Moonroof 20Multi-information display228Parking brake12Power outlets-12V DC30Power outlets-120V AC30Rear seat entertainment system31Seat adjustments-Front 15Seat adjustments-Rear14Seat ventilators/heaters23Seats-Folding second row seats 15Seats-Folding third row seats16Seats-Head restraints13Steering wheel switches25Telephone controls (Bluetooth®)29Tilt and telescopic steering wheel21“TOW/HAUL” switch 11VSC OFF button21Window-Back19Windows 18
Windshield wipers & washers 18
Doors-Child safety locks 33Floor mat installation35Seat belts32Seat belts-Shoulder belt anchor33Spare tire & tools 33Star Safety SystemTM34-35
Tire Pressure Monitoring (warning) System 32
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
2012-Sequoia-QRG.qxd 8/16/11 7:37 PM Page 1

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
33
ld
lack
ton
rnatorto
on s
in
Push up

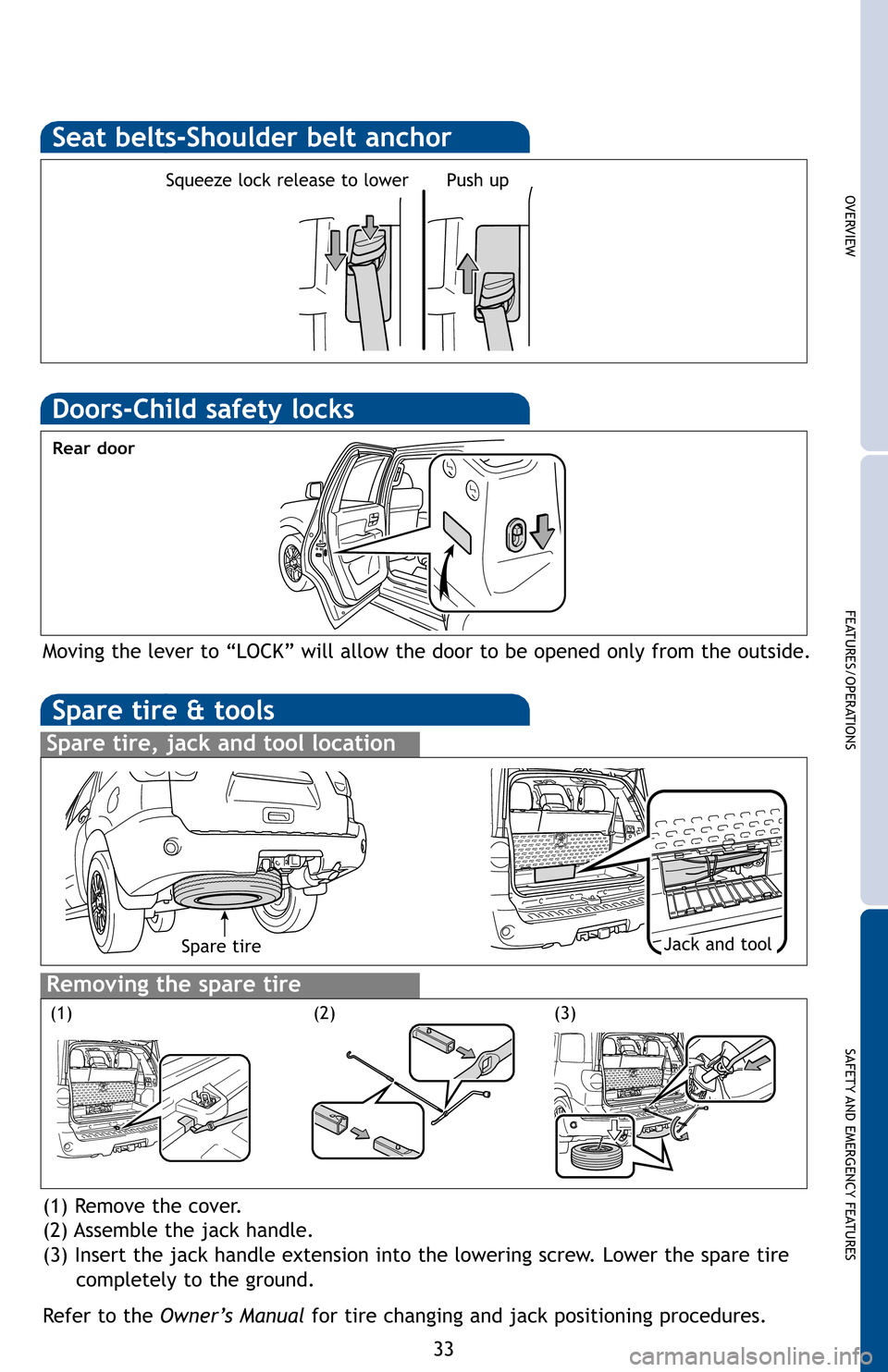

Seat belts-Shoulder belt anchor
Squeeze lock release to lower
Spare tire & tools
Spare tire, jack and tool location
Removing the spare tire
(1) Remove the cover.
(2) Assemble the jack handle.
(3) Insert the jack handle extension into the lowering screw. Lower the spare tire completely to the ground.
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
Moving the lever to “LOCK” will allow the door to be opened only f\
rom the outside.
Rear door
Doors-Child safety locks
(1)(2)(3)
Spare tireJack and tool
2012-Sequoia-QRG.qxd 8/16/11 7:59 PM Page 33
