steering wheel TOYOTA SEQUOIA 2012 2.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCYFEATURES
1
INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Engine maintenance 10Fuel tank door release and cap 9Hood release 10Indicator symbols6-7Instrument cluster 5Instrument panel2-4Keyless entry18
Light control-Instrument panel 9
Accessory meter20Air Conditioning/Heating22-23Audio 24-25Auto lock/unlock111Automatic Transmission 11BSM (Blind Spot Monitor)13Cruise control 26Cup holders31Door locks 28Door-Power back19Dynamic Laser Cruise Control27Four-wheel drive 12Garage door opener (HomeLink®)326Lights1& turn signals17Moonroof 20Multi-information display228Parking brake12Power outlets-12V DC30Power outlets-120V AC30Rear seat entertainment system31Seat adjustments-Front 15Seat adjustments-Rear14Seat ventilators/heaters23Seats-Folding second row seats 15Seats-Folding third row seats16Seats-Head restraints13Steering wheel switches25Telephone controls (Bluetooth®)29Tilt and telescopic steering wheel21“TOW/HAUL” switch 11VSC OFF button21Window-Back19Windows 18
Windshield wipers & washers 18
Doors-Child safety locks 33Floor mat installation35Seat belts32Seat belts-Shoulder belt anchor33Spare tire & tools 33Star Safety SystemTM34-35
Tire Pressure Monitoring (warning) System 32
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
2012-Sequoia-QRG.qxd 8/16/11 7:37 PM Page 1

2
OVERVIEW
Instrument panel
Steering wheel audio controls1
Voice command button1
Steering wheel climate controls1
Cruise control
Dynamic Laser Cruise Control distance switch1
Telephone controls1,2
Headlight, turn signal and front fog light1 controls
Gauges and meters
Wiper and washer controls
Power back window switch
VSC OFF switch
Ignition switch
Tire Pressure Monitoring (warning) System reset
Personal/Interior light main switch
Instrument panel light control
T
T
R
“
H
P
B
P
1
2
Steering wheel controls (if equipped)
2012-Sequoia-QRG.qxd 8/16/11 7:37 PM Page 2

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
21

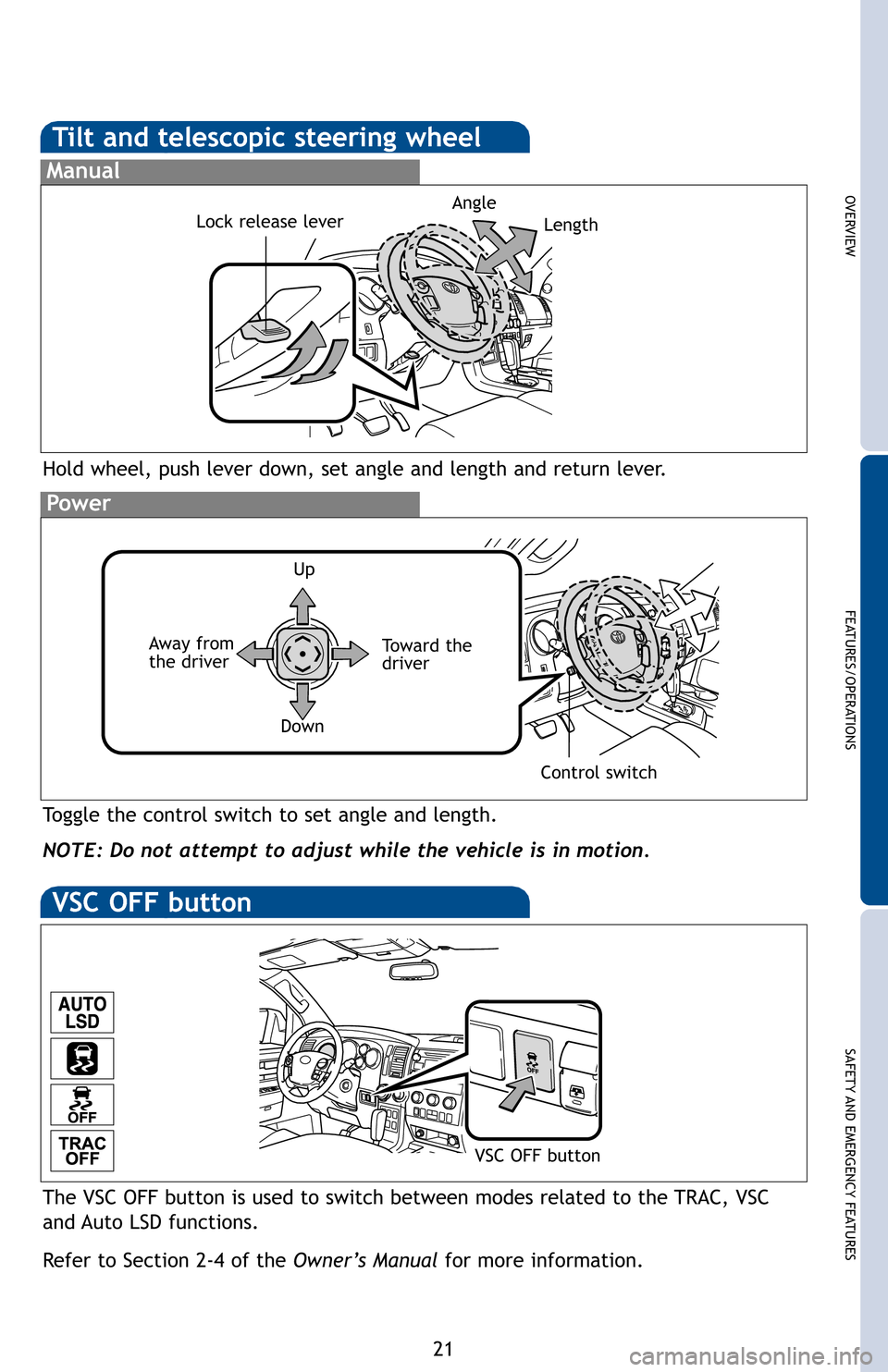

Tilt and telescopic steering wheel
Hold wheel, push lever down, set angle and length and return lever.
Manual
Lock release leverAngle
Toggle the control switch to set angle and length.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Power
UpControl switch
Away from
the driver Length
Toward the
driver
Down
The VSC OFF button is used to switch between modes related to the TRAC, VSC
and Auto LSD functions.
Refer to Section 2-4 of the Owner’s Manualfor more information.
VSC OFF button
VSC OFF button
2012-Sequoia-QRG.qxd 8/16/11 7:52 PM Page 21

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND EMERGENCY FEATURES

25
Radio
To preset stations Tune in the desired station and hold down a preset button (1-6
or one of ) until you hear a beep. Push desired preset button (1-6 or one of ) to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold
selection.

AUX port/ USB port

Push

AUX port
By inserting a mini plug into the AUX port, you can listen to music from\
a portable
audio device through the vehicle’s speaker system while in AUX mode.
USB port
By connecting a USB-compatible portable audio device or USB memory to th\
e USB
port, you can listen to music from the portable audio device or USB memo\
ry
through the vehicle’s speaker system while in USB mode.
Steering wheel switches (if equipped)

Volume control
A/ C control
Audio control
Temperature
selector
Auto A/C ON
A/C OFF
“”
Use to search within the selected audio medium (radio, CD, iPod®, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn th\
e
audio system OFF.
vv

Ty p e 1 Ty p e 2 a n d 3
Push
2012-Sequoia-QRG_r1_2012-Sequoia-QRG 8/19/11 3:41 PM Page 25

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
29

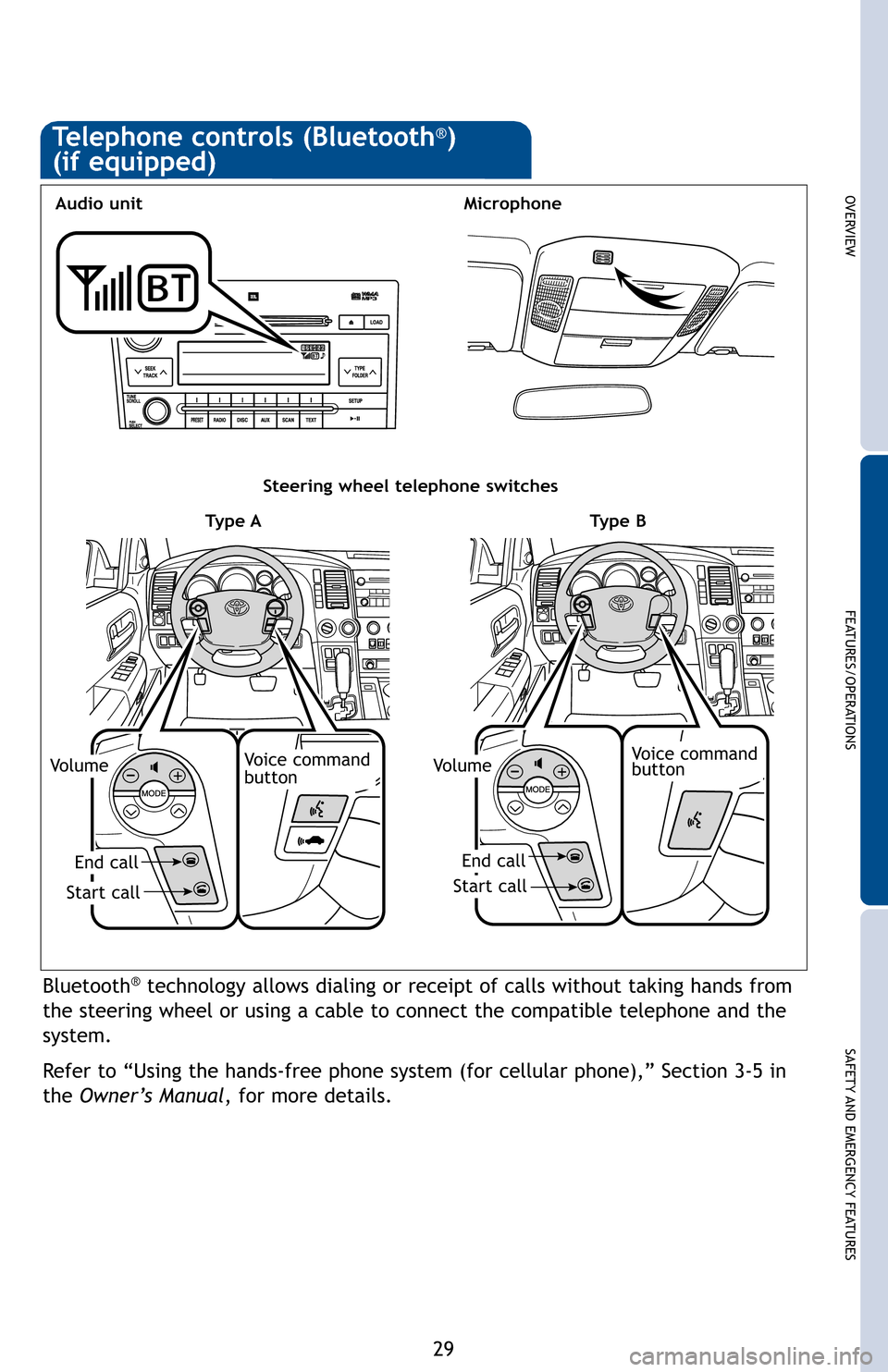

Telephone controls (Bluetooth®)
(if equipped)
Bluetooth®technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone \
and the
system.
Refer to “Using the hands-free phone system (for cellular phone),”\
Section 3-5 in
the Owner’s Manual , for more details.
Microphone
Audio unit
Steering wheel telephone switches
VolumeVoice command
button
End call
Start call
End call
Start call
VolumeVoice command
button
Type BType A
2012-Sequoia-QRG.qxd 8/16/11 7:55 PM Page 29

34
Ther
has m
For s
•O
• Us
pl
• In
Flo
SAFETY AND EMERGENCY FEATURES
Smar
and
SST e
firml
SST d
allow
back
SmaStar Safety SystemTM
VSC helps prevent loss of traction during cornering by reducing engine p\
ower and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is travelin\
g.
When it senses that the front or rear wheels begin to lose traction, VSC\
reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
Brake Assist (BA)
ABS helps prevent brakes from locking up by "pulsing" brake pressure to \
each
wheel. This limits brake lockup and provides the maximum brake effectiveness fo\
r
the current road conditions.
Toyota's ABS sensors detect which wheels are locking up and limits wheel lockup b\
y
"pulsing" each wheel's brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the maximum
traction that the current road conditions will allow, helping you stay in control.
Brake Assist is designed to detect sudden or “panic” braking, and then a\
dd braking
pressure to decrease the vehicle’s stopping distance. When there’s only a split
second to react, Brake Assist can add additional brake pressure more quickly than
just the driver alone can. VSC helps prevent loss of traction during cornering by reducing engine p\
ower, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. \
This
transfers power to the wheels that still have traction to help you drive\
safely.
Traction Control (TRAC)
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain stability and balance when braking. Abrupt stops cause the vehicle to tilt
forward, reducing the braking power of the rear wheels. EBD responds to \
sudden
stops by redistributing brake force to maximize the braking effectivenes\
s of all
four wheels. All new Toyota vehicles come standard with the Star Safety System
TM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock Braking
System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA) and Smart
Stop Technology (SST).
2012-Sequoia-QRG.qxd 8/16/11 8:03 PM Page 34
