TOYOTA SEQUOIA 2013 2.G Owners Manual

5
When trouble arises
671
5-2. Steps to take in an emergency
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striking other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the wheels and do not rev the engine.
● If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and put the shift
lever in P.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the engine.
Turn off the VSC. ( P. 256, 258)
Shift the shift lever to D or R and carefully apply the accel-
erator to free the vehicle.

672
5-2. Steps to take in an emergency

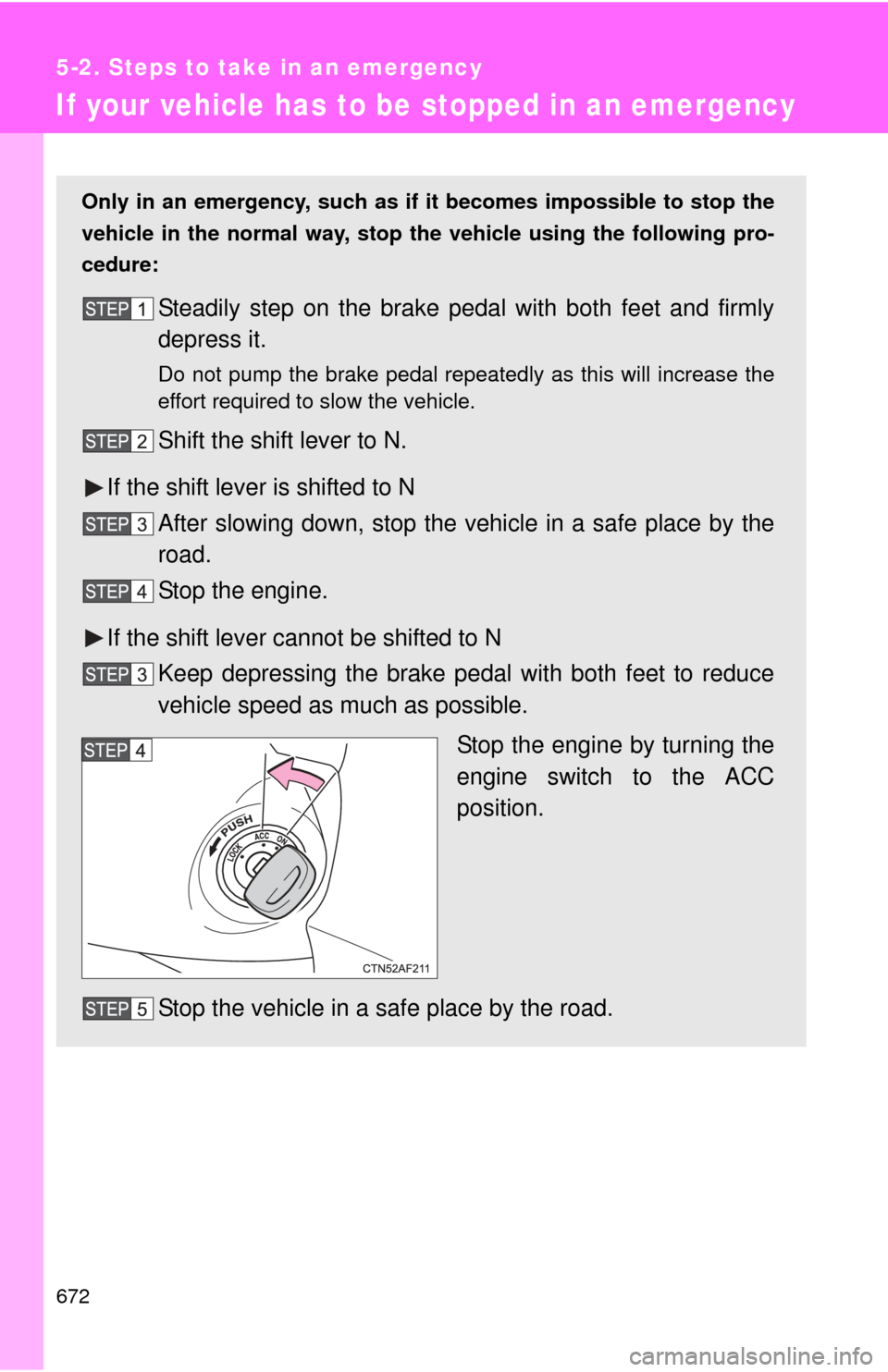

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N After slowing down, stop the vehi cle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to N Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Stop the engine by turning the
engine switch to the ACC
position.
Stop the vehicle in a safe place by the road.

5
When trouble arises
673
5-2. Steps to take in an emergency
CAUTION
■
If the engine has to be turned off while driving
●Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Never attempt to remove the key, as doing so will lock the steering wheel.

674 5-2. Steps to take in an emergency

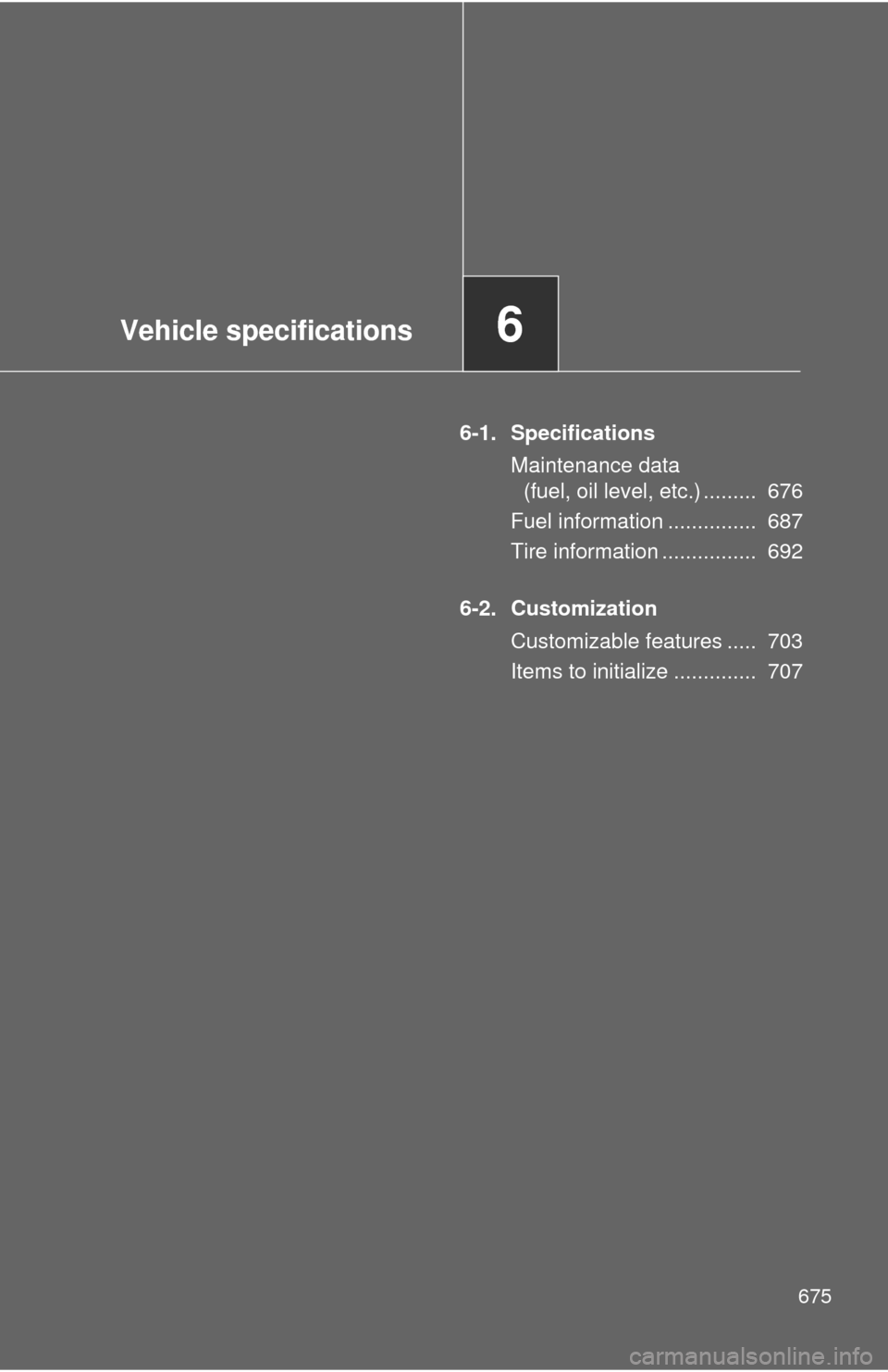

Vehicle specifications6
675
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 676
Fuel information ............... 687
Tire information ................ 692
6-2. Customization Customizable features ..... 703
Items to initialize .............. 707

676
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions
*: Unladen vehicle
Overall length205.1 in. (5210 mm)
Overall width79.9 in. (2030 mm)
Overall height*
Without roof rails
74.6 in. (1895 mm)
With roof rails
77.0 in. (1955 mm)
Wheelbase122.0 in. (3100 mm)
Front tread 67.9 in. (1725 mm)
Rear tread69.1 in. (1755 mm)

677
6-1. Specifications
6
Vehicle specifications
Weight
*1: The model code is indicated on the Certification Label. (P. 678)
Model code*1EngineDriving
systemVehicle capacity weight
(Occupants+luggage)
TWR*
(Trailer weight + cargo)
USK60L-GKTSKA
5.7L V8
(3UR-FE)
engine
2WD
1310 lb. (590 kg)7400 lb. (3357 kg)
USK60L-GKTLKA
1330 lb. (600 kg)7300 lb. (3311 kg)
USK60L-GKTZKA
1315 lb. (595 kg)7200 lb. (3266 kg)
USK65L-GKTSKA
4WD
1210 lb. (545 kg)7100 lb. (3221 kg)
USK65L-GKTLKA1230 lb. (555 kg)
USK65L-GKTZKA1220 lb. (550 kg)7000 lb. (3175 kg)
USK65L-GKTSGA
5.7L V8
(3UR-FBE)
engine 1210 lb. (545 kg)7100 lb. (3221 kg)
USK65L-GKTLGA1230 lb. (555 kg)
USK65L-GKTZGA1220 lb. (550 kg)7000 lb. (3175 kg)
*: This model meets the tow-vehicle trailering requirement of SAE In-
ternational per SAE J2807.

678 6-1. Specifications
Vehicle identification■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.
■ Engine number
The engine number is stamped on the engine bl ock as shown.

679
6-1. Specifications
6
Vehicle specifications
Engine
Fuel
Lubrication system
Model
3UR-FE and 3UR-FBE
Type 8-cylinder V-type, 4-cycle, gasoline
Bore and stroke 3.70  4.02 in. (94.0  102.0 mm)
Displacement 345.6 cu.in. (5663 cm3)
Valve clearance
(engine cold) Automatic adjustment
Drive belt tension Automatic adjustment
Engine
Gasoline engine Flex-fuel engine
Fuel typeUnleaded gasoline onlyUnleaded gasoline, E85,
or a blend of the two fuels
Octane rating
(Unleaded gasoline) 87 (Research octane number91) or higher
Ethanol percentage
(E85) 
85% or less
Fuel tank capacity
(Reference) 26.4 gal. (100.0 L, 22.0 lmp.gal.)
Oil capacity
(Drain and refill-reference)
With filter
Without filter 7.9 qt. (7.5 L, 6.6 Imp.qt.)
7.5 qt. (7.1 L, 6.2 Imp.qt.)

680 6-1. Specifications
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use Toy-
ota approved “Toyota Genuine Motor Oil” or equivalent to satisfy the
following grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):
●The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
● The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
Outside temperature
