seat memory TOYOTA SEQUOIA 2013 2.G Owners Manual

TABLE OF CONTENTSIndex
2
1-1. Key informationKeys ..................................... 32
1-2. Opening, closing and locking the doors
Wireless remote control ....... 33
Side doors ............................ 37
Back door ............................. 42
1-3. Adjustable components (seats, mirrors, steering
wheel)
Front seats ........................... 50
Rear seats ............................ 54
Driving position memory (driver’s seat) ..................... 65
Head restraints ..................... 68
Seat belts ............................. 72
Steering wheel (manually adjustable type) .................. 82
Steering wheel (power-adjustable type)...... 83
Anti-glare inside rear view mirror .................................. 84
Outside rear view mirrors ..... 87
Roof luggage carrier............. 91
1-4. Opening and closing the windows and
moon roof
Power windows .................... 93
Power back window ............. 96
Moon roof ............................. 99 1-5. Refueling
Opening the fuel tank cap... 102
1-6. Theft deterrent system Engine immobilizer system .............................. 107
Alarm .................................. 109
1-7. Safety information Correct driving posture ....... 112
SRS airbags ....................... 114
Front passenger occupant classification system ......... 127
Child restraint systems ....... 132
Installing child restraints ..... 136
2-1. Driving procedures Driving the vehicle .............. 150
Engine (ignition) switch....... 159
Automatic transmission ...... 162
Turn signal lever ................. 166
Parking brake ..................... 167
Horn .................................... 168
2-2. Instrument cluster Gauges and meters ............ 169
Indicators and warning lights ................................. 174
Multi-information display ..... 179
Accessory meter ................. 185
1Before driving
2When driving

Before driving1
31
1-1. Key informationKeys ................................... 32
1-2. Opening, closing and locking the doors
Wireless remote control ..... 33
Side doors .......................... 37
Back door ........................... 42
1-3. Adjustable components (seats, mirrors, steering
wheel)
Front seats ......................... 50
Rear seats.......................... 54
Driving position memory (driver’s seat) ................... 65
Head restraints................... 68
Seat belts ........................... 72
Steering wheel (manually adjustable type) ............... 82
Steering wheel (power-adjustable type) ... 83
Anti-glare inside rear view mirror ............................... 84
Outside rear view mirrors ... 87
Roof luggage carrier .......... 91 1-4. Opening and closing the
windows and moon roof
Power windows .................. 93
Power back window ........... 96
Moon roof ........................... 99
1-5. Refueling Opening the fuel tank cap ................................. 102
1-6. Theft deterrent system Engine immobilizer system ........................... 107
Alarm................................ 109
1-7. Safety information Correct driving posture..... 112
SRS airbags ..................... 114
Front passenger occupant classification system ...... 127
Child restraint systems..... 132
Installing child restraints... 136

65
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
Driving position memor y (driver’s seat)
: If equipped
Your preferred driving position (the position of the driver’s seat,
steering wheel and outside rear view mirrors) can be entered into the
computer’s memory and recalle d with the touch of a button.
Two different driving positions can be entered into memory.
■ Entering a position into memory
Check that the shift lever is set in P.
Turn the engine switch to the ON position.
Adjust the driver’s seat, steering wheel, and outside rear
view mirrors to the desired positions.
While pushing the SET button,
push button “1” or “2” until the
signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
■Recalling the memorized position
Check that the shift lever is set in P.
Turn the engine switch to the ON position.
Push button “1” or “2” to recall
the desired position.

66 1-3. Adjustable components (seats, mirrors, steering wheel)
Linking driving position memory with door unlock operation
Memorized driving positions can be recalled when you unlock the
driver’s door using the wireless remote control and open the driver’s
door.
■ Setting the linked door unlock operation
Set the driving positions into the memory system using the “1”
or “2” buttons. ( P. 6 5 )
Turn the engine switch off then, close the driver’s door.
Push the “1” or “2” button and
the button on the wireless
remote control at the same time
for about 1 second until you hear
a beep.
To prevent unintended triggering of the alarm, open and close a door once
after a driving position has been recorded. (If a door is not opened within 60
seconds after is pressed, the doors will be locked again and the alarm
will automatically be set.)
In case the alarm is triggered, immediately stop the alarm.
(
P. 109)
■Canceling the linked door unlock operation
Close the driver’s door with the engine switch turned off.
Push the SET button and the button on the wireless
remote control at the same time for about 1 second until you
hear 2 beeps.

67
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Retained accessory power
Each memorized position (except for the tilt and telescopic steering column)
can be activated within 30 seconds after the driver’s door is opened, even if
the key is not in the engine switch.
■ If any position memory button is pushed while the adjustments are
being made
The operation will stop. To reactivate the system, push the button (“1” or “2”)
again.
■ If the battery is disconnected
The memorized positions must be reset because the computer’s memory is
erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear pas-
senger or squeeze your body against the steering wheel.
If this happens, you can stop the movement by pressing another seat posi-
tion memory button.

300

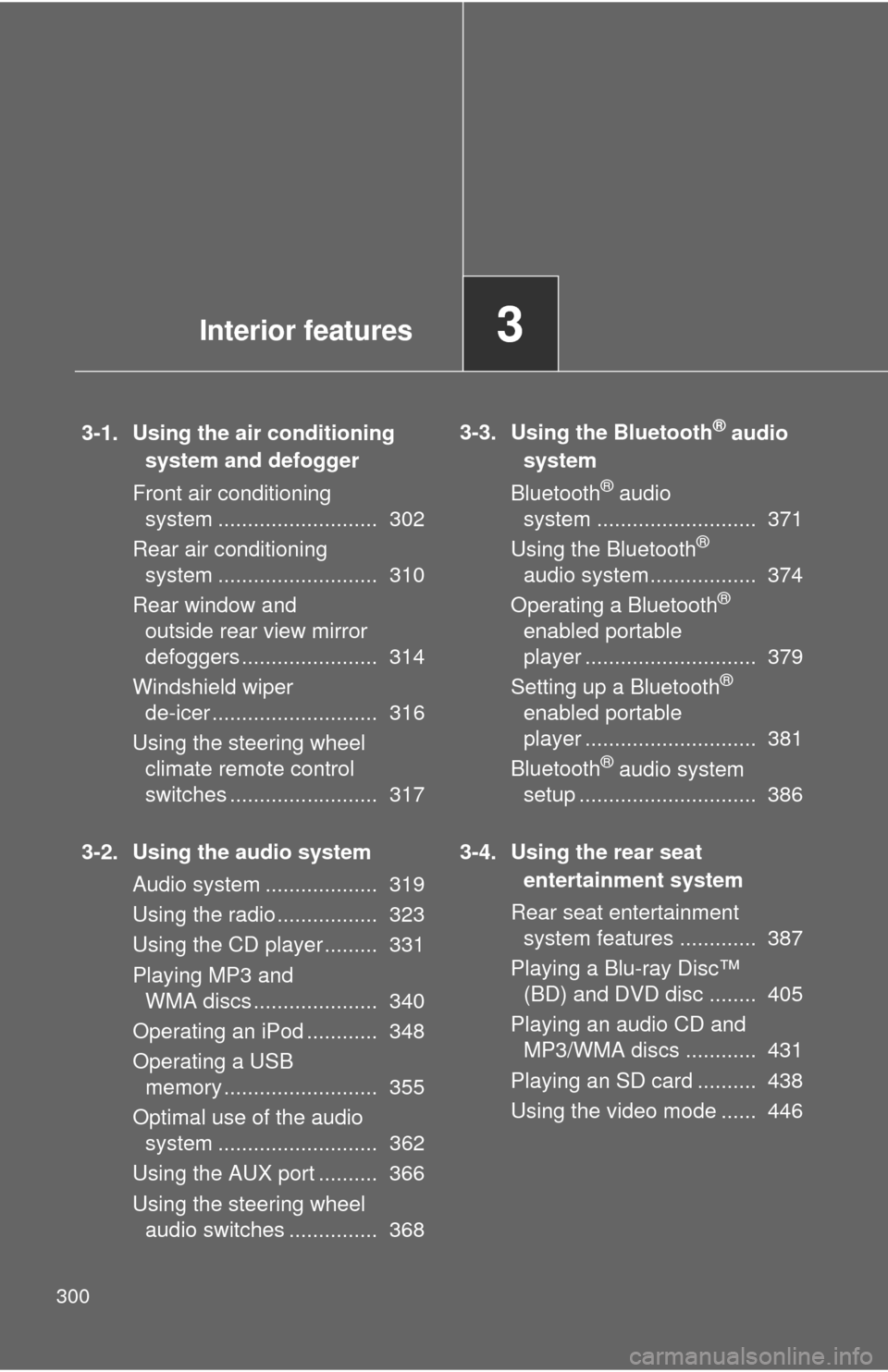

3-1. Using the air conditioning system and defogger
Front air conditioning system ........................... 302
Rear air conditioning system ........................... 310
Rear window and outside rear view mirror
defoggers ....................... 314
Windshield wiper de-icer ............................ 316
Using the steering wheel climate remote control
switches ......................... 317
3-2. Using the audio system Audio system ................... 319
Using the radio ................. 323
Using the CD player ......... 331
Playing MP3 and WMA discs ..................... 340
Operating an iPod ............ 348
Operating a USB memory .......................... 355
Optimal use of the audio system ........................... 362
Using the AUX port .......... 366
Using the steering wheel audio switches ............... 368 3-3. Using the Bluetooth® audio
system
Bluetooth
® audio
system ........................... 371
Using the Bluetooth
®
audio system.................. 374
Operating a Bluetooth
®
enabled portable
player ............................. 379
Setting up a Bluetooth
®
enabled portable
player ............................. 381
Bluetooth
® audio system
setup .............................. 386
3-4. Using the rear seat entertainment system
Rear seat entertainment system features ............. 387
Playing a Blu-ray Disc™ (BD) and DVD disc ........ 405
Playing an audio CD and MP3/WMA discs ............ 431
Playing an SD card .......... 438
Using the video mode ...... 446
Interior features3

397
3-4. Using the rear seat entertainment system
3
Interior features
■
The rear seat entertainmen t system can be used when
The engine switch is in ACC or ON position.
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
The following discs cannot be used on this system:
●
BDXL™ disc
●BD-RE with the cartridge
● HD DVD
● DVD audio
● Video CD
● SACD
■ SD cards that can be used
●Memory cards are restricted to the following conditions based on SD
standards.
• SD memory card (from 512MB to 2GB)
• SDHC memory card (from 4GB to 32GB)
• SDXC memory card (from 48GB to 64GB)
● Mini SD cards and Micro SD cards can be used, but must be used with
an adaptor card.
● MultiMedia Card (MMC) cannot be used.

398 3-4. Using the rear seat entertainment system
■SD card functions
●This system can play JPEG pictures and AVCHD video images that are
stored in an SD card. It does not support music playback.
● Local storage
• Some BD videos have a feature to memorize disc information, such as a
resume point, in a local storage. The rear seat entertainment system
uses an SD card as a local storage device. To use this function, insert an
SD card into the SD card slot.
• The SD card memory function may differ depending on the BD videos played.
• When an SD card that contains any kind of data is inserted, BD video disc information will not be stored into the SD card to protect the existing
data in the card. To use an SD card as a local storage, use another SD
card that does not contain any data.
■ Changing the color of the screen buttons (vehicles with a navigation
system)
By customizing the screen button colors of the navigation system, those of\
the rear seat entertainment system will also change.
■ When the remote controller batteries are fully depleted
Remove the cover.
Remove the depleted batteries and install
2 new AA batteries.

444 3-4. Using the rear seat entertainment system
■SD cards that can be used ( P. 397)
■ Compatible files
The following files can be displayed.
●Picture file format: JPEG
• Picture resolution: between 34 34 and 8192 8192 pixels
• Gray scale JPEG is not supported
● Video file format: AVCHD
■ SD cards
●An SD card is not provided with the rear seat entertainment system and
needs to be purchased separately.
● Compatible formats
This system is compatible with SD memory cards that meet SD card spec-
ifications FAT16 formats, SDHC memory cards in FAT32 format, and
SDXC memory cards in exFAT format.
● The Panasonic SD memory card format software version 3.1 or higher is
recommended.
● Data stored in an SD card may be lost. Before playing back pictures and
videos stored in an SD card, make certain to back up the data.
● Before an SD card that contains any kind of data is played, slide the lock
switch on the SD card to “LOCK” in order to prevent any data from being
accidentally deleted or overwritten.
CAUTION
■SD cards
Keep away from children.
These are small and if swallowed by a child they can cause choking.

728
Alphabetical index
Alphabetical index
A/C ..................................... 302, 310
ABS ........................................... 255
Active traction control ............. 255
Adaptive variable suspension system .................................... 247
Air conditioning filter............... 594
Air conditioning system Air conditioning filter .............. 594
Front air conditioning system ................................ 302
Rear air conditioning system ................................ 310
Airbags
Airbag operating conditions............................ 117
Airbag precautions for your
child .................................... 121
Airbag warning light............... 634
Curtain shield airbag operating conditions............ 117
Curtain shield airbag precautions ......................... 121
Front passenger occupant classification system ........... 127
General airbag
precautions ......................... 121
Locations of airbags .............. 114
Modification and disposal of airbags ................................ 125
Proper driving posture ........................ 112, 121
Side airbag operating conditions............................ 117
Side airbag precautions ........ 121
SRS airbags .......................... 114
Alarm ......................................... 109
Antenna..................................... 328
Anti-lock brake system............ 255
Armrest ..................................... 523
Ashtrays.................................... 509
Assist grips .............................. 527
A-TRAC ..................................... 255
Audio input ............................... 366 Audio system
A/V input port ........................ 447
Antenna................................. 328
Audio input ............................ 366
Audio visual input .................. 447
AUX port ............................... 366
Blu-ray Disc™ ....................... 405
CD player/changer ................ 331
DVD disc ............................... 405
DVD player............................ 405
iPod ....................................... 348
MP3/WMA disc ..................... 340
Optimal use ........................... 362
Portable music player ........... 366
Radio..................................... 323
Rear seat entertainment system ................................ 387
Steering wheel audio switch.................................. 368
Type ...................................... 319
USB memory......................... 355
Audio visual input.................... 447
AUTO LSD system ................... 253
Automatic light control system .................................... 193
Automatic transmission .......................... 162
AUX port ................................... 366
Auxiliary box ............................ 502
A/V input port ........................... 447
AVS ........................................... 247A
