navigation TOYOTA SEQUOIA 2013 2.G Quick Reference Guide

2
OVERVIEW
Instrument panel
Steering wheel audio controls1
Voice command button1
Steering wheel climate controls1
Cruise control
Dynamic Laser Cruise Control distance switch1
Telephone controls1,2
Headlight, turn signal and front fog light1 controls
Gauges and meters
Wiper and washer controls
Tire Pressure Monitoring (warning) System reset
Power back window switch
VSC OFF switch
Ignition switch
Personal/Interior light main switch
Instrument panel light control
Tilt and telescopic steering control switch1
Tilt and telescopic steering lock release lever1
Roll Sensing of Curtain shield Airbag OFF switch1
“REVERSE TILT” (side mirrors) switch1
Headlight cleaner1
Power back door button1
BSM (Blind Spot Monitor) main switch1
Power rearview mirror controls
1 If equipped2 Vehicles with navigation system: for details, refer to the “Navigation System
Owner’s Manual .”
Steering wheel controls (if equipped)
2013Sequoia.indd 28/13/12 10:40 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3
Steering wheel audio controls1
Voice command button1
Steering wheel climate controls1
Cruise control
Dynamic Laser Cruise Control distance switch1
Telephone controls1,2
Headlight, turn signal and front fog light1 controls
Gauges and meters
Wiper and washer controls
Tire Pressure Monitoring (warning) System reset
Power back window switch
VSC OFF switch
Ignition switch
Personal/Interior light main switch
Instrument panel light control
Tilt and telescopic steering control switch1
Tilt and telescopic steering lock release lever1
Roll Sensing of Curtain shield Airbag OFF switch1
“REVERSE TILT” (side mirrors) switch1
Headlight cleaner1
Power back door button1
BSM (Blind Spot Monitor) main switch1
Power rearview mirror controls
1 If equipped2 Vehicles with navigation system: for details, refer to the “Navigation System
Owner’s Manual .”
Details on the center panel
area on next page
2013Sequoia.indd 38/13/12 10:40 PM

4
Accessory meter
Theft deterrent/Engine immobilizer system indicator
Audio system or navigation system
1,2
Air Conditioning controls
Outside rearview mirrors/Back window defogger/Windshield wiper
de-icer button
1
12V DC power outlet
Seat heater1 and ventilator1 controls
Cigarette lighter
AUX audio jack/USB port
1
Height control switch1
AVS switch1
“TOW/HAUL” button1
Center differential lock/unlock switch1
Front-wheel drive control switch1
Intuitive parking assist button1
Multi-Information Display control buttons1 and/or accessory meter
control buttons1
Emergency flasher button
1 If equipped2 Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual .”
OVERVIEW
Instrument cluster
Tachometer
Speedometer
Service indicator and reminder
Fuel gauge
Voltmeter
Engine oil pressure gauge
Engine coolant temperature
Odometer/Trip meter and trip meter reset button
Multi-Information Display
Odometer and two trip meters
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Automatic Transmission fluid temperature gauge*
* If equipped
With Multi-Information Display
Without Multi-Information Display
Center panel area
2013Sequoia.indd 48/13/12 10:41 PM

30
Cup holders
Front
Rear
Front console
FEATURES/OPERATIONS
Power outlets-120V AC (if equipped)
Key must be in the “ON” position to be used.
Power outlets-12V DC (if equipped)
Luggage compartment
Instrument panelInside of the center console box
Back of the center console box
Key must be in the “ACC” or “ON” position to be used.
Rear seat entertainment system
(if equipped)
Front audio system
DVD player
DVD screen
Remote control
A/V input port
120V AC power outlet
Headphone volume controls and headphone jacks
Vehicles with navigation system: for details, refer to the “Navigation System
Owner’s Manual .”
Rear side trim
2013Sequoia.indd 308/13/12 10:43 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

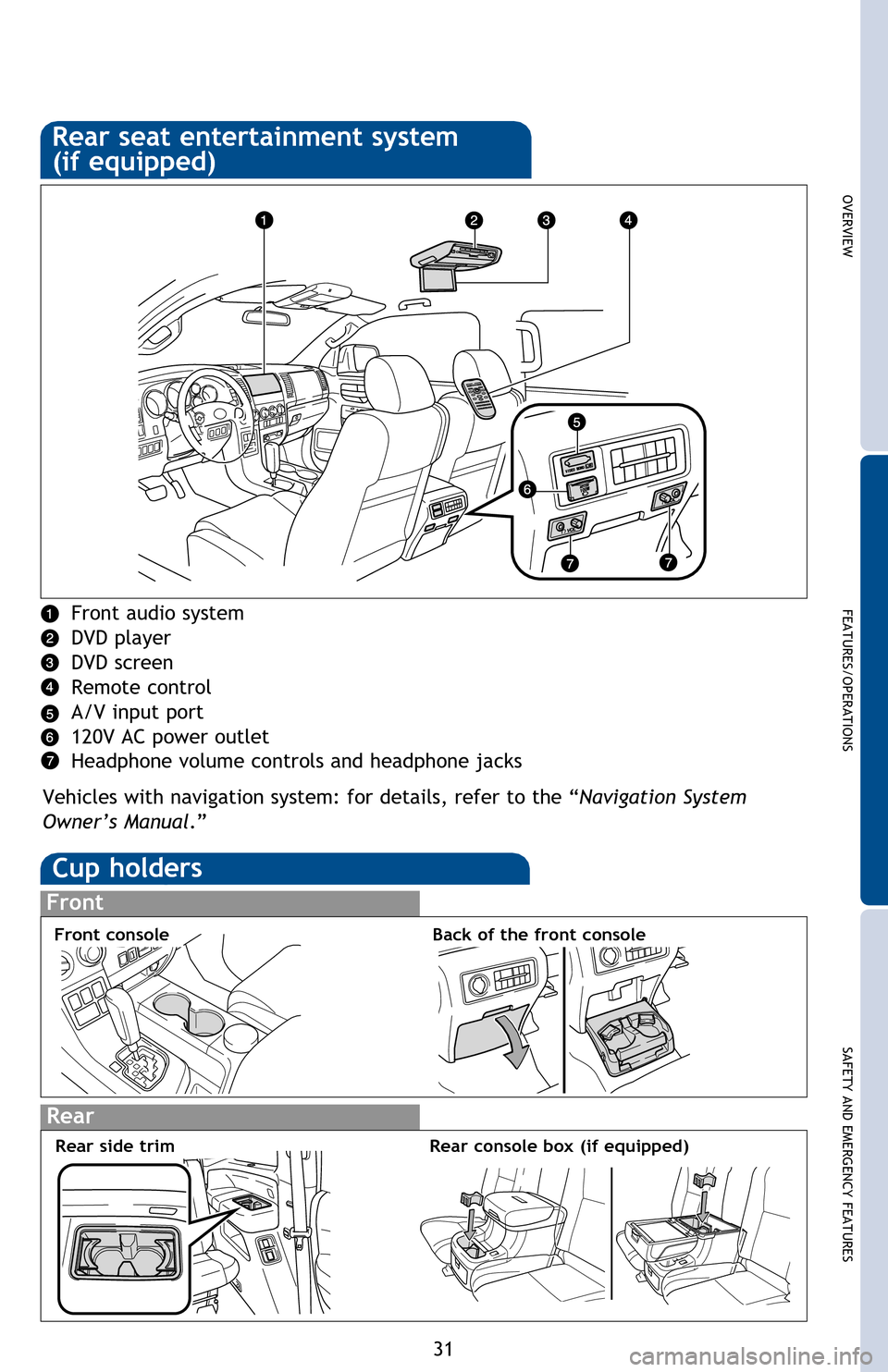

31
Cup holders
Front
Rear
Front consoleBack of the front console
Rear console box (if equipped)
Key must be in the “ON” position to be used.
Inside of the center console box
Key must be in the “ACC” or “ON” position to be used.
Rear seat entertainment system
(if equipped)
Front audio system
DVD player
DVD screen
Remote control
A/V input port
120V AC power outlet
Headphone volume controls and headphone jacks
Vehicles with navigation system: for details, refer to the “Navigation System
Owner’s Manual .”
Rear side trim
2013Sequoia.indd 318/13/12 10:43 PM
