TOYOTA SEQUOIA 2014 2.G Owners Manual

5
When trouble arises
601
5-2. Steps to take in an emergency
CAUTION
■
If the engine has to be turned off while driving
●Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
● Never attempt to remove the key, as doing so will lock the steering wheel.

602 5-2. Steps to take in an emergency

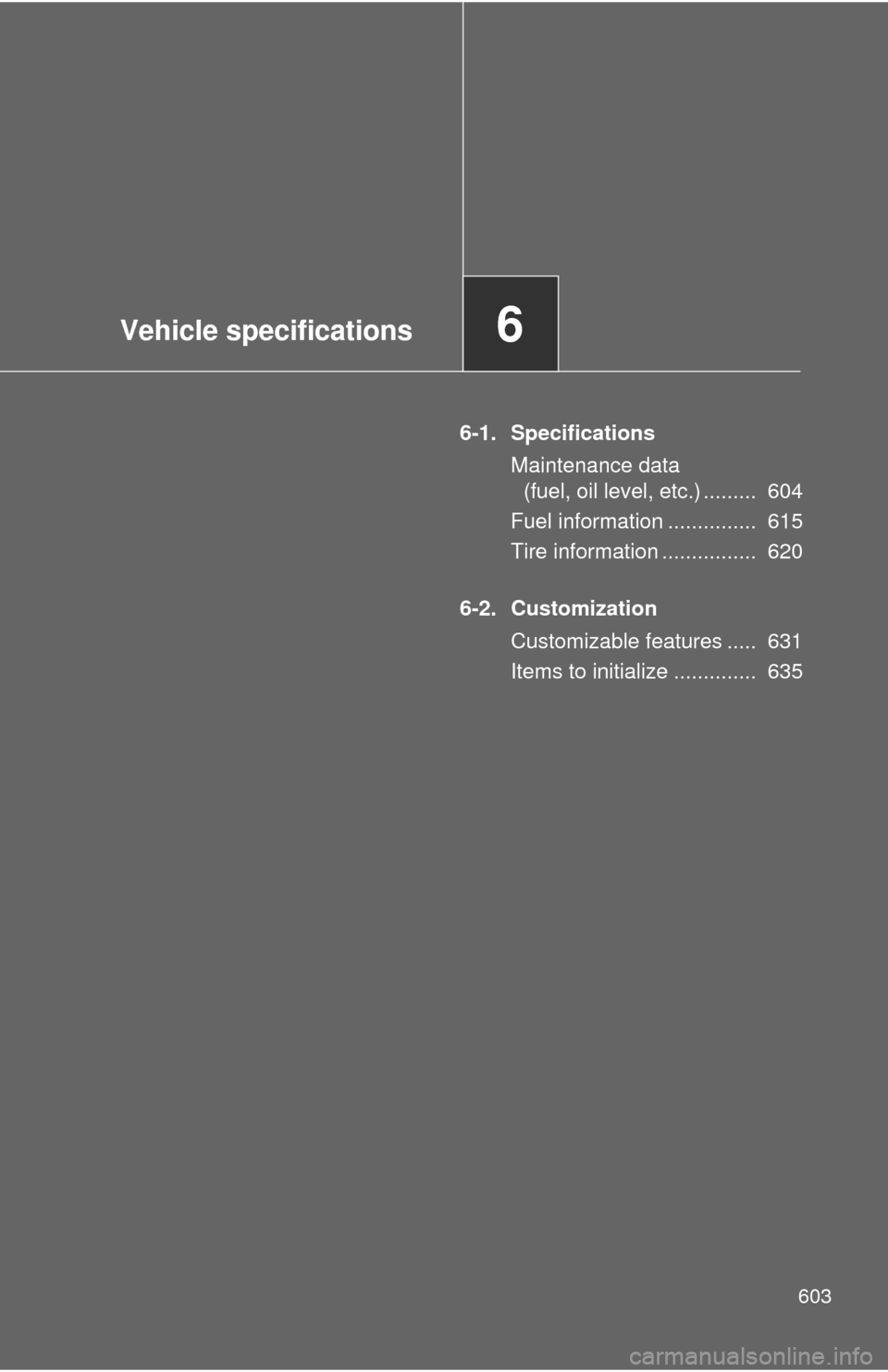

Vehicle specifications6
603
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 604
Fuel information ............... 615
Tire information ................ 620
6-2. Customization Customizable features ..... 631
Items to initialize .............. 635

604
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions
*: Unladen vehicle
Overall length205.1 in. (5210 mm)
Overall width79.9 in. (2030 mm)
Overall height*
Without roof rails
74.6 in. (1895 mm)
With roof rails
77.0 in. (1955 mm)
Wheelbase122.0 in. (3100 mm)
Front tread 67.9 in. (1725 mm)
Rear tread69.1 in. (1755 mm)

605
6-1. Specifications
6
Vehicle specifications
Weight
*1: The model code is indicated on the Certification Label. (P. 606)
Model code*1EngineDriving
systemVehicle capacity weight
(Occupants+luggage)
TWR*
(Trailer weight + cargo)
USK60L-GKTSKA
5.7L V8
(3UR-FE)
engine
2WD
1310 lb. (590 kg)7400 lb. (3357 kg)
USK60L-GKTLKA
1330 lb. (600 kg)7300 lb. (3311 kg)
USK60L-GKTZKA
1315 lb. (595 kg)7200 lb. (3266 kg)
USK65L-GKTSKA
4WD
1255 lb. (565 kg)7100 lb. (3221 kg)
USK65L-GKTLKA1275 lb. (575 kg)
USK65L-GKTZKA1265 lb. (570 kg)7000 lb. (3175 kg)
USK65L-GKTSGA
5.7L V8
(3UR-FBE)
engine 1255 lb. (565 kg)7100 lb. (3221 kg)
USK65L-GKTLGA1275 lb. (575 kg)
USK65L-GKTZGA1265 lb. (570 kg)7000 lb. (3175 kg)
*: This model meets the tow-vehicle trailering requirement of SAE In-
ternational per SAE J2807.

606 6-1. Specifications
Vehicle identification■ Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.
■ Engine number
The engine number is stamped on the engine bl ock as shown.

607
6-1. Specifications
6
Vehicle specifications
Engine
Fuel
Model
3UR-FE and 3UR-FBE
Type 8-cylinder V-type, 4-cycle, gasoline
Bore and stroke 3.70  4.02 in. (94.0  102.0 mm)
Displacement 345.6 cu.in. (5663 cm3)
Valve clearance
(engine cold) Automatic adjustment
Drive belt tension Automatic adjustment
Engine
Gasoline engine Flex-fuel engine
Fuel typeUnleaded gasoline onlyUnleaded gasoline, E85,
or a blend of the two fuels
Octane rating
(Unleaded gasoline) 87 (Research Octane Number91) or higher
Ethanol percentage
(E85) 
85% or less
Fuel tank capacity
(Reference) 26.4 gal. (100.0 L, 22.0 lmp.gal.)

608 6-1. Specifications
Lubrication system
*: The engine oil capacity is a reference quantity to be used when changing theengine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use Toy-
ota approved “Toyota Genuine Motor Oil” or equivalent to satisfy the
following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):
●The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
● The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
Oil capacity
(Drain and refill-reference
*)
With filter
Without filter 7.9 qt. (7.5 L, 6.6 Imp.qt.)
7.5 qt. (7.1 L, 6.2 Imp.qt.)
Outside temperature

609
6-1. Specifications
6
Vehicle specifications
How to read oil container label:
The International Lubricant Spec
ification Advisory Committee
(ILSAC) Certification Mark is added to some oil containers to help
you select the oil you should use.
Cooling system
Capacity Vehicles without towing package
13.1 qt. (12.4 L, 10.9 Imp.qt.)
Vehicles with towing package
14.1 qt. (13.3 L, 11.7 Imp.qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.

610 6-1. Specifications
Ignition system
Electrical system
Differential
*: Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at thefactory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or an
equivalent of matching quality to satisfy the above specification. Please con-
tact your Toyota dealer for further details.
Spark plug
Make DENSO
Gap SK20HR11
0.043 in. (1.1 mm)
NOTICE
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.
Battery
Open voltage at
68 F (20 C): 12.6  12.8 V Fully charged
12.2  12.4 V Half charged
11 . 8
 12.0 V Discharged
(Voltage checked 20 minutes after the
key is removed with all the lights
turned off)
Charging rates 5 A max.
Oil capacity
Front
(4WD models)2.17 qt. (2.05 L, 1.80 Imp.qt.)
Rear
1.64 qt. (1.55 L, 1.36 Imp.qt.)
Oil type and viscosity*Toyota Genuine Differential Gear Oil
LT 75W-85 GL-5 or equivalent
