fuel type TOYOTA SEQUOIA 2014 2.G Owners Manual

TABLE OF CONTENTSIndex
2
1-1. Key informationKeys ..................................... 30
1-2. Opening, closing and locking the doors
Wireless remote control ....... 31
Side doors ............................ 35
Back door ............................. 40
1-3. Adjustable components (seats, mirrors, steering
wheel)
Front seats ........................... 48
Rear seats ............................ 52
Driving position memory (driver’s seat) ..................... 63
Head restraints ..................... 66
Seat belts ............................. 70
Steering wheel (manually adjustable type) .................. 80
Steering wheel (power-adjustable type)...... 81
Anti-glare inside rear view mirror .................................. 82
Outside rear view mirrors ..... 85
Roof luggage carrier............. 89
1-4. Opening and closing the windows and moon roof
Power windows .................... 91
Power back window ............. 94
Moon roof ............................. 97 1-5. Refueling
Opening the fuel tank cap .................................... 100
1-6. Theft deterrent system Engine immobilizer system .............................. 105
Alarm .................................. 107
1-7. Safety information Correct driving posture ....... 110
SRS airbags ....................... 112
Front passenger occupant classification system ......... 125
Child restraint systems ....... 130
Installing child restraints ..... 134
2-1. Driving procedures Driving the vehicle .............. 148
Engine (ignition) switch....... 158
Automatic transmission ...... 161
Turn signal lever ................. 165
Parking brake ..................... 166
Horn .................................... 167
2-2. Instrument cluster Gauges and meters ............ 168
Indicators and warning lights ................................. 173
Multi-information display ..... 178
Accessory meter ................. 184
1Before driving
2When driving

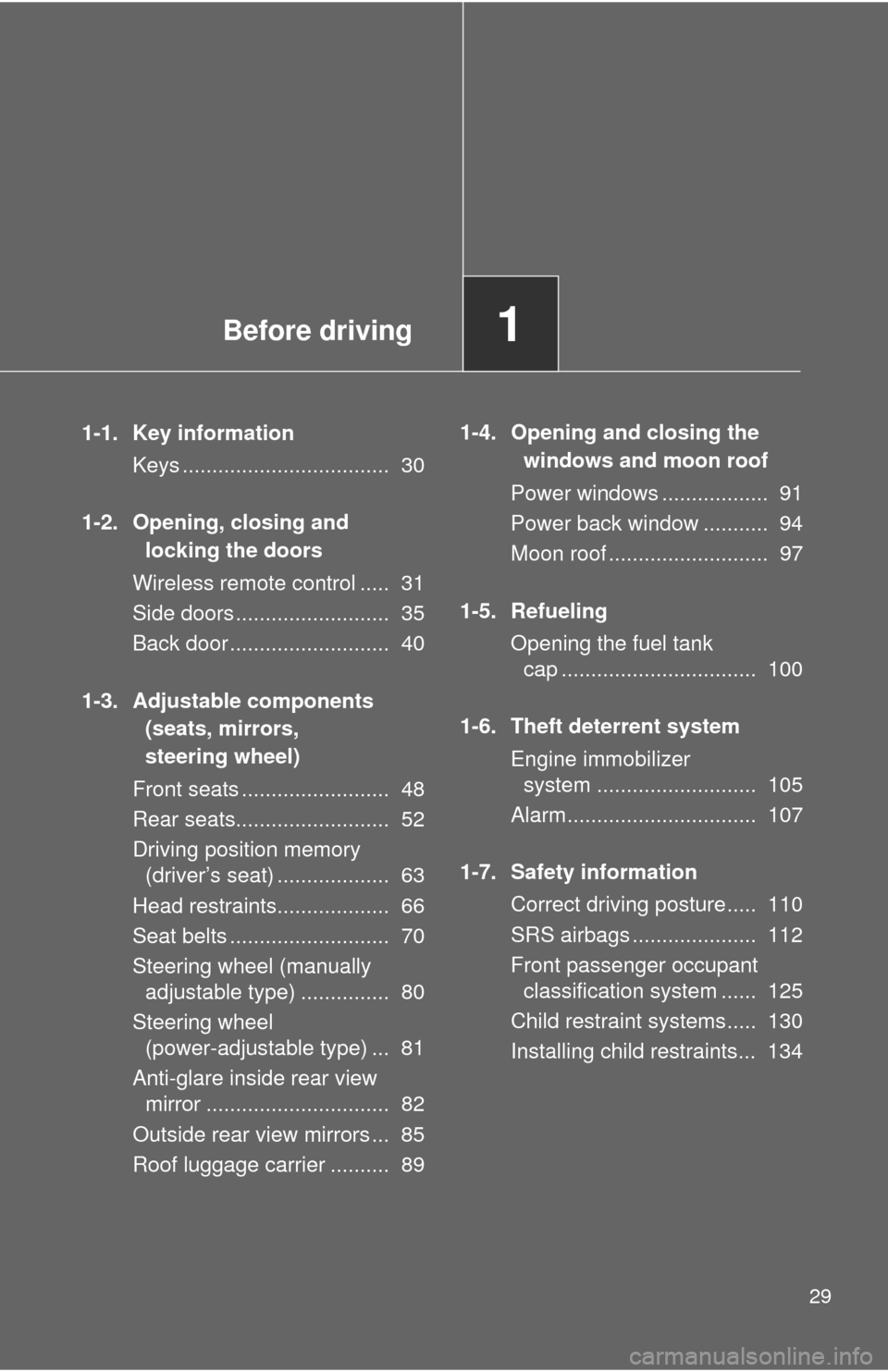

Before driving1
29
1-1. Key informationKeys ................................... 30
1-2. Opening, closing and locking the doors
Wireless remote control ..... 31
Side doors .......................... 35
Back door ........................... 40
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ......................... 48
Rear seats.......................... 52
Driving position memory (driver’s seat) ................... 63
Head restraints................... 66
Seat belts ........................... 70
Steering wheel (manually adjustable type) ............... 80
Steering wheel (power-adjustable type) ... 81
Anti-glare inside rear view mirror ............................... 82
Outside rear view mirrors ... 85
Roof luggage carrier .......... 89 1-4. Opening and closing the
windows and moon roof
Power windows .................. 91
Power back window ........... 94
Moon roof ........................... 97
1-5. Refueling Opening the fuel tank cap ................................. 100
1-6. Theft deterrent system Engine immobilizer system ........................... 105
Alarm................................ 107
1-7. Safety information Correct driving posture..... 110
SRS airbags ..................... 112
Front passenger occupant classification system ...... 125
Child restraint systems..... 130
Installing child restraints... 134

101
1-5. Refueling
1
Before driving
Closing the fuel tank cap
When installing the fuel tank cap,
turn it until you hear a click.
The cap will turn slightly to the
opposite direction when released.
Hang the fuel tank cap on the
back of the fuel filler door.
■Fuel types (Gasoline engine)
Use unleaded gasoline. (Octane rating 87 [Research Octane Number 91] or
higher)
■ Fuel types (Flex-fuel engine)
Use unleaded gasoline (Octane rating 87 [Research Octane Number 91] or
higher), E85, or a blend of these two fuels. ( P. 615)

191
2-3. Operating the lights and wipers
2
When driving
Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.
■Daytime running light system (if equipped)
●To make your vehicle more visible to other drivers, the front turn signal
lights turn on automatically whenever the engine is started and the park-
ing brake is released. Daytime running lights are not designed for use at
night.
Type C and D: Daytime running lights can be turned off by operating the
switch.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.
■ Headlight control sensor
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

5
When trouble arises
589

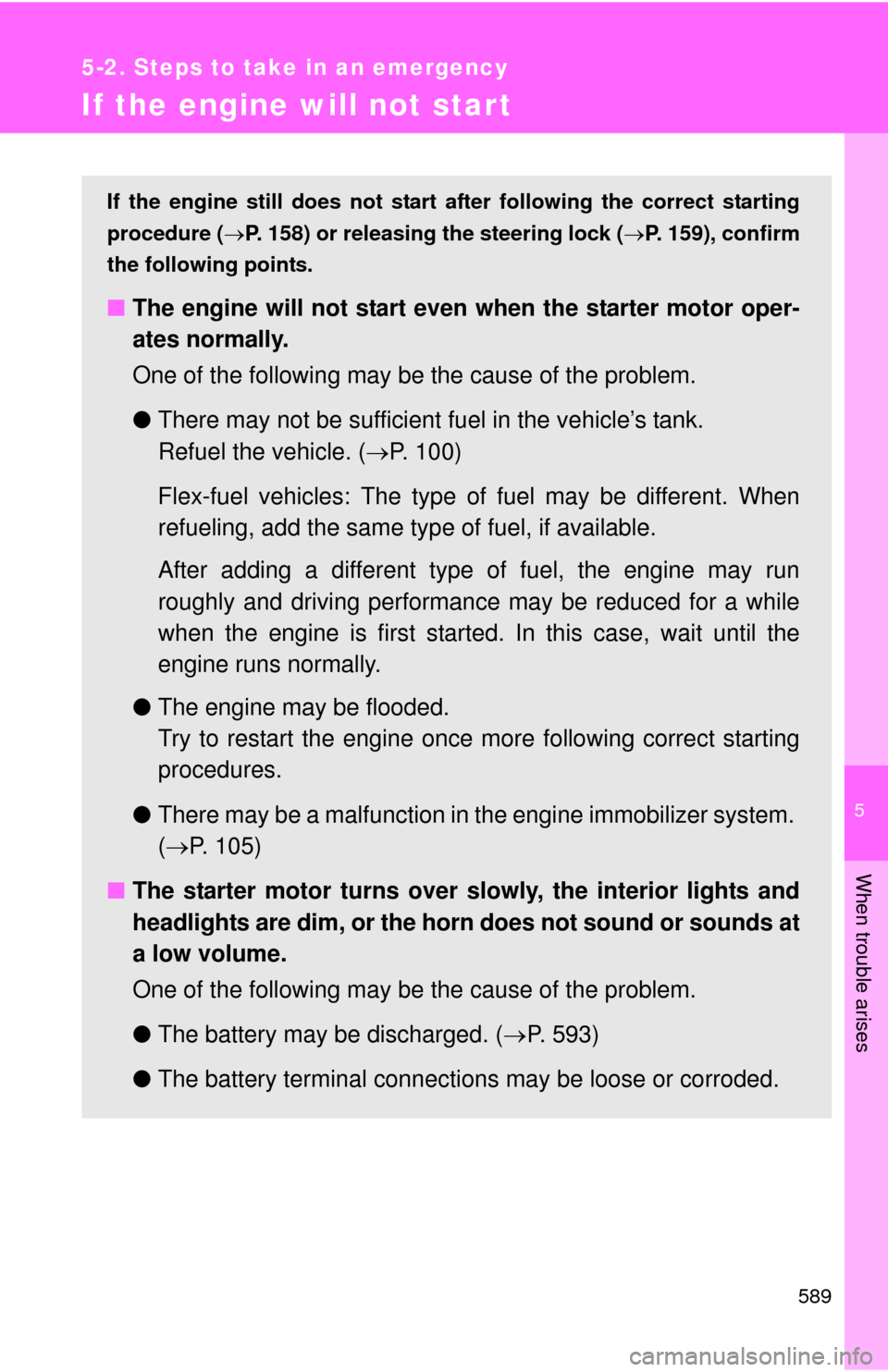

5-2. Steps to take in an emergency
If the engine will not star t
If the engine still does not start after following the correct starting
procedure ( P. 158) or releasing the steering lock (P. 159), confirm
the following points.
■ The engine will not start even when the starter motor oper-
ates normally.
One of the following may be the cause of the problem.
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle. ( P. 100)
Flex-fuel vehicles: The type of fuel may be different. When
refueling, add the same type of fuel, if available.
After adding a different type of fuel, the engine may run
roughly and driving performance may be reduced for a while
when the engine is first started. In this case, wait until the
engine runs normally.
● The engine may be flooded.
Try to restart the engine once more following correct starting
procedures.
● There may be a malfunction in the engine immobilizer system.
( P. 105)
■ The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem.
●The battery may be discharged. ( P. 593)
● The battery terminal connec tions may be loose or corroded.

607
6-1. Specifications
6
Vehicle specifications
Engine
Fuel
Model
3UR-FE and 3UR-FBE
Type 8-cylinder V-type, 4-cycle, gasoline
Bore and stroke 3.70  4.02 in. (94.0  102.0 mm)
Displacement 345.6 cu.in. (5663 cm3)
Valve clearance
(engine cold) Automatic adjustment
Drive belt tension Automatic adjustment
Engine
Gasoline engine Flex-fuel engine
Fuel typeUnleaded gasoline onlyUnleaded gasoline, E85,
or a blend of the two fuels
Octane rating
(Unleaded gasoline) 87 (Research Octane Number91) or higher
Ethanol percentage
(E85) 
85% or less
Fuel tank capacity
(Reference) 26.4 gal. (100.0 L, 22.0 lmp.gal.)

617
6-1. Specifications
6
Vehicle specifications
■
Toyota recommends the use of gaso line containing detergent additives
● Toyota recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.
● All gasoline sold in the U.S. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives con-
centration program.
● Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
■ Toyota recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Toyota recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.
■ Toyota does not recommend blended gasoline (Gasoline engine)
●If you use gasohol in your Toyota, be sure that it has an octane rating no
lower than 87.
● Toyota does not recommend the use of gasoline containing methanol.
●Use only gasoline containing a maxi-
mum of 10% ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 10% etha-
nol, including from any pump labeled
E15, E30, E50, E85 (which are only
some examples of fuel containing more
than 10% ethanol).DO NOT use gasoline
containing more than
10% ethanol.
(15% ethanol)
(50% ethanol) (85% ethanol)

619
6-1. Specifications
6
Vehicle specifications
NOTICE
■
When use of non-specified fuels (Flex-fuel engine)
The use of non-specified fuels will have a negative impact on starting and
driving performance, and will cause damage to the fuel system components.
Therefore, do not add fuels such as the following.
• Fuels containing methanol
• Fuels with more than 85% ethanol
■ Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor
hot starting, vaporization, engine knocking, etc.), discontinue the use of that
type of fuel.
■ When refueling
Take care not to spill fuel.
It can damage your vehicle’s paint.

659
Alphabetical index
Engine coolant
Capacity ............................... 609
Checking .............................. 498
Preparing and checking before winter ...................... 277
Engine coolan t temperature
gauge ..................................... 168
Engine immobilizer system .... 105
Engine oil
Capacity ............................... 608
Checking .............................. 494
Preparing and checking before winter ...................... 277
Engine switch .......................... 158
Event data recorder .................. 25
FFV ................................... 100, 615
Flex-fuel ........................... 100, 615
Flexible fuel vehicle ........ 100, 615
Floor mat .................................. 457
Fluid Brake .................................... 500
Washer ................................. 506
Fog lights Replacing light bulbs ............ 539
Switch ................................... 193
Wattage ................................ 614
Four-wheel drive system ........ 250
Front air conditioning
system ................................... 304
Front passenger occupant
classification system............ 125
Front passenger’s seat belt reminder light ........................ 563
Front seats Adjustment ............................. 48
Front side marker lights
Replacing light bulbs ............ 539
Switch ................................... 187
Wattage ................................ 614 Front turn signal lights
Replacing light bulbs .............539
Wattage .................................614
Fuel Capacity ................................607
Fuel gauge ............................168
Fuel pump shut off system ....560
Gas station information .........668
Information ............................615
Refueling ...............................100
Type ......................................607
Fuel filler door ..........................100
Fuel pump shut off system .....560
Fuses.........................................527
Garage door opener.................464
Gas station information...........668
Gauges ......................................168
Glove box..................................411
Hands-free system (for cellular phone) ................380
Hazard lights Switch....................................552
Head restraints Adjusting ................................66
Headlight cleaner .....................201
Headlights
Replacing light bulbs .............539
Switch....................................187
Wattage .................................614
Heaters Seat heaters ..................447, 450
Side mirror.............................317
Height control Electronically modulated air
suspension..........................244
Hood ..........................................492
F
*: Refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
G
H

668
GAS STATION INFORMATION
Auxiliary catch leverP. 492Fuel filler doorP. 100
Tire inflation pressure
P. 6 1 3
Hood lock release lever P. 492
Fuel tank capacity
(Reference) 26.4 gal. (100.0 L, 22.0 lmp.gal.)
Fuel type
P. 607
Cold tire inflation
pressureP. 6 1 3
Engine oil capacity
(Drain and refill-reference)qt. (L, Imp.qt.)
With filter 7.9 (7.5, 6.6)
Without filter 7.5 (7.1, 6.2)
Engine oil type P. 608
