navigation system TOYOTA SEQUOIA 2015 2.G Navigation Manual

156
1. VOICE COMMAND SYSTEM OPERATION
1. VOICE COMMAND SYSTEM
Talk switch
Press the talk switch to start the voice
command system.
 To cancel voice recognition, press and
hold the talk switch.
 It is unnecessary to speak directly into the
microphone when giving a command.
The voice command system enables
the navigation, audio and hands-free
systems to be operated using voice
commands.
Refer to the command list for samples
of voice commands. ( P.162)
USING THE VOICE
COMMAND SYSTEM
STEERING SWITCH
MICROPHONE
INFORMATION
●The voice command system can be
operated while guidance is being spo-
ken, when “Voice Prompt Interrupt”
( P.58) is set to on. (It is not necessary
to wait for the confirmation beep before
speaking a command.)
● When voice interruption mode is turned
on, it is easier to pick up external noise
because the multimedia system is
always ready for a command.
● Voice commands may not be recognized
if:
• Spoken too quickly.
• Spoken at a low or high volume.
• The windows are open.
• Passengers are talking while voice
commands are spoken.
• The air conditioning speed is set high.
• The air conditioning vents are turned towards the microphone.
● In the following conditions, the system
may not recognize the command prop-
erly and using voice commands may not
be possible:
• The command is incorrect or unclear.
Note that certain words, accents or
speech patterns may be difficult for the
system to recognize.
• There is excessive background noise, such as wind noise.
● Select “Train Voice Recognition” on
“Voice Settings” screen ( P. 5 8 ) . T h i s
feature is used by the multimedia sys-
tem to learn the user’s accent, which
can increase the voice recognition per-
formance.

162
1. VOICE COMMAND SYSTEM OPERATION
3. COMMAND LIST
Frequently used commands are listed in the following tables.
 For devices that are not installed in the vehicle, the related commands will not be dis-
played in the screen. Also, according to conditions, other commands may not be dis-
played in the screen.
 The functions available may vary according to the system installed.
Basic
 Entune App Suite application*
1
When the voice recognition language is set to English.
Navigation*1
Recognizable voice commands and their actions are shown below.
 Voice recognition language can be changed. ( P.53)
CommandAction
“Help”Prompts voice guidance to offer examples of commands
or operation methods
“Go Back”Returns to the previous screen
“Number one/two/three/four/five”Selects the number on the list screen
“Next Page”Displays the next page
“Previous Page”Displays the previous page
“Go to ”Displays the command list of the selected tab
CommandAction
“Launch ”Activates the Entune App Suite application
CommandAction
“Find Nearby ”Displays a list of near the current posi-
tion
“Enter an Address”Enables setting a destina tion by saying the address
“Go Home”Displays the route to home
“Cancel Route”Stops the route guidance
*
1: Entune Premium Audio only
*2: For example; “Gas stations”, “Restaurants”, etc.

177
1. REAR VIEW MONITOR SYSTEM
PERIPHERAL MONITORING SYSTEM
6
3. THINGS YOU SHOULD KNOW
If you notice any of the following symptoms, refer to the likely cause and the so-
lution, and re-check.
If the symptom is not resolved by the solution, have the vehicle inspected by
your Toyota dealer.
IF YOU NOTICE ANY SYMPTOMS
SymptomLikely causeSolution
The image is difficult to seeThe vehicle is in a dark
area
 The temperature around
the lens is either high or low
 The outside temperature is
low
 There are water droplets on
the camera
 It is raining or humid
 Foreign matter (mud etc.) is
adhering to the camera
 Sunlight or headlights are
shining directly into the
camera
 The vehicle is under fluo-
rescent lights, sodium
lights, mercury lights etc.Back up while visually check-
ing the vehicle’s surround-
ings. (Use the monitor again
once conditions have been
improved.)
The procedure for adjusting
the picture quality of the rear
view monitor system is the
same as the procedure for
adjusting the navigation
screen. ( P.39)
The image is blurryDirt or foreign matter (such as
water droplets, snow, mud
etc.) is adhering to the cam-
era.Rinse the camera lens with
water and wipe it clean with a
soft cloth.
Wash with a mild soap if the
dirt is stubborn.
The image is out of alignmentThe camera or surrounding
area has received a strong
impact.Have the vehicle inspected by
your Toyota dealer.
The fixed guide lines are very
far out of alignmentThe camera position is out of
alignment.Have the vehicle inspected by
your Toyota dealer.
The vehicle is tilted (there is
a heavy load on the vehicle,
tire pressure is low due to a
tire puncture, etc.)
 The vehicle is used on an
incline.If this happens due to these
causes, it does not indicate a
malfunction.
Back up while visually check-
ing the vehicle’s surround-
ings.

197
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
PHONE
7
1Display the message inbox screen.
(P.194)
2Select the desired message from the
list.
3Select “Quick Message” .
4Select the desired message.
5Select “Send” .
While the message is being sent, a send-
ing message screen is displayed.
 To cancel sending the message, select
“Cancel”.
■EDITING QUICK REPLY MESSAG-
ES
1Select “Quick Message” .
2Select corresponding to the de-
sired message to edit.
3Select “OK” when editing is complet-
ed.
REPLYING TO A MESSAGE
(QUICK REPLY)
15 messages have already been
stored.This operation cannot be performed
while driving.
INFORMATION
● To reset the edited quick reply
messages, select “Default”.
 Entune Premium Audio
● “Quick Message 1” (“I am driving and
will arrive in approximately [ETA]
minutes.”) :
This message cannot be edited and will
automatically fill in [ETA] with the
navigation calculated estimated time of
arrival on the confirm message screen.
If there are waypoints set, [ETA] to the
next waypoint will be shown.
If there is no route currently set in the
navigation system, “Quick Message 1”
cannot be selected.

218
1. QUICK REFERENCE ................... 220
MAP SCREEN ..................................... 220
NAVIGATION OPTIONS SCREEN...... 222
2. MAP SCREEN OPERATION ....... 223
CURRENT POSITION DISPLAY ......... 223
MAP SCALE ........................................ 223
ORIENTATION OF THE MAP ............. 224
SWITCHING THE MAP MODE............ 225
SCREEN SCROLL OPERATION ........ 227
ADJUSTING LOCATION IN SMALL INCREMENTS................................... 228
3. MAP SCREEN INFORMATION ... 229
DISPLAYING MAP INFORMATION .... 229
DISPLAYING INFORMATION ABOUT THE ICON WHERE
THE CURSOR IS SET ...................... 231
STANDARD MAP ICONS .................... 232
4. TRAFFIC INFORMATION ............ 233
DISPLAYING TRAFFIC INFORMATION ON THE MAP .......... 235
1. DESTINATION SEARCH SCREEN .................................... 236
2. SEARCH OPERATION.. .............. 238
SELECTING SEARCH AREA .............. 239
SETTING HOME AS DESTINATION ... 239
SETTING PRESET DESTINATIONS
AS DESTINATION ............................. 239
SEARCHING BY ADDRESS ................ 240
SEARCHING BY POINT OF INTEREST ................................... 241
SEARCHING FROM PREVIOUS DESTINATIONS ................................ 245
SEARCHING BY ADDRESS BOOK .... 245
SEARCHING BY EMERGENCY .......... 246
SEARCHING BY INTERSECTION AND FREEWAY ................................ 246
SEARCHING BY MAP ......................... 248
SEARCHING BY COORDINATES ....... 248
3. STARTING ROUTE GUIDANCE ....... ......................... 249
STARTING ROUTE GUIDANCE.......... 249
PAUSING GUIDANCE ......................... 252
1BASIC OPERATION2DESTINATION SEARCH
8
NAVIGATION SYSTEM
*

8
219
1
2
3
4
5
6
7
8
9
1. ROUTE GUIDANCE SCREEN ..... 253
SCREEN FOR ROUTE GUIDANCE ... 253
ROUTE OVERVIEW............................ 254
DURING FREEWAY DRIVING............ 255
WHEN APPROACHING INTERSECTION ............................... 256
TURN LIST SCREEN .......................... 257
TURN-BY-TURN ARROW SCREEN ... 257
2. TYPICAL VOICE GUIDANCE PROMPTS.................................. 258
3. EDITING ROUTE ......................... 259
ADDING DESTINATIONS ................... 260
REORDERING DESTINATIONS ......... 260
DELETING DESTINATIONS ............... 260
SETTING ROUTE PREFERENCES ... 260
SELECTING ROUTE TYPE ................ 261
DETOUR SETTING ............................. 261
STARTING FROM ADJACENT ROAD ................................................ 262
1. MEMORY POINTS SETTINGS .... 263
SETTING UP HOME ........................... 264
SETTING UP PRESET DESTINATIONS................................ 265
SETTING UP ADDRESS BOOK ......... 267
SETTING UP AREAS TO AVOID ........ 269
DELETING PREVIOUS DESTINATIONS................................ 271
1. DETAILED NAVIGATION SETTINGS ................................. 272
SCREENS FOR NAVIGATION
SETTINGS ........................................ 272
2. TRAFFIC SETTINGS................... 276
SCREEN FOR TRAFFIC SETTINGS ........................................ 276
AUTO AVOID TRAFFIC....................... 277
MY TRAFFIC ROUTES ....................... 278
1. GPS (GLOBAL POSITIONING SYSTEM) .................... ............... 282
LIMITATIONS OF
THE NAVIGATION SYSTEM ............ 282
2. MAP DATABASE VERSION AND COVERED AREA ............. 284
MAP INFORMATION ........................... 284
ABOUT THE MAP DATA ..................... 285
3ROUTE GUIDANCE
4MEMORY POINTS
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM
NAVIGATION SYSTEM
*: Entune Premium Audio only
*

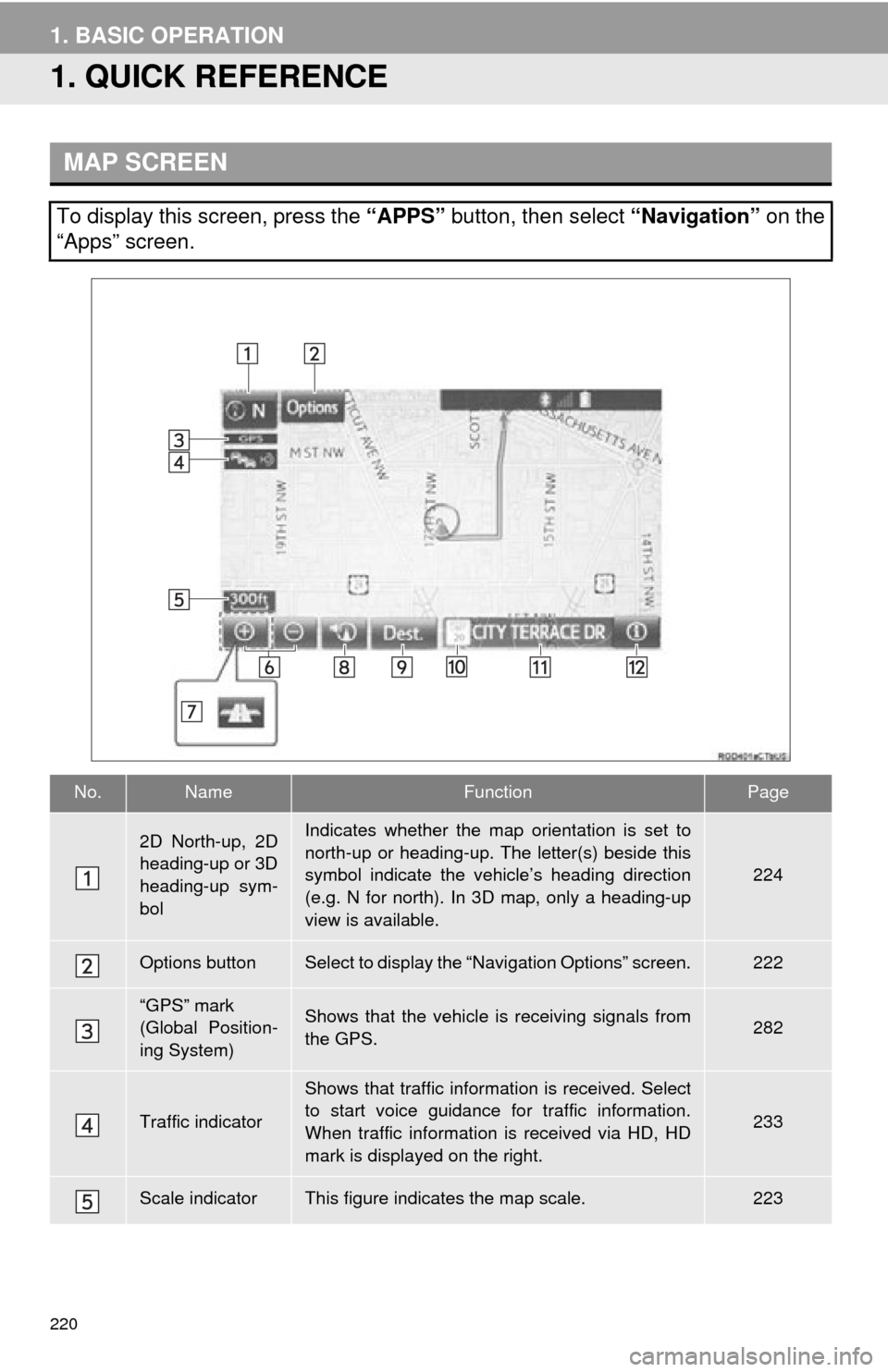

220
1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
To display this screen, press the “APPS” button, then select “Navigation” on the
“Apps” screen.
No.NameFunctionPage
2D North-up, 2D
heading-up or 3D
heading-up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. The letter(s) beside this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
224
Options buttonSelect to display the “Navigation Options” screen.222
“GPS” mark
(Global Position-
ing System)Shows that the vehicle is receiving signals from
the GPS.282
Traffic indicator
Shows that traffic information is received. Select
to start voice guidance for traffic information.
When traffic information is received via HD, HD
mark is displayed on the right.
233
Scale indicatorThis figure indicates the map scale.223

221
1. BASIC OPERATION
NAVIGATION SYSTEM
8
Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.
223
Footprint map
buttonSelect to display the footprint map screen.224
Current position
button/voice
guidance buttonSelect to display the current position address.
 Select to repeat voice guidance.223
Destination but-
tonSelect to display the “Destination” screen.236
Speed limit iconIndicates the speed limit on the current road. The
display of the speed limit icon can be set to on/off.229
Route informa-
tion bar
Displays the current street name, or the distance
with the estimated travel time/arrival time to the
destination. The route information bar fills from
left to right as the vehicle progresses on the
route.
253
Route informa-
tion buttonSelect to change the display between the current
street name and the distance with the estimated
travel/arrival time.254
No.NameFunctionPage

223
1. BASIC OPERATION
NAVIGATION SYSTEM
8
2. MAP SCREEN OPERATION
1Press the “APPS” button.
2Select “Navigation” .
3Check that the current position map is
displayed.
1Select or to change the
scale of the map screen.
The scale indicator bar appears at the bot-
tom of the screen.
 Select and hold or to con-
tinue changing the scale of the map
screen.
 The scale of the map screen can also be
changed by selecting the scale bar
directly. This function is not available while
driving.
CURRENT POSITION
DISPLAY
To correct the current position manu-
ally:
P. 2 7 4
INFORMATION
● While driving, the current position mark
is fixed on the screen and the map
moves.
● The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
● After the battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the cor-
rect current position is displayed.
MAP SCALE
INFORMATION
●The map scale is displayed above the
zoom in button at the bottom left of the
screen.
● In areas where the footprint map is avail-
able the map scale changes from
to when at the minimum range.

225
1. BASIC OPERATION
NAVIGATION SYSTEM
8
: North-up symbol
Regardless of the direction of vehicle trav-
el, north is always up.
: Heading-up symbol
The direction of vehicle travel is always up.
: 3D Heading-up symbol
The direction of vehicle travel is always up.
 The letter(s) beside this symbol indicate
the vehicle’s heading direction (e.g. N for
north).
1Select “Options” on the map screen.
2Select “Map Mode” .
3Select the desired configuration but-
ton.
Depending on the conditions, certain
screen configuration buttons cannot be
selected.
SWITCHING THE MAP MODE
No.FunctionPage
Select to display the single
map screen. 226
Select to display the dual
map screen.226
Select to display the com-
pass mode screen.227
Select to display the turn list
screen.257
Select to display the free-
way exit list screen.255
Select to display the inter-
section guidance screen or
the guidance screen on the
freeway.
256
Select to display the turn-
by-turn arrow screen.257
