TOYOTA SEQUOIA 2015 2.G Owners Manual

131
1-7. Safety information
1
Before driving
CAUTION
■
Child restraint precautions
●Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or accident.
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ When the child restrain t system is not in use
● Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the restraint unsecured in the passenger compart-
ment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of a sudden stop, sudden swerve or
accident.

132
1-7. Safety information
Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the r ear seats using the LATCH anchors or
a seat belt. Attach the top tether strap when installing a child
restraint.
The lap/shoulder belt can be used if your child restraint system is
not compatible with the LATCH (Low er Anchors and Tethers for Chil-
dren) system.
■ Using the LATCH anchors
Second seat (Separated seat)
Child restraint LATCH anchors
LATCH anchors are provided
for all of the second seats.
(Buttons displaying the loca-
tion of the anchors are
attached to the seats.)
Second seats (Bench seat)Child restraint LATCH anchors
LATCH anchors are provided
for all of the second seats.
(Buttons displaying the loca-
tion of the anchors are
attached to the seats.)

133
1-7. Safety information
1
Before driving
■

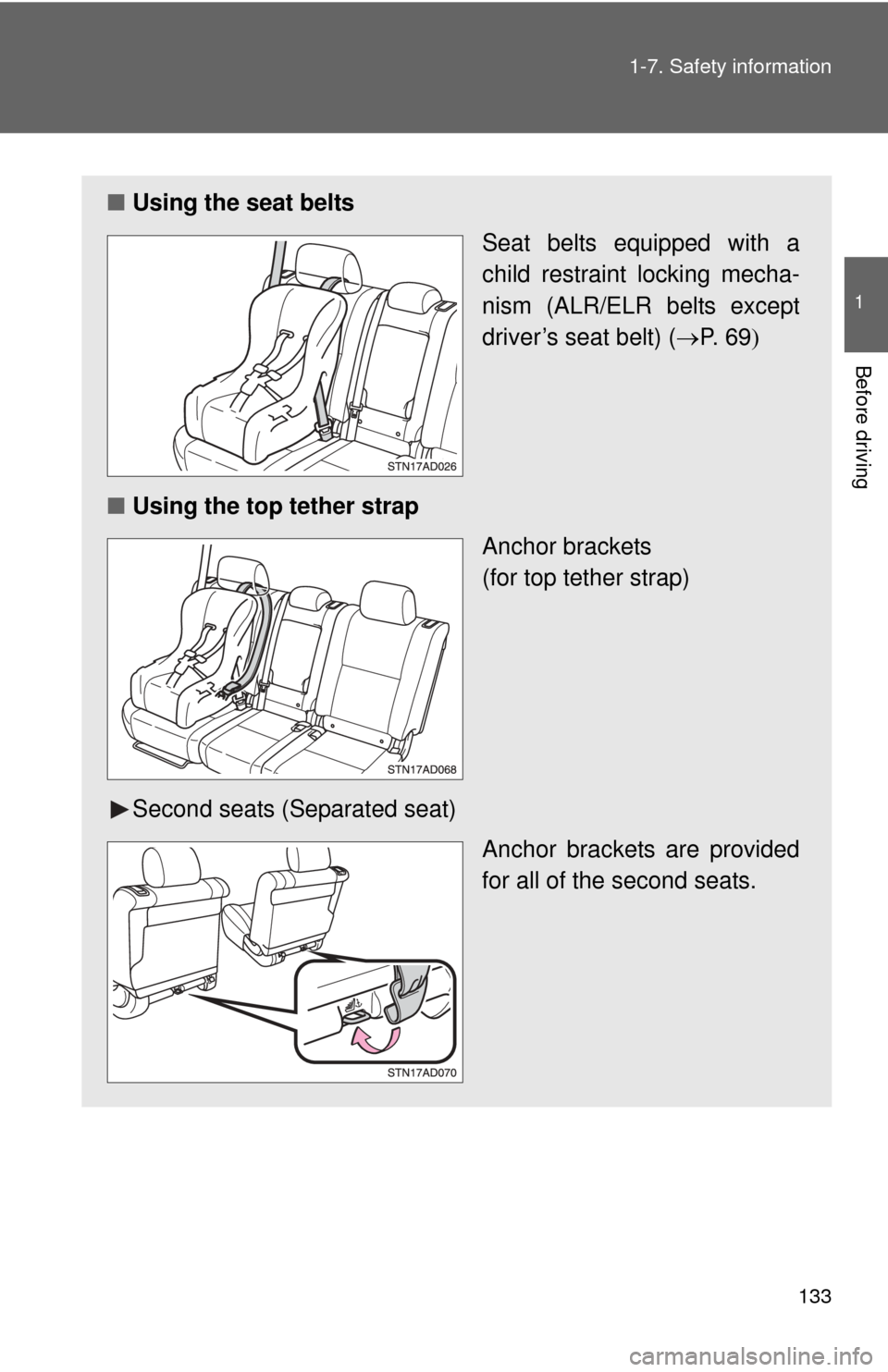

Using the seat belts
Seat belts equipped with a
child restraint locking mecha-
nism (ALR/ELR belts except
driver’s seat belt) (P. 6 9 
■ Using the top tether strap
Anchor brackets
(for top tether strap)
Second seats (Separated seat) Anchor brackets are provided
for all of the second seats.

134 1-7. Safety information
Installation with LATCH system (second seat only)
Second seat (except center seat)Fold the seatback while pulling
the lever. Return the seatback
and secure it at the 1st lock posi-
tion (most upright position).
Adjust the seatback to the 4th
lock position. (P. 51)
1st lock position
4th lock position
Second seats (Bench seat) Anchor brackets are provided
for all of the second seats.
Third seats Anchor bracket is provided for
the third center seat.

135
1-7. Safety information
1
Before driving
Second center seat (bench seat)
Fold the seatback while pulling
the lever. Return the seatback
and secure it at the 1st lock posi-
tion (most upright position).
Adjust the seatback to the 8th
lock position. (P. 51)
1st lock position
8th lock position
Type A
Latch the buckles onto
the LATCH anchors.
The anchors are installed in
the lower seatback under a
flap. Confirm the position of
the anchors below the sym-
bol in the seatback.
If the child restraint has a
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchor.
( P. 140)
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Canada only

136 1-7. Safety information
Type BLatch the hooks of the
lower straps onto the
LATCH anchors and
tighten the lower straps.
The anchors are installed in
the lower seatback under a
flap. Confirm the position of
the anchors below the sym-
bol in the seatback.
If the child restraint has a
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchor.
( P. 140)
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Canada only

137
1-7. Safety information
1
Before driving
Installing child restraints using a seat belt (child restraint lock function belt)
■
Rear facing Infant seat/convertible seat
Place the child seat on the rear
seat facing the rear of the vehi-
cle.
Run the seat belt through the
child seat and insert the plate
into the buckle. Make sure that
the belt is not twisted.
Fully extend the shoulder belt
and then allow it to retract
slightly in order to activate the
ALR lock mode.
Lock mode allows the seat belt to
retract only.

138 1-7. Safety information
While pushing the child seat
down into the rear seat, allow the
shoulder belt to retract until the
child seat is securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■Forward facing Convertible seat
Place the child seat on the seat
facing the front of the vehicle.
Run the seat belt through the
child seat and insert the plate
into the buckle. Make sure that
the belt is not twisted.
Fully extend the shoulder belt
and then allow it to retract
slightly in order to activate the
ALR lock mode.
Lock mode allows the seat belt to
retract only.

139
1-7. Safety information
1
Before driving
While pushing the child seat into
the rear seat, allow the shoulder
belt to retract until the child seat
is securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint has a top te
ther strap, the top tether strap
should be latched onto the top tether strap anchor. ( P. 140)
■ Booster seat
Place the booster seat on the
seat facing the front of the vehi-
cle.
Sit the child in the booster seat.
Fit the seat belt to the booster
seat according to the manufac-
turer’s instructions and insert the
plate into the buckle. Make sure
that the belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.
( P. 69)

140 1-7. Safety information
Removing a child restraint installed with a seat beltPush the buckle release button
and fully retract the seat belt.
Child restraint systems with a top tether strapSecond seat Secure the child restraint using
the LATCH anchors or seat belt,
and adjust the head restraint to
the upmost position.
Third center seat Secure the child restraint using
the LATCH anchors or seat belt,
and adjust the head restraint to
the upmost position.
