612 6-1. Specifications
■Fuel tank opening fo r unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
■ If your engine knocks
●Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
■ Fuel quality
In very few cases, driveability problems may be caused by the brand of f\
uel
you are using. If driveability problems persist, try changing the brand of fuel.
If this does not correct the problem, consult your Toyota dealer.
■ Gasoline quality standards
●Automotive manufacturers in the US, Europe and Japan have developed
a specification for fuel quality called World-Wide Fuel Charter (WWFC)
that is expected to be applied worldwide.
● The WWFC consists of four categories that are based on required emis-
sion levels. In the US, category 4 has been adopted.
● The WWFC improves air quality by lowering emissions in vehicle fleets,
and customer satisfaction through better performance.
■ E85 fuel (Flex-fuel vehicles)
●E85 fuel is a blend of 85% ethanol and 15% gasoline. However, E85
does not necessarily contain 85% ethanol. For example, in cold climates
the ethanol content of E85 may be reduced during the winter months to
maintain cold weather starting performance.
● E85 has less energy per gallon than gasoline, so you will need to fill your
fuel tank more frequently when using E85.
● The number of fuel stations that sell E85 fuel is limited. For more infor-
mation about fueling stations, please refer to the U.S. Department of
Energy Web site.
http://www.afdc.energy.gov/afdc/locator/stations/

613
6-1. Specifications
6
Vehicle specifications
■
Toyota recommends the use of gaso line containing detergent additives
● Toyota recommends the use of gasoline that contains detergent additives
to avoid build-up of engine deposits.
● All gasoline sold in the U.S. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA’s lowest additives con-
centration program.
● Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.
■ Toyota recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxy-
genates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in
many areas.
Toyota recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.
■ Toyota does not recommend blended gasoline (Gasoline engine)
●If you use gasohol in your Toyota, be sure that it has an octane rating no
lower than 87.
● Toyota does not recommend the use of gasoline containing methanol.
●Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30, E50, E85 (which are only some
examples of fuel containing more than
15% ethanol).DO NOT use gasoline
containing more than
15% ethanol.
(30% ethanol)
(50% ethanol) (85% ethanol)

614 6-1. Specifications
■Toyota does not recommen d gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy-
clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.
■ Toyota does not recommend blende d gasoline (Flex-fuel engine)
Do not use non-specified fuels such as the following.
• Fuels containing methanol.
• Fuels with more than 85% ethanol.
■ Toyota does not recommend the use of after-market fuel additives
(Flex-fuel engine)
Do not use any after-market fuel additives when repeatedly refueling with
E85, as some after-market fuel additives are not compatible with E85.
NOTICE
■Notice on fuel quality
●Do not use improper fuels.
If improper fuels are used, the engine will be damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
● Gasoline engine: Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Use of unleaded gasoline with an octane rating lower than 87 may result in
engine knocking. Persistent knocking can lead to engine damage and
should be corrected by refueling with higher octane unleaded gasoline.

615
6-1. Specifications
6
Vehicle specifications
NOTICE
■
When use of non-specified fuels (Flex-fuel engine)
The use of non-specified fuels will have a negative impact on starting and
driving performance, and will cause damage to the fuel system components.
Therefore, do not add fuels such as the following.
• Fuels containing methanol
• Fuels with more than 85% ethanol
■ Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor
hot starting, vaporization, engine knocking, etc.), discontinue the use of that
type of fuel.
■ When refueling
Take care not to spill fuel.
It can damage your vehicle’s paint.

621
6-1. Specifications
6
Vehicle specifications
Warning: The temperature grades for this tire are established for a
tire that is properly inflated and not overloaded.
Excessive speed, underinflation, or
excessive loading, either sepa-
rately or in combination, can caus e heat buildup and possible tire fail-
ure.

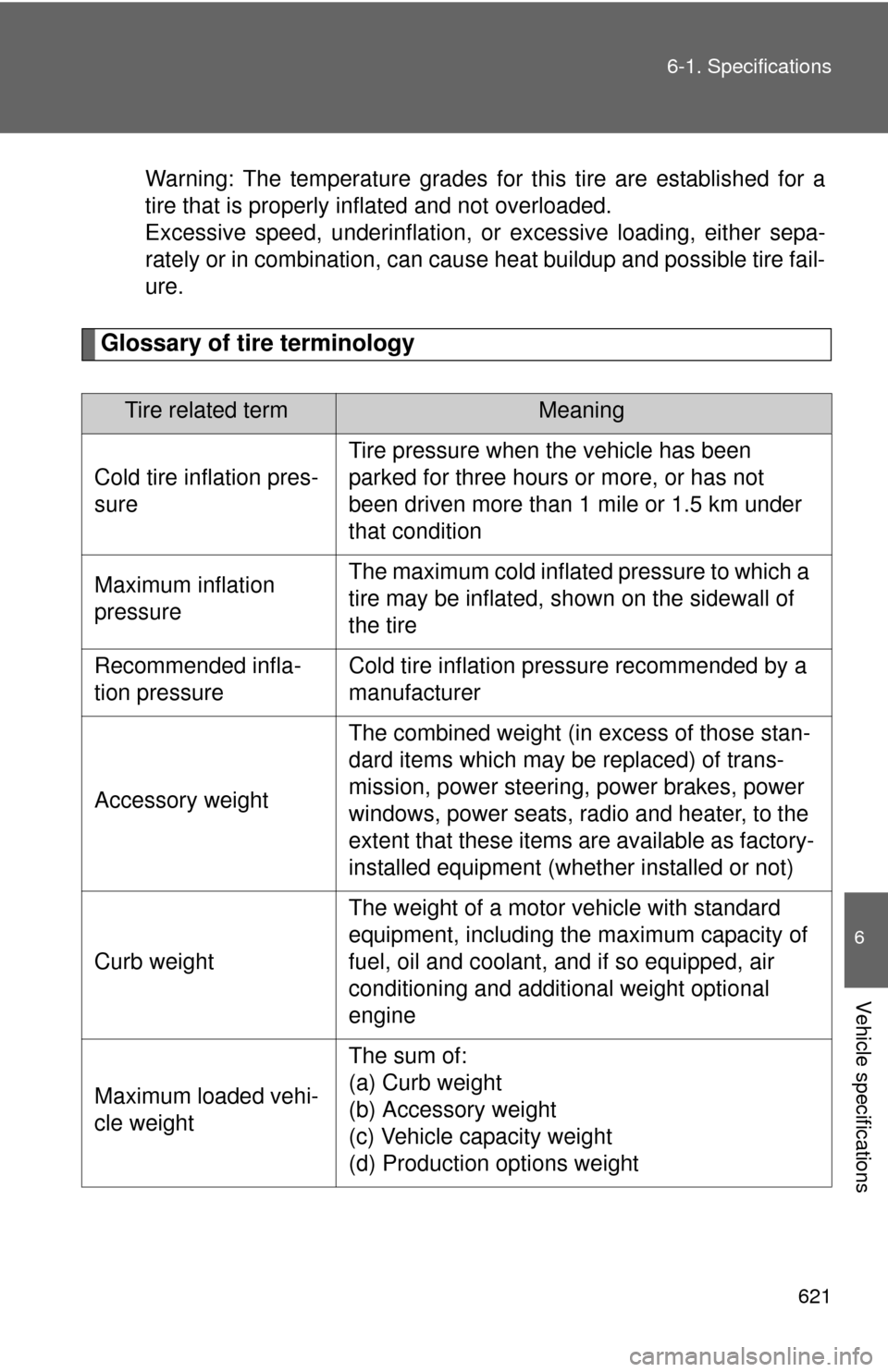

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which a
tire may be inflated, s hown on the sidewall of
the tire
Recommended infla-
tion pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of trans-
mission, power steering, power brakes, power
windows, power seats, radio and heater, to the
extent that these items are available as factory-
installed equipment (whether installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

630 6-2. Customization
Illumination
(
P. 404)Time elapsed before
lights turn off
15 seconds7.5 seconds
30 seconds
Operation after the
engine is off ON OFF
Operation when the
doors are unlocked ON OFF
Seat Belt
Reminder
Buzzer
(
P. 559) Vehicle speed linked
seat belt reminder
buzzer
ON OFF
ItemFunctionDefault settingCustomized
setting

651
Alphabetical index
Battery
Checking .............................. 499
If the vehicle has discharged
battery ................................ 589
Preparing and checking
before winter ...................... 275
Blind Spot Monitor .................. 236
Bluetooth
® audio..................... 377
Bluetooth® phone ................... 378
Bottle holder ............................ 428
Brake assist ............................. 255
Brakes Fluid...................................... 496
Parking brake ....................... 164
Break-in tips ............................ 147
BSM .......................................... 236
Card holder .............................. 414
Care Exterior ................................. 472
Interior .................................. 474
Seat belts ............................. 475
Cargo capacity ........................ 268
Cargo hooks ............................ 457
CD player ................................. 336
Chains ...................................... 275
Child restraint system Booster seats, definition ....... 128
Booster seats, installation .... 139
Convertible seats, definition............................. 128
Convertible seats, installation .......................... 138
Front passenger occupant
classification system .......... 123
Infant seats, definition .......... 128
Infant seats, installation ........ 137
Installing CRS with LATCH system................................ 134
Installing CRS with seat
belts ................................... 137 Installing CRS with top
tether straps ........................140
Child safety Airbag precautions ................118
Battery precautions .......500, 591
Child restraint system............128
Child-protectors .......................37
How your child should wear the seat belt ..........................75
Installing child restraints ........132
Moon roof precautions ............99
Power window lock switch.......90
Power window precautions .....92
Removed key battery precautions .........................522
Seat belt extender precautions ...........................78
Seat belt precautions ..............75
Seat heater precautions ........447
Child-protectors .........................37
Cigarette lighter .......................437
Cleaning Exterior ..................................472
Interior ...................................474
Seat belts ..............................475
Climate control seat.................448
Clock ........................................ 433
Coin holder ...............................410
Compass ...................................467
Condenser ................................496
Console box .....................411, 419
Conversation mirror ................438
Cooling system
Engine overheating ...............592
CRS ...........................................128
C
*: Refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.

652 Alphabetical index
Cruise controlCruise control ........................ 200
Dynamic laser cruise
control ................................. 204
Cup holders .............................. 424
Curtain shield airbags ............. 111
Customizable features............. 627
Daytime running light system .................................... 189
Defogger Rear window ......................... 315
Side mirrors ........................... 315
Dimension................................. 600
Dinghy towing .......................... 299
Display Trip information ..................... 176
Warning message ................. 568
Do-it-yourself main tenance..... 484
Door courtesy lights Door courtesy lights .............. 404
Wattage ................................. 610
Doors Back door ................................40
Door glasses ...........................90
Door lock ...........................31, 35
Side doors ...............................35
Side mirrors .............................84
Driver’s seat belt reminder light ......................................... 559
Driving
Break-in tips .......................... 147
Correct posture ..................... 109
Procedures ............................ 146
Winter driving tips.................. 275
Driving position memory...........62
DVD player
*
Electronically modulated air suspension ............................ 242
Emergency flashers Switch ................................... 548
Emergency, in case of
If the engine will not start ...... 585
If the shift lever cannot be shifted from P ..................... 587
If the vehicle has discharged battery................................. 589
If the warning buzzer
sounds ................................ 557
If the warning light turns on........................................ 557
If the warning message is displayed ............................ 568
If you have a flat tire ............. 574
If you lose your keys ............. 588
If you think something is wrong .................................. 555
If your vehicle becomes stuck ................................... 595
If your vehicle has to
be stopped in an
emergency .......................... 596
If your vehicle needs to be
towed .................................. 549
If your vehicle overheats ....... 592
Engine
Compartment ........................ 489
Engine switch ........................ 156
Hood ..................................... 488
How to start the engine ................................. 156
Identification number............. 602
If the engine will not start ...... 585
Ignition switch ...................... 156
Overheating .......................... 592
D
E

653
Alphabetical index
Engine coolant
Capacity ............................... 605
Checking .............................. 494
Preparing and checking before winter ...................... 275
Engine coolan t temperature
gauge ..................................... 166
Engine immobilizer system .... 104
Engine oil
Capacity ............................... 604
Checking .............................. 490
Preparing and checking before winter ...................... 275
Engine switch .......................... 156
Event data recorder .................. 25
FFV ................................... 100, 611
Flex-fuel ........................... 100, 611
Flexible fuel vehicle ........ 100, 611
Floor mat .................................. 454
Fluid Brake .................................... 496
Washer ................................. 502
Fog lights Replacing light bulbs ............ 535
Switch ................................... 191
Wattage ................................ 610
Four-wheel drive system ........ 248
Front air conditioning
system ................................... 302
Front passenger occupant
classification system............ 123
Front passenger’s seat belt reminder light ........................ 559
Front seats Adjustment ............................. 48
Front side marker lights
Replacing light bulbs ............ 535
Switch ................................... 185
Wattage ................................ 610 Front turn signal lights
Replacing light bulbs .............535
Wattage .................................610
Fuel Capacity ................................603
Fuel gauge ............................166
Fuel pump shut off system ....556
Gas station information .........664
Information ............................611
Refueling ...............................100
Type ......................................603
Fuel filler door ..........................100
Fuel pump shut off system .....556
Fuses.........................................523
Garage door opener.................461
Gas station information...........664
Gauges ......................................166
Glove box..................................409
Hands-free system (for cellular phone) ................378
Hazard lights Switch....................................548
Head restraints Adjusting ................................65
Headlight cleaner .....................199
Headlights
Replacing light bulbs .............535
Switch....................................185
Wattage .................................610
Heaters Seat heaters ..................445, 448
Side mirror.............................315
Height control Electronically modulated air
suspension..........................242
Hood ..........................................488
F
*: Refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
G
H

654 Alphabetical index
HooksCargo net .............................. 457
Shopping bag ........................ 458
Horn........................................... 165
I/M test....................................... 483
Identification Engine ................................... 602
Vehicle .................................. 602
Ignition switch .......................... 156
Illuminated entry system ......... 404
Indicator lights ......................... 171
Initialization
Items to initialize.................... 631
Inside rear view mirror ..............81
Interior lights Interior lights.......................... 404
Switch.................................... 405
Wattage ................................. 610
Instrument panel light control .................................... 170
Intuitive parking assist ............ 218
Jack
Positioning the jack ............... 577
Vehicle-equipped jack ........... 574
Jack handle .............................. 574
Keyless entry..............................31
Keys
Engine switch ........................ 156
If you lose your keys ............. 588
Ignition switch........................ 156
Key number .............................30
Keyless entry...........................31
Keys ........................................30
Wireless remote control key ........................................31 LATCH system ......................... 134
License plate lights
Replacing light bulbs ............. 535
Wattage................................. 610
Light bulbs
Replacing .............................. 535
Wattage................................. 610
Lights
Door courtesy lights .............. 404
Emergency flasher switch ..... 548
Fog light switch ..................... 191
Hazard light switch ................ 548
Headlight switch .................... 185
Interior light switch ........ 406, 407
Outer foot lights..................... 404
Personal light switch ............. 406
Replacing light bulbs ............. 535
Turn signal lever ................... 163
Vanity lights........................... 432
Wattage................................. 610
Load capacity ........................... 273
Lock steering column.............. 157
Luggage compartment features .................................. 456
Maintenance Do-it-yourself maintenance ....................... 484
General maintenance............ 480
Maintenance data ................. 600
Maintenance requirements ... 477
Reset the maintenance data..................................... 478
Map holder................................ 415
Meter
Accessory meter ................... 182
Instrument panel light control ................................. 170
Meters ................................... 166
I
J
K
L
M
