key TOYOTA SEQUOIA 2015 2.G User Guide

40
1-2. Opening, closing and locking the doors

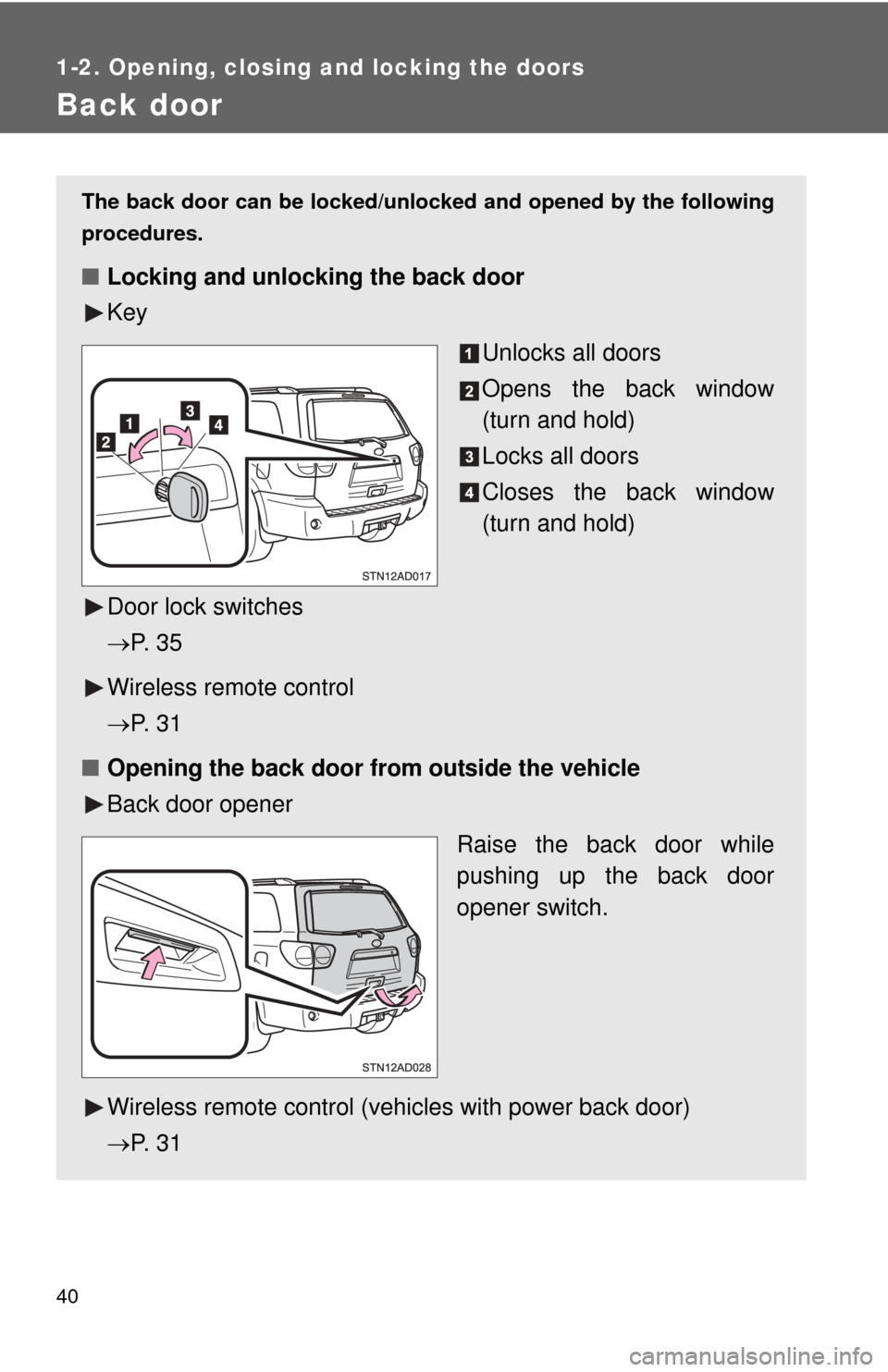

Back door
The back door can be locked/unlocked and opened by the following
procedures.
■Locking and unlocking the back door
Key
Unlocks all doors
Opens the back window
(turn and hold)
Locks all doors
Closes the back window
(turn and hold)
Door lock switches
 P. 3 5
Wireless remote control
 P. 3 1
■ Opening the back door from outside the vehicle
Back door opener
Raise the back door while
pushing up the back door
opener switch.
Wireless remote control (vehicles with power back door)
 P. 3 1

57
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Folding down the third seat
■ Before folding down the third seat
To release the hooked end tab,
insert the key or concaved end
tab into the hole on the buckle.
Retract the belt slowly when
releasing and stowing the seat
belt.
Stow the seat belt tabs in the
cover set in the roof as shown.

64 1-3. Adjustable components (seats, mirrors, steering wheel)
■Retained accessory power
Each memorized position (except for the tilt and telescopic steering column)
can be activated within 30 seconds after the driver’s door is opened, even if
the key is not in the engine switch.
■ If any position memory button is pushed while the adjustments are
being made
The operation will stop. To reactivate the system, push the button (“1” or “2”)
again.
■ If the battery is disconnected
The memorized positions must be reset because the computer’s memory is
erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear pas-
senger or squeeze your body against the steering wheel.
If this happens, you can stop the movement by pressing another seat posi-
tion memory button.

71
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Third center seat belt
The third center seat belt is a 3-po int type restraint with 2 buckles. Both
seat belt buckles must be correctly located and securely latched for
proper operation.
Make sure that the buckle is
securely latched for ready use of
the center seat belt.Matches the tab with the
hooked end (tab “A”)
Matches the tab with the con-
caved end (tab “B”)
■ Release method
The belt can be completely released when not required, such as
when folding down the third seat.
To release the tab “B”, push
the buckle release button.
To release the tab “A”, insert
the key (P. 30) or tab “B” into
the hole on the buckle.
Retract the belt slowly when
releasing and stowing the seat
belt.

80
1-3. Adjustable components (seats, mirrors, steering wheel)
Steering wheel (power-adjustable type)
Auto tilt awayWhen the key is removed from
the engine switch, the steering
wheel returns to its stowed posi-
tion by moving up and away to
enable easier driver entry and
exit.
Inserting the key into the engine
switch returns the steering wheel
to its original position.
The steering wheel can be adjusted to a comfortable position.
Up
Down
Toward the driver
Away from the driver
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident,
resulting in death or serious injury.

91
1-4. Opening and closing the windows and moon roof
1
Before driving
■
The power windows can be operated when
The engine switch is in the ON position.
■ Door lock linked power windows operation
The power windows can be opened and closed using the key. ( P. 35)
■ Operating the power windows after turning the engine switch off
The power windows can be operated for approximately 43 seconds even
after the engine switch is turned to the ACC position or turned off. They can-
not, however, be operated once either front door is opened.
■ Jam protection function (Front windows only)
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.
■ When the power window does not close normally
If the jam protection function is operating abnormally and a window cannot
be closed, perform the following operations using the power window switch
on the front door.
●After stopping the vehicle, the window can be closed by holding the
power window switch in the one-touch closing position while the engine
switch is turned to the ON position.
● If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following proce-
dure.
Hold the power window switch in the one-touch closing position.
Continue holding the switch for a further 6 seconds after the win-
dow has closed.
Hold the power window switch in the one-touch opening position.
Continue holding the switch for a further 2 seconds after the win-
dow has opened completely.
Hold the power window switch in the one-touch closing position
once again. Continue holding the switch for a further 2 seconds
after the window has closed.
If you release the switch while the window is moving, start again from the
beginning. If the window continues to close but then re-open slightly even
after performing the above procedure correctly, have the vehicle inspected
by your Toyota dealer.

92 1-4. Opening and closing the windows and moon roof
■Customization that can be co nfigured at Toyota dealer
Settings (e.g. power windows) can be changed.
(Customizable features P. 627)
CAUTION
■Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
●The driver is responsible for all the power window operations, including the
operation for the passengers. In order to prevent accidental operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window. Also, when riding with a child, it is recommended to use
the window lock switch. ( P. 90)
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● When using the key and operating the power windows, operate the power
window after checking to make sure that there is no possibility of any pas-
senger having any of their body parts caught in the window. Also do not let
a child operate window by the key. It is possible for children and other pas-
sengers to get caught in the power window.
● When exiting the vehicle, turn the engine switch off, carry the key and exit
the vehicle along with the child. There may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.
■ Jam protection function
●Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the window fully closes.

93
1
1-4. Opening and closing the windows and moon roof
Before driving

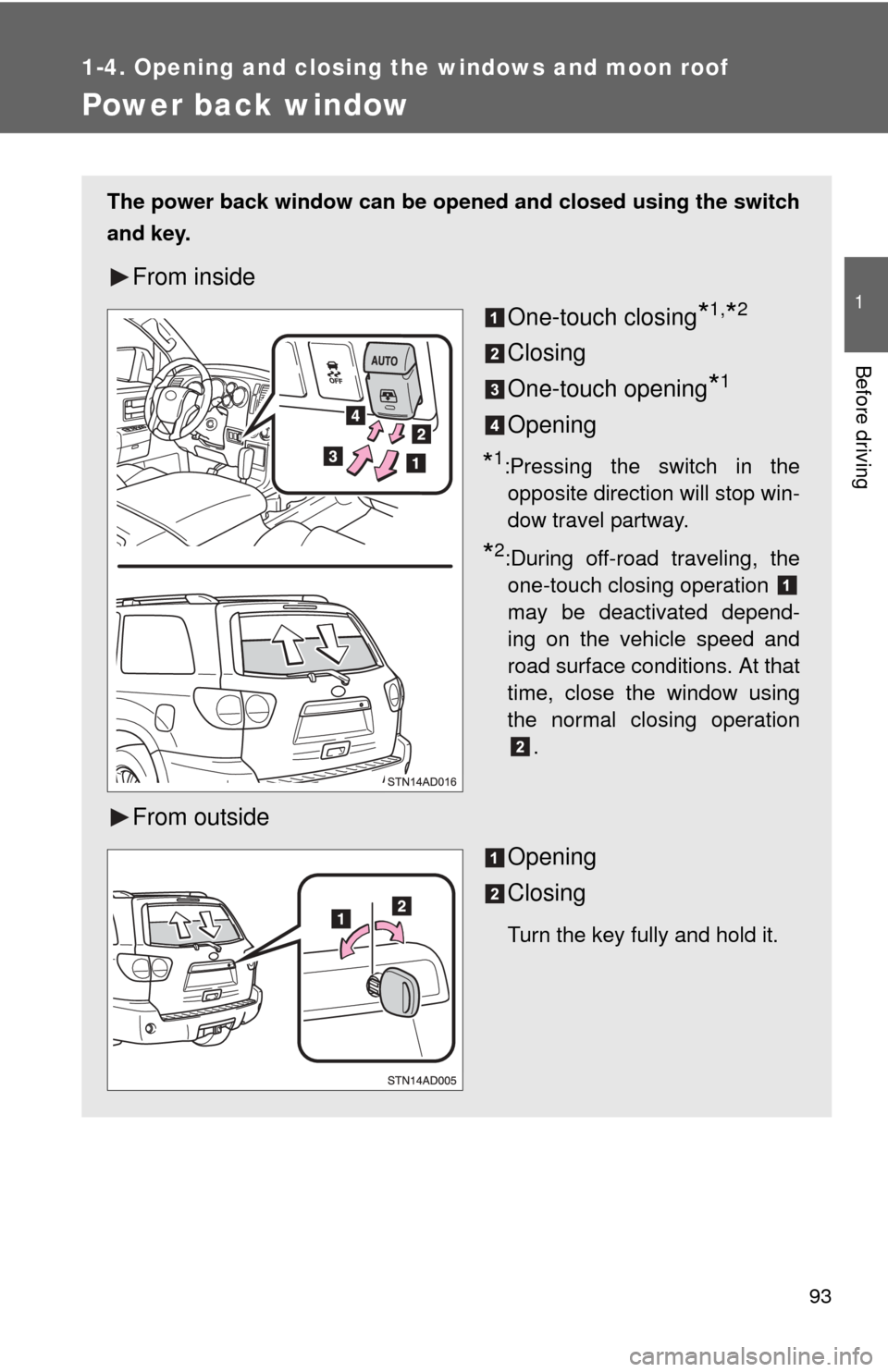

Power back window
The power back window can be opened and closed using the switch
and key.
From insideOne-touch closing
*1,*2
Closing
One-touch opening
*1
Opening
*1:Pressing the switch in theopposite direction will stop win-
dow travel partway.
*2:During off-road traveling, theone-touch closing operation
may be deactivated depend-
ing on the vehicle speed and
road surface conditions. At that
time, close the window using
the normal closing operation .
From outside
Opening
Closing
Turn the key fully and hold it.

95
1-4. Opening and closing the windows and moon roof
1
Before driving
If you release the switch while the window is moving, start again from the
beginning. If the window continues to close but then re-open slightly even
after performing the above procedure correctly, have the vehicle inspected
by your Toyota dealer.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. power back window) can be changed.
(Customizable features P. 627)
CAUTION
■Closing the power back window
Observe the following precautions.
Failing to do so may result in death or serious injury.
●The driver is responsible for all the power back window operations, includ-
ing the operation for the passengers. In order to prevent accidental opera-
tion, especially by a child, do not let a child operate the power back
window. It is possible for children and other passengers to have body parts
caught in the power back window. Also, when riding with a child, it is rec-
ommended to use the window lock switch. ( P. 9 0 )
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● When using the key and operating the power back window, operate the
power back window after checking to make sure that there is no possibility
of any passenger having any of their body parts caught in the window. Also
do not let a child operate window by the key. It is possible for children and
other passengers to get caught in the power back window.
● When exiting the vehicle, turn the engine switch off, carry the key and exit
the vehicle along with the child. There may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.
■ Jam protection function
●Never try jamming any part of your body to activate the jam protection
function intentionally.
● The jam protection function may not work if something gets caught just
before the window fully closes.

97
1-4. Opening and closing the windows and moon roof
1
Before driving
■
The moon roof can be operated when
The engine switch is in the ON position.
■ Door lock linked moon roof operation
The moon roof can be opened and closed using the key. ( P. 35)
■ Operating the moon roof after turning the engine switch off
The moon roof can be operated for approximately 43 seconds even after the
engine switch is turned to the ACC or turned off. It cannot, however, be oper-
ated once either front door is opened.
■ Jam protection function
If an object is detected between the moon roof and the frame while closing
or tilting down, travel is stopped and the moon roof opens slightly.
■ When the moon roof does not close normally
Perform the following procedure:
●If the moon roof closes but then re-opens slightly
Stop the vehicle.
Press and hold the “SLIDE” switch.
*1
The moon roof will close, reopen and pause for approximately 10
seconds.*2 Then it will close again, tilt up and stop.
Check to make sure that the moon roof is completely stopped and
then release the switch.
*1:If the switch is released at the incorrect time, the procedure will have to be performed again from the beginning.
*2:If the switch is released after the above mentioned 10 secondspause, automatic operation will be disabled. In that case, press
and hold the “SLIDE” or “TILT” switch, and the moon roof will tilt
up and stop. Check to make sure that the moon roof is com-
pletely stopped and then release the switch.
If the moon roof does not fully close even after performing the above proce-
dure correctly, have the vehicle inspected by your Toyota dealer.
