1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving

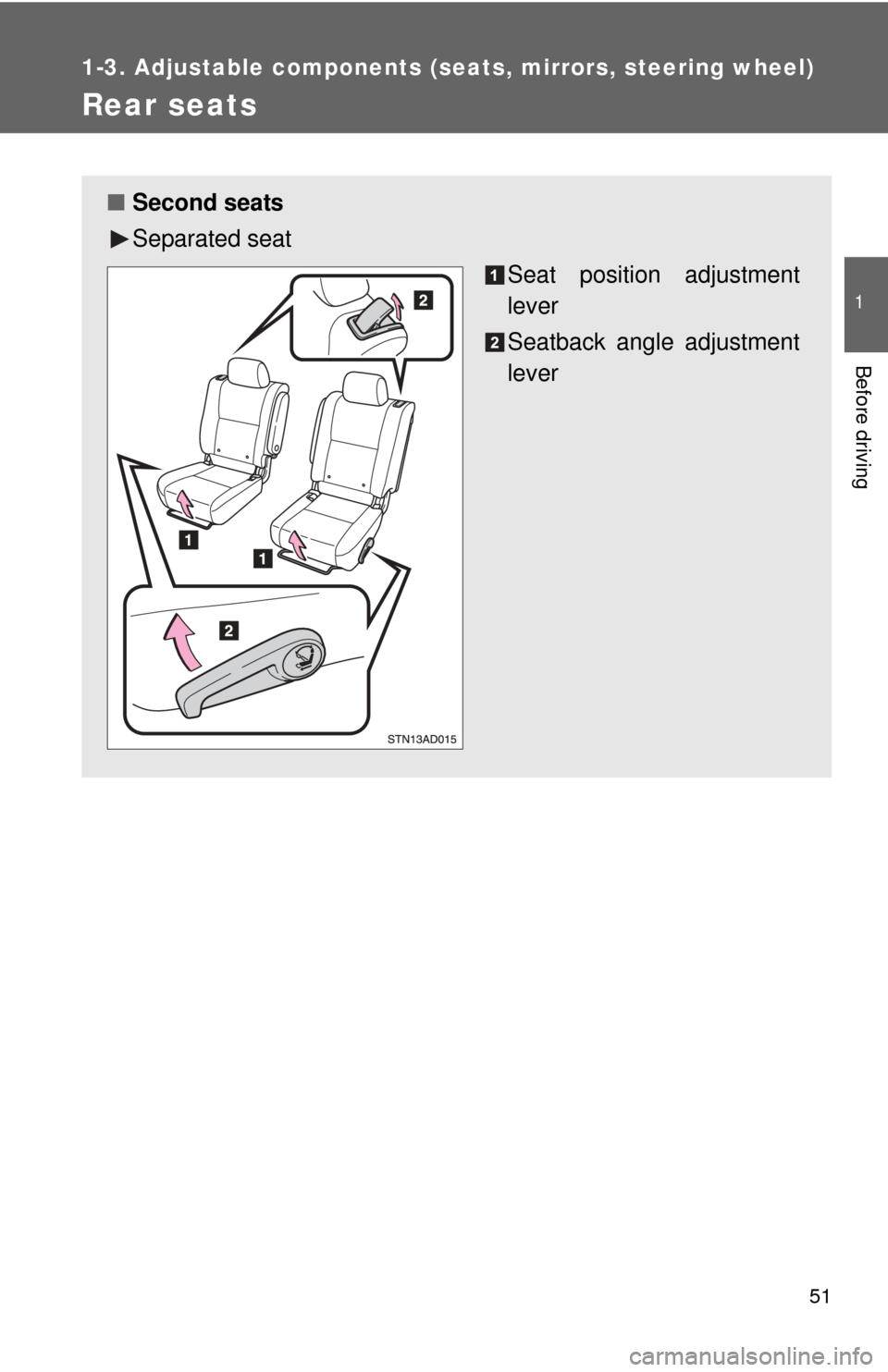

Rear seats
■Second seats
Separated seat
Seat position adjustment
lever
Seatback angle adjustment
lever

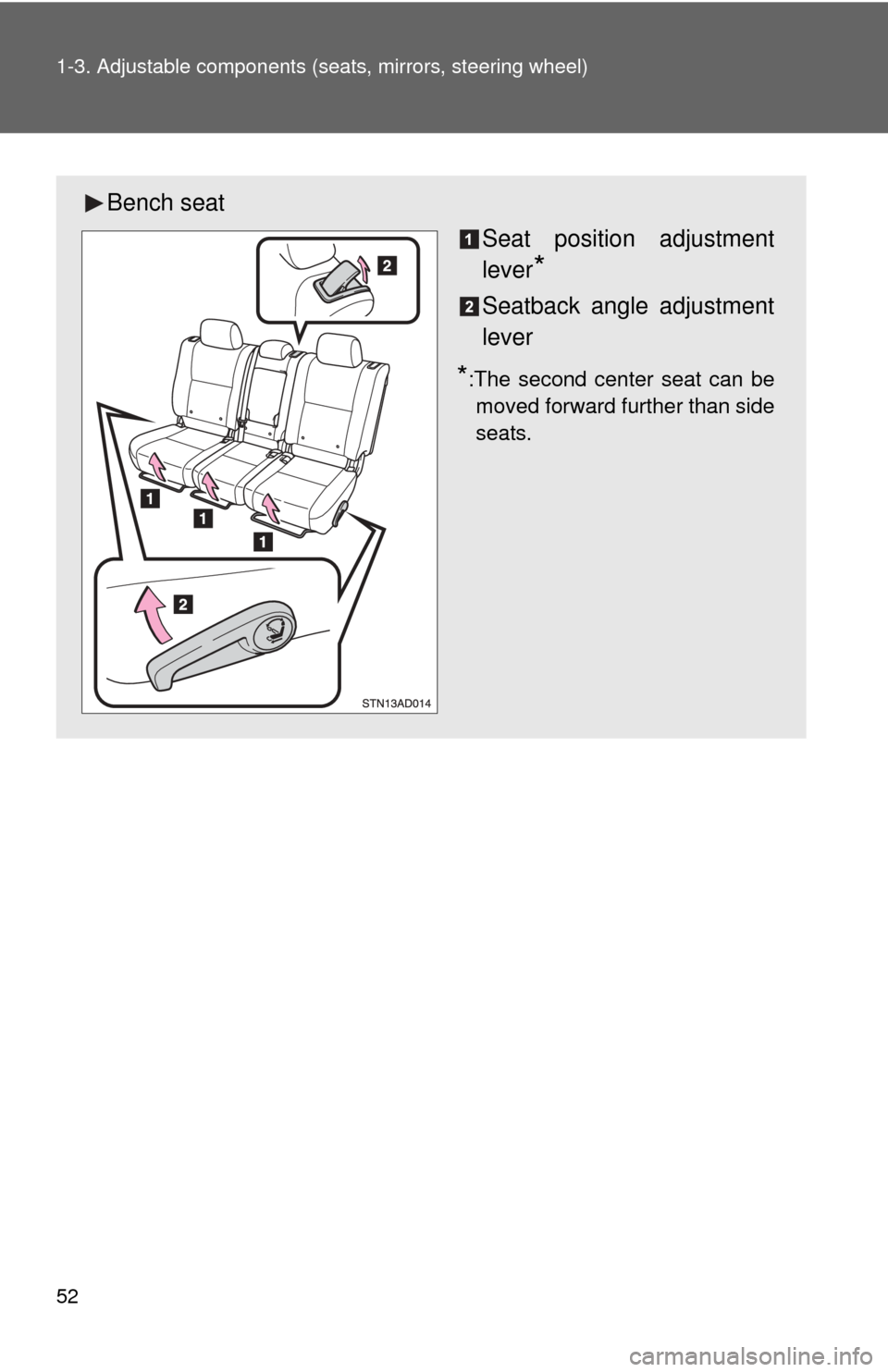

52 1-3. Adjustable components (seats, mirrors, steering wheel)
Bench seat
Seat position adjustment
lever
*
Seatback angle adjustment
lever
*:The second center seat can bemoved forward further than side
seats.

53
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving

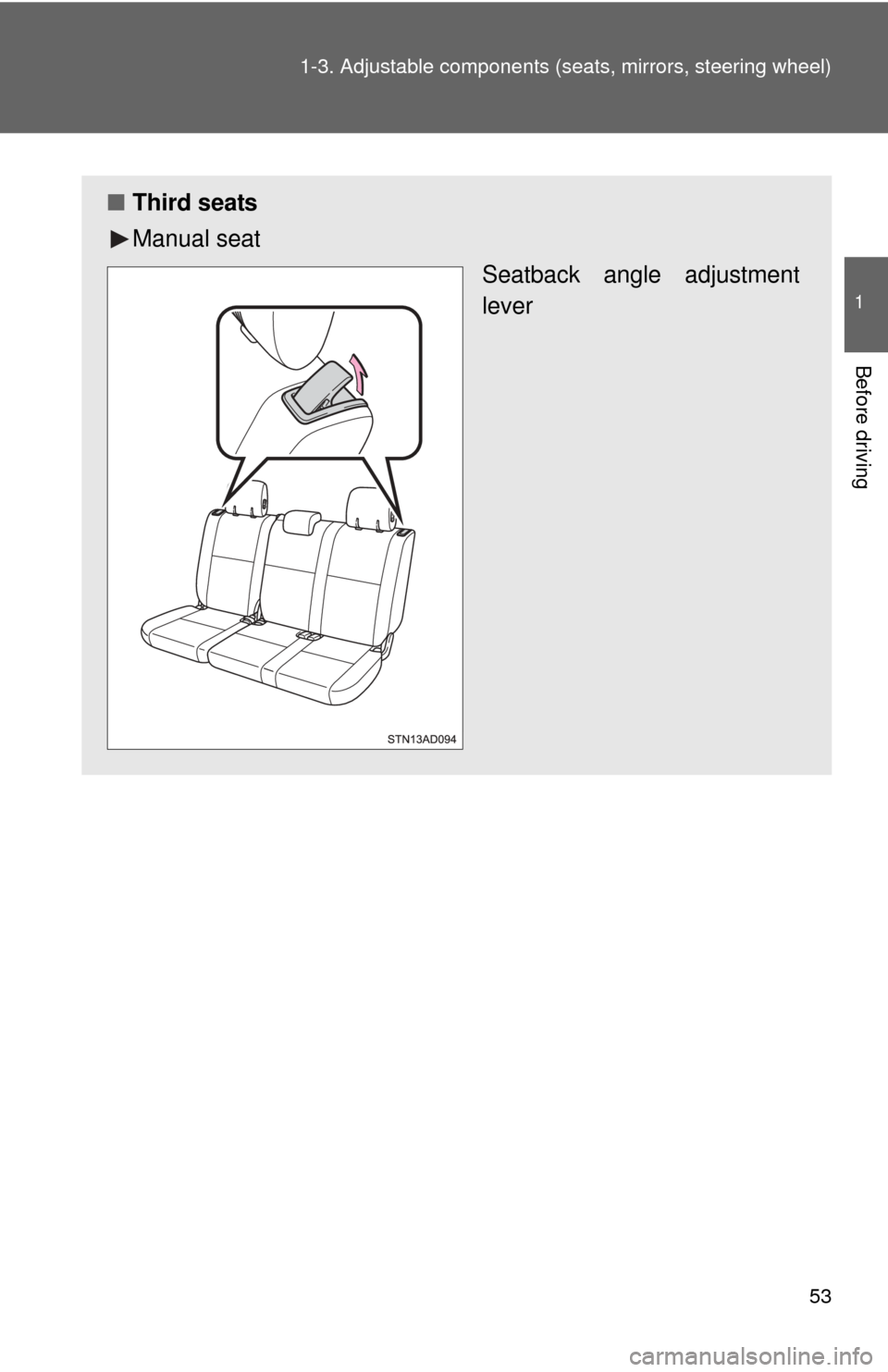

■Third seats
Manual seat
Seatback angle adjustment
lever

54 1-3. Adjustable components (seats, mirrors, steering wheel)
Moving a second seat for third seat access
■Getting in the vehicle
Pull up the lever and fold down
the seatback. The seat will slide
forward.
Move the seat to the front-most
position
Power seat Seatback angle adjustment
switch
Seatback folding/returning
switch

55
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Getting out of the vehicle
Depress the release pedal and
fold down the seatback. The seat
will slide forward.
Move the seat to the front-most
position
Make sure that no passenger is
seated on the second seat before
depressing the release pedal.
■After passengers have entered/exited the vehicle
Lift up the seatback and slide th e seat backward until it locks.
Folding down the second seat
■ Before folding down the second seat
Adjust the head restraint to the
downmost position.
Stow the rear seat belt buckle.

56 1-3. Adjustable components (seats, mirrors, steering wheel)
■Folding down the second seat
Separated seat
Pull the lever to unlock the seat-
back and then fold the seatback
down.
Bench seat Pull the lever to unlock the seat-
back and then fold the seatback
down.
■ After folding down the second seat (if equipped)
Fold out the board from the seat-
back.

57
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
Folding down the third seat
■ Before folding down the third seat
To release the hooked end tab,
insert the key or concaved end
tab into the hole on the buckle.
Retract the belt slowly when
releasing and stowing the seat
belt.
Stow the seat belt tabs in the
cover set in the roof as shown.

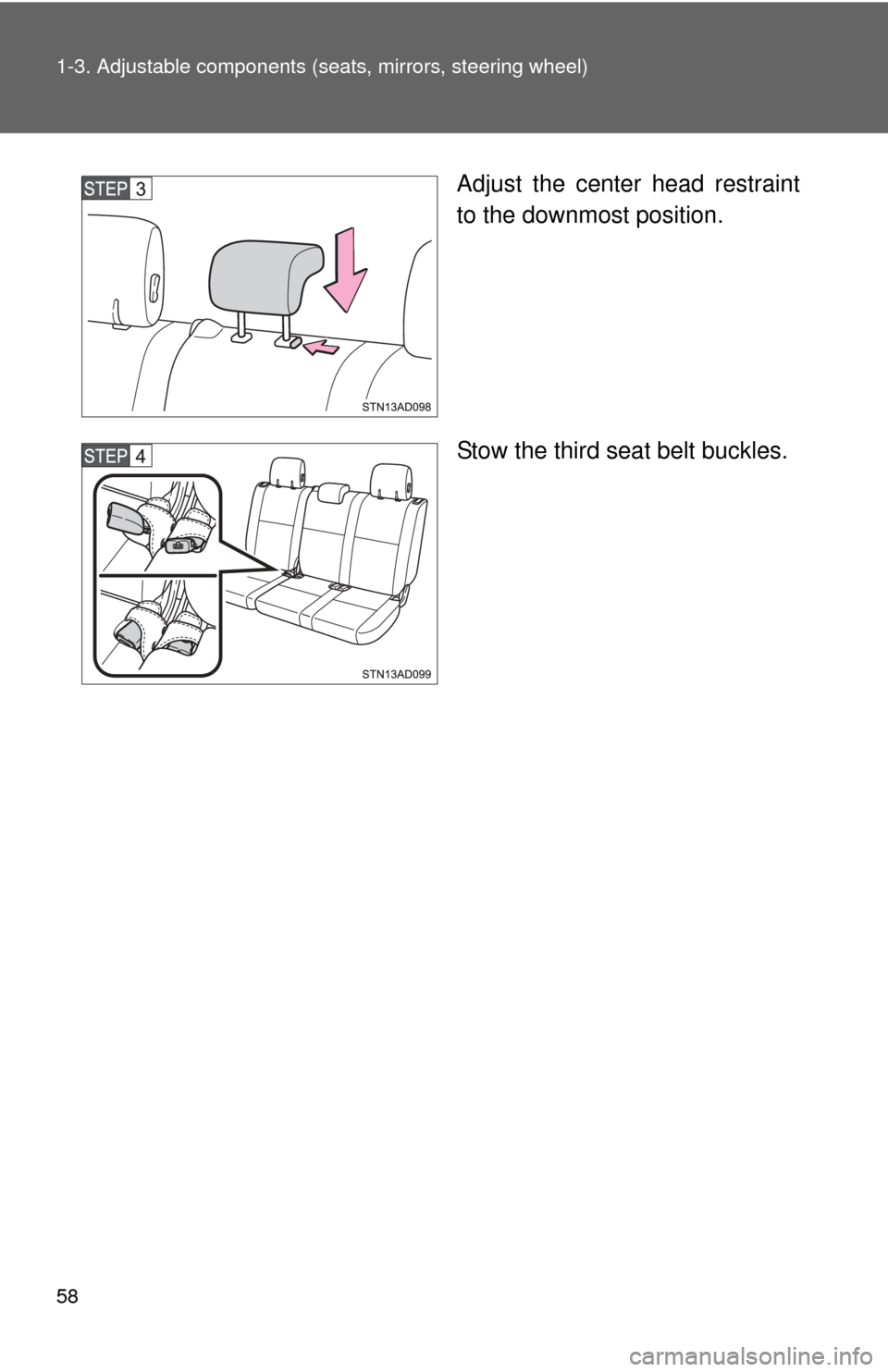

58 1-3. Adjustable components (seats, mirrors, steering wheel)
Adjust the center head restraint
to the downmost position.
Stow the third seat belt buckles.

59
1-3. Adjustable components (s
eats, mirrors, steering wheel)
1
Before driving
■Folding down the third seat (manual seat)
Pull the head restraint lock
release lever to fold the head
restraint.
Pull the lever to unlock the seatback and then fold the seat-
back down.
From rear door side
From back door side

60 1-3. Adjustable components (seats, mirrors, steering wheel)
■Folding down the third seat (power seat)
From rear door side
Press and hold the seatback
folding switch until the seatback
folds down fully and the buzzer
sounds.
The outside head restraints are
folded automatically.
From back door sidePress and hold the seatback
folding switch until the seatback
folds down fully and the buzzer
sounds.
The outside head restraints are
folded automatically.
■The power third seat can be folded down/returned when
● Turn the engine switch to the LOCK position or the shift lever is in P, with
the rear door opened. (from rear door side)
● Turn the engine switch to the LOCK position or the shift lever is in P, with
the back door opened. (from back door side)
