TOYOTA SEQUOIA 2016 2.G Owners Manual

5
When trouble arises
481
5-2. Steps to take in an emergency
Follow the correction procedures.
After taking the specified steps to correct the suspected problem,
check that the warning message goes off.
Warning messageDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closed. The system also indi-
cates which doors are
not fully closed.
flashes and a
buzzer sounds to indi-
cate that one or more of
the doors is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Open door warning light
also comes on. Make sure that all of
the doors are closed.
Indicates that the back
door is not fully closed. flashes and a
buzzer sounds to indi-
cate that the back door is
not fully closed (with the
vehicle having reached a
speed of 3 mph [5 km/h]). Closed the back door.

482 5-2. Steps to take in an emergency
Indicates that the auto-
matic transmission fluid
temperature is too highA buzzer also sounds. Immediately stop the
vehicle in a safe place,
shift the shift lever to P
and wait until the light
goes off.
If the light goes off,
you may start the
vehicle again. If the
light does not go off,
contact your Toyota
dealer.
Indicates a malfunction
in the automatic trans-
mission system A buzzer also sounds. Have the system
checked by your Toy-
ota dealer.
(Flashing) Indicates that the park-
ing brake is still
engaged with the vehicle
having reached a speed
of more than 3 mph
(5 km/h).
A buzzer also sounds
intermittently. Release the parking
brake.
Indicates that the
washer fluid level is low. A buzzer also sounds. Add washer fluid.
Warning messageDetailsCorrection procedure

5
When trouble arises
483
5-2. Steps to take in an emergency
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual
Supplement” for the maintenance interval applicable to your vehicle. (U.S.A. only)
Indicates that all mainte-
nance according to the
driven distance on the
maintenance schedule
*
should be performed
soon. If necessary, perform
maintenance.
Comes on approximately
4500 miles (7200 km) after
the message has been
reset.
(U.S.A. only) Indicates that all mainte-
nance is required to corre-
spond to the driven
distance on the mainte-
nance schedule
*.
Perform the necessary
maintenance. Please
reset the message
after the maintenance
is performed.
(
P. 389)
Comes on approximately
5000 miles (8000 km) after
the message has been
reset.
(The indicator will not work
properly unless the mes-
sage has been reset.)
Indicates that the fuel
level is low.
A buzzer also sounds
and the low fuel level
warning light comes on. Fill up the tank as soon
as possible.
Warning messageDetailsCorrection procedure

484 5-2. Steps to take in an emergency
Warning messageDetailsCorrection procedure
(if equipped) Indicates that the laser
radar sensor is dirty or
covered with ice.
A buzzer also sounds. Clean the sensor.
(if equipped) Indicates that the
dynamic laser cruise
control system is unable
to judge vehicle-to-vehi-
cle distance.
A buzzer also sounds. If the windshield wipers
are on, turn them off or
set them to either the
intermittent.
(Flashing)
(if equipped) Indicates that your vehi-
cle is nearing the vehicle
ahead (in vehicle-to-
vehicle distance control
mode).
Slow the vehicle by
applying the brakes.
(if equipped) (Flashing) Indicates that the
dynamic laser cruise
control system is mal-
function.
A buzzer also sounds. Press the ON-OFF but-
ton once to deactivate
the system, and then
press the button again
to reactivate the sys-
tem.

5
When trouble arises
485
5-2. Steps to take in an emergency
(if equipped)
Indicates that the Blind
Spot Monitor sensor is
dirty or covered with ice.
A buzzer also sounds. Clean the sensor.
Indicates that the Blind
Spot Monitor sensor has
been exposed to very
high or low temperatures. A buzzer also sounds. Wait for sensor to cool
down or warm up.
(if equipped) Indicates that the Blind
Spot Monitor system is
malfunction.
A buzzer also sounds. Press the ON-OFF but-
ton once to deactivate
the system, and then
press the button again
to reactivate the sys-
tem.
■ Warning light display in vehicle -to-vehicle distance control mode
In the following cases, the warning light may not be displayed even if vehi-
cle-to-vehicle distance closes.
● When your vehicle and the vehicle ahead are traveling at the same
speed or the vehicle ahead is traveling more quickly than your vehicle
● When the vehicle ahead is traveling at a very low speed
● Immediately after cruise control speed is set
● At the instant the accelerator pedal is depressed
Warning messageDetailsCorrection procedure

486
5-2. Steps to take in an emergency

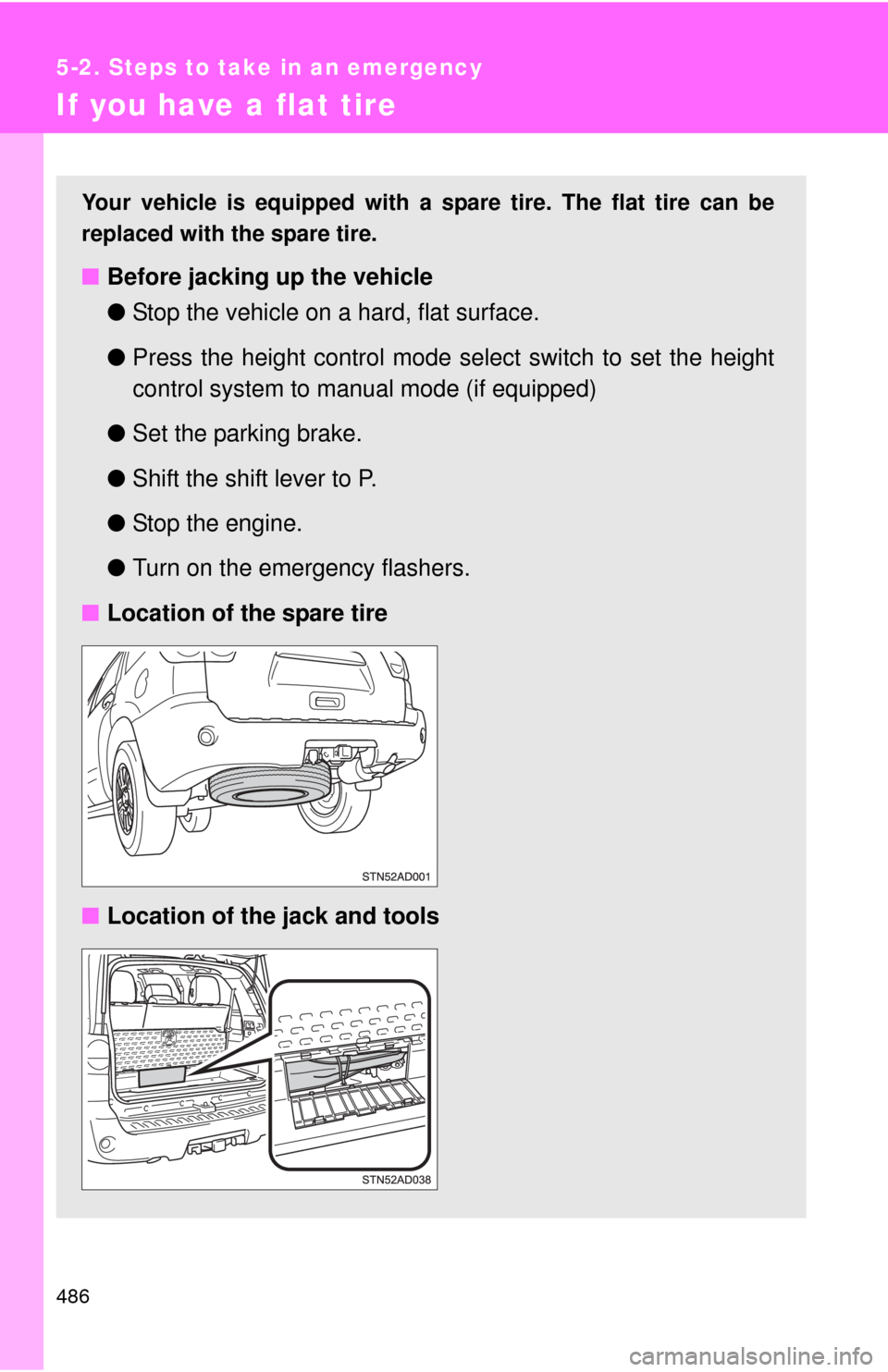

If you have a flat tire
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Press the height control mode select switch to set the height
control system to manual mode (if equipped)
● Set the parking brake.
● Shift the shift lever to P.
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire
■ Location of the jack and tools

5
When trouble arises
487
5-2. Steps to take in an emergency
Taking out the jack and tool bag
Pull the deck board up.
Remove the cover and loosen
the strap.
Remove the tools.
Tighten
Loosen

488 5-2. Steps to take in an emergency
Taking out the spare tireAssemble the jack handle exten-
sion as shown.
Remove the cover.
Insert the end of the jack handle
extension into the lowering
screw and turn it counterclock-
wise.
After the tire is lowered com-
pletely to the ground, remove the
holding bracket.

5
When trouble arises
489
5-2. Steps to take in an emergency
Replacing a flat tire
Chock the tires.
Slightly loosen the wheel nuts
(one turn).
Flat tire
Wheelchock
positions
Front
Left-
hand
sideBehind the
rear right-
hand side
tire
Right-
hand
sideBehind the
rear left-
hand side
tire
Rear
Left-
hand
sideIn front of
the front
right-hand
side tire
Right-
hand
sideIn front of
the front
left-hand
side tire

490 5-2. Steps to take in an emergency
Position the jack at the correct
jack point as shown.Front
Rear
Make sure the jack is positioned
on a level and solid place.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
Installing the tire Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, and the tire may
come off the vehicle.
Front
