bluetooth TOYOTA SEQUOIA 2016 2.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
2016
Sequoia
INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Engine maintenance 10
Fuel tank door release and cap 9
Hood release 10
Indicator symbols 6-7
Instrument cluster 5
Instrument panel 2-4
Keyless entry
1 8
Light control-Instrument panel 9
Accessory meter 29
Air Conditioning/Heating 22-23
Audio 24-25
Auto lock/unlock
1 11
Automatic Transmission 11
Bluetooth
® Device Pairing Section 37-46
Blind Spot Monitor (BSM) 13
Cruise control 26
Cup holders 31
Door locks 28
Door-Power back 19
Driving position memory 20
Dynamic Laser Cruise Control 27
Four-wheel drive 12
Garage door opener (HomeLink
®)3 26
Lights1 & turn signals 17
Moonroof 20
Multi-Information Display
2 28
Parking brake 12
Power outlets-12V DC 30
Power outlets-120V AC 30
Rear seat entertainment system 31
Rear view monitor system 25
Seat adjustments-Front 15
Seat adjustments-Rear 14
Seat ventilators/heaters 23
Seats-Folding second row seats 15
Seats-Folding third row seats 16
Seats-Head restraints 13
Telephone controls (Bluetooth
®) 29
Tilt and telescopic steering wheel 21
TOW/HAUL switch 11
VSC OFF switch 21
Window-Back
19Windows 18
Windshield wipers & washers 18
Doors-Child safety locks 33
Floor mat installation 35
Seat belts 32
Seat belts-Shoulder belt anchor 33
Spare tire & tools 33
Star Safety System
TM 34-35
Tire Pressure Monitoring (warning) System 32
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
2016_Sequoia_QRG.r2.indd 17/9/15 11:37 AM

28
FEATURES/OPERATIONS
Telephone controls (Bluetooth®)
(if equipped)
Door locks
Lock
Unlock
Multi-Information Display (if equipped)
Push “INFO” to change information in the following:
(1) Zoom display of odometer and trip meter
(2) Average gas mileage
(3) Current gas mileage
(4) Miles left on remaining fuel
(5) Running time from engine start
(6) Average vehicle speed
Push “SETUP” to customize to the following settings:
(1) UNIT
(2) KEYLESS ENTRY FEEDBACK
(3) KEYLESS ENTRY RELOCK TIMER
(4) KEYLESS ENTRY ALL DOORS UNLOCK
(5) DOOR AUTO LOCKING
(6) DOOR AUTO UNLOCKING
(7) HEADLAMPS AUTO OFF TIMER
(8) COURTESY LAMPS OFF TIMER
(9) LANGUAGE
(10) DEFAULT SETTING
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and the
system.
Refer to “Using a Bluetooth
® phone” Section 3-2 in the Owner’s Manual, for more
details.
Audio unit
Accessory meter
Outside temperature/Cruise
information display (if equipped)
Clock
Hour set
Minute set
Refer to your Owner’s Manual for complete details on this system before
attempting to use it.
2016_Sequoia_QRG.indd 287/6/15 8:10 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
29
Telephone controls (Bluetooth®)
(if equipped)
Bluetooth® technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone and the
system.
Refer to “Using a Bluetooth
® phone” Section 3-2 in the Owner’s Manual, for more
details.
Microphone
Audio unit
Steering wheel telephone switches
End call Start call
Voice command
button
Volume
Accessory meter
Outside temperature/Cruise
information display (if equipped)
Clock
Hour set
Minute set Change information(Multi-
information)*
“SELECT RESET” button*
“SETUP” button to customize unit*
*if equipped
Refer to your Owner’s Manual for complete details on this system before
attempting to use it.
2016_Sequoia_QRG.indd 297/6/15 8:10 PM

3636
BLUETOOTH® DEVICE PAIRING
SECTION
2016_Sequoia_QRG.indd 367/6/15 8:11 PM

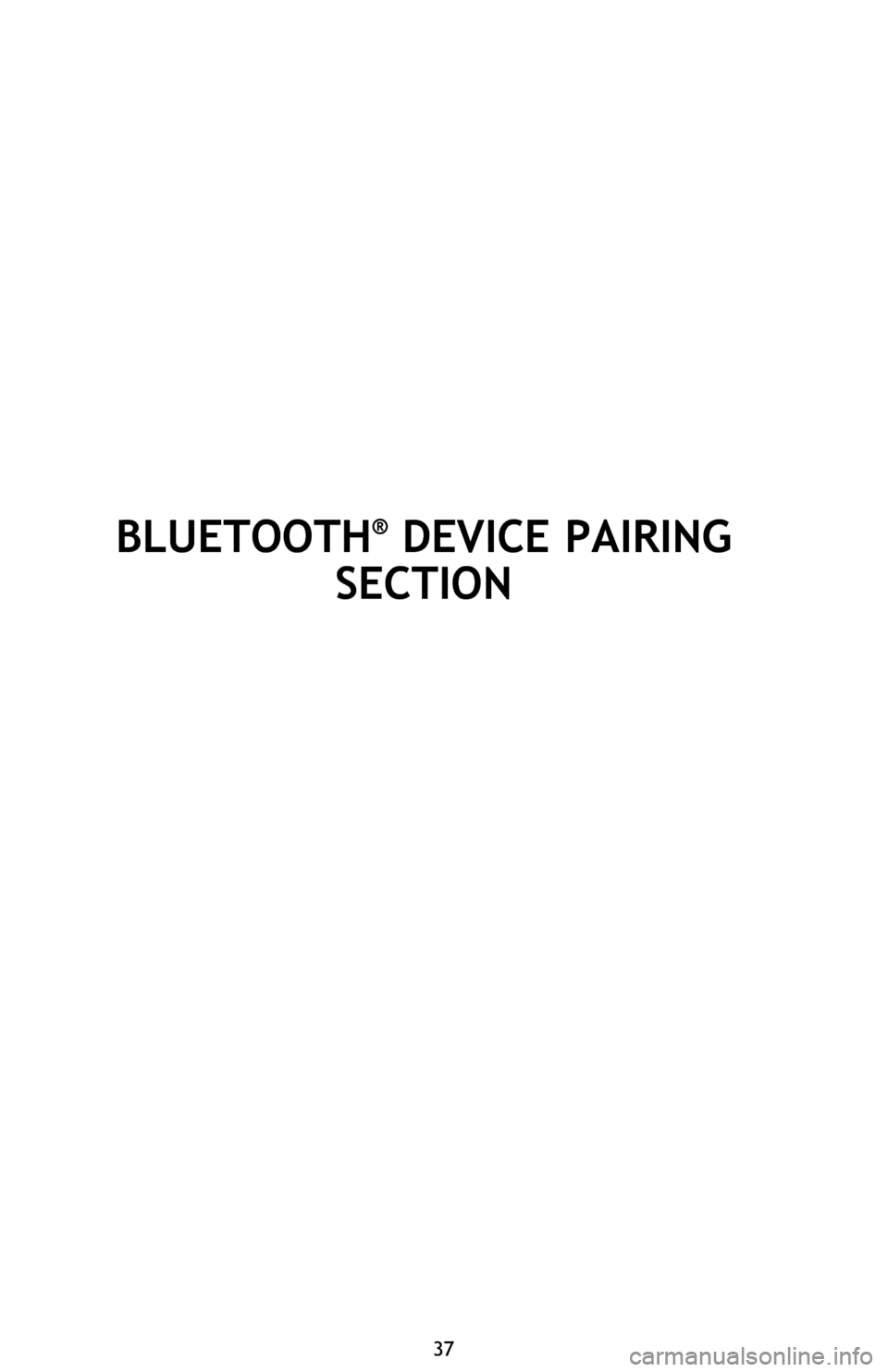

3737
BLUETOOTH® DEVICE PAIRING
SECTION
2016_Sequoia_QRG.indd 377/6/15 8:11 PM

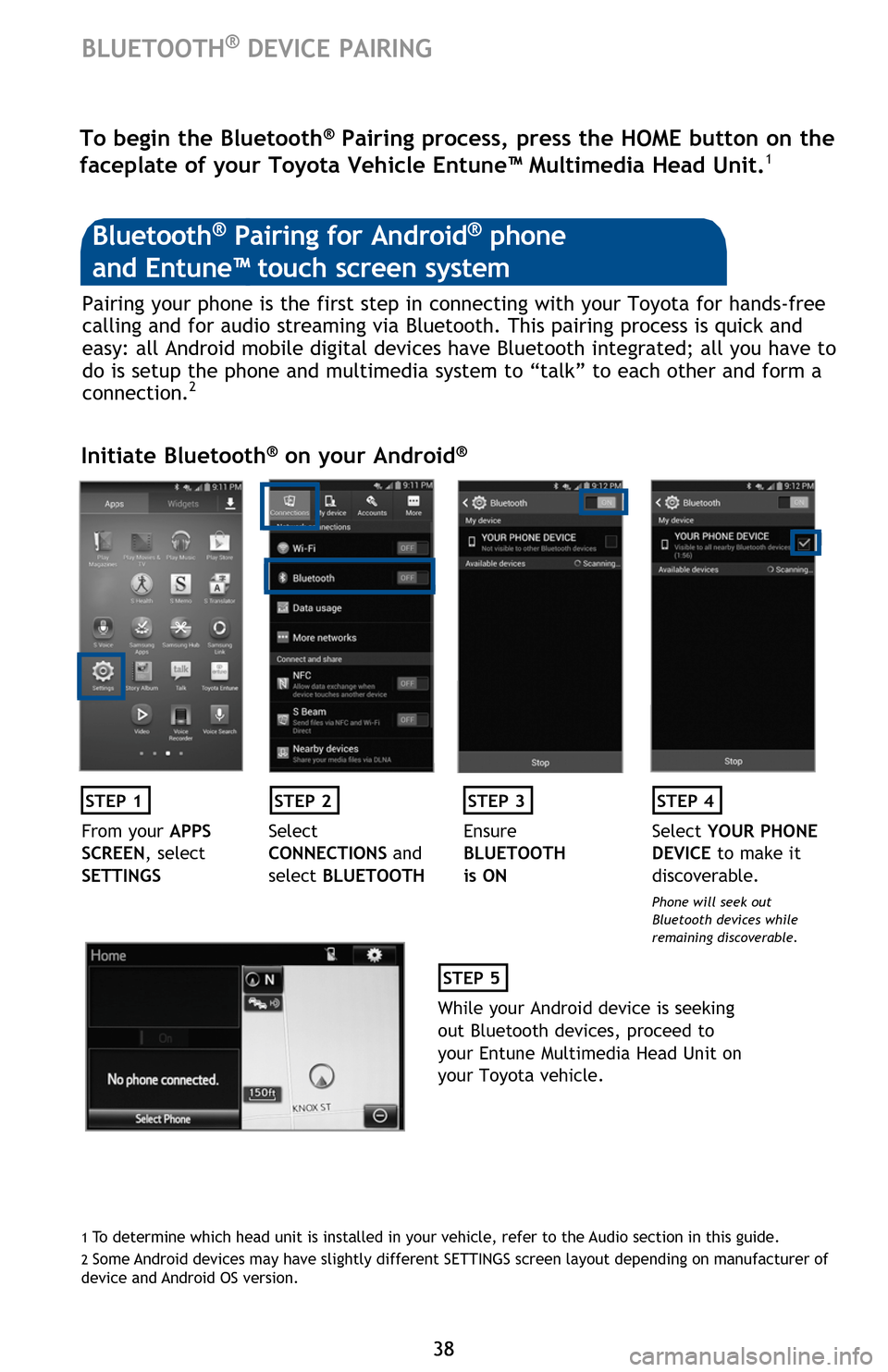

3838
BLUETOOTH® DEVICE PAIRING
Pairing your phone is the first step in connecting with your Toyota for hands-free
calling and for audio streaming via Bluetooth. This pairing process is quick and
easy: all Android mobile digital devices have Bluetooth integrated; all you have to
do is setup the phone and multimedia system to “talk” to each other and form a
connection.
2
Initiate Bluetooth® on your Android®
STEP 1STEP 2STEP 3STEP 4
From your APPS
SCREEN, select
SETTINGS Select
CONNECTIONS
and
select BLUETOOTH Ensure
BLUETOOTH
is ON Select
YOUR PHONE
DEVICE to make it
discoverable.
Phone will seek out
Bluetooth devices while
remaining discoverable.
STEP 5
While your Android device is seeking
out Bluetooth devices, proceed to
your Entune Multimedia Head Unit on
your Toyota vehicle.
Bluetooth® Pairing for Android® phone
and Entune™ touch screen system
1 To determine which head unit is installed in your vehicle, refer to the Audio section in this guide. 2 Some Android devices may have slightly different SETTINGS screen layout depending on\
manufacturer of
device and Android OS version.
To begin the Bluetooth® Pairing process, press the HOME button on the
faceplate of your Toyota Vehicle Entune™ Multimedia Head Unit.1Initiate Bluetooth® on your Entune™ Multimedia Head Unit
Once you have Bluetooth enabled on your phone and ready to pair, you will need to initiate Bluetooth on your Entune head unit. Please follow the instructions
below to pair your Bluetooth enabled phone to your Entune system.
STEP 6
On your Toyota Vehicle
Entune Multimedia Head Unit,
Select SETUP BUTTON on the
Home Screen.
STEP 9
Back on your smartphone, you can now select your
TOYOTA VEHICLE in
Bluetooth Settings.
You may need to enter the provided
Bluetooth PIN on your phone.
2016_Sequoia_QRG.r2.indd 387/9/15 11:41 AM

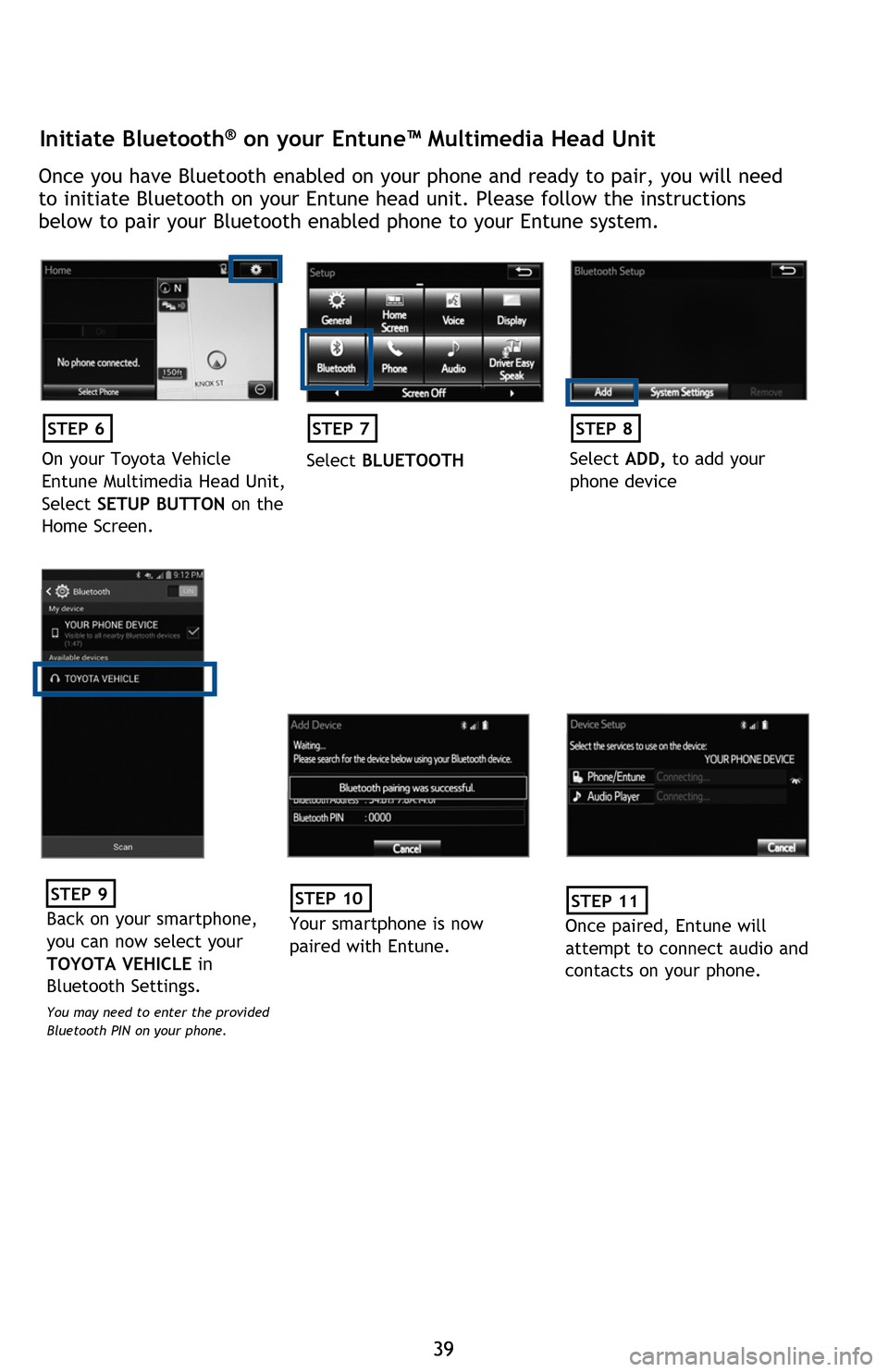

3939
BLUETOOTH® DEVICE PAIRING
Pairing your phone is the first step in connecting with your Toyota for hands-free calling and for audio streaming via Bluetooth. This pairing process is quick and
easy: all Android mobile digital devices have Bluetooth integrated; all you have to do is setup the phone and multimedia system to “talk” to each other and form a connection.2
Initiate Bluetooth® on your Android®
Select YOUR PHONE DEVICE to make it
discoverable.
Phone will seek out
Bluetooth devices while
remaining discoverable.
1 To determine which head unit is installed in your vehicle, refer to page 2\
4. 2 Some Android devices may have slightly different SETTINGS screen layout depending on\
manufacturer of device and Android OS version.
To begin the Bluetooth® Pairing process, press the HOME button on the
faceplate of your Toyota Vehicle Entune™ Multimedia Head Unit.1Initiate Bluetooth® on your Entune™ Multimedia Head Unit
Once you have Bluetooth enabled on your phone and ready to pair, you will need
to initiate Bluetooth on your Entune head unit. Please follow the instructions
below to pair your Bluetooth enabled phone to your Entune system.
STEP 6
On your Toyota Vehicle
Entune Multimedia Head Unit,
Select SETUP BUTTON on the
Home Screen.
STEP 7
Select BLUETOOTH
STEP 8
Select ADD, to add your
phone device
STEP 9
Back on your smartphone,
you can now select your
TOYOTA VEHICLE in
Bluetooth Settings.
You may need to enter the provided
Bluetooth PIN on your phone.
STEP 10
Your smartphone is now
paired with Entune.
STEP 11
Once paired, Entune will
attempt to connect audio and
contacts on your phone.
2016_Sequoia_QRG.indd 397/6/15 8:11 PM

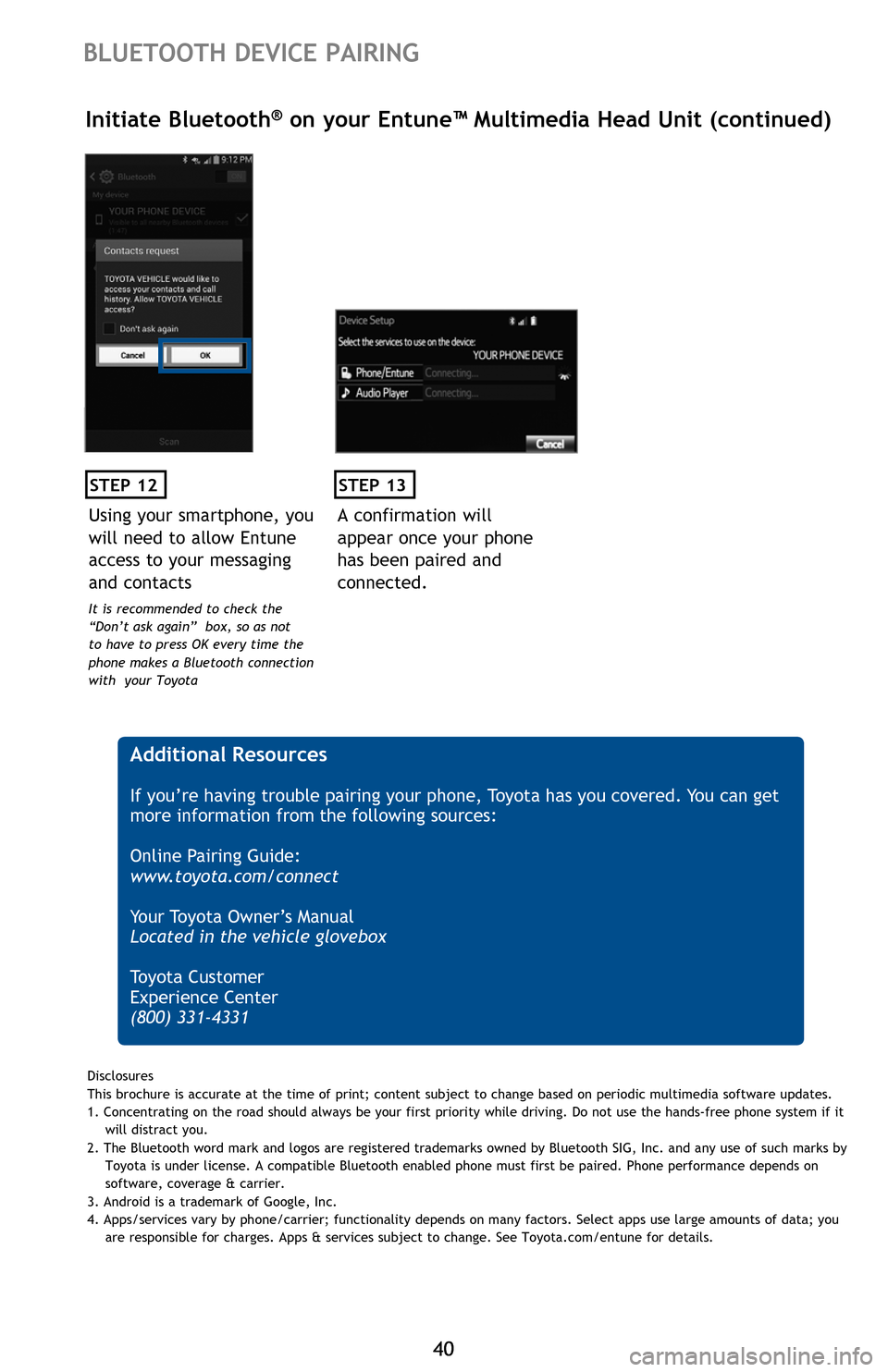

4040
BLUETOOTH DEVICE PAIRING
STEP 12
Initiate Bluetooth® on your Entune™ Multimedia Head Unit (continued)
A confirmation will
appear once your phone
has been paired and
connected.
STEP 13
Additional Resources
If you’re having trouble pairing your phone, Toyota has you covered. Yo u can get
more information from the following sources:
Online Pairing Guide:
www.toyota.com/connect
Your Toyota Owner’s Manual
Located in the vehicle glovebox
Toyota Customer
Experience Center
(800) 331-4331
Disclosures
This brochure is accurate at the time of print; content subject to change based on periodic multimedia software updates.
1. Concentrating on the road should always be your first priority while driving. Do not use the hands-free phone system if it
will distract you.
2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
Toyota is under license. A compatible Bluetooth enabled phone must first be paired. Phone performance depends on
software, coverage & carrier.
3. Android is a trademark of Google, Inc.
4. Apps/services vary by phone/carrier; functionality depends on many factors. Select apps use large amounts of data; you
are responsible for charges. Apps & services subject to change. See Toyota.com/entune for details.
Using your smartphone, you
will need to allow Entune
access to your messaging
and contacts
It is recommended to check the
“Don’t ask again” box, so as not
to have to press OK every time the
phone makes a Bluetooth connection
with your Toyota
Pairing your phone is the first step in connecting with your Toyota for hands-free
calling and for audio streaming via Bluetooth. This pairing process is quick and
easy: all iPhone mobile digital devices have Bluetooth integrated; all you have to
do is setup the phone and multimedia system to “talk” to each other and form a
connection.
Initiate Bluetooth® on your iPhone®
STEP 1
From the HOME
SCREEN, select
SETTINGS
Bluetooth® Pairing for iPhone® and
Entune™ touch screen system
2016_Sequoia_QRG.indd 407/6/15 8:11 PM

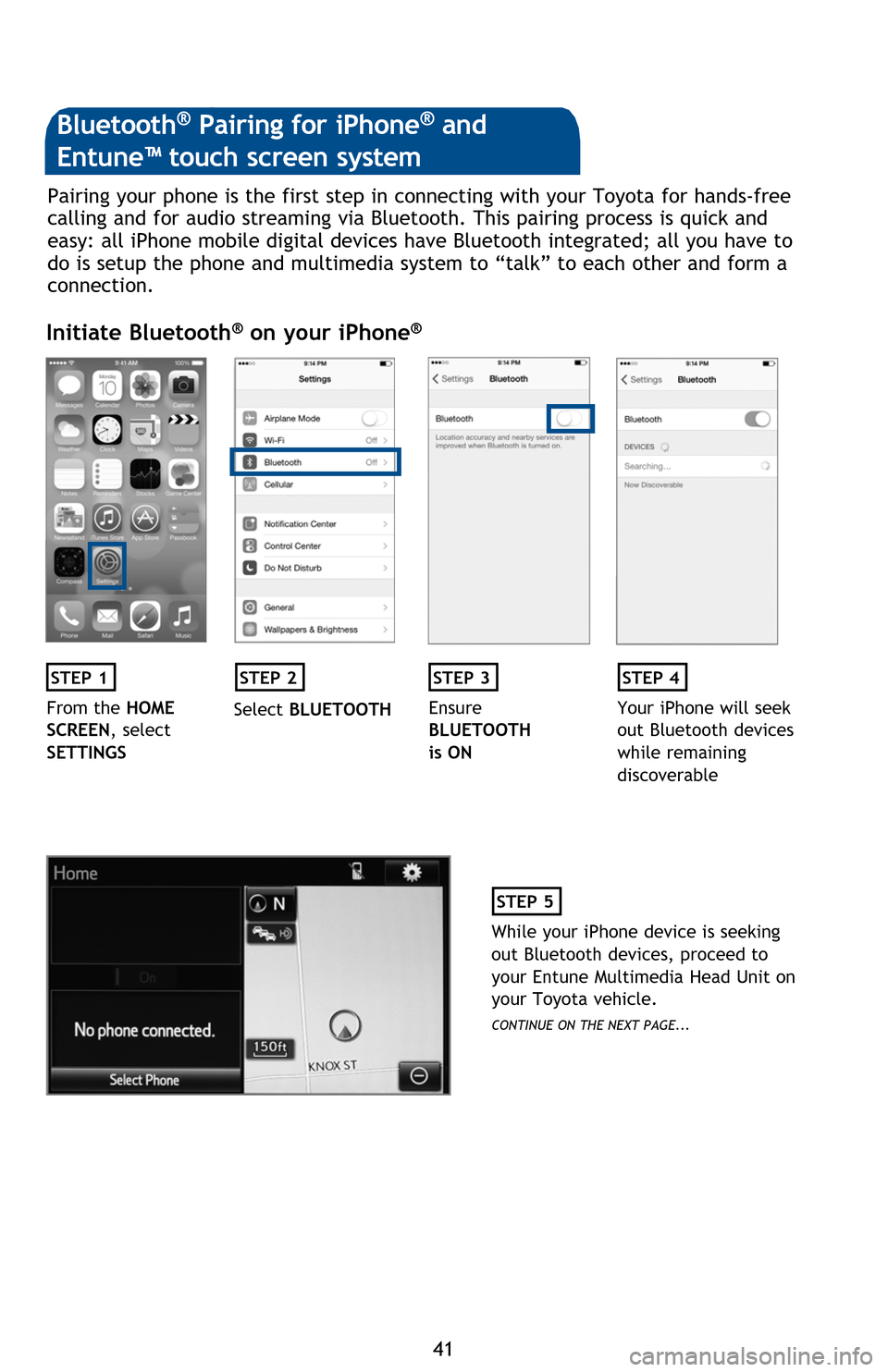

4141
BLUETOOTH DEVICE PAIRING
Initiate Bluetooth® on your Entune™ Multimedia Head Unit (continued)
Additional Resources
If you’re having trouble pairing your phone, Toyota has you covered. Yo u can get
more information from the following sources:
Online Pairing Guide:
www.toyota.com/connect
Your Toyota Owner’s Manual
Located in the vehicle glovebox
Toyota Customer
Experience Center
(800) 331-4331
Disclosures
This brochure is accurate at the time of print; content subject to change based on periodic multimedia software updates.
1. Concentrating on the road should always be your first priority while driving. Do not use the hands-free phone system
if it will distract you.
2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth enabled phone must first be paired. Phone performance depends on software, coverage & carrier.
3. Android is a trademark of Google, Inc.
4. Apps/services vary by phone/carrier; functionality depends on many factors. Select apps use large amounts of data;
you are responsible for charges. Apps & services subject to change. See Toyota.com/entune for details.
Pairing your phone is the first step in connecting with your Toyota for hands-free
calling and for audio streaming via Bluetooth. This pairing process is quick and
easy: all iPhone mobile digital devices have Bluetooth integrated; all you have to
do is setup the phone and multimedia system to “talk” to each other and form a
connection.
Initiate Bluetooth® on your iPhone®
STEP 1STEP 2STEP 3STEP 4
From the HOME
SCREEN, select
SETTINGS Select
BLUETOOTH Ensure
BLUETOOTH
is ON Your iPhone will seek
out Bluetooth devices
while remaining
discoverable
STEP 5
While your iPhone device is seeking
out Bluetooth devices, proceed to
your Entune Multimedia Head Unit on
your Toyota vehicle.
CONTINUE ON THE NEXT PAGE...
Bluetooth® Pairing for iPhone® and
Entune™ touch screen system
2016_Sequoia_QRG.indd 417/6/15 8:11 PM

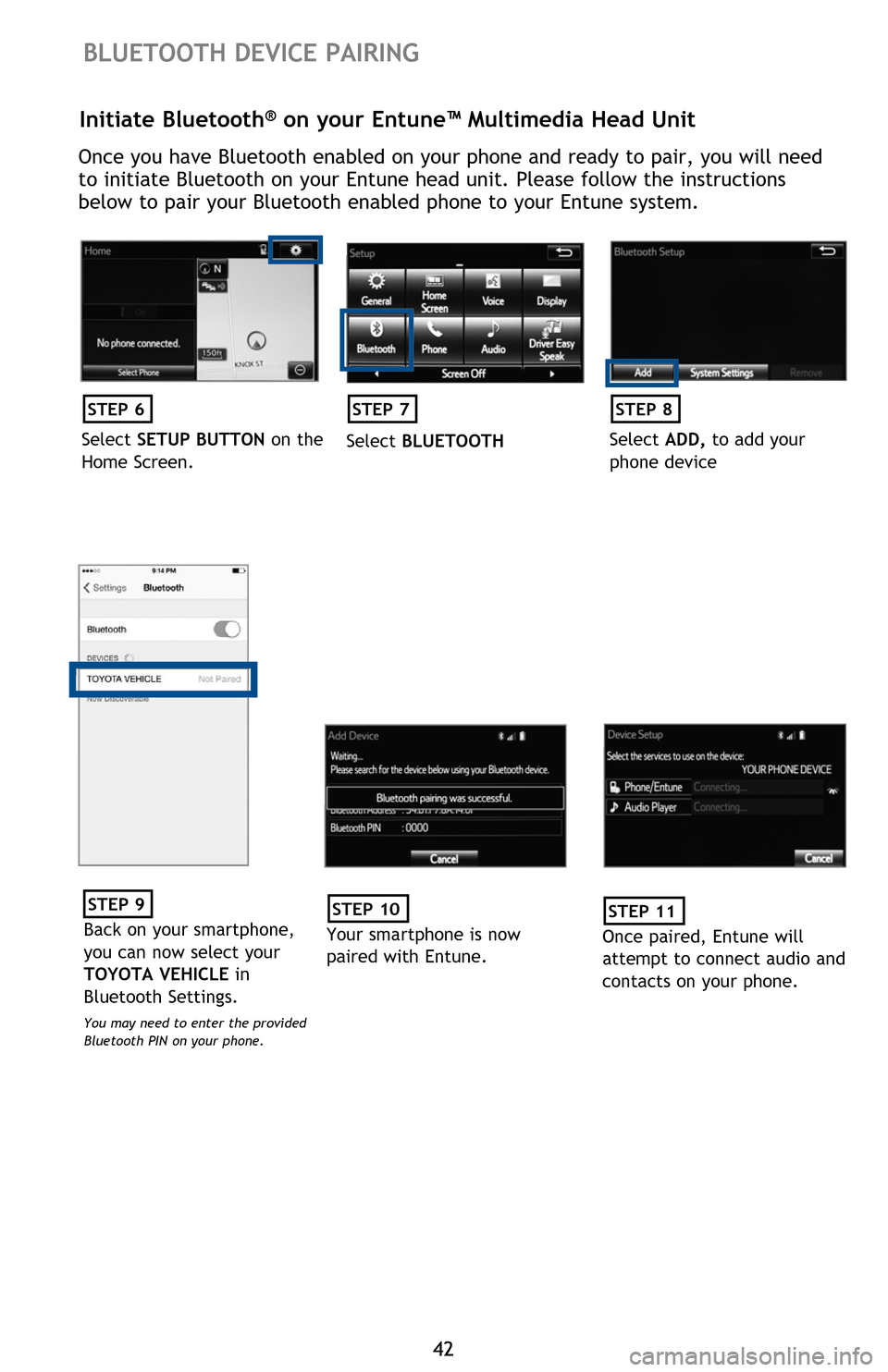

4242
BLUETOOTH DEVICE PAIRING
Initiate Bluetooth® on your Entune™ Multimedia Head Unit
Once you have Bluetooth enabled on your phone and ready to pair, you will need
to initiate Bluetooth on your Entune head unit. Please follow the instructions
below to pair your Bluetooth enabled phone to your Entune system.
STEP 6
Select SETUP BUTTON on the
Home Screen.
STEP 7
Select BLUETOOTH
STEP 8
Select ADD, to add your
phone device
STEP 9
Back on your smartphone,
you can now select your
TOYOTA VEHICLE in
Bluetooth Settings.
You may need to enter the provided
Bluetooth PIN on your phone.
STEP 10
Your smartphone is now
paired with Entune.
STEP 11
Once paired, Entune will
attempt to connect audio and
contacts on your phone.
Using your smartphone, you may need to
allow Entune access to your messaging
and contactsOnly current iPhone text messages can be viewed on the head unit. iPhone does not allow text message
reply.
STEP 12

DisclosuresThis brochure is accurate at the time of print; content subject to change based on periodic multimedia software updates.1. Concentrating on the road should always be your first priority while driving. Do not use the hands-free phone system if it will distract you.2. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Toyota is under license. A compatible Bluetooth enabled phone must first be paired. Phone performance depends on software, coverage & carrier.3. Apps/services vary by phone/carrier; functionality depends on many factors. Select apps use large amounts of data; you are responsible for charges. Apps & services subject to change. See Toyota.com/entune for details.
2016_Sequoia_QRG.indd 427/6/15 8:11 PM
