sensor TOYOTA SEQUOIA 2016 2.G Quick Reference Guide

12
FEATURES/OPERATIONS
Lock the center differential if the vehicle’s wheels get stuck in a ditch or when
driving on a slippery or bumpy surface.
Refer to the Owner‘s Manual for more details on this system before attempting
to use it.

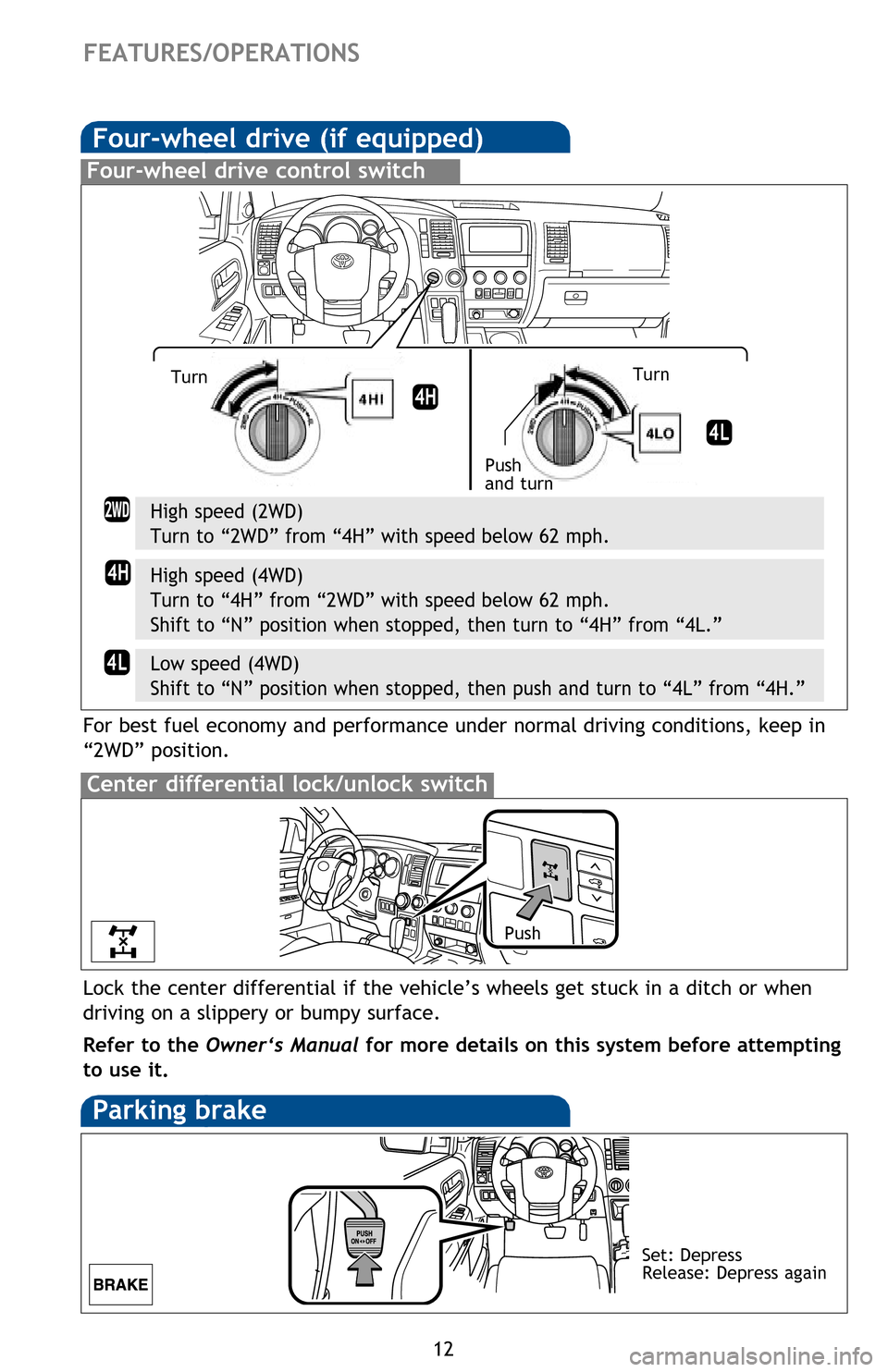

Center differential lock/unlock switch
Four-wheel drive (if equipped)
High speed (2WD)
Turn to “2WD” from “4H” with speed below 62 mph.
High speed (4WD)
Turn to “4H” from “2WD” with speed below 62 mph.
Shift to “N” position when stopped, then turn to “4H” from “4L.”
Low speed (4WD)
Shift to “N” position when stopped, then push and turn to “4L”\
from “4H.”
WD
For best fuel economy and performance under normal driving conditions, keep in
“2WD” position.
Push
and turn
Turn
Turn
Push
Four-wheel drive control switch
BSM (Blind Spot Monitor)(if equipped)
The Blind Spot Monitor is a system that assists the driver to confirm safety when
changing lanes. The system uses radar sensors to detect vehicles that are traveling
in an adjacent lane in the area that is not reflected in the outside rearview mirror
(the blind spot), and advises the driver of the vehicles’ existence via the outside
rearview mirror indicator.
Refer to the Owner‘s Manual for more details on this system before attempting
to use it.
Parking brake
Set: Depress
Release: Depress again
Seats-Head restraints
Lock release button
2016_Sequoia_QRG.indd 127/6/15 8:10 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13
Lock the center differential if the vehicle’s wheels get stuck in a ditch or when
driving on a slippery or bumpy surface.
Refer to the Owner‘s Manual for more details on this system before attempting
to use it.
High speed (2WD)
Turn to “2WD” from “4H” with speed below 62 mph.
High speed (4WD)
Turn to “4H” from “2WD” with speed below 62 mph.
Shift to “N” position when stopped, then turn to “4H” from “4L.”
Low speed (4WD)
Shift to “N” position when stopped, then push and turn to “4L”\
from “4H.”
For best fuel economy and performance under normal driving conditions, keep in
“2WD” position.

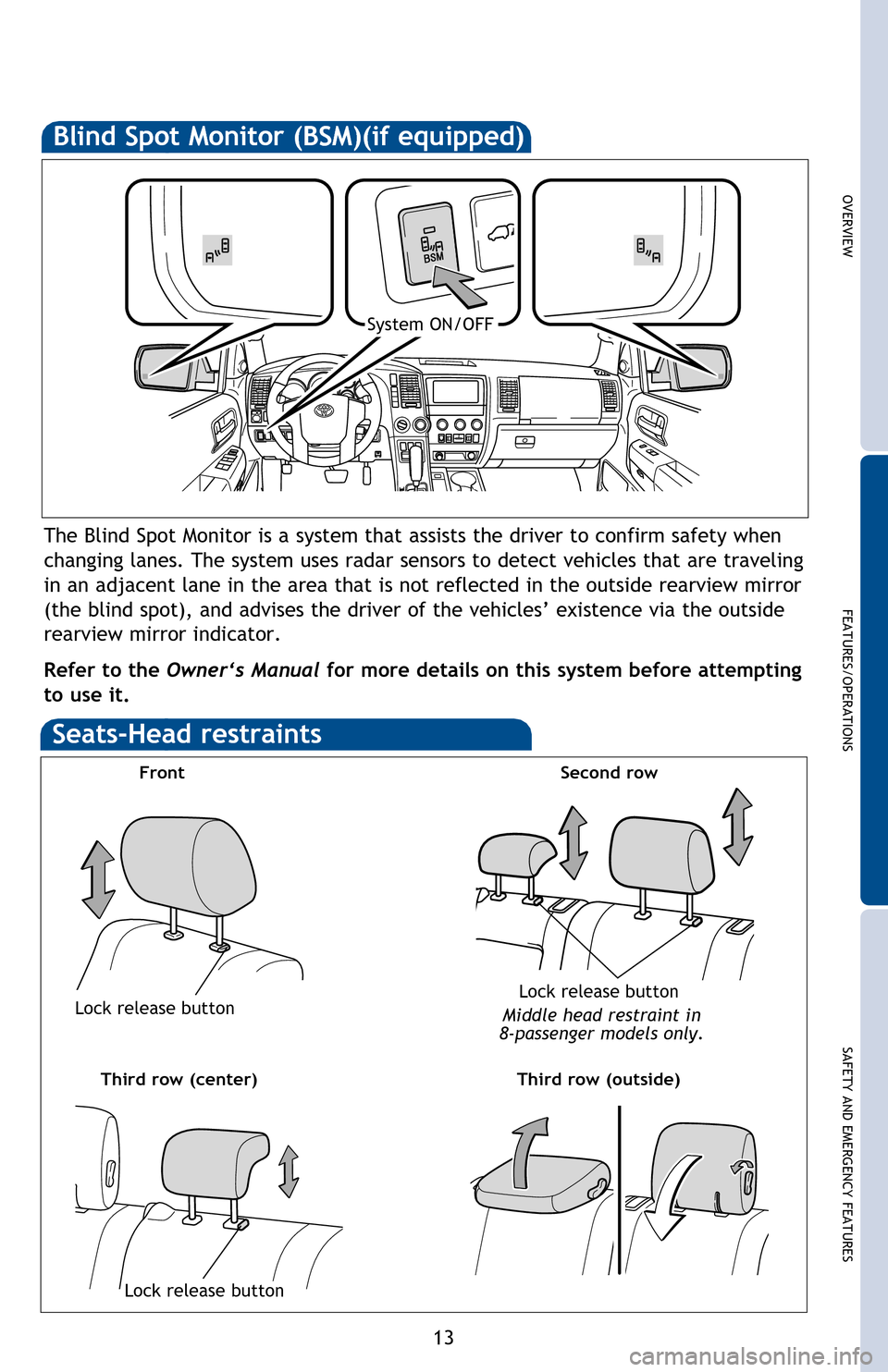

Blind Spot Monitor (BSM)(if equipped)
The Blind Spot Monitor is a system that assists the driver to confirm safety when
changing lanes. The system uses radar sensors to detect vehicles that are traveling
in an adjacent lane in the area that is not reflected in the outside rearview mirror
(the blind spot), and advises the driver of the vehicles’ existence via the outside
rearview mirror indicator.
Refer to the Owner‘s Manual for more details on this system before attempting
to use it.
System ON/OFF
Set: Depress
Release: Depress again
Seats-Head restraints
Front
Third row (center)
Lock release button
Lock release button
Second row
Lock release button
Middle head restraint in
8-passenger models only.
Third row (outside)
2016_Sequoia_QRG.r2.indd 137/9/15 11:40 AM

34
There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in
place.
• Install floor mats right side up.
Floor mat installation
SAFETY AND EMERGENCY FEATURES
Smart Stop Technology automatically reduces engine power when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling
backward.

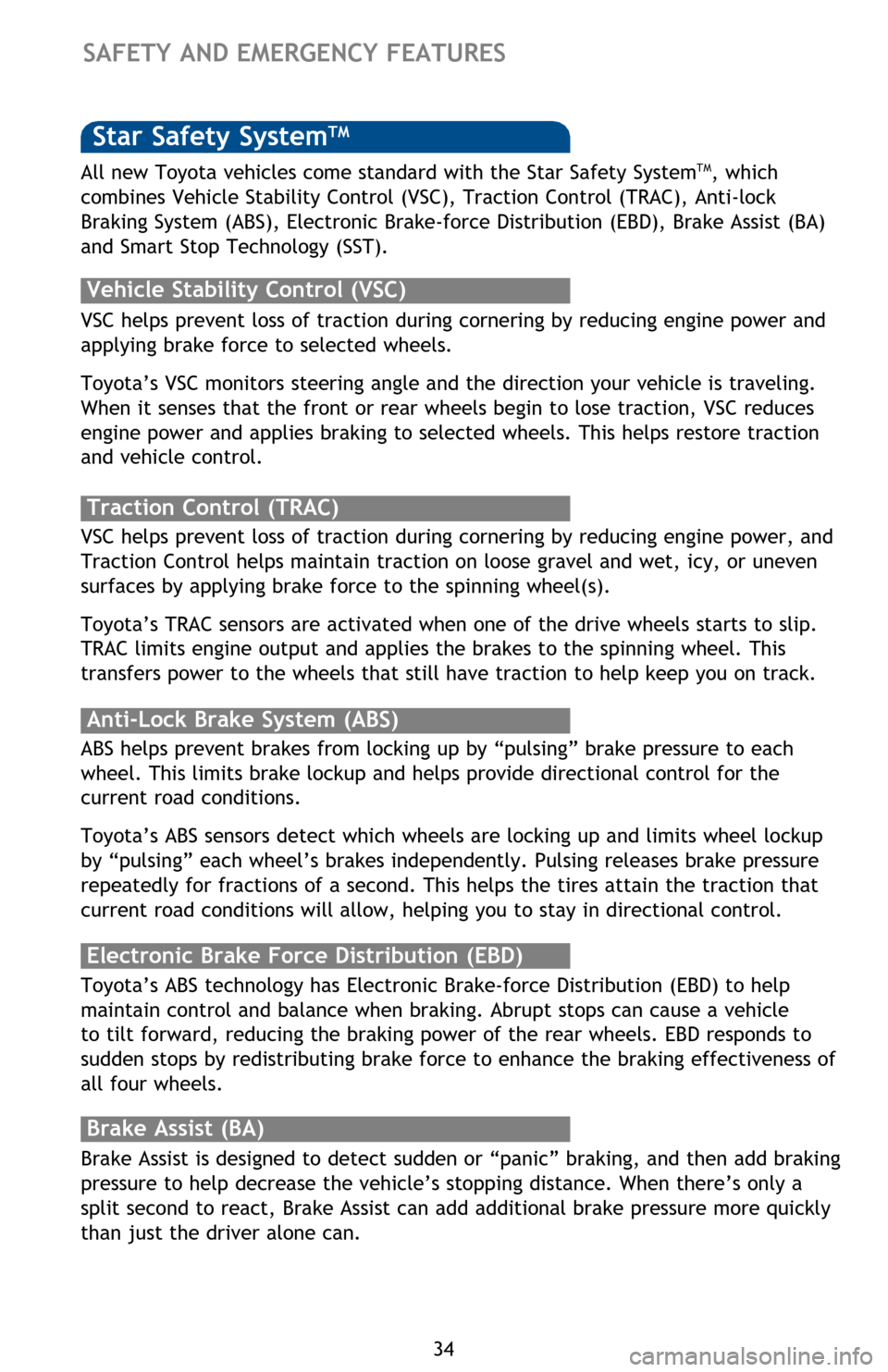

Smart Stop Technology (SST)Star Safety SystemTM
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
Brake Assist (BA)
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a
split second to react, Brake Assist can add additional brake pressure more quickly
than just the driver alone can. VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
Traction Control (TRAC)
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle
to tilt forward, reducing the braking power of the rear wheels. EBD responds to
sudden stops by redistributing brake force to enhance the braking effectiveness of
all four wheels. All new Toyota vehicles come standard with the Star Safety System
TM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock
Braking System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA)
and Smart Stop Technology (SST).
2016_Sequoia_QRG.indd 347/6/15 8:11 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
35

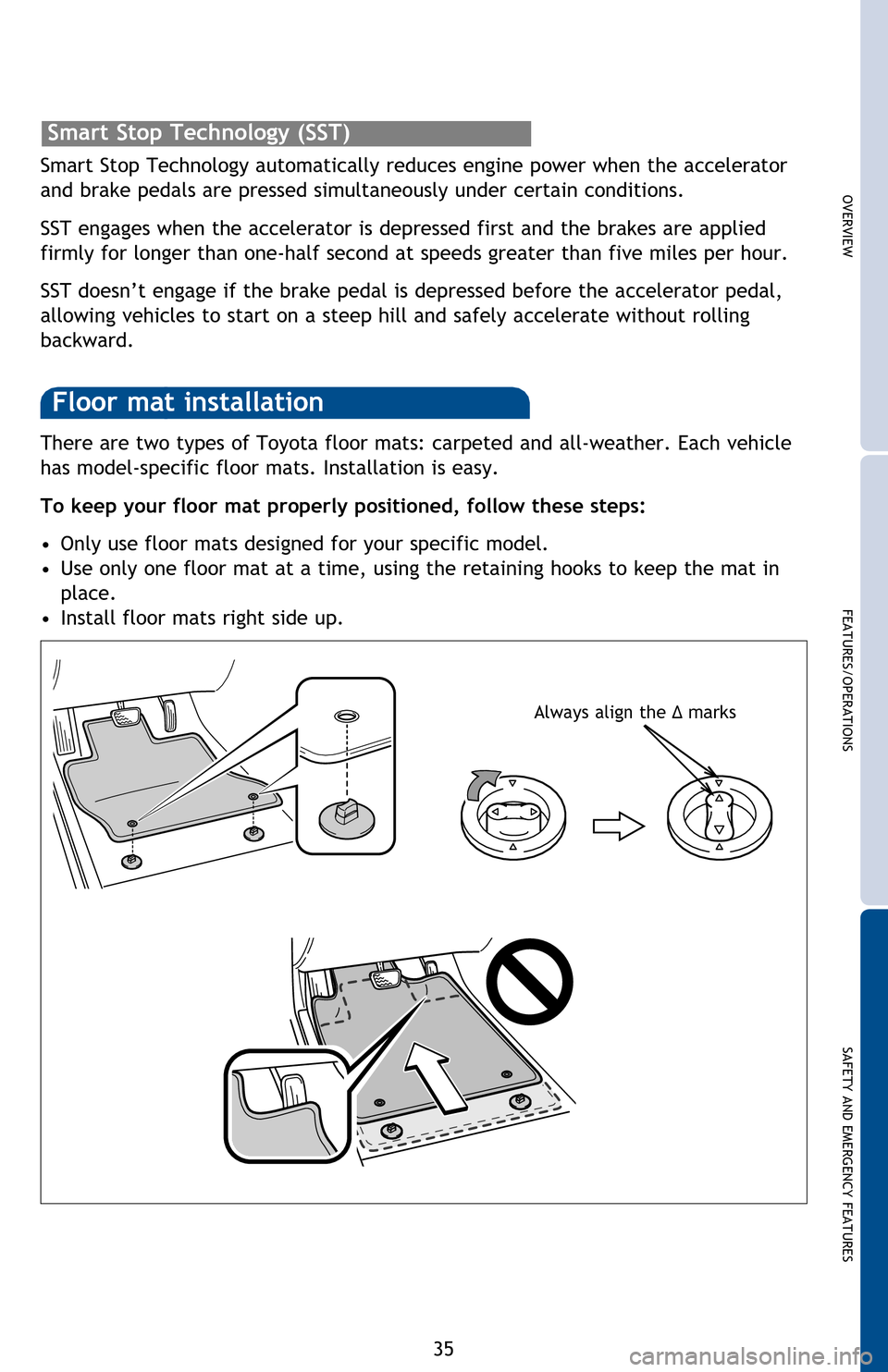

There are two types of Toyota floor mats: carpeted and all-weather. Each vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
•
Only use floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in
place.
• Install floor mats right side up.
Floor mat installation
SAFETY AND EMERGENCY FEATURES
Smart Stop Technology automatically reduces engine power when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling
backward.
Smart Stop Technology (SST)
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a
split second to react, Brake Assist can add additional brake pressure more quickly
than just the driver alone can. VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle
to tilt forward, reducing the braking power of the rear wheels. EBD responds to
sudden stops by redistributing brake force to enhance the braking effectiveness of
all four wheels. All new Toyota vehicles come standard with the Star Safety System
TM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock
Braking System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA)
and Smart Stop Technology (SST).
Always align the Δ marks
