Page 4 of 576
TABLE OF CONTENTSIndex
4
• Personal/interior lights...... 315
• Interior light ...................... 316
3-4. Using the storage features List of storage features....... 317
• Glove boxes ..................... 318
• Coin holder ....................... 319
• Front console box ............ 320
• Card holder ...................... 323
• Map holder ....................... 324
• Pen holder ........................ 326
• Tissue pocket ................... 327
• Rear console box ............. 328
• Overhead console ............ 331
• Cup holders ...................... 333
• Bottle holders ................... 337
• Auxiliary boxes ................. 338
3-5.
Using the other in terior features
Sun visors .......................... 340
Vanity mirrors ..................... 341
Clock .................................. 342
Outside temperature
display .............................. 343
Portable ashtray ................. 345
Cigarette lighter .................. 346
Conversation mirror............ 347
Power outlets ..................... 348
Seat heaters ....................... 354
Seat heaters and ventilators ......................... 357
Armrests ............................. 359
Rear side sunshades ......... 360
Assist grips ......................... 362
Floor mat ............................ 363
Luggage compartment features ............................ 365
Garage door opener ........... 370
Compass ............................ 376 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior ........... 382
Cleaning and protecting the vehicle interior ............ 385
4-2. Maintenance Maintenance requirements .................... 388
General maintenance ......... 391
Emission inspection and maintenance (I/M)
programs
............................. 394
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ....................... 395
Hood ................................... 399
Engine compartment .......... 400
Tires.................................... 415
Tire inflation pressure ......... 423
Wheels................................ 427
Air conditioning filter ........... 430
Wireless remote control battery .............................. 433
Checking and replacing fuses ................................. 435
Light bulbs .......................... 447
4Maintenance and care
Page 352 of 576
352 3-5. Using the other interior features
NOTICE
■To avoid damaging the power outlet and the plug
●Close the power outlet lid when not in use.
● Foreign objects or liquids that enter the power outlet may cause a short
circuit.
● Do not use plug adaptors to connect too many plugs to the power outlet.
● After inserting a plug, gently close the power outlet lid.
■ To prevent the fuse from being blown
12 V
Do not use an accessory that uses more than 12 V 10 A.
120 V AC
Do not use a 120 V AC appliance that requires more than 100 W.
If a 120 V AC appliance that consumes more than 100 W is used, the pro-
tection circuit will cut the power supply.
■ Appliances that may not ope rate properly (120 V AC)
The following 120 V AC appliances may not operate even if their power con-
sumption is under 100 W.
● Appliances with high initial peak wattage
● Measuring devices that process precise data
● Other appliances that require an extremely stable power supply
■ To prevent the battery from being discharged
Turn off all the vehicle’s electronic equipment and accessories, such as the
headlights and air conditioning, when electrical appliances that consume in
excess of 100 W are used continuously for long periods of time.
■ To prevent any damage caused by heat
●Do not use any electrical appliances that give off intense heat such as
toasters, in any locations including the internal or external trim, seats and
deck.
● Do not use any electrical appliances, which are easily affected by vibration
or heat, inside the vehicle.
Vibration while driving, or the heat of the sun while parking, may result in
damage to those electrical appliances.
Page 381 of 576
Maintenance and care4
381
4-1. Maintenance and careCleaning and protecting the vehicle exterior ......... 382
Cleaning and protecting the vehicle interior .......... 385
4-2. Maintenance Maintenance requirements .................. 388
General maintenance....... 391
Emission inspection and maintenance (I/M)
programs
.......................... 394
4-3. Do-it-yourself maintenance Do-it-yourself service precautions .................... 395
Hood ................................ 399
Engine compartment ........ 400
Tires ................................. 415
Tire inflation pressure ...... 423
Wheels ............................. 427
Air conditioning filter......... 430
Wireless remote control battery ............................ 433
Checking and replacing fuses .............................. 435
Light bulbs........................ 447
Page 395 of 576
395
4
Maintenance and care
4-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance yourself, be sure to follow the correct
procedures as given in these sections.
ItemsParts and tools
Battery condition ( →P. 410)
•Warm water
• Baking soda
• Grease
• Conventional wrench
(for terminal clamp bolts)
Brake fluid level ( →P. 407)
• FMVSS No.116 DOT 3 or SAE
J1703 brake fluid
• Rag or paper towel
Engine coolant level ( →P. 405)
• “Toyota Super Long Life Coolant”
or similar high quality ethylene
glycol based non-silicate, non-
amine, non-nitrite and non-borate
coolant with long-life hybrid
organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant”
is pre-mixed with 50% coolant
and 50% deionized water.
Canada:
“Toyota Super Long Life Coolant”
is pre-mixed with 55% coolant
and 45% deionized water.
Engine oil level (→P. 401)
• Toyota Genuine Motor Oil or
equivalent
• Rag or paper towel
• Funnel (used only for adding oil)
Fuses (→P. 435)• Fuse with same amperage rating
as original
Page 400 of 576
400
4-3. Do-it-yourself maintenance

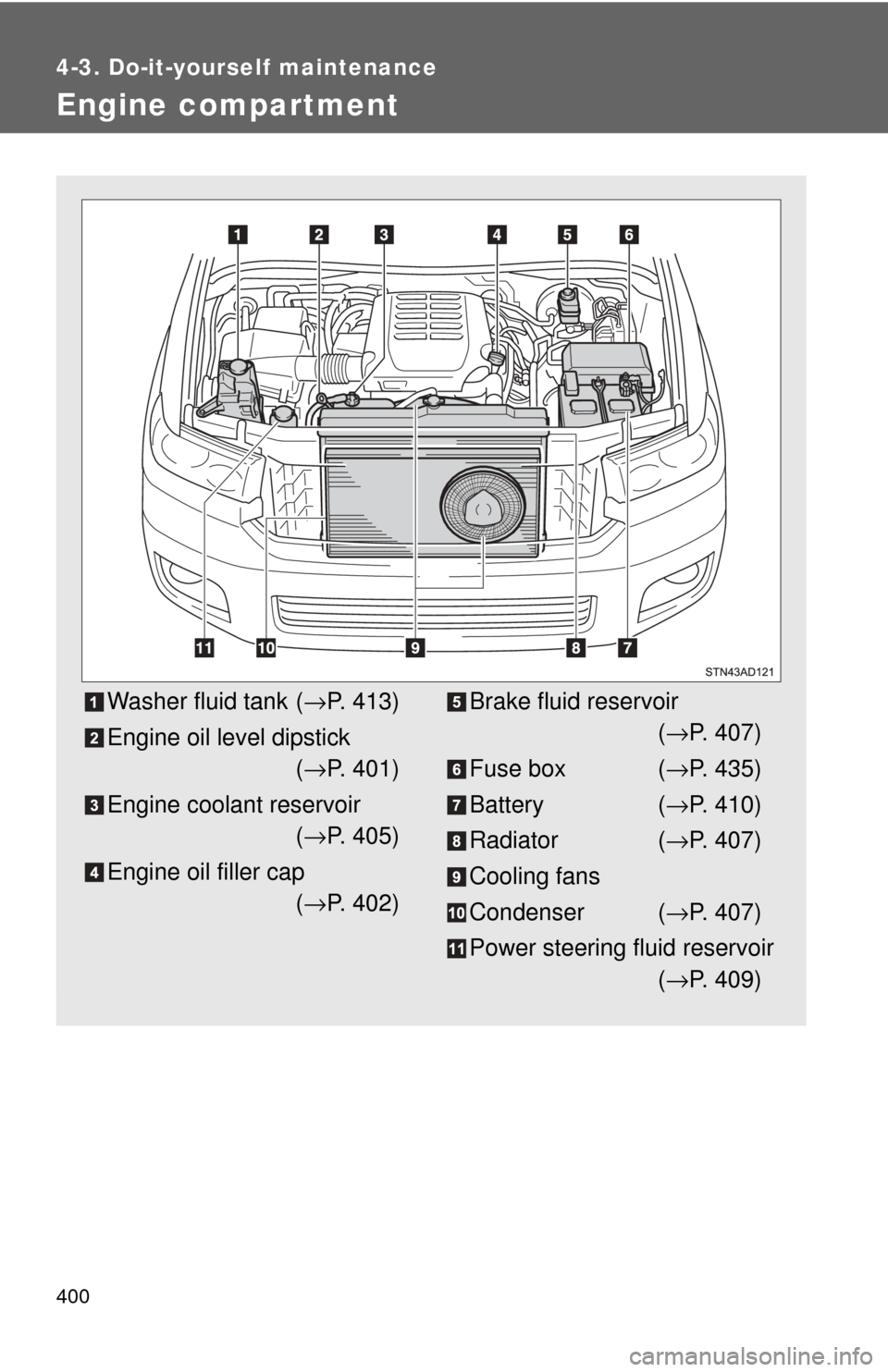

Engine compartment
Washer fluid tank (→P. 413)
Engine oil level dipstick (→ P. 401)
Engine coolant reservoir (→ P. 405)
Engine oil filler cap (→ P. 402)Brake fluid reservoir
(→ P. 407)
Fuse box ( →P. 435)
Battery ( →P. 410)
Radiator ( →P. 407)
Cooling fans
Condenser ( →P. 407)
Power steering fluid reservoir (→ P. 409)
Page 435 of 576
435
4-3. Do-it-yourself maintenance
4
Maintenance and care

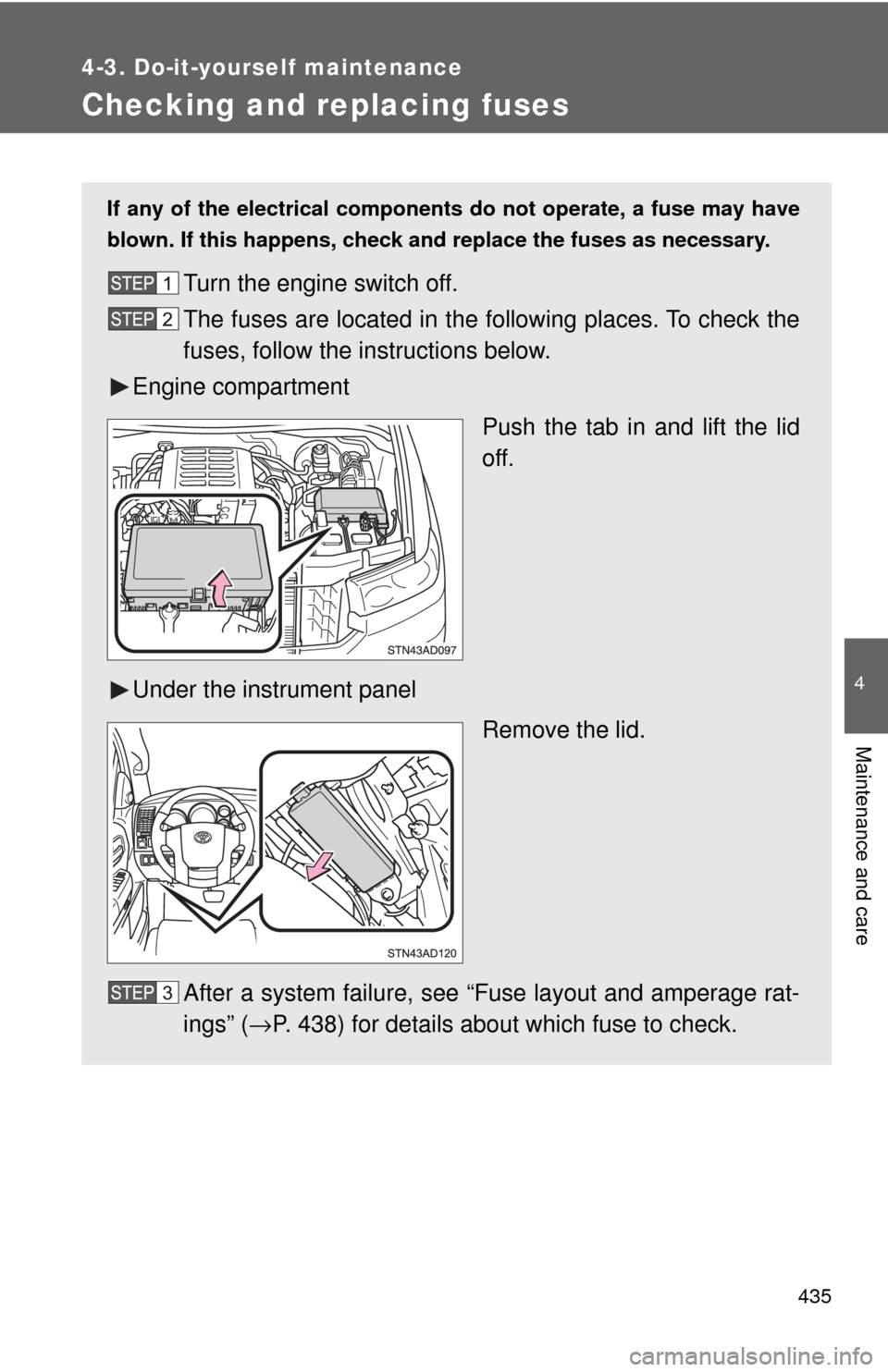

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the engine switch off.
The fuses are located in the following places. To check the
fuses, follow the instructions below.
Engine compartment
Push the tab in and lift the lid
off.
Under the instrument panel Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” ( →P. 438) for details about which fuse to check.
Page 436 of 576
436 4-3. Do-it-yourself maintenance

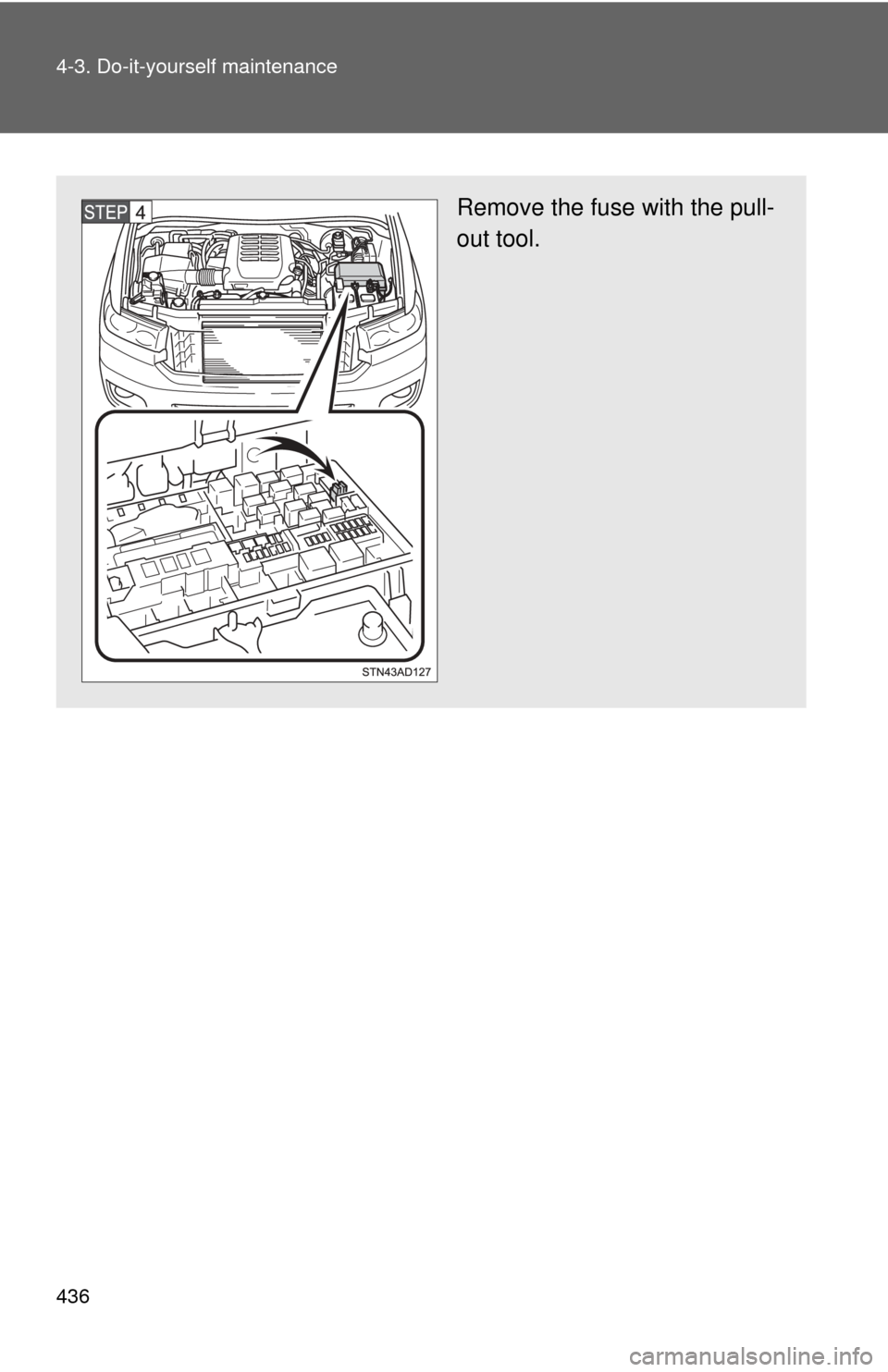

Remove the fuse with the pull-
out tool.
Page 437 of 576
437
4-3. Do-it-yourself maintenance
4
Maintenance and care

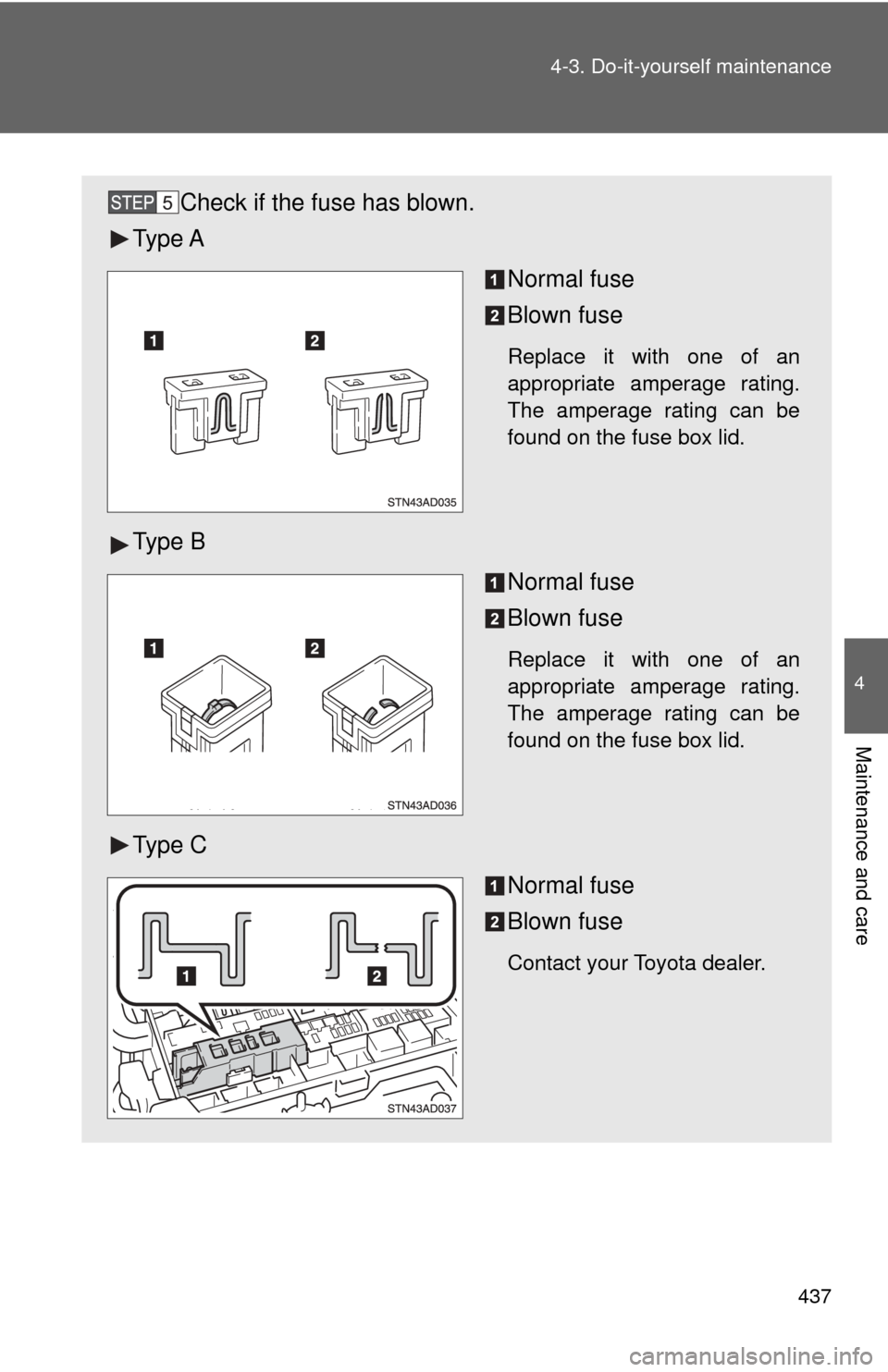

Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e CNormal fuse
Blown fuse
Contact your Toyota dealer.
Page 438 of 576
438 4-3. Do-it-yourself maintenance

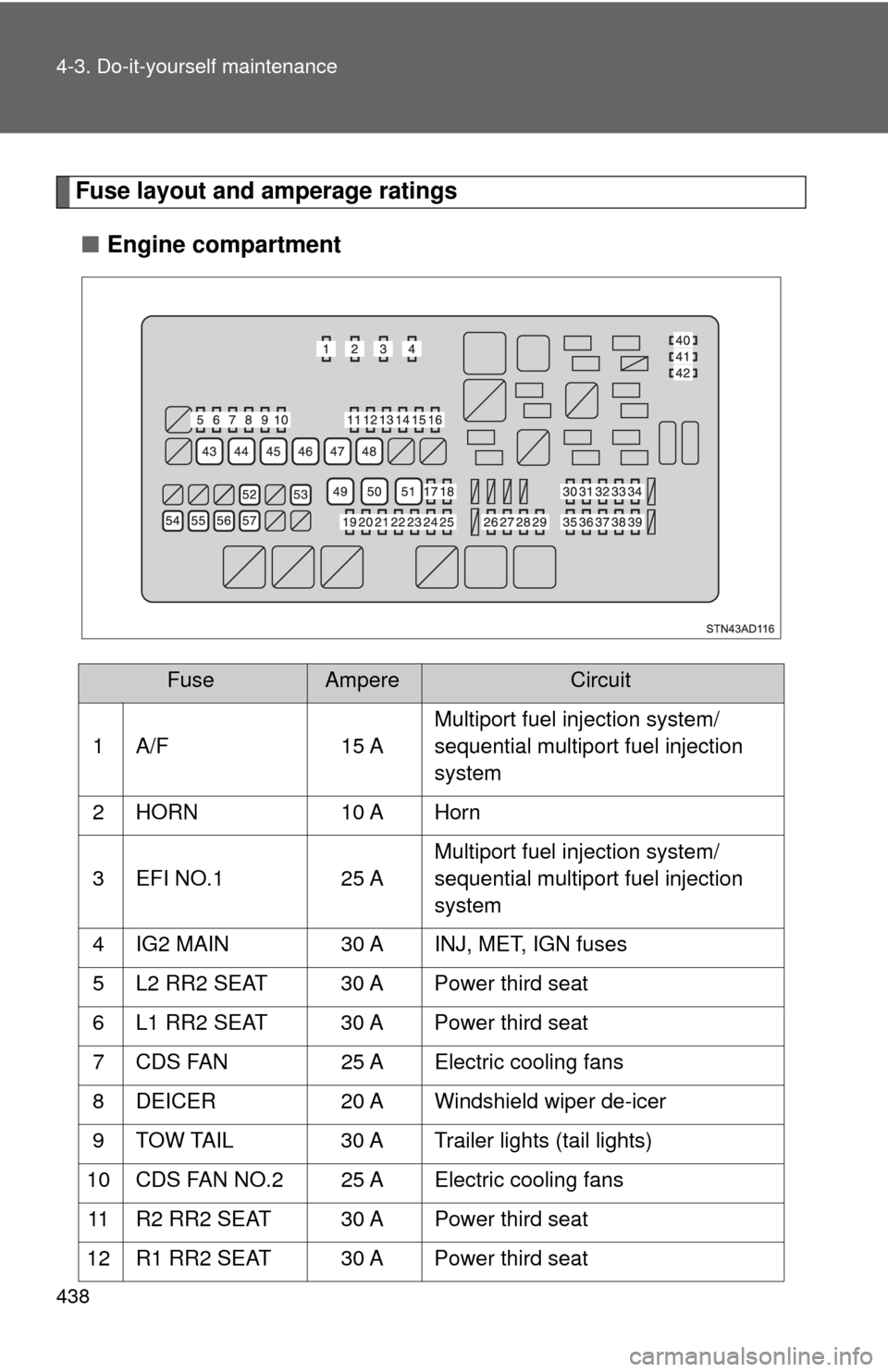

Fuse layout and amperage ratings■ Engine compartment
FuseAmpereCircuit
1 A/F 15 A Multiport fuel injection system/
sequential multiport fuel injection
system
2 HORN 10 A Horn
3 EFI NO.1 25 A Multiport fuel injection system/
sequential multiport fuel injection
system
4 IG2 MAIN 30 A INJ, MET, IGN fuses
5 L2 RR2 SEAT 30 A Power third seat
6 L1 RR2 SEAT 30 A Power third seat
7 CDS FAN 25 A Electric cooling fans
8 DEICER 20 A Windshield wiper de-icer
9 TOW TAIL 30 A Trailer lights (tail lights)
10 CDS FAN NO.2 25 A Electric cooling fans
11 R2 RR2 SEAT 30 A Power third seat
12 R1 RR2 SEAT 30 A Power third seat
Page 439 of 576
439
4-3. Do-it-yourself maintenance
4
Maintenance and care
13 POWER NO.4 25 A Power windows
14 FOG 15 A Front fog lights
15 STOP 15 A
Stop lights, high mounted stop-
light, vehicle stability control sys-
tem, anti-lock brake system, shift
lock system, multiport fuel injection
system/sequential multiport fuel
injection system, towing converter
16 TOW BRK 30 A Trailer brake controller
17 IMB 7.5 A Multiport fuel injection system/
sequential multiport fuel injection
system
18 AM2 7.5 A Starting system
19 TOWING 30 A Towing converter
20 AI-HTR 10 A Air injection pump heaters
21 ALT-S 5 A Charging system
22 TURN-HAZ 15 A Turn signal lights, emergency
flashers, towing converter
23 F/PMP 25 A Fuel pump
24 ETCS 10 A Multiport fuel injection system/
sequential multiport fuel injection
system, electric throttle control sys-
tem
25 MET-B 5 A Gauges and meters
26 AMP 30 A Audio system, rear view monitor,
navigation system, rear seat enter-
tainment system
27 RAD NO.1 15 A Audio system, rear view monitor,
navigation system, rear seat enter-
tainment system
FuseAmpereCircuit
