6
Headlights (high beam) P. 187
Pictorial indexExterior
Hood
P. 399
Windshield wipers
P. 195
Outside rear view
mirrors
P. 84
Front turn signal/parking
lights and daytime running
lights
∗ P. 165, 187, 191
Moon roof∗ P. 96
Fog lights∗ P. 193
Headlights (low beam) P. 187
Front side marker lights
P. 187

81
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving

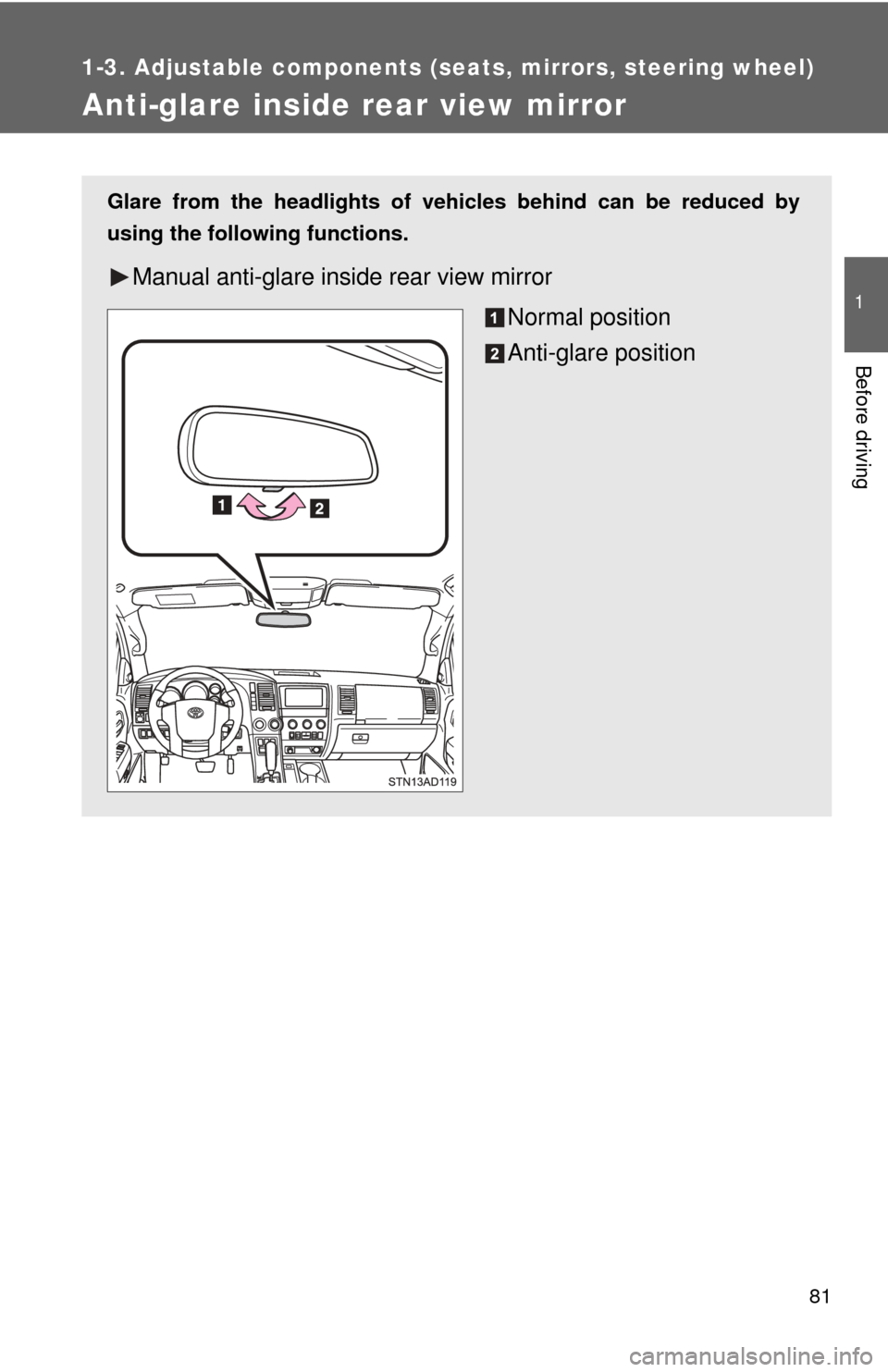

Anti-glare inside rear view mirror
Glare from the headlights of vehicles behind can be reduced by
using the following functions.
Manual anti-glare inside rear view mirror
Normal position
Anti-glare position

82 1-3. Adjustable components (seats, mirrors, steering wheel)
Adjusting the height of rear view mirror
Adjust the height of the rear view
mirror by moving it up and down.
Auto anti-glare inside rear view mirror
In automatic mode, sensors are used to detect the headlights of
vehicles behind and automatically reduces the reflected light.
Turns automatic mode ON/
OFF
The indicator comes on when
automatic mode is turned on.
The mirror will revert to the
automatic mode each time the
engine switch is turned on.

172 2-2. Instrument cluster
Instrument panel light controlThe brightness of the instrument panel lights can be adjusted.
Brighter
Darker
Vehicles with multi-information
display
With the dial turned fully up, the
intensity of the instrument panel
lights will not be reduced even
when the tail lights/headlights are
turned on.
NOTICE
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( →P. 504)
■ While driving
●When the voltmeter indicates more than 19 V or less than 9 V, the battery
may be malfunctioning. Have your vehicle checked at your Toyota dealer.
● When the engine oil pressure gauge does not work properly, immediately
stop the engine and contact your Toyota dealer.
● When the automatic transmission fluid temperature gauge needle continu-
ally points higher than normal, immediately contact your Toyota dealer. (if
equipped)

187
2
When driving
2-3. Operating the lights and wipers

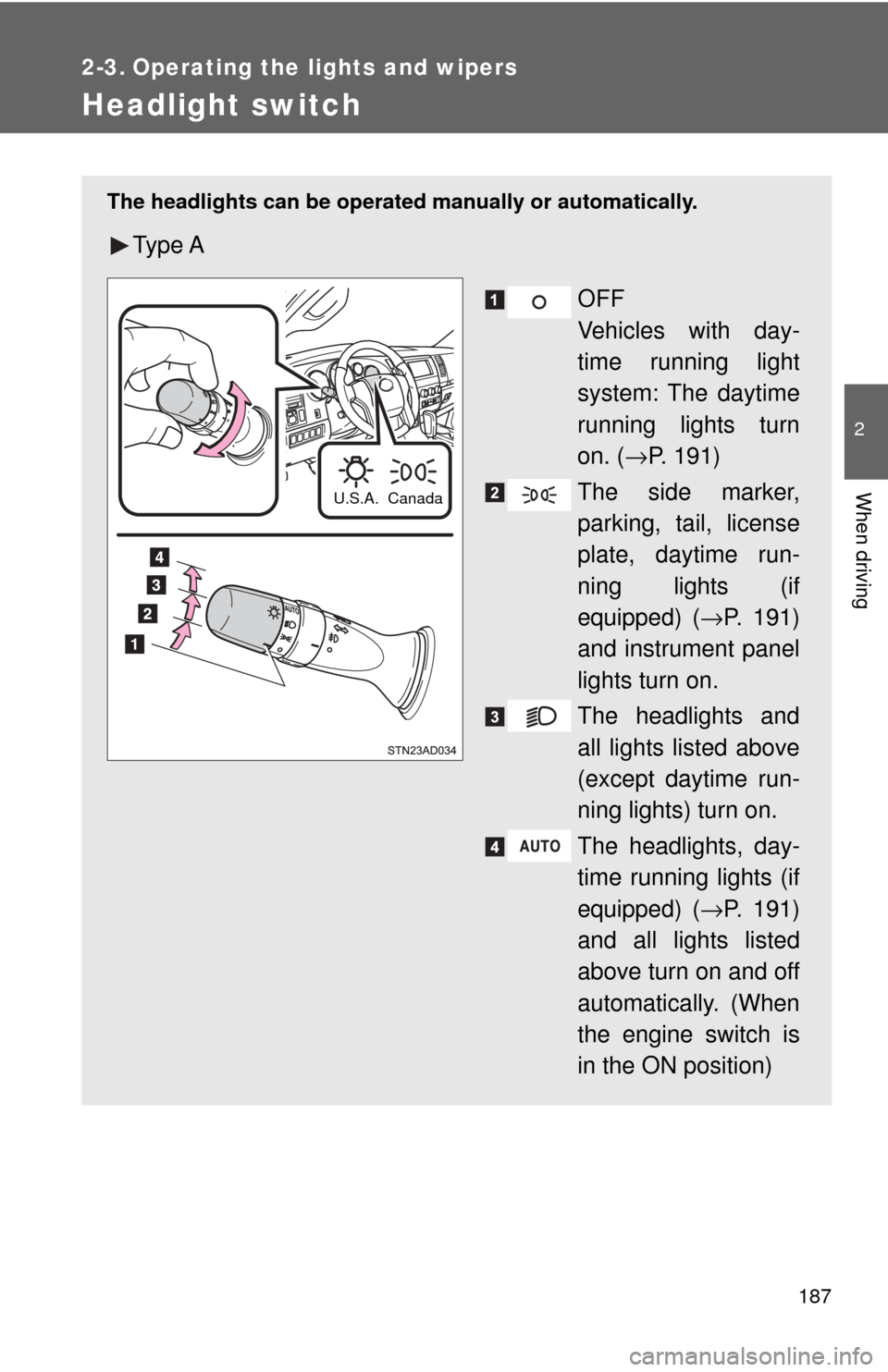

Headlight switch
The headlights can be operated manually or automatically.
Ty p e A
OFF
Vehicles with day-
time running light
system: The daytime
running lights turn
on. (→P. 191)
The side marker,
parking, tail, license
plate, daytime run-
ning lights (if
equipped) ( →P. 191)
and instrument panel
lights turn on.
The headlights and
all lights listed above
(except daytime run-
ning lights) turn on.
The headlights, day-
time running lights (if
equipped) ( →P. 191)
and all lights listed
above turn on and off
automatically. (When
the engine switch is
in the ON position)
Canada
U.S.A.

188 2-3. Operating the lights and wipers

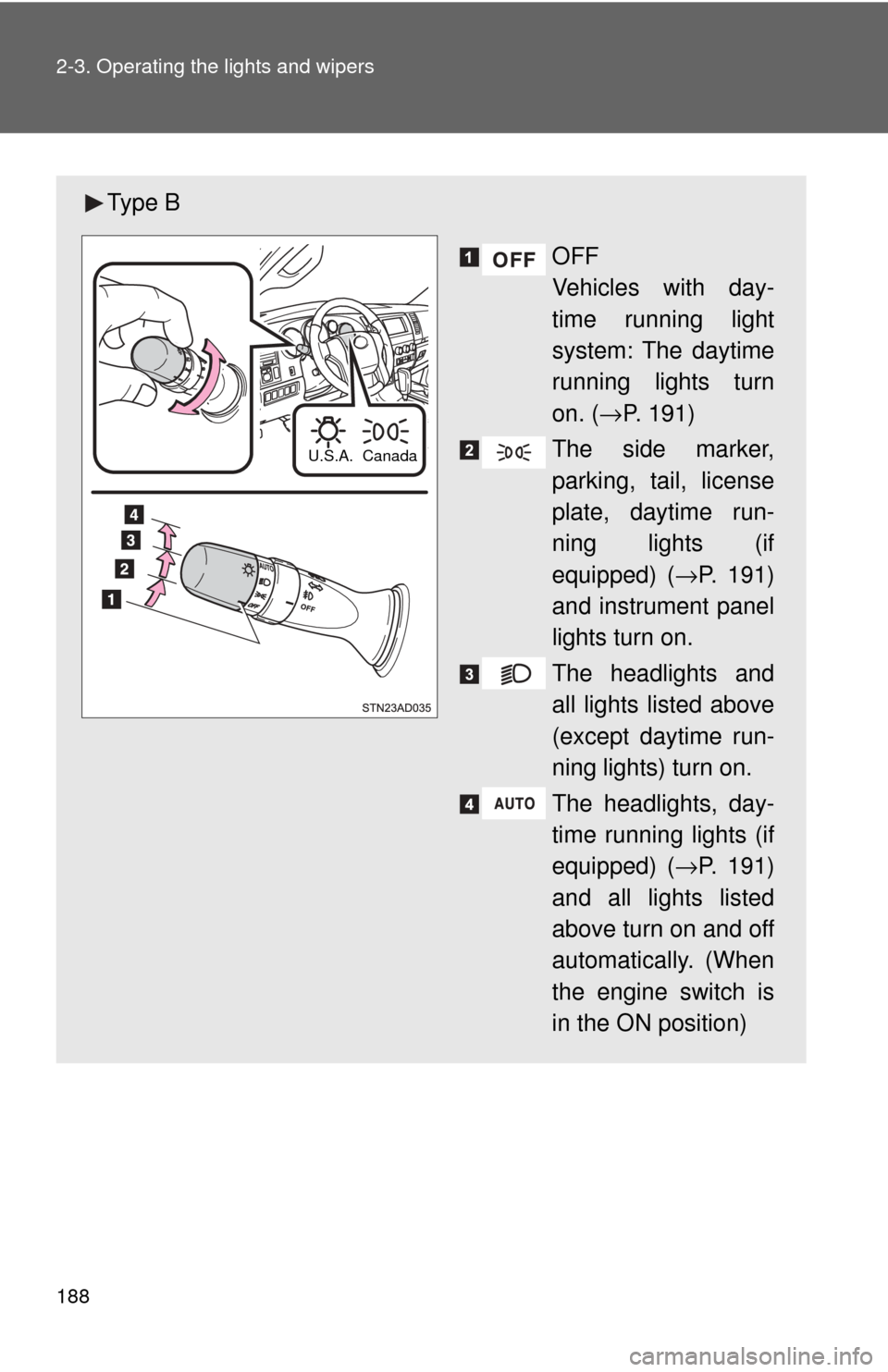

Ty p e BOFF
Vehicles with day-
time running light
system: The daytime
running lights turn
on. (→P. 191)
The side marker,
parking, tail, license
plate, daytime run-
ning lights (if
equipped) ( →P. 191)
and instrument panel
lights turn on.
The headlights and
all lights listed above
(except daytime run-
ning lights) turn on.
The headlights, day-
time running lights (if
equipped) ( →P. 191)
and all lights listed
above turn on and off
automatically. (When
the engine switch is
in the ON position)
Canada
U.S.A.

189
2-3. Operating the lights and wipers
2
When driving

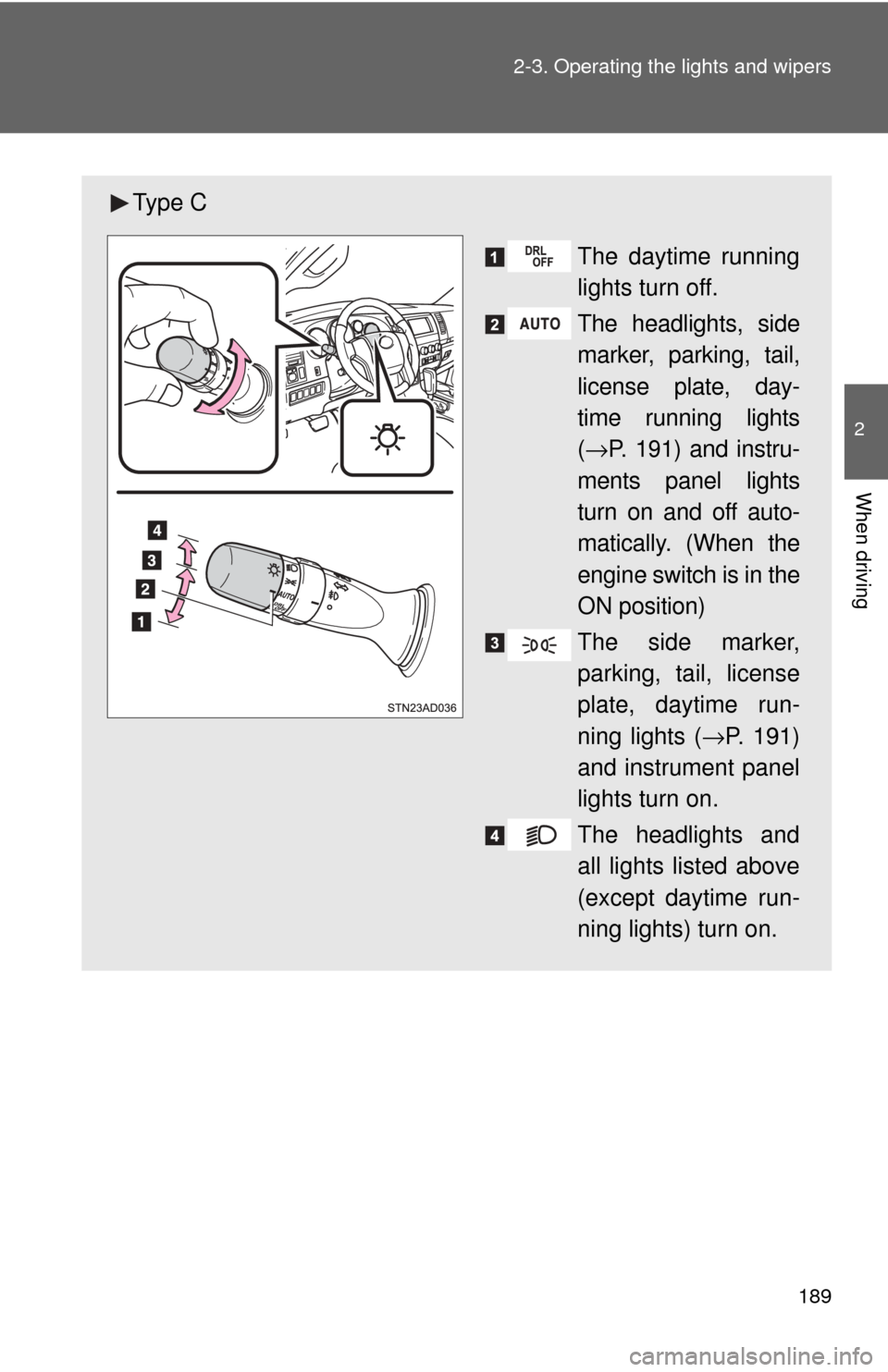

Ty p e C
The daytime running
lights turn off.
The headlights, side
marker, parking, tail,
license plate, day-
time running lights
(→ P. 191) and instru-
ments panel lights
turn on and off auto-
matically. (When the
engine switch is in the
ON position)
The side marker,
parking, tail, license
plate, daytime run-
ning lights ( →P. 191)
and instrument panel
lights turn on.
The headlights and
all lights listed above
(except daytime run-
ning lights) turn on.

190 2-3. Operating the lights and wipers

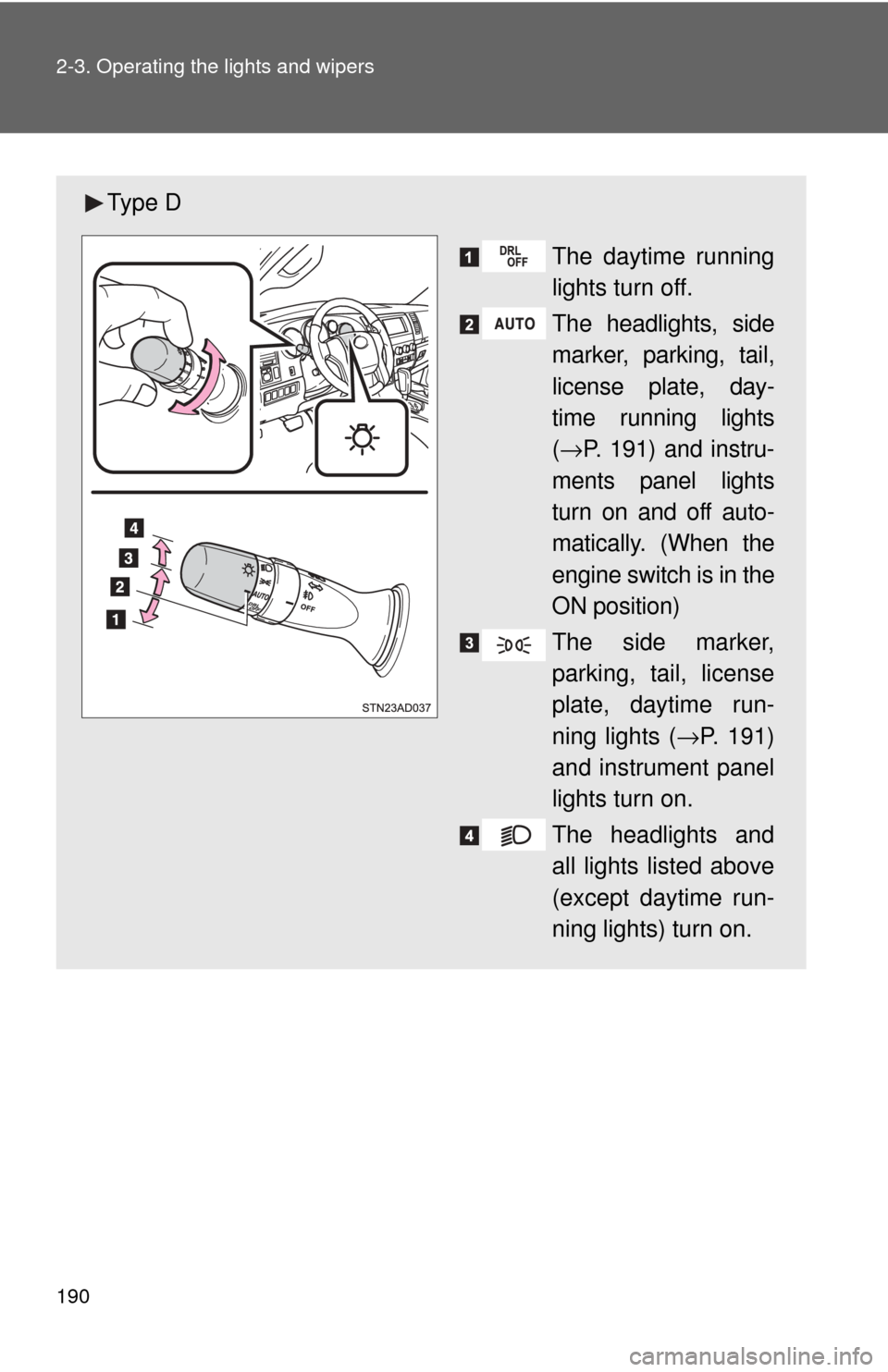

Ty p e DThe daytime running
lights turn off.
The headlights, side
marker, parking, tail,
license plate, day-
time running lights
(→ P. 191) and instru-
ments panel lights
turn on and off auto-
matically. (When the
engine switch is in the
ON position)
The side marker,
parking, tail, license
plate, daytime run-
ning lights ( →P. 191)
and instrument panel
lights turn on.
The headlights and
all lights listed above
(except daytime run-
ning lights) turn on.

191
2-3. Operating the lights and wipers
2
When driving
Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.
■Daytime running light system (if equipped)
●To make your vehicle more visible to other drivers during daytime driving,
the daytime running lights turn on automatically whenever the engine is
started and the parking brake is released with the headlight switch off or
in the “AUTO” position. (Illuminate brighter than the parking light.) Day-
time running lights are not designed for use at night.
Type C and D: Daytime running lights can be turned off by operating the
switch.
● Compared to turning on the headlights, the daytime running light system
offers greater durability and consumes less electricity, so it can help
improve fuel economy.
■ Headlight control sensor
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

192 2-3. Operating the lights and wipers
■Automatic light off system
●When the headlights come on: The headlights and tail lights automati-
cally turn off after 30 seconds when all doors are closed with the engine
switch turned to the ACC or LOCK position. (The lights turn off immedi-
ately if the button on the wireless remote control is pressed after all
doors are locked.)
● When only the tail lights come on: The tail lights turn off automatically
with the engine switch turned to the ACC or LOCK position and the
driver’s door is opened.
To turn the lights on again, turn the engine switch to the ON position, or turn
the headlight switch off once and then back to the or position.
■ Customization
●That can be configured at Toyota dealer. (vehicles without multi-informa-
tion display)
Settings (automatic light off system) can be changed. (Customizable
features →P. 539)
● It is possible to change the settings. (vehicles with multi-information dis-
play) (Feature customization →P. 181)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.
