service indicator TOYOTA SEQUOIA 2017 2.G Owners Manual

280 2-5. Driving information
Connecting and disconnecting a trailer (vehicles with
electronically modulated air suspension)
If a height control system is installed in your vehicle, you have to con-
nect and disconnect your trailer more carefully.
● Connecting
Set the height control of electr onically modulated air suspen-
sion system to N mode.
Turn off the engine, or set the electronically modulated air
suspension system to MAN. (manual).
Connect the trailer.
Turn the engine switch to the START position and start the
engine.
Press the height control mode select switch to cancel the
MAN. (manual) condition that was set on .
Check that the MAN. indicator turns off.
Set the height control of electr onically modulated air suspen-
sion system to N mode.
■ Service connector for towing brake controller (with towing package)
Your vehicle is equipped with a service
connector for the trailer brake controller
as shown.
Access the service connector.
Remove the scuff plate.
Remove the clip (screw type) and trim
board.

394

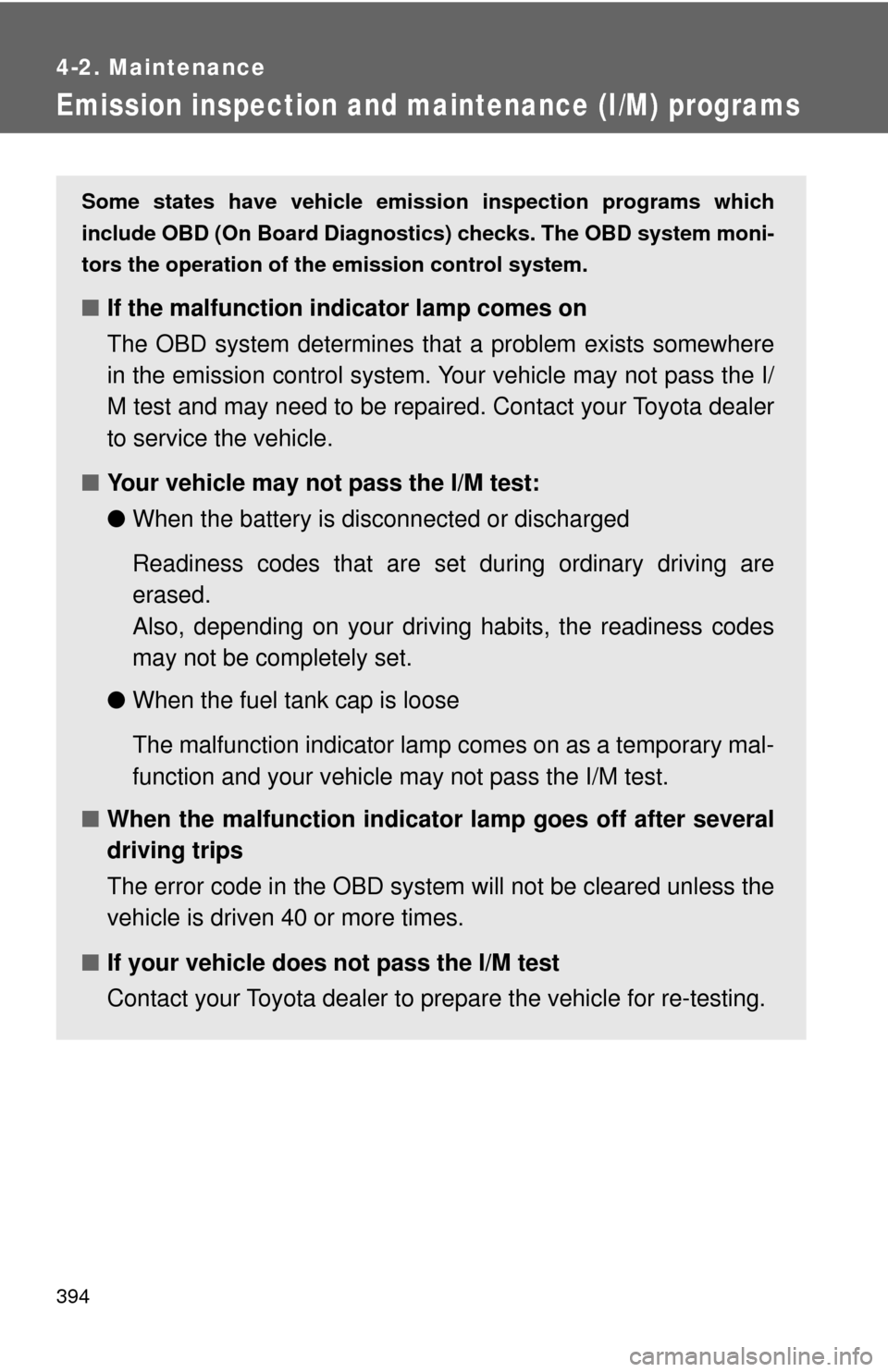

4-2. Maintenance
Emission inspection and maintenance (I/M) programs
Some states have vehicle emission inspection programs which
include OBD (On Board Diagnosti cs) checks. The OBD system moni-
tors the operation of th e emission control system.
■If the malfunction indicator lamp comes on
The OBD system determines that a problem exists somewhere
in the emission control system. Your vehicle may not pass the I/
M test and may need to be repaired. Contact your Toyota dealer
to service the vehicle.
■ Your vehicle may not pass the I/M test:
●When the battery is disconnected or discharged
Readiness codes that are se t during ordinary driving are
erased.
Also, depending on your driving habits, the readiness codes
may not be completely set.
● When the fuel tank cap is loose
The malfunction indicator lamp comes on as a temporary mal-
function and your vehicle may not pass the I/M test.
■ When the malfunction indicator lamp goes off after several
driving trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■ If your vehicle does not pass the I/M test
Contact your Toyota dealer to prepare the vehicle for re-testing.

526 6-1. Specifications
■Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methyl-
cyclopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.
■ Non-recommendation of the use of after-market fuel additives
(Flex-fuel engine)
Do not use any after-market fuel additives when repeatedly refueling wit\
h
E85, as some after-market fuel additives are not compatible with E85.
■ If your engine knocks
●Consult your Toyota dealer.
● You may occasionally notice light knocking for a short time while acceler-
ating or driving uphill. This is normal and there is no need for concern.
NOTICE
■Notice on fuel quality
●Do not use improper fuels.
If improper fuels are used, the engine will be damaged.
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic
converters causing the emission control system to malfunction.
● Gasoline engine: Do not use gasohol other than the type previously
stated.
Other gasohol may cause fuel system damage or vehicle performance
problems.
● Using unleaded gasoline with an octane number or rating lower than the
level previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.

570 Alphabetical index
Service reminder indicators .............................. 173
Shift lever Automatic transmission........................ 161
If the shift lever cannot be shifted from P................. 499
Shift lock system ..................... 499
Shopping bag hooks ............... 367
Side airbags.............................. 112
Side marker lights
Replacing .............................. 447
Switch.................................... 187
Wattage ................................. 522
Side mirrors Adjusting and folding ...............84
Spare tire
Inflation pressure................... 521
Storage location .................... 486
Spark plug ................................ 518
Specifications........................... 512
Speedometer ............................ 168
Steering
Column lock release................79
Steering wheel Adjustment ........................79, 80
Audio switches
*
Steering wheel memory ..........62
Telephone switches
*
Stop lightsReplacing light bulbs ............. 447
Wattage................................. 522
Storage feature ........................ 317
Storage precautions ................ 261
Stuck If your vehicle becomes stuck ................................... 507
Sun visors ................................ 340
Sunshade.................................. 360
Switch BSM main switch .................. 227
Emergency flasher switch ..... 460
Engine switch ........................ 158
Fog light switch ..................... 193
Hazard light switch ................ 460
Ignition switch ....................... 158
Light switches ....................... 187
Power back door switch .... 31, 41
Power back window switch ..... 93
Power door lock switch ........... 35
Power window switch .............. 90
Rear window wiper and washer switch ..................... 199
Seatback folding/returning switch.............................. 54, 60
Window lock switch ................. 90
Wiper and washer switch.......................... 195, 199
