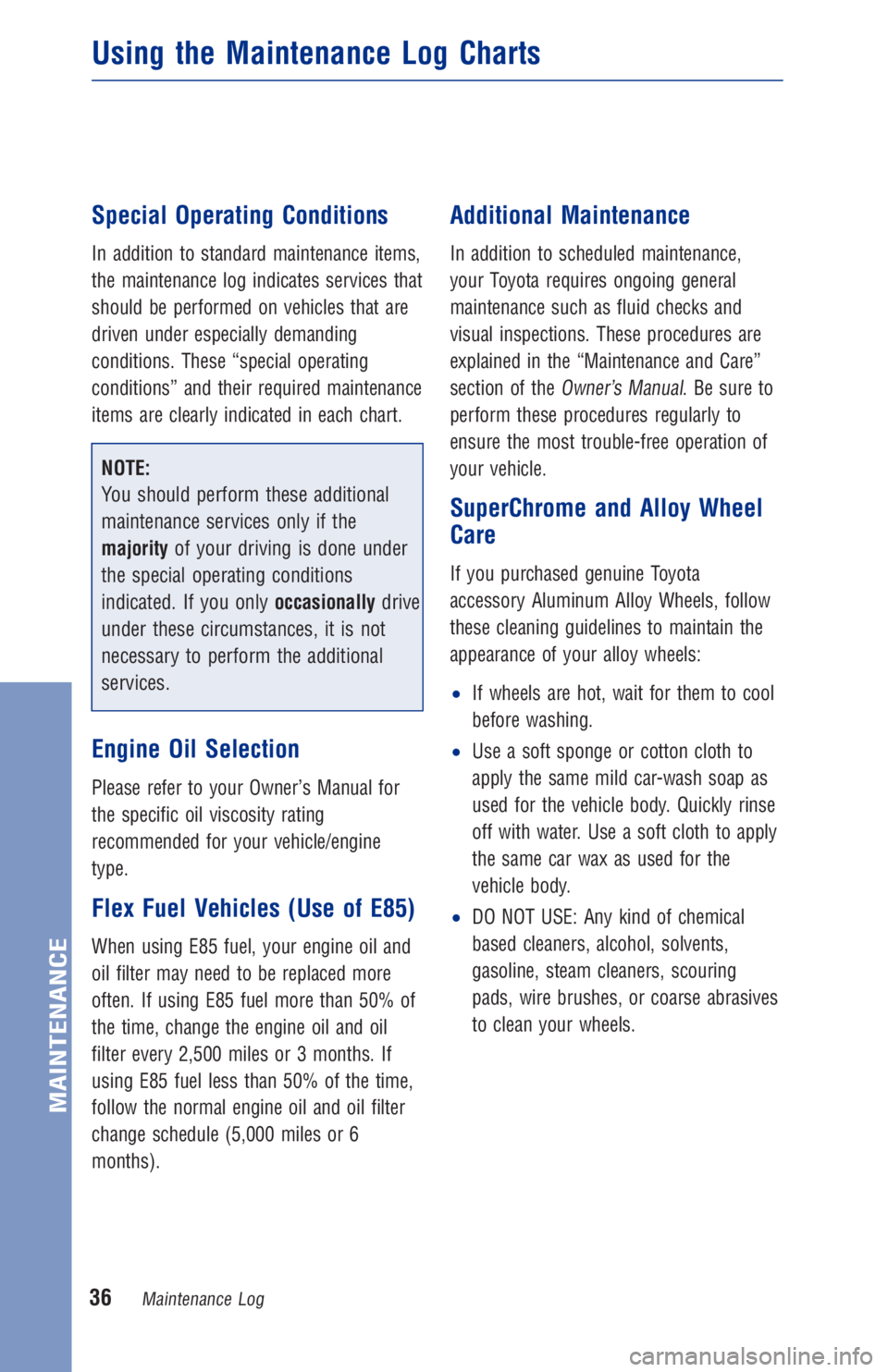

Special Operating Conditions
In addition to standard maintenance items,
the maintenance log indicates services that
should be performed on vehicles that are
driven under especially demanding
conditions. These “special operating
conditions” and their required maintenance
items are clearly indicated in each chart.
NOTE\f
You should perform these additional
maintenance services only if the
majorityof your driving is done under
the special operating conditions
indicated. If you only occasionallydrive
under these circumstances, it is not
necessary to perform the additional
services.
Engine Oil Selection
Please refer to your Owner’s Manual for
the specific oil viscosity rating
recommended for your vehicle/engine
type.
\blex \buel Vehicles (Use of E85)
When using E85 fuel, your engine oil and
oil filter may need to be replaced more
often. If using E85 fuel more than 50% of
the time, change the engine oil and oil
filter every 2,500 miles or \b months. If
using E85 fuel less than 50% of the time,
follow the normal engine oil and oil filter
change schedule (5,000 miles or 6
months).
Additional Maintenance
In addition to scheduled maintenance,
your Toyota requires ongoing general
maintenance such as fluid checks and
visual inspections. These procedures are
explained in the “Maintenance and Care”
section of the
Owner’s Manual. Be sure to
perform these procedures regularly to
ensure the most trouble-free operation of
your vehicle.
SuperChrome and Alloy Wheel
Care
If you purchased genuine Toyota
accessory Aluminum Alloy Wheels, follow
these cleaning guidelines to maintain the
appearance of your alloy wheels:
•If wheels are hot, wait for them to cool
before washing.
•Use a soft sponge or cotton cloth to
apply the same mild car-wash soap as
used for the vehicle body. \fuickly rinse
off with water. Use a soft cloth to apply
the same car wax as used for the
vehicle body.
•DO NOT USE: Any kind of chemical
based cleaners, alcohol, solvents,
gasoline, steam cleaners, scouring
pads, wire brushes, or coarse abrasives
to clean your wheels.
Using the Maintenance Log Charts
Maintenance Log36
MAINTENANCE

JOBNAME: 2878009-en-2018_SE\f\SU PAGE: \b\b SESS: 4 OUTPUT: Fri Jun 30 11:19:1\b 2017
/InfoShareAuthorCODA\S/InfoShareAuthorCODA\S/TS_Warr_Maint/28780\S09-en-2018_SE\fUOIA_\SFFV.00\b0\b-18WMG-SE\fFF\S/TS_Warr_Maint_v1
Drive Shaft Boots
Check the drive shaft boots and clamps
for cracks, deterioration and damage.
Replace any deteriorated or damaged parts
and, if necessary, repack the grease. A
qualified technician should perform these
operations.
Driver’s Floor Mat
•Only use the driver’s floor mat
designed specifically for the model and
model year of your vehicle.
•Always properly secure the driver’s
floor mat using the retaining hooks.
•Never install another floor mat on top
of the existing driver’s floor mat.
•Never install the driver’s floor mat
upside down.
En\fine Air Filter
Inspect or replace at specified intervals.
When performing inspections, check for
damage, excessive wear and oiliness, and
replace if necessary.
En\fine Coolant
Drain the cooling system and refill with an
ethylene-glycol type coolant. Inspect hoses
and connections for corrosion and leaks.
Tighten connections and replace parts
when necessary. A qualified technician
should perform these operations. (For
further details, refer to “Radiator,
Condenser and Hoses” in the
“Maintenance and Care” section of the
Owner’s Manual).
Your Toyota is equipped with Genuine
Toyota Super Long-Life Coolant. The
replacement intervals for engine coolant
recommended in this booklet are based
on replacement with Genuine Toyota
Super Long-Life Coolant or similar
high-quality non-silicate, non-amine,
non-borate ethylene-glycol coolant with
long-life hybrid organic acid technology
(i.e., a combination of low phosphates
and organic acids). If another type of
ethylene-glycol coolant is used,
replacement intervals may be different.
En\fine Oil an\b Oil Filter
Replace the oil filter and drain and refill
the engine oil at specified intervals. For
recommended oil grade and viscosity,
refer to the Owner’s Manual. When using
E8\b fuel, your engine oil and oil filter may
need to replaced more often. If using
E8\b fuel more than \b0% of the time,
change the engine oil and oil filter every
2,\b00 miles or 3 months. If using E8\b fuel
less than \b0% of the time, follow the
normal engine oil and oil filter change
schedule (\b,000 miles or 6 months). Reset
the oil replacement reminder light (MAINT
RE\fD) or the message OIL MAINTENANCE
RE\fUIRED on the multi-information
display after engine oil replacement at
every 2,\b00 or \b,000 mile interval (as
applicable).
Explanation of Maintenance Items
Maintenance Log55
MAINTENANCE

JOBNAME: 2878009-en-2018_SE\f\SU PAGE: \b6 SESS: 4 OUTPUT: Fri Jun 30 11:19:1\b 2017
/InfoShareAuthorCOD\SA/InfoShareAuthorCO\SDA/TS_Warr_Maint/28\S78009-en-2018_SE\fUO\SIA_FFV.00\b0\b-18WMG-S\SE\fFF/TS_Warr_Maint_\Sv1
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler
and hangers for cracks, deterioration and
damage. Start the engine and listen
carefully for any exhaust gas leakage.
Tighten connections or replace parts as
necessary.
Front and Rear \fifferential Oil
Inspect or replace at specified intervals.
When performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired by a
qualified technician immediately.
Fuel \bines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts as
necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration
and damage and replace if necessary.
Nuts and Bolts on Chassis and
Body
Re-tighten the seat-mounting bolts and
front/rear suspension member retaining
bolts to specified torque.
Propeller Shaft
Re-torque the propeller shaft bolt. Only a
qualified technician should perform this
operation.
Radiator and Condenser
Inspect for debris, corrosion and signs of
damage. Have any problem repaired
immediately by a qualified technician.
Spark Plugs
Replace at specified intervals. Install new
plugs of the same type as originally
equipped. A qualified technician should
perform this operation.
Steering Gear
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualified technician.
Steering \binkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering wheel.
Inspect the linkage for bending and
damage and the dust boots for
deterioration, cracks and damage. Replace
any damaged parts. A qualified technician
should perform these operations.
Explanation of Maintenance Items
Maintenance Log56
MAINTENANCE
