TOYOTA SEQUOIA 2021 (in English) Owner's Guide

29
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Multi-Information Display (MID)
Return to previous screen Press: Enters/Sets
Press and hold: Resets
Menu
Select item/change pages
Drive information
Navigation system-linked display (if equipped)
Audio system-linked display
Vehicle information
Warning message display
Settings display
Press meter control switches to change and select information in the fol\
lowing:
Refer to the Owner’s Manual for more details.
Clock
1) Push “MENU” button next to the screen.
2) Select “Setup” or “General” in the touchscreen to access the general setting screen.
3) Select “Clock.”
4) Select desired items to be set.

Refer to the “Navigation and Multimedia System Owner’s Manual” \
for more details.
* Available only on Premium Audio
Select to change the time zone.
Select to set daylight saving
time On/Off/Auto*.
Select to set to automatic GPS
adjustment of clock.
Select to set the 24 hour time
format on/off.

30
Garage door opener (HomeLink®)*
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com/toyota.
* HomeLink® is a registered trademark of Gentex Corporation.
Buttons
HomeLink® indicator light
Garage door operation indicators
FEATURES & OPERATIONS
TOW/HAUL switch
“TOW/HAUL” mode can be used when carrying or towing heavy loads. As fuel
economy is reduced while in “TOW/HAUL” mode, deactivating when driving without
a load is recommended.
Refer to the Owner’s Manual for more details on this system before at\
tempting to
use it.
System ON/OFF

31
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
The VSC OFF switch can be used to help free a stuck vehicle in surroundi\
ngs like
mud, dirt or snow. While the vehicle is stopped, press switch to disable\
the TRAC
system.
To disable VSC/TRAC/Trailer Sway Control systems, press and hold the swi\
tch for
at least 3 seconds.
Refer to the Owner’s Manual for limitations and more information.
Push
AVS (Adaptive Variable Suspension System)
(If equipped)
Sport mode
Normal
mode
Comfort
mode
AVS controls the suspension according to the road and driving conditions\
.
Selecting an optimum driving mode allows good vehicle posture and steeri\
ng wheel
operation.
Sport mode: For winding mountain road driving or high speed driving.
Normal mode: For ordinary driving.
Comfort mode: For driving on a bumpy road.
Refer to the Owner’s Manual for limitations and more details on this \
system.
Vehicle Stability Control (VSC)/TRAC /Trailer
Sway Control OFF switch

32
FEATURES & OPERATIONS
Electronically modulated air suspension
(If equipped)
The electronically modulated air suspension allows the driver to control\
the
vehicle’s height in order to adjust for driving conditions.
Select the desired height with the height control switch.
“N” mode (normal mode): For ordinary driving.
“HI” mode (high mode): For driving on bumpy roads 1.2 in. (30 mm) higher than
the normal height.
“LO” mode (low mode): For the ease of egress/ingress and loading luggage. -1.2 in. (30 mm) lower than the normal height
Vehicle height can be adjusted only when the engine is running.
The selected height mode will be shown on the electronically modulated a\
ir
suspension display. The selected mode will flash while the height mode i\
s being
changed.
Refer to the Owner’s Manual for limitations and more details on this \
system.
HEIGHT CONTROL SWITCH
SELECTING VEHICLE HEIGHT
Height control switch
Higher
Lower
Height control mode
select switch

33
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the \
decision when
changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when bac\
king up)
The system is designed to use radar sensors to detect vehicles traveling\
in the
Sequoia’s blind spot. If a vehicle is detected, the driver will be al\
erted via the
outside rear view side mirror indicators.
Rear Cross Traffic Alert function:
While in reverse, when a vehicle approaching from the right or left rear\
of the
Sequoia is detected, the outside rear view mirror indicators will flash \
and a buzzer
will sound.
Blind Spot Monitor with Rear Cross Traffic
Alert (BSM w/RCTA)
Rear view mirror indicators
Indicators Multi-Information
Display
Buzzer (RCTA only)
(1)
Press “” switches and select “” from the Multi-Information Display (MID).
(2) Press “
” switches and select “BSM” or “RCTA” then press “.” The setting
screen is displayed.
(3) Press “
” switches and select the “On/Off” setting function and then pr\
ess
“
.”
(4) Press “
” to go back to the previous screen. Also, use “” to switch menu
or display the top screen.
Refer to the Owner’s Manual for limitations and more details on this \
system before
attempting to use it.
SYSTEM ON/OFF

34
FEATURES & OPERATIONS
Intuitive parking assist
The parking assist sonar system operates when the vehicle approaches an \
obstacle. The distance from your vehicle to nearby obstacles when parall\
el parking
or maneuvering into a garage is measured by sensors and communicated via\
the
Multi-Information Display (MID) and a buzzer.
When the sensor detects an obstacle, the direction and the approximate d\
istance
to the obstacle are displayed on the MID by illuminating continuously (\
far) or
blinking (near), and beeping sounds will switch from intermittent to c\
ontinuous as
you approach and get closer to a detected obstacle. When the sensors det\
ect two
or more obstacles, the audible alerts will respond to the nearest zone. \
Always check the surrounding area when using this system.
Refer to the Owner’s Manual for limitations and more details.
Front corner sensors
Rear
corner sensor Rear
corner sensor
Rear
center sensor
The rear view monitor system displays an image of the view from the bump\
er of
the rear area of the vehicle. The camera for the rear view monitor syste\
m is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “MENU”\
button and
select “Display.” Select “Camera” to adjust the screen contr\
ast and brightness.
Refer to the Owner’s Manual for limitations and more details on this \
system.
Rear view monitor system

35
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
TOYOTA SAFETY SENSE™
Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
TSS-P combines a forward-facing camera mounted in front of the inside re\
ar view
mirror and a grille-mounted radar mounted in the front grille. These sen\
sors support
the driver assist systems.
Forward-facing camera
Grille-mounted radar
Toyota Safety Sense™ P (TSS-P) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic si\
tuations, in
certain conditions. TSS-P is designed to help support the driver’s aw\
areness,
decision making and vehicle operation contributing to a safe driving exp\
erience.
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to http://www.toyota.com/safety-sense.
Lane Departure Alert (LDA)
LDA is designed to provide notification when the system detects an
unintended lane departure.
Automatic High Beams (AHB)
AHB is designed to detect the headlights of oncoming vehicles and the
tail lights of preceding vehicles and switch between high beams and
low beams as appropriate.
Pre-Collision System with Pedestrian Detection (PCS w/PD)
PCS w/PD is designed to provide alert, mitigation, and/or avoidance
support in certain conditions, when the system detects a potential
collision with a preceding vehicle is likely to occur.
The advanced grille-mounted radar system is designed to work with
the forward-facing camera to help recognize a preceding pedestrian,
and provide an alert, mitigation and/or avoidance support in certain
conditions.
Dynamic Radar Cruise Control (DRCC)
DRCC is designed to help maintain a pre-set distance to a preceding
vehicle when the preceding vehicle is traveling at a lower speed.

36
The Pre-Collision System with Pedestrian Detection (PCS w/PD) is desig\
ned to
help detect a vehicle or a pedestrian in certain situations. Using a com\
bination of
a camera and radar, PCS w/ PD can provide an audio/visual alert to warn \
you of
a possible collision under certain circumstances. If you don’t react,\
the system is
designed to automatically brake.
As there is a limit to the degree of recognition accuracy and control pe\
rformance
that this system can provide, do not overly rely on this system. This sy\
stem will not
prevent collisions or lessen collision damage or injury in every situati\
on. Do not use
PCS instead of normal braking operations under any circumstances. Do not\
attempt
to test the operation of the pre-collision system yourself, as the syste\
m may not
operate or engage, possibly leading to an accident. In some situations, \
such as
when driving in inclement weather such as heavy rain, fog, snow or a san\
dstorm or
while driving on a curve and for a few seconds after driving on a curve,\
a vehicle or
pedestrian may not be detected by the radar and camera sensors, preventi\
ng the
system from operating or engaging properly.
See toyota.com/safety-sense for more information.
Refer to the Toyota Owner’s Manual for a list of additional situation\
s in which the
system operation may be limited.
Pre-Collision Warning
When the system determines that the possibility of a frontal collision i\
s high, a
buzzer will sound and a warning message will be displayed on the Multi-I\
nformation
Display (MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide addi\
tional
braking force using Brake Assist. This system may prime the brakes and m\
ay apply
greater braking force in relation to how strongly the brake pedal is dep\
ressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines tha\
t the
possibility of a frontal collision with a preceding vehicle is extremely\
high, the
system may automatically apply the brakes, reducing speed in order to he\
lp the
driver reduce the impact and in certain cases avoid the collision.
Pre-Collision System with Pedestrian
Detection (PCS w/PD)
TOYOTA SAFETY SENSE
™

37
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

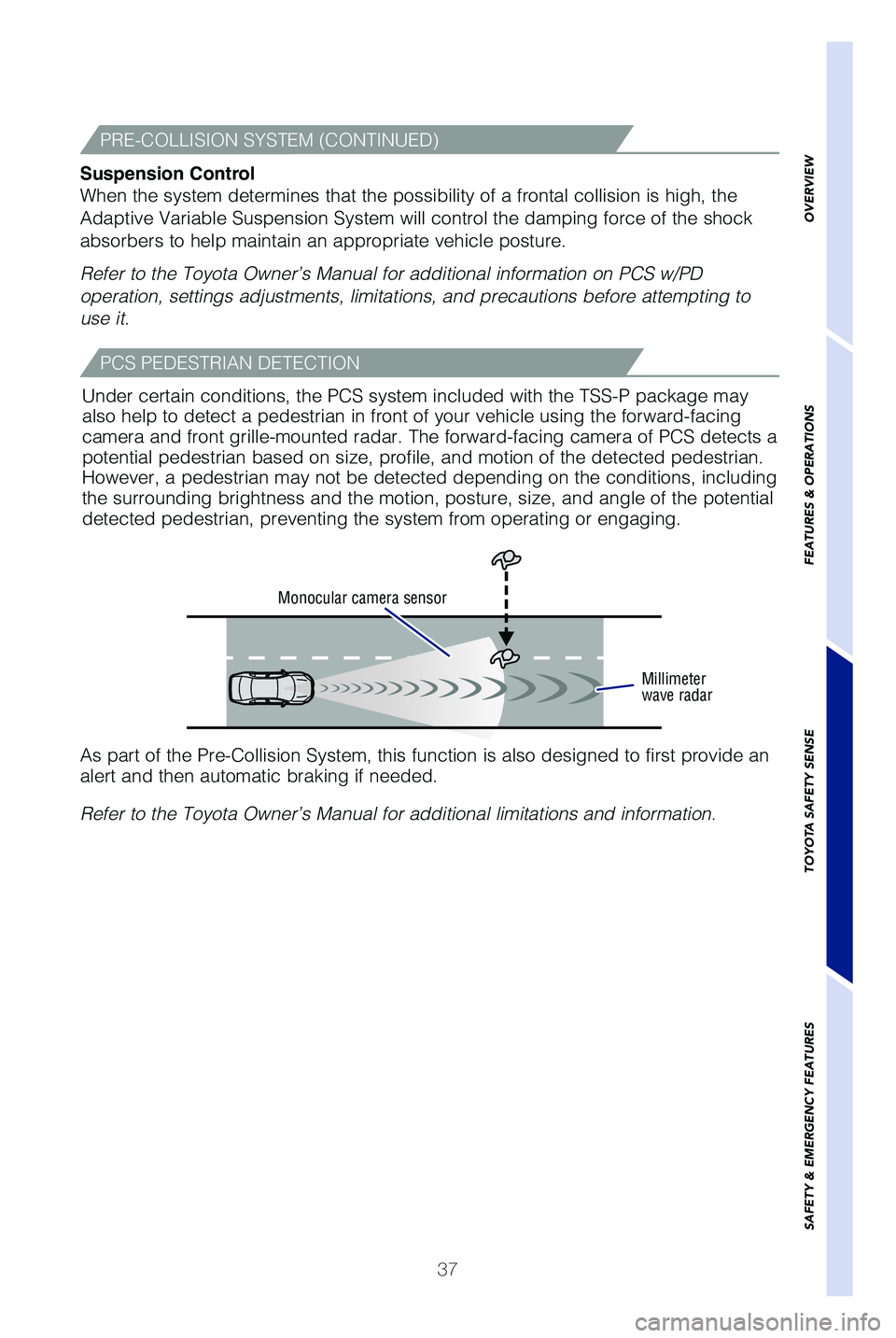

Suspension Control
When the system determines that the possibility of a frontal collision i\
s high, the
Adaptive Variable Suspension System will control the damping force of th\
e shock
absorbers to help maintain an appropriate vehicle posture.
Refer to the Toyota Owner’s Manual for additional information on PCS \
w/PD
operation, settings adjustments, limitations, and precautions before att\
empting to
use it.
PRE-COLLISION SYSTEM (CONTINUED)
Monocular camera sensor
Millimeter
wave radar
As part of the Pre-Collision System, this function is also designed to f\
irst provide an
alert and then automatic braking if needed.
Refer to the Toyota Owner’s Manual for additional limitations and inf\
ormation.Under certain conditions, the PCS system included with the TSS-P package\
may
also help to detect a pedestrian in front of your vehicle using the forw\
ard-facing
camera and front grille-mounted radar. The forward-facing camera of PCS \
detects a
potential pedestrian based on size, profile, and motion of the detected \
pedestrian.
However, a pedestrian may not be detected depending on the conditions, i\
ncluding
the surrounding brightness and the motion, posture, size, and angle of t\
he potential
detected pedestrian, preventing the system from operating or engaging.
PCS PEDESTRIAN DETECTION

38
TOYOTA SAFETY SENSE™
CHANGING PCS ALERT TIMING
Far
Middle
(default)
Near
(1) Press “” switches and select “” from the Multi-Information Display (MID).
(2) Press “
” switches and select “Meter Settings” and then press “.”
(3) Press “
” switches and select “PCS” and then press “.” The setting screen
is displayed.
(4) Then select “Sensitivity” and press “
” to select the desired setting. Each time
it is pressed, the response to the PCS warning timing changes as shown a\
bove.
(5) Press “
” to go back to the previous screen. Also, use “” to switch menu
or display the top screen.
Note: PCS is enabled each time the vehicle is turned on. The system can be
disabled/enabled and the alert timing of the system can be changed. (Alert
timing only, brake operation remains the same.)
DISABLING PRE-COLLISION SYSTEM (PCS)
(1) Press “” switches and select “” from the Multi-Information Display (MID).
(2) Press “
” switches and select “Meter Settings” and then press “.”
(3) Press “
” switches and select “PCS” and then press “.” The setting screen
is displayed.
(4) Then select “PCS” and press “
” to select the desired setting (on/off).
(5) Press “
” to go back to the previous screen. Also, use “” to switch menu
or display the top screen.
Note: The system is enabled each time the vehicle is turned on.
Refer to the Toyota Owner’s Manual for additional information on PCS \
operation,
settings adjustments, limitations, and precautions before attempting to \
use it.
