2
OVERVIEWInstrument panel
Meter control switches
Steering wheel controls
Windshield wiper and
washer control
Voice command switch
2
Tire pressure monitor (warning)
system (TPMS) reset switch
POWER button
Outside rear view
mirror controls Audio control
switches
2
Telephone switches2
Dynamic Radar
Cruise Control
(DRCC) or cruise
control switch
DRCC vehicle-to-vehicle
distance switch

and
Lane Departure Alert
(LDA) switch
Power tilt and telescopic
steering control switch
1
Parking brake
Hood lock release lever
Personal/interior
light main switch
Power back door button
1
Automatic High Beams (AHB) switch Tilt and telescopic
steering lock release lever
1
(below the steering wheel)
Headlights/turn signals/
fog light control
Meters and
Multi-Information Display
(MID)

20

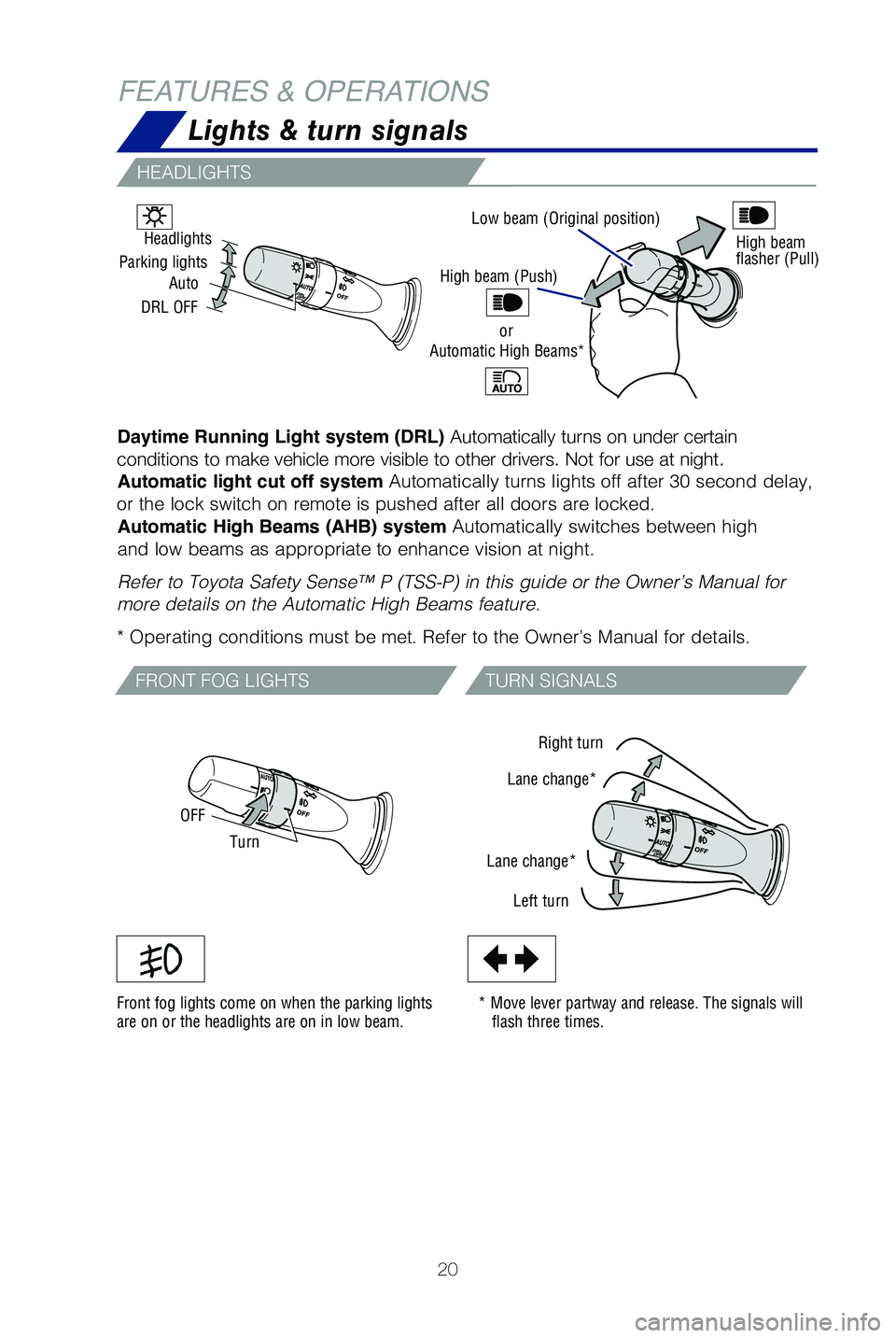

FEATURES & OPERATIONS
Low beam (Original position)
Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at night. Automatic light cut off system Automatically turns lights off after 30 second delay,
or the lock switch on remote is pushed after all doors are locked. Automatic High Beams (AHB) system Automatically switches between high
and low beams as appropriate to enhance vision at night.
Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the Owner’\
s Manual for
more details on the Automatic High Beams feature.
* Operating conditions must be met. Refer to the Owner’s Manual for d\
etails.
Front fog lights come on when the parking lights
are on or the headlights are on in low beam. * Move lever partway and release. The signals will
flash three times. Right turn
Lane change*
Lane change* Left turn High beam
flasher (Pull)
Turn
OFF
Auto
Headlights
Parking lights
DRL OFF
HEADLIGHTS
FRONT FOG LIGHTS TURN SIGNALS
High beam (Push)
orAutomatic High Beams*
Lights & turn signals

35
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

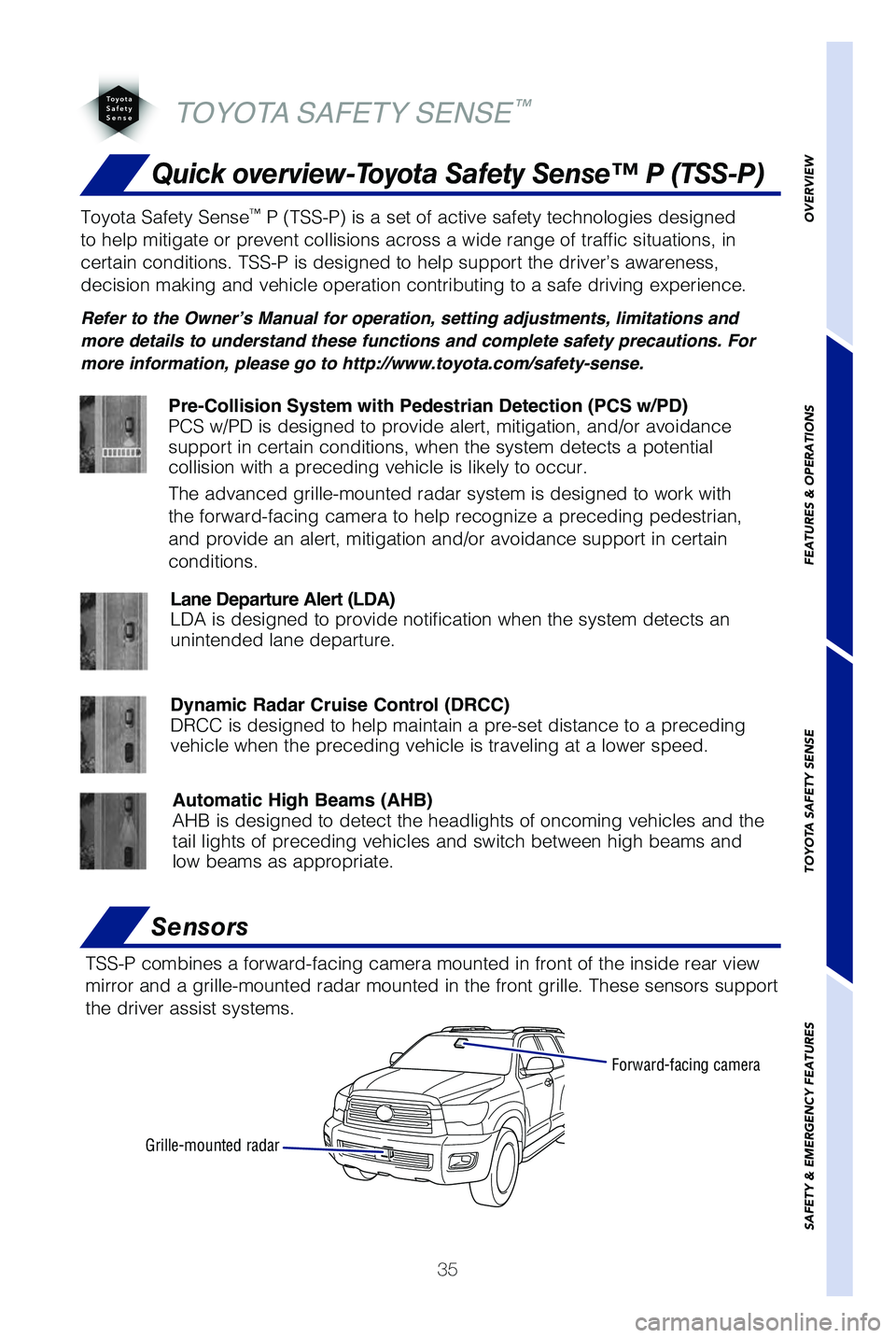

TOYOTA SAFETY SENSE™
Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
TSS-P combines a forward-facing camera mounted in front of the inside re\
ar view
mirror and a grille-mounted radar mounted in the front grille. These sen\
sors support
the driver assist systems.
Forward-facing camera
Grille-mounted radar
Toyota Safety Sense™ P (TSS-P) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic si\
tuations, in
certain conditions. TSS-P is designed to help support the driver’s aw\
areness,
decision making and vehicle operation contributing to a safe driving exp\
erience.
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to http://www.toyota.com/safety-sense.
Lane Departure Alert (LDA)
LDA is designed to provide notification when the system detects an
unintended lane departure.
Automatic High Beams (AHB)
AHB is designed to detect the headlights of oncoming vehicles and the
tail lights of preceding vehicles and switch between high beams and
low beams as appropriate.
Pre-Collision System with Pedestrian Detection (PCS w/PD)
PCS w/PD is designed to provide alert, mitigation, and/or avoidance
support in certain conditions, when the system detects a potential
collision with a preceding vehicle is likely to occur.
The advanced grille-mounted radar system is designed to work with
the forward-facing camera to help recognize a preceding pedestrian,
and provide an alert, mitigation and/or avoidance support in certain
conditions.
Dynamic Radar Cruise Control (DRCC)
DRCC is designed to help maintain a pre-set distance to a preceding
vehicle when the preceding vehicle is traveling at a lower speed.

46

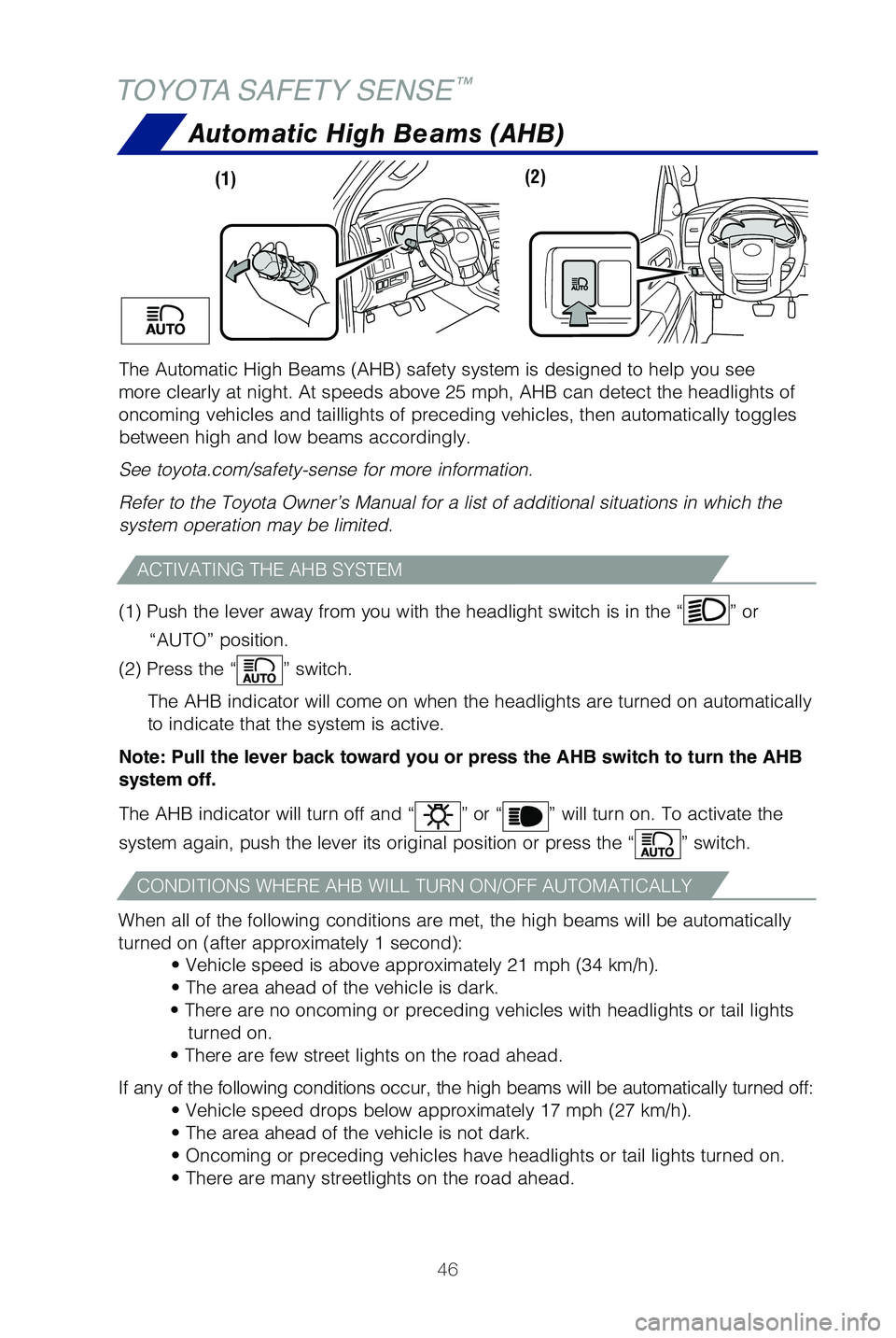

TOYOTA SAFETY SENSE™
The Automatic High Beams (AHB) safety system is designed to help you s\
ee
more clearly at night. At speeds above 25 mph, AHB can detect the headli\
ghts of
oncoming vehicles and taillights of preceding vehicles, then automatical\
ly toggles
between high and low beams accordingly.
See toyota.com/safety-sense for more information.
Refer to the Toyota Owner’s Manual for a list of additional situation\
s in which the
system operation may be limited.
Automatic High Beams (AHB)
(1) Push the lever away from you with the headlight switch is in the “\
” or
“AUTO” position.
(2) Press the “
” switch.
The AHB indicator will come on when the headlights are turned on automat\
ically
to indicate that the system is active.
Note: Pull the lever back toward you or press the AHB switch to turn the AHB
system off.
The AHB indicator will turn off and “
” or “” will turn on. To activate the
system again, push the lever its original position or press the “
” switch.
When all of the following conditions are met, the high beams will be aut\
omatically
turned on (after approximately 1 second): • Vehicle speed is above approximately 21 mph (34 km/h).
• The area ahead of the vehicle is dark.
• There are no oncoming or preceding vehicles with headlights or tail\
lights turned on.
• There are few street lights on the road ahead.
If any of the following conditions occur, the high beams will be automat\
ically turned off: • Vehicle speed drops below approximately 17 mph (27 km/h).
• The area ahead of the vehicle is not dark.
• Oncoming or preceding vehicles have headlights or tail lights turne\
d on.
• There are many streetlights on the road ahead.
ACTIVATING THE AHB SYSTEM
CONDITIONS WHERE AHB WILL TURN ON/OFF AUTOMATICALLY
(1) (2)
