1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.

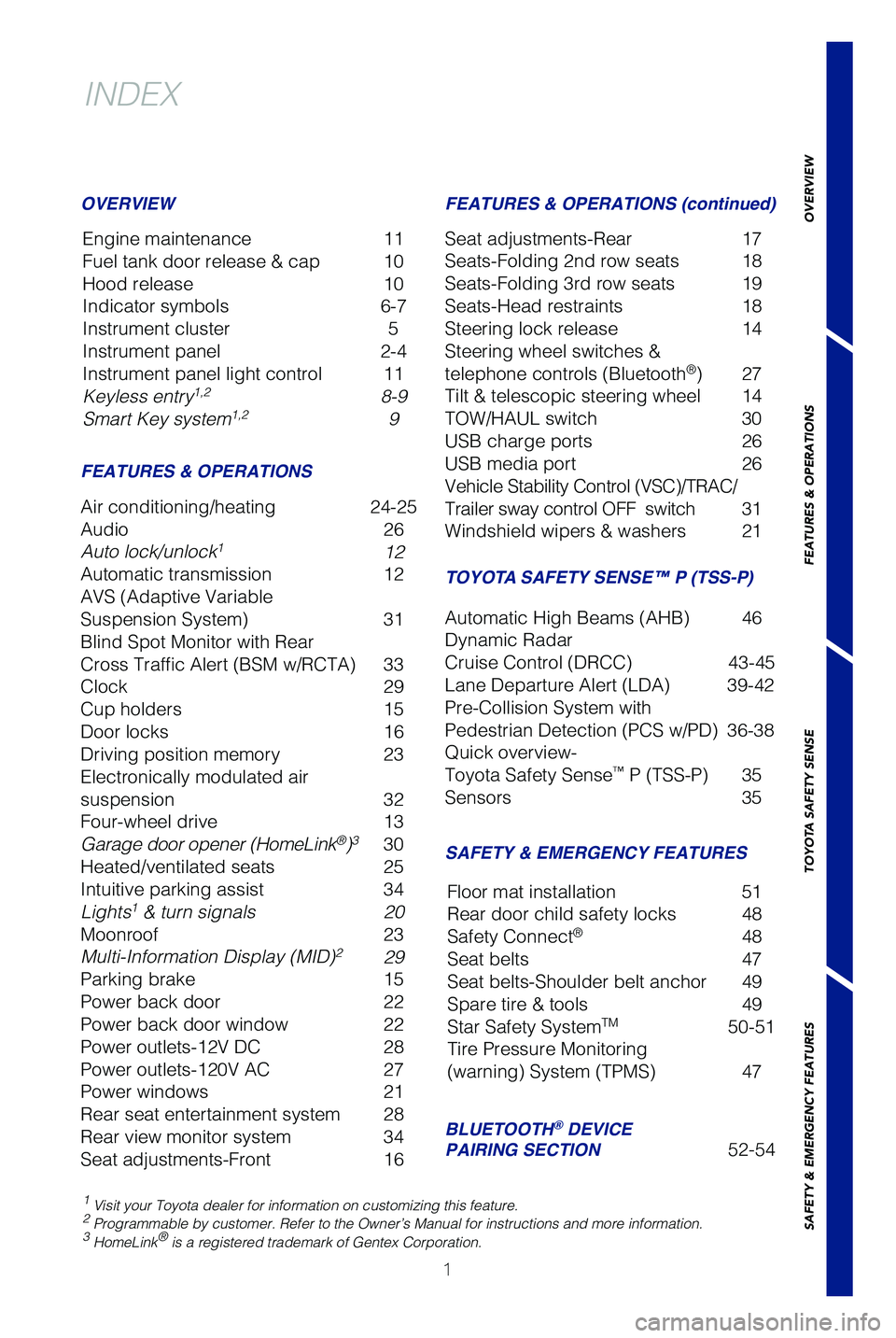

INDEX
Engine maintenance 11
Fuel tank door release & cap 10
Hood release 10
Indicator symbols 6-7
Instrument cluster 5
Instrument panel 2-4
Instrument panel light control 11
Keyless entry
1,2 8-9
Smart Key system1,2 9
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 24-25
Audio 26
Auto lock/unlock
1 12
Automatic transmission 12
AVS (Adaptive Variable
Suspension System) 31
Blind Spot Monitor with Rear
Cross Traffic Alert (BSM w/RCTA) 33
Clock 29
Cup holders 15
Door locks 16
Driving position memory 23
Electronically modulated air
suspension 32
Four-wheel drive 13
Garage door opener (HomeLink
®)3 30
Heated/ventilated seats 25
Intuitive parking assist 34
Lights
1 & turn signals 20
Moonroof 23
Multi-Information Display (MID)
2 29
Parking brake 15
Power back door 22
Power back door window 22
Power outlets-12V DC 28
Power outlets-120V AC 27
Power windows 21
Rear seat entertainment system 28
Rear view monitor system 34
Seat adjustments-Front 16
SAFETY & EMERGENCY FEATURES FEATURES & OPERATIONS (continued)
Seat adjustments-Rear 17
Seats-Folding 2nd row seats 18
Seats-Folding 3rd row seats 19
Seats-Head restraints 18
Steering lock release 14
Steering wheel switches &
telephone controls (Bluetooth
®) 27
Tilt & telescopic steering wheel 14
TOW/HAUL switch 30
USB charge ports 26
USB media port 26
Vehicle Stability Control (VSC)/TRAC/
Trailer sway control OFF switch 31
Windshield wipers & washers 21
BLUETOOTH® DEVICE
PAIRING SECTION 52-54
Floor mat installation
51
Rear door child safety locks 48
Safety Connect
® 48
Seat belts 47
Seat belts-Shoulder belt anchor 49
Spare tire & tools 49
Star Safety System
TM 50-51
Tire Pressure Monitoring
(warning) System (TPMS) 47
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 46
Dynamic Radar
Cruise Control (DRCC) 43-45
Lane Departure Alert (LDA) 39-42
Pre-Collision System with
Pedestrian Detection (PCS w/PD) 36-38
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 35
Sensors 35
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

34
FEATURES & OPERATIONS
Intuitive parking assist
The parking assist sonar system operates when the vehicle approaches an \
obstacle. The distance from your vehicle to nearby obstacles when parall\
el parking
or maneuvering into a garage is measured by sensors and communicated via\
the
Multi-Information Display (MID) and a buzzer.
When the sensor detects an obstacle, the direction and the approximate d\
istance
to the obstacle are displayed on the MID by illuminating continuously (\
far) or
blinking (near), and beeping sounds will switch from intermittent to c\
ontinuous as
you approach and get closer to a detected obstacle. When the sensors det\
ect two
or more obstacles, the audible alerts will respond to the nearest zone. \
Always check the surrounding area when using this system.
Refer to the Owner’s Manual for limitations and more details.
Front corner sensors
Rear
corner sensor Rear
corner sensor
Rear
center sensor
The rear view monitor system displays an image of the view from the bump\
er of
the rear area of the vehicle. The camera for the rear view monitor syste\
m is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “MENU”\
button and
select “Display.” Select “Camera” to adjust the screen contr\
ast and brightness.
Refer to the Owner’s Manual for limitations and more details on this \
system.
Rear view monitor system
