tow TOYOTA SEQUOIA 2021 Owners Manual (in English)

1
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
INDEX
Engine maintenance 11
Fuel tank door release & cap 10
Hood release 10
Indicator symbols 6-7
Instrument cluster 5
Instrument panel 2-4
Instrument panel light control 11
Keyless entry
1,2 8-9
Smart Key system1,2 9
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 24-25
Audio 26
Auto lock/unlock
1 12
Automatic transmission 12
AVS (Adaptive Variable
Suspension System) 31
Blind Spot Monitor with Rear
Cross Traffic Alert (BSM w/RCTA) 33
Clock 29
Cup holders 15
Door locks 16
Driving position memory 23
Electronically modulated air
suspension 32
Four-wheel drive 13
Garage door opener (HomeLink
®)3 30
Heated/ventilated seats 25
Intuitive parking assist 34
Lights
1 & turn signals 20
Moonroof 23
Multi-Information Display (MID)
2 29
Parking brake 15
Power back door 22
Power back door window 22
Power outlets-12V DC 28
Power outlets-120V AC 27
Power windows 21
Rear seat entertainment system 28
Rear view monitor system 34
Seat adjustments-Front 16
SAFETY & EMERGENCY FEATURES FEATURES & OPERATIONS (continued)
Seat adjustments-Rear 17
Seats-Folding 2nd row seats 18
Seats-Folding 3rd row seats 19
Seats-Head restraints 18
Steering lock release 14
Steering wheel switches &
telephone controls (Bluetooth
®) 27
Tilt & telescopic steering wheel 14
TOW/HAUL switch 30
USB charge ports 26
USB media port 26
Vehicle Stability Control (VSC)/TRAC/
Trailer sway control OFF switch 31
Windshield wipers & washers 21
BLUETOOTH® DEVICE
PAIRING SECTION 52-54
Floor mat installation
51
Rear door child safety locks 48
Safety Connect
® 48
Seat belts 47
Seat belts-Shoulder belt anchor 49
Spare tire & tools 49
Star Safety System
TM 50-51
Tire Pressure Monitoring
(warning) System (TPMS) 47
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 46
Dynamic Radar
Cruise Control (DRCC) 43-45
Lane Departure Alert (LDA) 39-42
Pre-Collision System with
Pedestrian Detection (PCS w/PD) 36-38
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 35
Sensors 35
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

4
CENTER PANEL AREA
OVERVIEW
1If equipped2For details, refer to the “Navigation and Multimedia System Owner’\
s Manual” or visit www.toyota.com/
audio-multimedia for additional resources.
Instrument panel (continued)
Air conditioning/
heating controls
Height control switches
1
AVS (Adaptive Variable
Suspension) System1
Four-wheel drive
control switch (4WD)1Audio/navigation
system2TOW/HAUL button
Center differential
lock switch1 (4WD)Emergency flasher
button
USB port
2
USB charging portsPower outlet-12V DC
TOW/HAUL button
Center differential
lock switch1 (4WD)

7
Parking brake indicator
Pre-Collision System (PCS)
warning
1
Power steering warning1
Malfunction/
Check Engine indicator1
Master warning1,2
Slip indicator1,3
Turn signal indicator
Security indicator
TOW/HAUL indicatorTRAC OFF (Traction Control OFF)
indicator
1
Low fuel level warning Lane Departure Alert (LDA) indicator
[green/yellow
3 indicator]
Vehicle Stability Control
(VSC) OFF indicator
1
Low outside temperature indicator
Low tire pressure warning
1
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1
If the indicator does not turn off within a few seconds of starting the \
engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.

14
FEATURES & OPERATIONS
MANUAL
POWER
Hold wheel, push lever down, set angle and length and return lever.
Lock release leverAngle
Toggle the control switch to set angle and length.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Power easy access system (if equipped): The steering wheel moves in
accordance with power switch mode and the driver’s seat belt conditio\
n.
UpControl switch
Away from
the driver
Length
Toward
the driver
Down Angle
Length
Tilt & telescopic steering wheel
Steering lock release
A message will be displayed on the Multi-Information Display.
Check that the shift lever is in P. Press the power button while turning\
the steering
wheel left and right.
Turn

18
FEATURES & OPERATIONSSeats-Head restraints
Front and second row Third row (center)
Lock release buttonLock release button
Third row (outside)
Seats-Folding 2nd row seats
Lower the head restraints. Stow the seat belt buckles.
(1)
(3)
(2)
(4)
Pull Pull
Separated seat
Bench seat
Fold down the seatback. Fold down the seatback.
Fold out the board (if equipped) from the seatback.

19
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Seats-Folding 3rd row seats
Release the center seat belt tab. Stow the center seat belt tab.
Stow the seat belt buckles.
Fold the head restraint.
Fold the seats.
(1)
(6)
(3)
(2)
(4)
Power seat
Pull
Insert
Insert
From back door side
From rear door side
Power seat
Manual seatManual seat
(5)
Lower the head restraint.

30

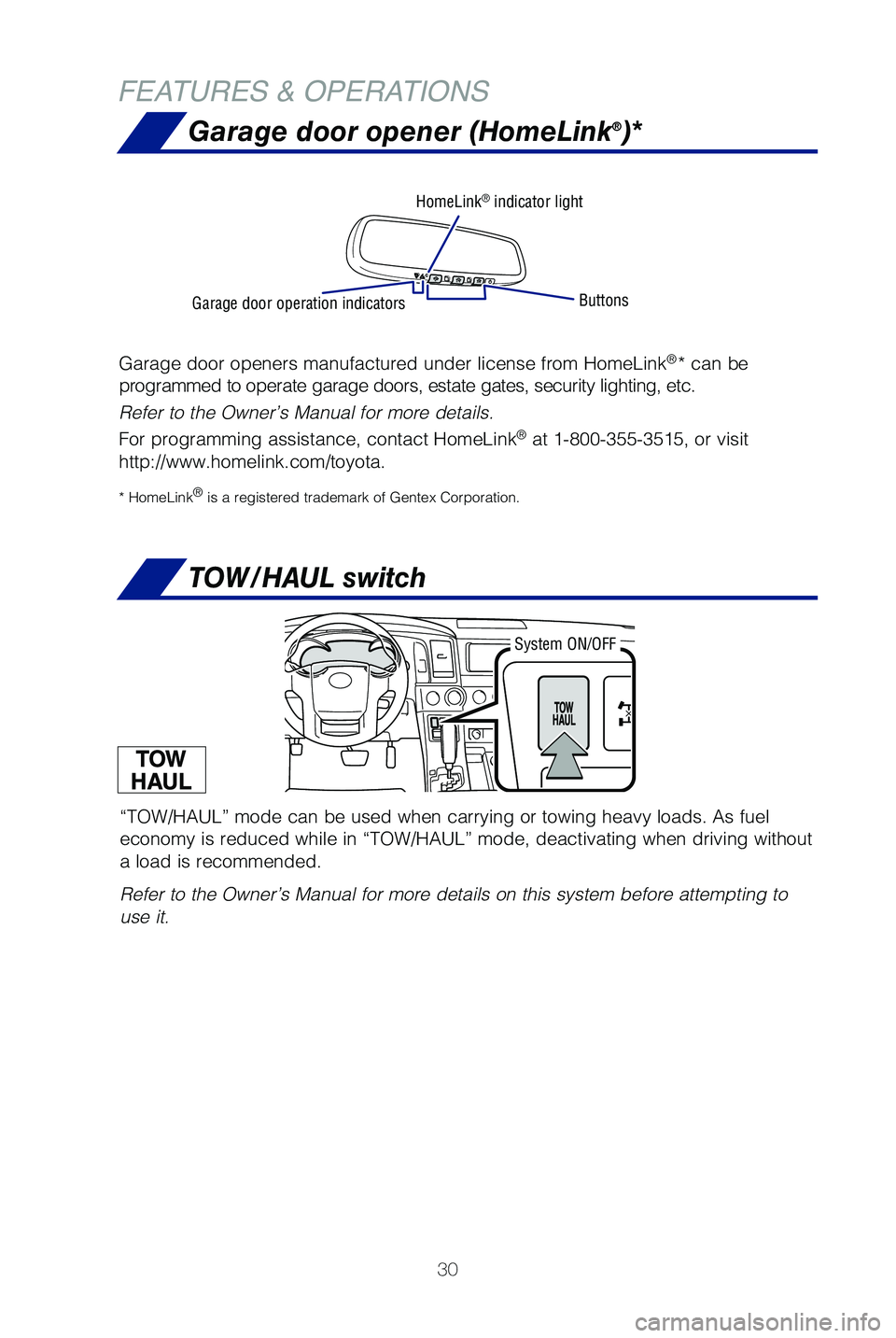

Garage door opener (HomeLink®)*
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com/toyota.
* HomeLink® is a registered trademark of Gentex Corporation.
Buttons
HomeLink® indicator light
Garage door operation indicators
FEATURES & OPERATIONS
TOW/HAUL switch
“TOW/HAUL” mode can be used when carrying or towing heavy loads. As fuel
economy is reduced while in “TOW/HAUL” mode, deactivating when driving without
a load is recommended.
Refer to the Owner’s Manual for more details on this system before at\
tempting to
use it.
System ON/OFF

46
TOYOTA SAFETY SENSE™
The Automatic High Beams (AHB) safety system is designed to help you s\
ee
more clearly at night. At speeds above 25 mph, AHB can detect the headli\
ghts of
oncoming vehicles and taillights of preceding vehicles, then automatical\
ly toggles
between high and low beams accordingly.
See toyota.com/safety-sense for more information.
Refer to the Toyota Owner’s Manual for a list of additional situation\
s in which the
system operation may be limited.
Automatic High Beams (AHB)
(1) Push the lever away from you with the headlight switch is in the “\
” or
“AUTO” position.
(2) Press the “
” switch.
The AHB indicator will come on when the headlights are turned on automat\
ically
to indicate that the system is active.
Note: Pull the lever back toward you or press the AHB switch to turn the AHB
system off.
The AHB indicator will turn off and “
” or “” will turn on. To activate the
system again, push the lever its original position or press the “
” switch.
When all of the following conditions are met, the high beams will be aut\
omatically
turned on (after approximately 1 second): • Vehicle speed is above approximately 21 mph (34 km/h).
• The area ahead of the vehicle is dark.
• There are no oncoming or preceding vehicles with headlights or tail\
lights turned on.
• There are few street lights on the road ahead.
If any of the following conditions occur, the high beams will be automat\
ically turned off: • Vehicle speed drops below approximately 17 mph (27 km/h).
• The area ahead of the vehicle is not dark.
• Oncoming or preceding vehicles have headlights or tail lights turne\
d on.
• There are many streetlights on the road ahead.
ACTIVATING THE AHB SYSTEM
CONDITIONS WHERE AHB WILL TURN ON/OFF AUTOMATICALLY
(1) (2)
