SEQUOIA_OM_USA_OM0C035U6-1. Maintenance and care
Cleaning and protecting the vehicle exterior .......... 398
Cleaning and protecting the vehicle interior ........... 402
6-2. Maintenance Maintenance requirements ................... 405
General maintenance ........ 407
Emission inspection and maintenance (I/M)
programs ......................... 410
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions ..................... 411
Hood.................................. 414
Engine compartment ......... 415
Tires .................................. 426
Tire inflation pressure........ 438
Wheels .............................. 441
Air conditioning filter .......... 444
Electronic key battery ........ 446
Checking and replacing fuses ............................... 448
Light bulbs ......................... 451 7-1. Essential information
Emergency flashers ........... 460
If your vehicle has to be stopped in an
emergency....................... 461
If the vehicle is trapped in rising water .................. 463
7-2. Steps to take in an emergency
If your vehicle needs to be towed .......................... 464
If you think something is wrong............................... 468
Fuel pump shut off system ............................. 469
If a warning light turns on or a warning buzzer
sounds ............................. 470
If a warning message is displayed ......................... 479
If you have a flat tire .......... 491
If the engine will not start ................................. 505
If the electronic key does not operate properly ........ 507
If the vehicle battery is discharged ....................... 509
If your vehicle overheats.... 513
If the vehicle becomes stuck ................................ 516
6Maintenance and care7When trouble arises

3795-4. Other interior features
5
Interior features
SEQUOIA_OM_USA_OM0C035U
■The power outlets can be used when
12 V DC
The engine switch is in ACC or ON.
120 V AC
The engine switch is in ON.
■ When turning the engine switch off
Disconnect electrical devices with charging functions, such as mobile battery
packs.
If such devices are left connected, the engine switch may not b e turned off
normally.
NOTICE
● To avoid damaging the power outlets, close the power outlet lid when the
power outlet is not in use.
Foreign objects or liquids that enter the power outlet may caus e a short
circuit.
● To prevent blown fuse:
12 V DC
Do not use an accessory that uses more than 12 V 10 A.
120 V AC
Do not use a 120 V AC appliance that requires more than 100 W.
If a 120 V AC appliance that consumes more than 100 W is used, the pro-
tection circuit will cut the power supply.
● To prevent battery discharge, do not use the power outlet longe r than nec-
essary when the engine is not running.
● The following 120 V AC appliances may not operate properly even if their
power consumption is under 100 W:
• Appliances with high initial peak wattage
• Measuring devices that process precise data
• Other appliances that require an extremely stable power supply

397
Maintenance and care6
SEQUOIA_OM_USA_OM0C035U6-1. Maintenance and care
Cleaning and protecting the vehicle exterior .......... 398
Cleaning and protecting the vehicle interior ........... 402
6-2. Maintenance Maintenance requirements ................... 405
General maintenance........ 407
Emission inspection and maintenance (I/M)
programs......................... 410
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions ..................... 411
Hood ................................. 414
Engine compartment ......... 415
Tires .................................. 426
Tire inflation pressure ....... 438
Wheels .............................. 441
Air conditioning filter.......... 444
Electronic key battery........ 446
Checking and replacing fuses ............................... 448
Light bulbs......................... 451

4126-3. Do-it-yourself maintenance
SEQUOIA_OM_USA_OM0C035U

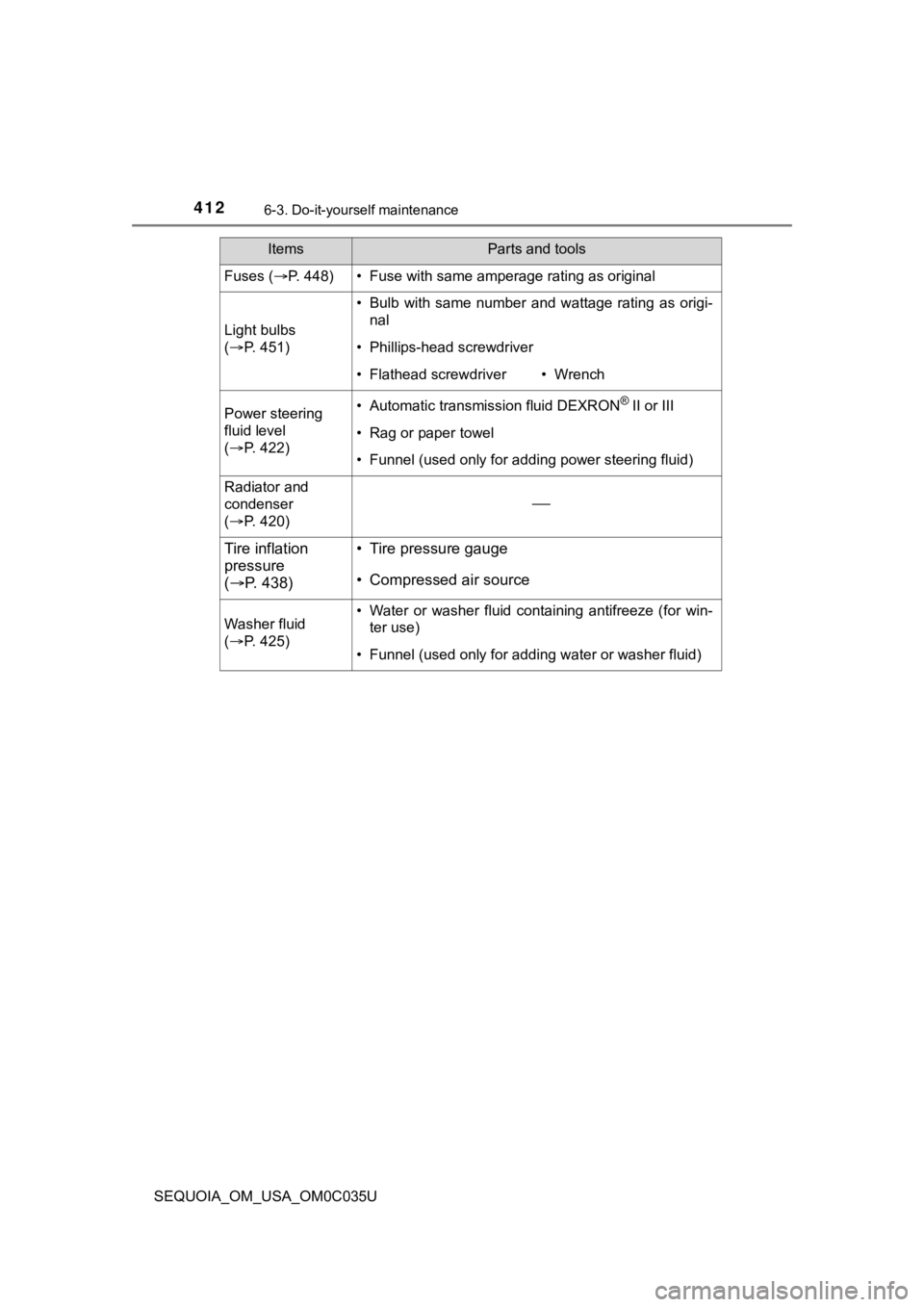

ItemsParts and tools
Fuses (P. 448)• Fuse with same amperage rating as original
Light bulbs
( P. 4 5 1 )
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver• Wrench
Power steering
fluid level
( P. 4 2 2 )• Automatic transmission fluid DEXRON® II or III
• Rag or paper towel
• Funnel (used only for adding power steering fluid)
Radiator and
condenser
( P. 4 2 0 )

Tire inflation
pressure
( P. 438)• Tire pressure gauge
• Compressed air source
Washer fluid
( P. 4 2 5 )• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)

4156-3. Do-it-yourself maintenance
6
Maintenance and care
SEQUOIA_OM_USA_OM0C035U
Engine compartment
Washer fluid tank (P. 425)
Engine oil level dipstick ( P. 416)
Engine coolant reservoir ( P. 419)
Engine oil filler cap ( P. 417)
Brake fluid reservoir ( P. 421) Fuse box (
P. 448)
Battery ( P. 423)
Radiator ( P. 420)
Cooling fans
Condenser ( P. 420)
Power steering fluid reservoir ( P. 422)

4486-3. Do-it-yourself maintenance
SEQUOIA_OM_USA_OM0C035U
Checking and replacing fuses
Turn the engine switch to OFF.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Under the instrument panel
Remove the lid.
Remove the fuse with the pull-
out tool.
Only type A fuse can be removed
using the pullout tool.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, che ck and replace the fuses as nec-
essary.
1
2
3

4496-3. Do-it-yourself maintenance
6
Maintenance and care
SEQUOIA_OM_USA_OM0C035U
Check if the fuse is blown.Normal fuse
Blown fuse
Type A, B:
Replace the blown fuse with a new fuse of an appropriate ampera ge rat-
ing. The amperage rating can be found on the fuse box lid.
Type C:
Contact your Toyota dealer.
4
Ty p e AType B
Ty p e C

4506-3. Do-it-yourself maintenance
SEQUOIA_OM_USA_OM0C035U
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been repla ced, a bulb may
need replacement. ( P. 451)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness f rom damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicate d, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired b y your
Toyota dealer as soon as possible.

5057-2. Steps to take in an emergency
SEQUOIA_OM_USA_OM0C035U
7
When trouble arises
If the engine will not star t
One of the following may be the cause of the problem:
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine again following correct starting proc edures.
(  P. 214)
● There may be a malf unction in the engine immobilizer system.
(  P. 76)
One of the following may be the cause of the problem:
● The battery may be discharged. ( P. 509)
● The battery terminal connecti ons may be loose or corroded.
The engine starting system may be malfunctioning due to an elec trical
problem such as an open circuit or a blown fuse. However, an in terim
measure is available to start the engine. ( P. 506)
If the engine will not start eve n though correct starting proce -
dures are being followed ( P. 214), consider each of the follow-
ing points:
The engine will not start even t hough the starter motor operates
normally.
The starter motor turns over slowly, the interior lights and he ad-
lights are dim, or the horn does not sound or sounds at a low
volume.
The starter motor d oes not turn over

5578-3. Items to initialize
8
Vehicle specifications
SEQUOIA_OM_USA_OM0C035U

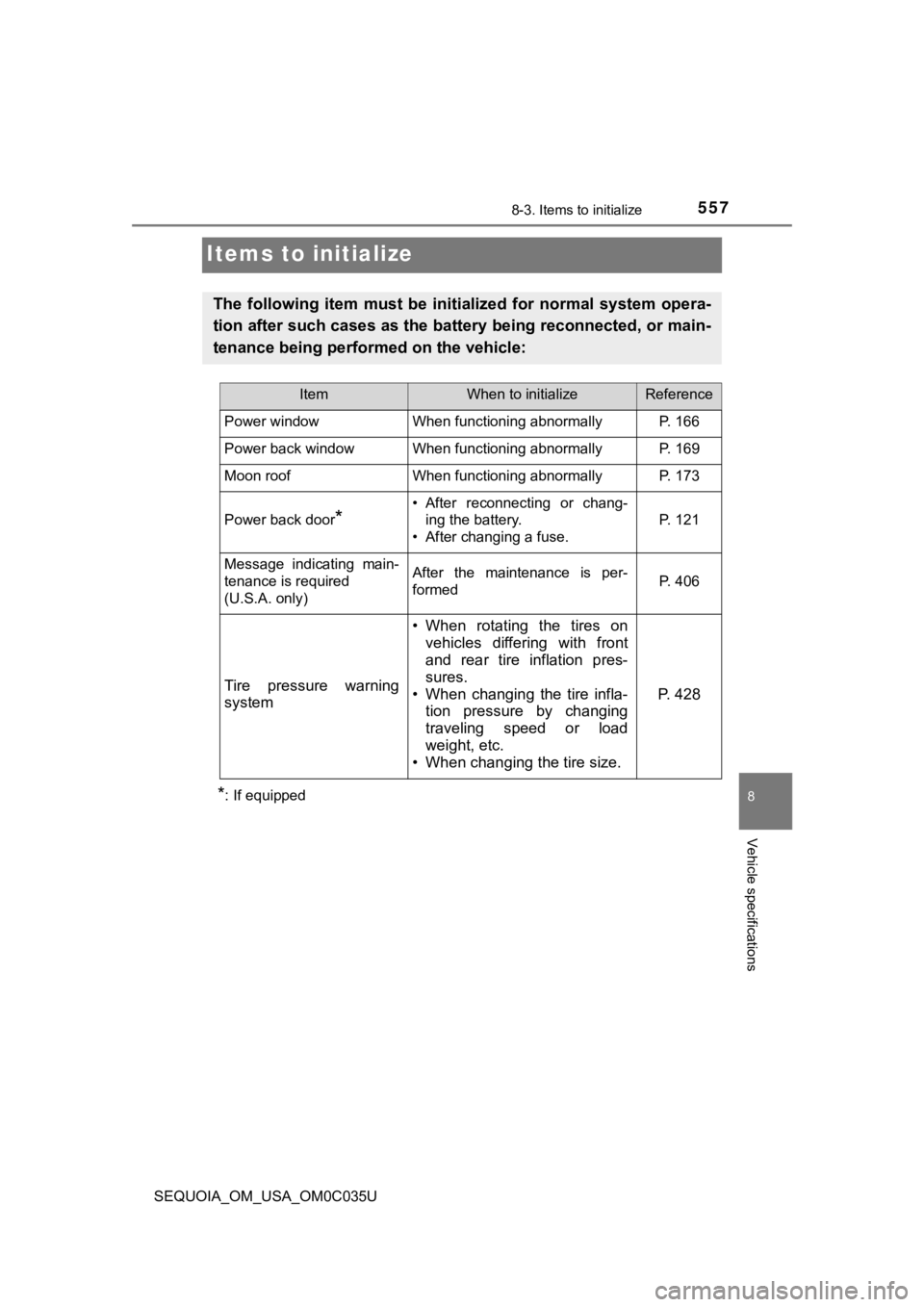

Items to initialize
*: If equipped
The following item must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main -
tenance being performed on the vehicle:
ItemWhen to initializeReference
Power windowWhen functioning abnormallyP. 1 6 6
Power back windowWhen functioning abnormallyP. 1 6 9
Moon roofWhen functioning abnormallyP. 1 7 3
Power back door*
• After reconnecting or chang- ing the battery.
• After changing a fuse.
P. 1 2 1
Message indicating main-
tenance is required
(U.S.A. only)After the maintenance is per-
formedP. 4 0 6
Tire pressure warning
system
• When rotating the tires on vehicles differing with front
and rear tire inflation pres-
sures.
• When changing the tire infla- tion pressure by changing
traveling speed or load
weight, etc.
• When changing the tire size.
P. 4 2 8
