781-2. Emergency assistance
SEQUOIA_OM_USA_OM0C047U
■Safety Connect Services Information
●Phone calls using the vehicle’s Bluetooth® technology will not be possible
when Safety Connect is active and in use.
● Safety Connect is available beginning Fall 2009 on select Toyot a models (in
the contiguous United States only). Contact with the Safety Con nect
response center is dependent upon the telematics device being i n operative
condition, cellular connection availability, and GPS satellite signal reception,
which can limit the ability to reach the response center or rec eive emer-
gency service support. Enrollment and Telematics Subscription S ervice
Agreement are required. A variety of subscription terms are ava ilable;
charges vary by subscription term selected and location.
● Automatic Collision Notification, Emergency Assistance and Stolen Vehicle
Location are available in the United States, including Hawaii a nd Alaska,
Puerto Rico and Canada, and Enhanced Roadside Assistance are av ailable
in the United States, Puerto Rico and Canada.
● Automatic Collision Notification, Emergency Assistance, Stolen Vehicle and
Enhanced Road Assistance are not available in the U.S. Virgin Islands. For
vehicles first sold in the U.S. Virgin Islands, no Safety Conne ct services will
function in or outside the U.S. Virgin Islands.
● Safety Connect services are not subject to section 255 of the T elecommuni-
cations Act and the device is not TTY compatible.
■ Languages
The Safety Connect response center will offer support in multip le languages.
The Safety Connect system will offer voice prompts in English, Spanish, and
French. Please indicate your language of choice when enrolling.
■ When contacting the response center
You may be unable to contact the response center if the network is busy.
When the engine switch is turned to ON, the red indicator light comes
on for 2 seconds then turns off. Afterward, the green indicator light
comes on, indicating that the service is active.
The following indicator light patterns indicate specific system usage
conditions:
● Green indicator light on = Active service
● Green indicator light flashing = Safety Connect call in process
● Red indicator light (except at vehicle start-up) = System malfunction
(contact your Toyota dealer)
● No indicator light (off) = Saf ety Connect service not active
Safety Connect LED light Indicators

821-3. Theft deterrent system
SEQUOIA_OM_USA_OM0C047U
Engine immobilizer system
The indicator light flashes after
the engine switch has been turned
off to indicate that the system is
operating.
The indicator light stops flashing
after the engine switch has been
turned to ACC or ON to indicate
that the system has been can-
celed.
■System maintenance
The vehicle has a maintenance-free type engine immobilizer syst em.
■ Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic ob ject
● If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
The vehicle’s keys ha ve built-in transponder chips that prevent
the engine from starting if a key has not been previously regis -
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

831-3. Theft deterrent system
1
For safety and security
SEQUOIA_OM_USA_OM0C047U■
Certifications for the engine immobilizer system
For vehicles sold in the U.S.A.
FCC ID: MOZRI-42BTY
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause har mful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party re sponsible for
compliance could void the user’s authority to operate the equip ment.
For vehicles sold in Canada
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interfe rence, includ-
ing interference that may cause undesired operation of the device.
WARNING
■ Certifications for the engine immobilizer system
Changes or modifications not expressly approved by the party re sponsible
for compliance could void the user’s authority to operate the e quipment.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

841-3. Theft deterrent system
SEQUOIA_OM_USA_OM0C047U
Alar m
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the ala rm is
set:
● A locked door is unlocked or opened in any way other than using
the entry function, wireless remote control or mechanical key. (The
doors will lock aga in automatically.)
● The hood is opened.
● Vehicles with the glass breaka ge sensor: The side windows are
tapped or broken.
● The battery is reconnected.
Close the doors and hood, and
lock all the doors. The system will
be set automatically after 30 sec-
onds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
Do one of the following to d eactivate or stop the alarms:
● Unlock the doors.
● Turn the engine switch to ACC or ON, or start the engine. (The
alarm will be deactivated or s topped after a few seconds.)
The alarm
Setting the alarm system
Deactivating or stopping the alarm

902. Instrument cluster
SEQUOIA_OM_USA_OM0C047U
*1: These lights turn on when the engine switch is turned to ON to indicate thata system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if
the lights do not come on, or do not turn off. Have the vehicle inspected by
your Toyota dealer.
*2: The light illuminates on the multi-information display.
*3: The light comes on to indicate a malfunction.

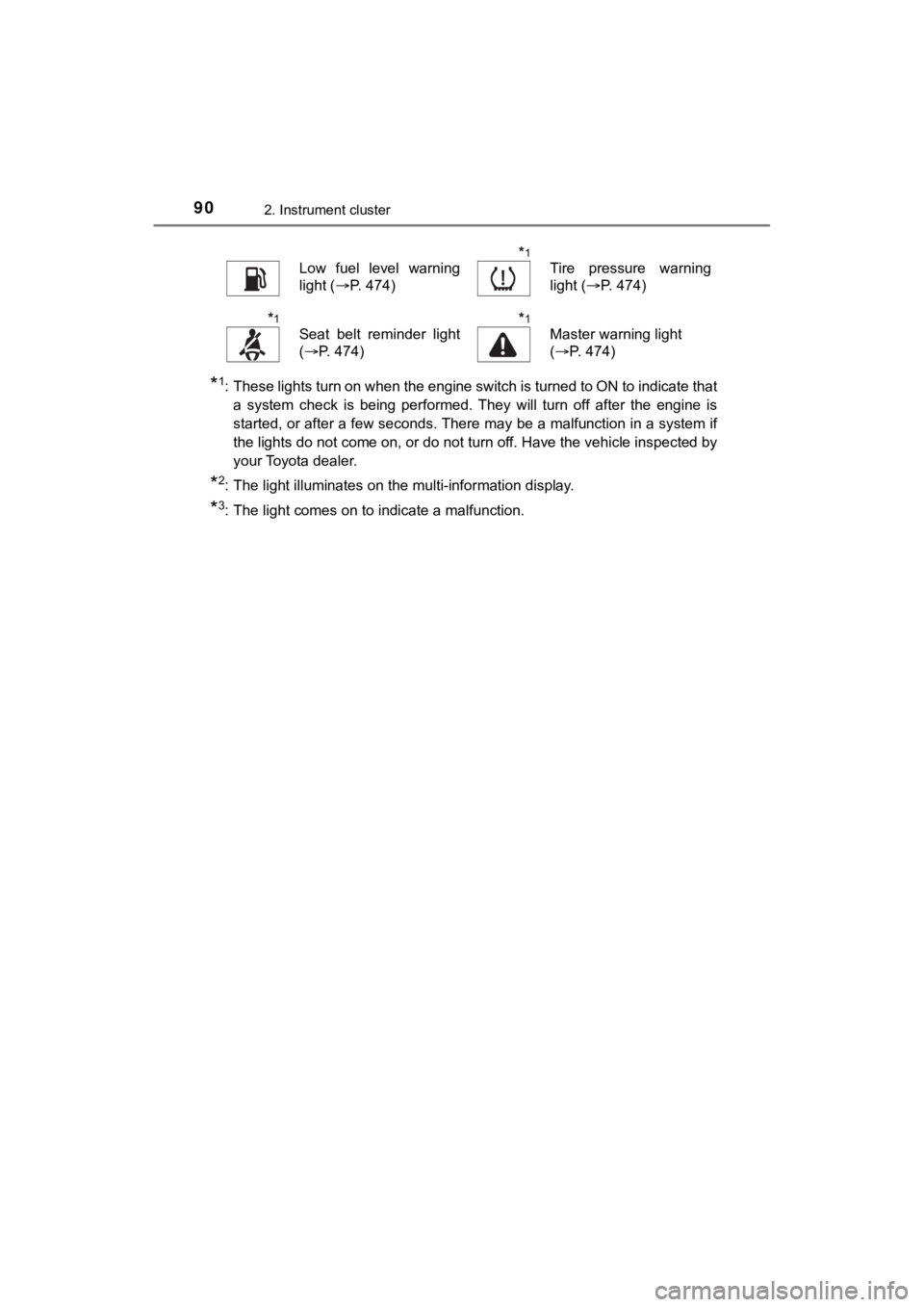

Low fuel level warning
light ( P. 474)*1
Tire pressure warning
light (P. 474)
*1
Seat belt reminder light
(P. 474)*1
Master warning light
(P. 474)

922. Instrument cluster
SEQUOIA_OM_USA_OM0C047U
*1: These lights turn on when the engine switch is turned to ON to indicate thata system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if
the lights do not come on, or do not turn off. Have the vehicle inspected by
your Toyota dealer.
*2: This light illuminates on the multi-information display.
*3: The light flashes to indicate that the system is operating.
*4: In order to confirm operation, the BSM outside rear view mirro r indicators
illuminate in the following situations:
• When the engine switch is turned to ON, the BSM function is en abled on
the screen of the multi-information display.
• When the BSM function is enabled on the screen of the multi-infor- mation display, the engine switch is turned to ON.
If the system is functioning correctly, the BSM outside rear vi ew mirror
indicators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminat e or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota deale r.
*5: This light illuminates on the center panel.
*6: This light turns on when the system is off.
(if equipped)
High speed four-wheel
drive indicator (P. 3 1 7 )
*1, 5
“AIR BAG ON/OFF” indi-
cators (P. 51)
(if equipped)
Low speed four-wheel
drive indicator ( P. 3 1 7 )
(if equipped)
“TOW/HAUL” indicator
(P. 222)
(if equipped)
Center differential lock
indicator ( P. 317)*2Low outside tempera-
ture indicator ( P. 94)
*1
(if equipped)
“AUTO LSD” indicator
(P. 322, 325)

932. Instrument cluster
2
Instrument cluster
SEQUOIA_OM_USA_OM0C047U
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning li ght not
come on when you start the engine, this could mean that these s ystems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

942. Instrument cluster
SEQUOIA_OM_USA_OM0C047U
Gauges and meters
Tachometer
Displays the engine speed in revolutions per minute
Engine oil pressure gauge
Displays the engine oil pressure
Outside temperature display
Displays the outside temperature within the range of -40 °F (-40 °C) to
122 °F (50 °C). Low outside temperature indicator comes on when the
ambient temperature is 37 ° F (3 °C) or lower.
Multi-information display
Presents the driver with a variety of vehicle data ( P. 98)
Displays warning messages in case of a malfunction ( P. 481)
Vo l t m e t e r
Displays the charge state
Speedometer
Displays the vehicle speed
Odometer/Trip meter switching and trip meter resetting button
P. 9 5
Fuel gauge
Displays the quantity of fuel remaining in the tank
The displayed content may differ depending on the type of
meter.

952. Instrument cluster
2
Instrument cluster
SEQUOIA_OM_USA_OM0C047U
Odometer and trip meter display
P. 9 5
Shift position and shift range display
Displays the selected shift position or selected shift range ( P. 220)
Engine coolant temperature gauge
Displays the engine coolant temperature
Instrument panel light control button (P. 9 6 )
Pressing the button changes the
display change button display as
follows.
■Odometer
Displays the total distance the vehicle has been driven.
■Tr i p m e t e r A*/trip meter B*
Displays the distance the vehicl e has been driven since the met er
was last reset. Trip meters A and B can be used to record and d is-
play different distances independently.
*: Press and hold the display change button to reset.
Changing the odometer/t rip meter display

962. Instrument cluster
SEQUOIA_OM_USA_OM0C047U
The brightness of the instrument panel lights can be adjusted.
Pressing the button will adjust
brightness of the instrument panel
light.
Short press: 1 step change of
brightness level.
Long press: continues change of
brightness level until released.
■ The meters and display illuminate when
The engine switch is in ON.
■ Instrument panel bri ghtness adjustment
When the tail lights are turned on, the display’s brightness will be reduced
slightly unless the meter brightness level adjustment is set to the brightest
setting.
■ Outside temperature display
●In the following situations, the correct outside temperature ma y not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 k m/h])
• When the outside temperature has changed suddenly (at the entr ance/
exit of a garage, tunnel, etc.)
● When “--” or “E” is displayed, the system may be malfunctioning. Take your
vehicle to your Toyota dealer.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phen omenon is
characteristic of liquid crystal displays, and there is no prob lem continuing to
use the display.
Instrument panel light control
