fuse box TOYOTA SEQUOIA 2022 Owners Manual

4176-3. Do-it-yourself maintenance
6
Maintenance and care
SEQUOIA_OM_USA_OM0C047U

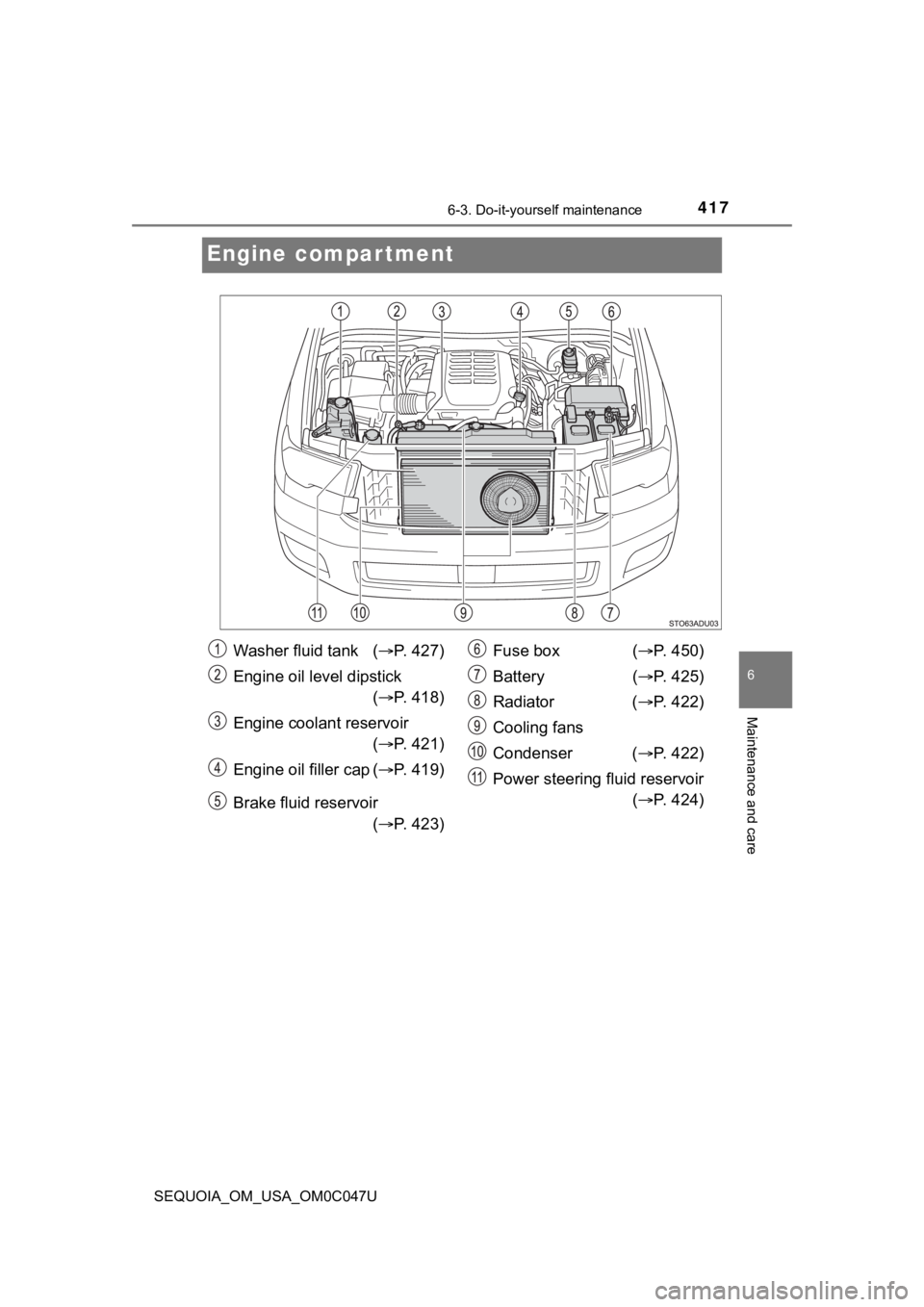

Engine compartment
Washer fluid tank (P. 427)
Engine oil level dipstick ( P. 418)
Engine coolant reservoir ( P. 421)
Engine oil filler cap ( P. 419)
Brake fluid reservoir ( P. 423) Fuse box (
P. 450)
Battery ( P. 425)
Radiator ( P. 422)
Cooling fans
Condenser ( P. 422)
Power steering fluid reservoir ( P. 424)

4506-3. Do-it-yourself maintenance
SEQUOIA_OM_USA_OM0C047U

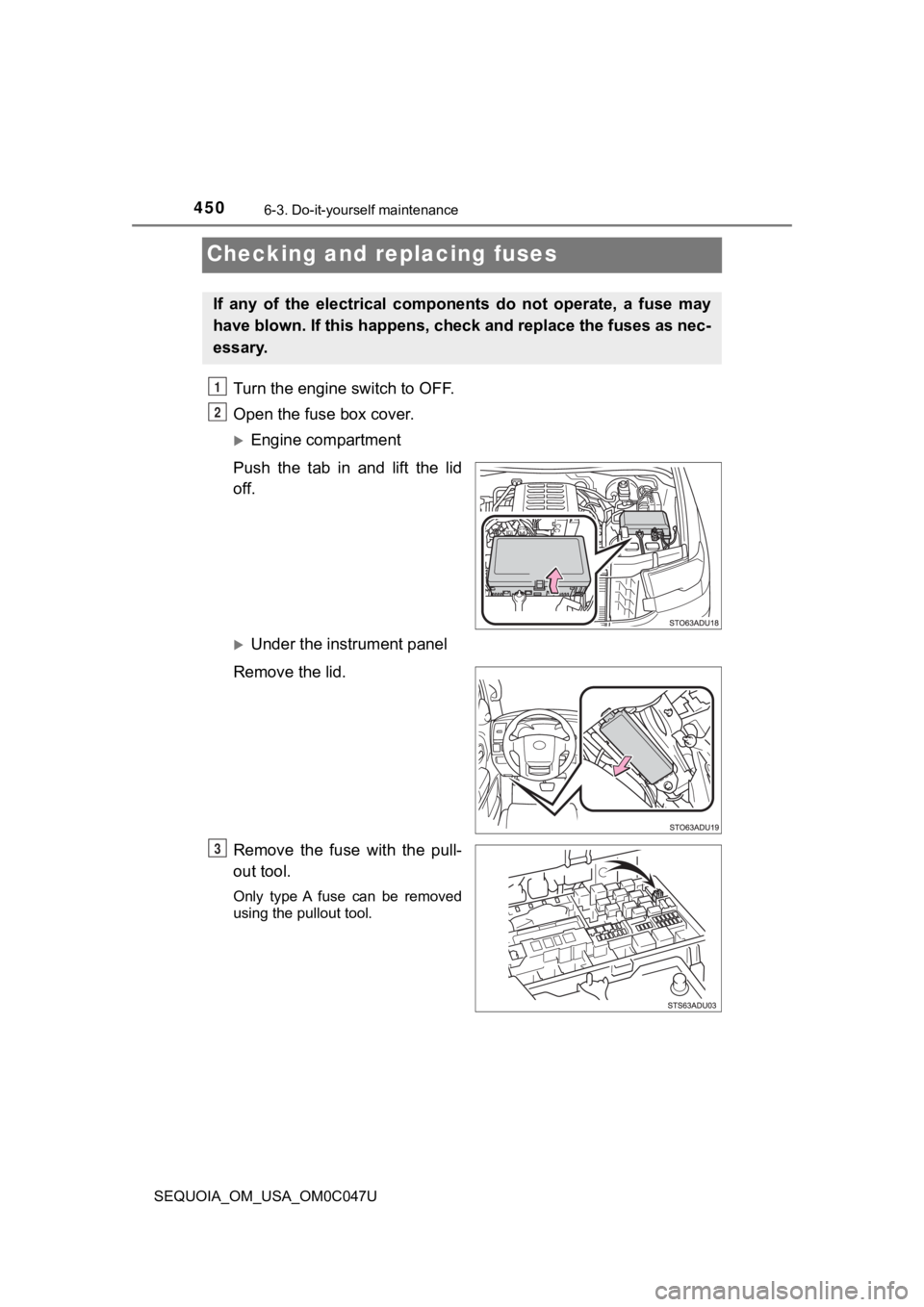

Checking and replacing fuses
Turn the engine switch to OFF.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid
off.
Under the instrument panel
Remove the lid.
Remove the fuse with the pull-
out tool.
Only type A fuse can be removed
using the pullout tool.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, che ck and replace the fuses as nec-
essary.
1
2
3

4516-3. Do-it-yourself maintenance
6
Maintenance and care
SEQUOIA_OM_USA_OM0C047U

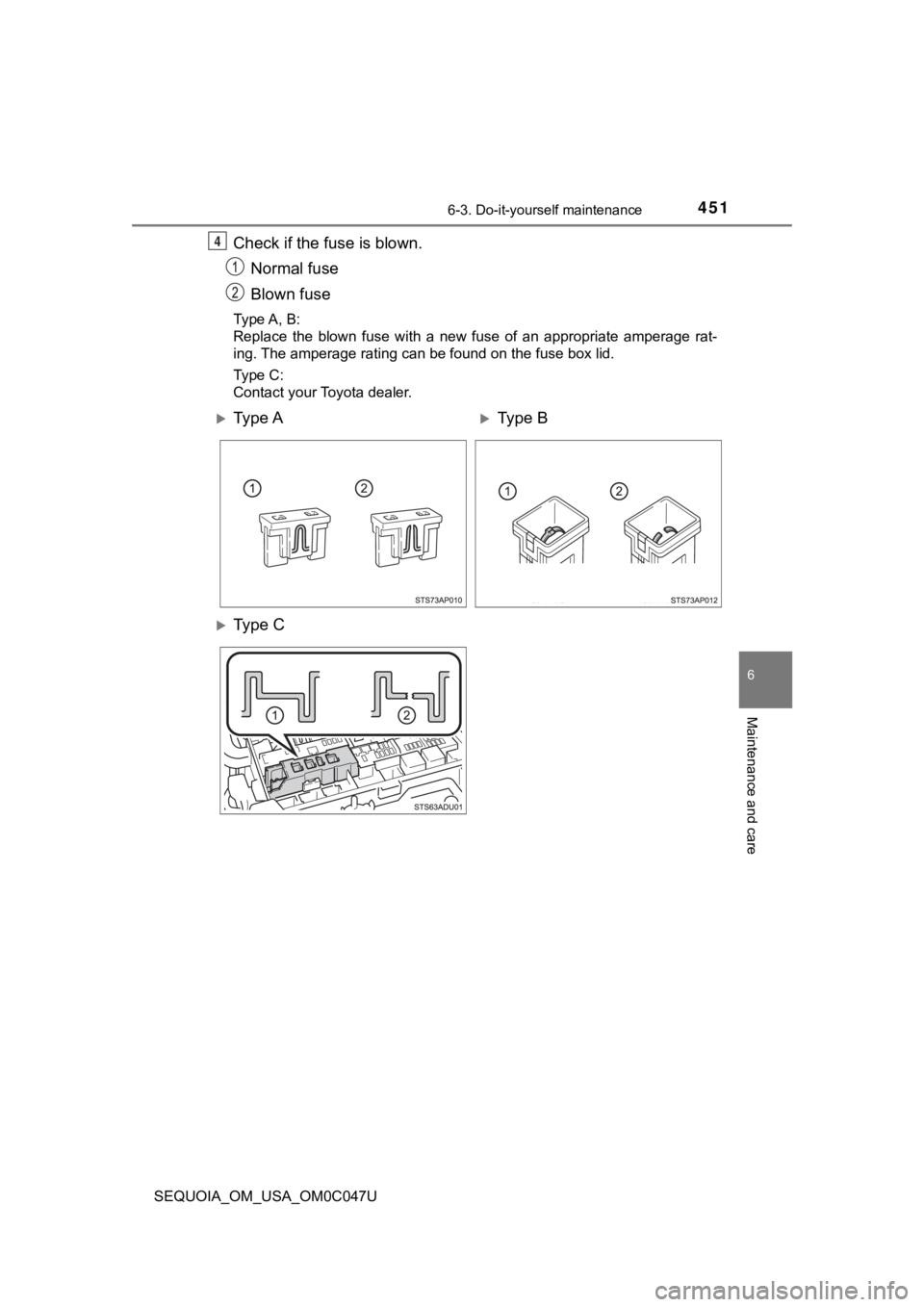

Check if the fuse is blown.Normal fuse
Blown fuse
Type A, B:
Replace the blown fuse with a new fuse of an appropriate ampera ge rat-
ing. The amperage rating can be found on the fuse box lid.
Type C:
Contact your Toyota dealer.
4
Ty p e AType B
Ty p e C

4526-3. Do-it-yourself maintenance
SEQUOIA_OM_USA_OM0C047U
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been repla ced, a bulb may
need replacement. ( P. 453)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness f rom damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired b y your
Toyota dealer as soon as possible.
