TOYOTA SIENNA 2000 Owners Manual

00 SIENNA(U)
95

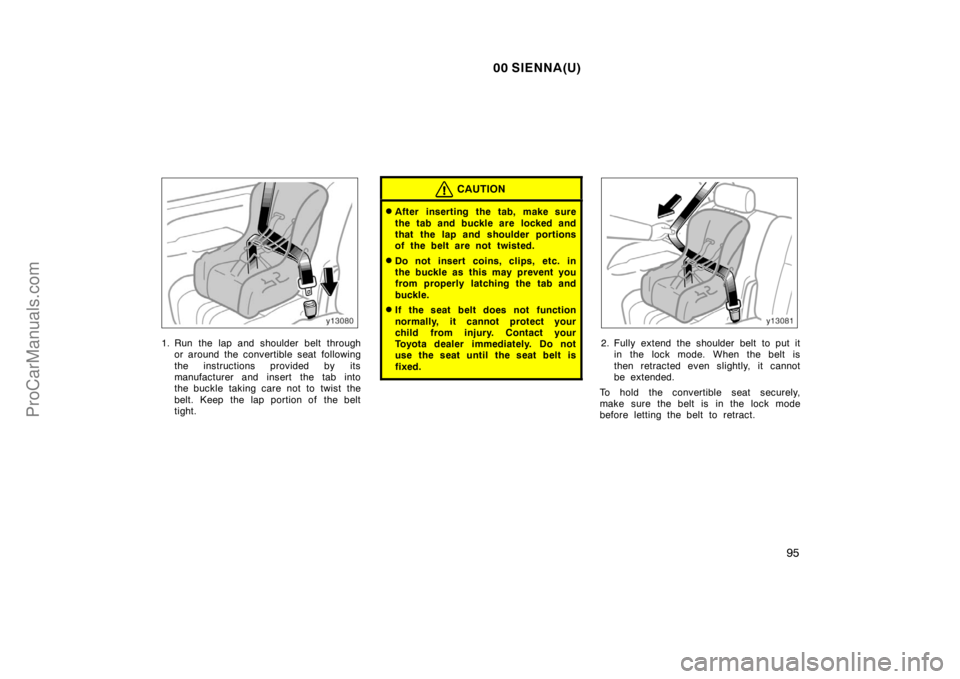

1. Run the lap and shoulder belt through
or around the convertible seat following
the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt. Keep the lap portion of the belt
tight.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. Fully extend the shoulder belt to put it
in the lock mode. When the belt is
then retracted even slightly, it cannot
be extended.
To hold the convertible seat securely,
make sure the belt is in the lock mode
before letting the belt to retract.
ProCarManuals.com

00 SIENNA(U)
96
3. While pressing the convertible seat
firmly against the seat cushion and
seatback, let the shoulder belt retract
as far as it will go to hold the convert-
ible seat securely.CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, press
the buckle−release button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.
ProCarManuals.com

00 SIENNA(U)
97

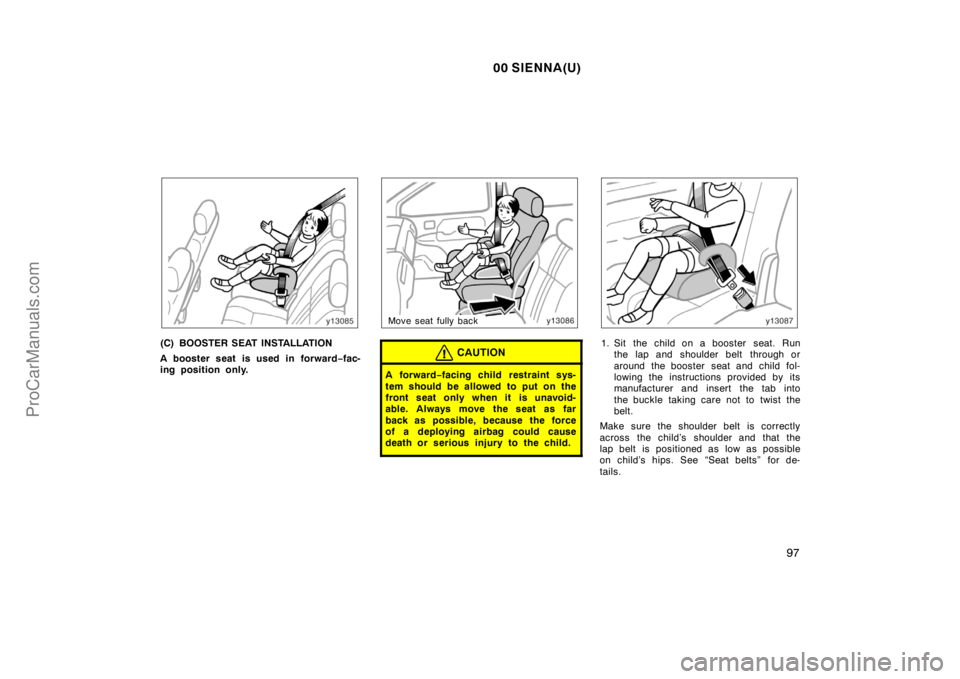

(C) BOOSTER SEAT INSTALLATION
A booster seat is used in forward−fac-
ing position only.
Move seat fully back
CAUTION
A for war d−facing child restraint sys-
tem should be allowed to put on the
front seat only when it is unavoid-
able. Always move the seat as far
back as possible, because the force
of a deploying airbag could cause
death or serious injury to the child.
1. Sit the child on a booster seat. Run
the lap and shoulder belt through or
around the booster seat and child fol-
lowing the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on child’s hips. See “Seat belts” for de-
tails.
ProCarManuals.com

00 SIENNA(U)
98

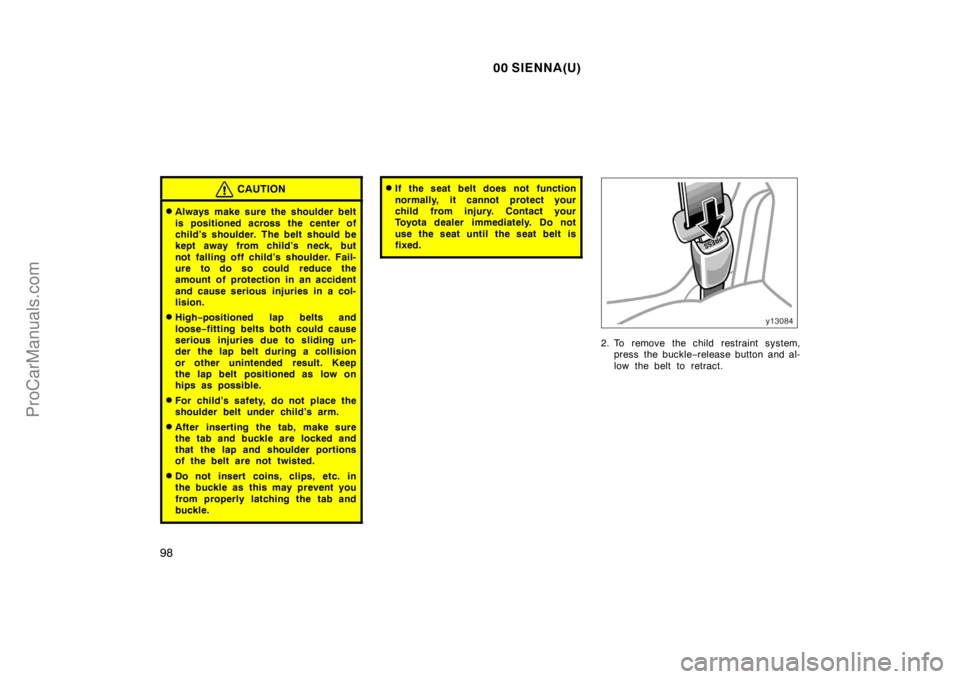

CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder. Fail-
ure to do so could reduce the
amount of protection in an accident
and cause serious injuries in a col-
lision.
High−positioned lap belts and
loose−fitting belts both could cause
serious injuries due to sliding un-
der the lap belt during a collision
or other unintended result. Keep
the lap belt positioned as low on
hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the seat until the seat belt is
fixed.
2. To remove the child restraint system,
press the buckle−release button and al-
low the belt to retract.
ProCarManuals.com

00 SIENNA(U)
99

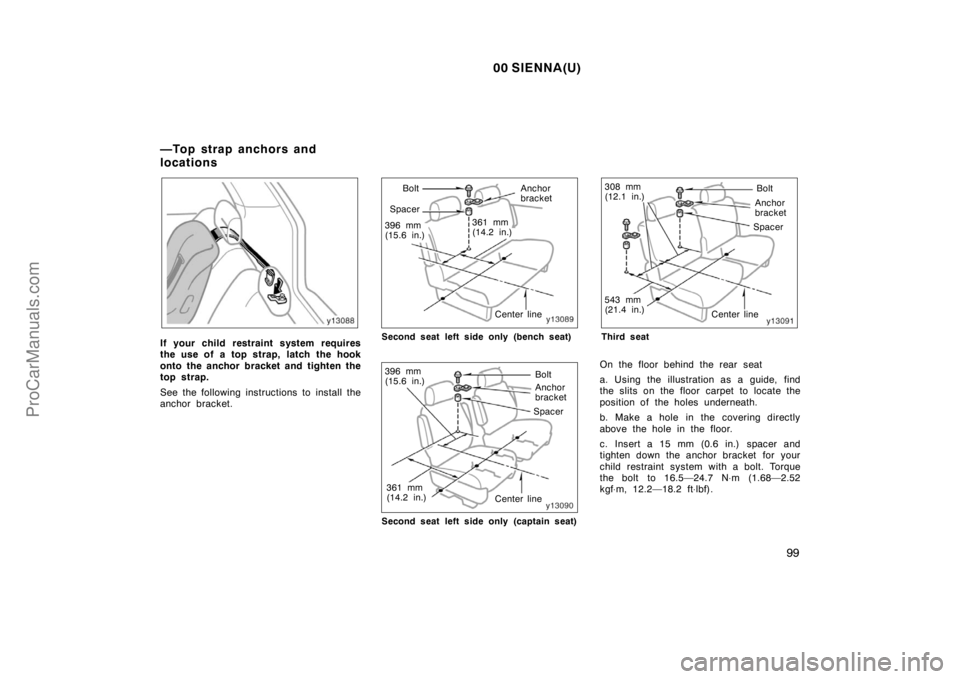

If your child restraint system requires
the use of a top strap, latch the hook
onto the anchor bracket and tighten the
top strap.
See the following instructions to install the
anchor bracket.
Center lineAnchor
bracket
396 mm
(15.6 in.)361 mm
(14.2 in.) SpacerBolt
Second seat left side only (bench seat)
396 mm
(15.6 in.)
361 mm
(14.2 in.)
Center lineSpacerAnchor
bracket Bolt
Second seat left side only (captain seat)
Center lineBolt
543 mm
(21.4 in.)SpacerAnchor
bracket
308 mm
(12.1 in.)
Third seat
On the floor behind the rear seat
a. Using the illustration as a guide, find
the slits on the floor carpet to locate the
position of the holes underneath.
b. Make a hole in the covering directly
above the hole in the floor.
c. Insert a 15 mm (0.6 in.) spacer and
tighten down the anchor bracket for your
child restraint system with a bolt. Torque
the bolt to 16.5—24.7 N⋅m (1.68—2.52
kgf⋅m, 12.2—18.2 ft⋅lbf).
—Top strap anchors and
locations
ProCarManuals.com

00 SIENNA(U)
100
This model sold in Canada is provided
with a bracket set in the glove box, de-
signed for use with any of the 3 anchor
locations shown in the illustrations.
If your child restraint system does not
provide any of the necessary parts, ask
your Toyota dealer. (See “—Child restraint
system”.)

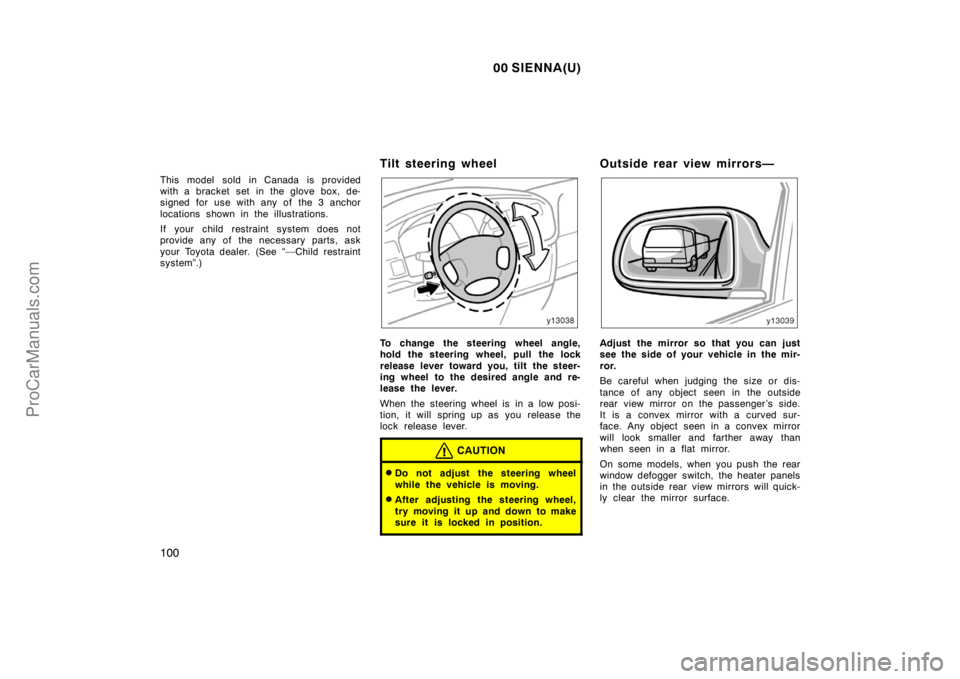

Tilt steering wheel
To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
lease the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Outside rear view mirrors—
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side.
It is a convex mirror with a curved sur-
face. Any object seen in a convex mirror
will look smaller and farther away than
when seen in a flat mirror.
On some models, when you push the rear
window defogger switch, the heater panels
in the outside rear view mirrors will quick-
ly clear the mirror surface.
ProCarManuals.com

00 SIENNA(U)
101
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal injuries.
On some models, since the mirror
surfaces can get hot, keep your
hands off them when the defogger
switch is on.

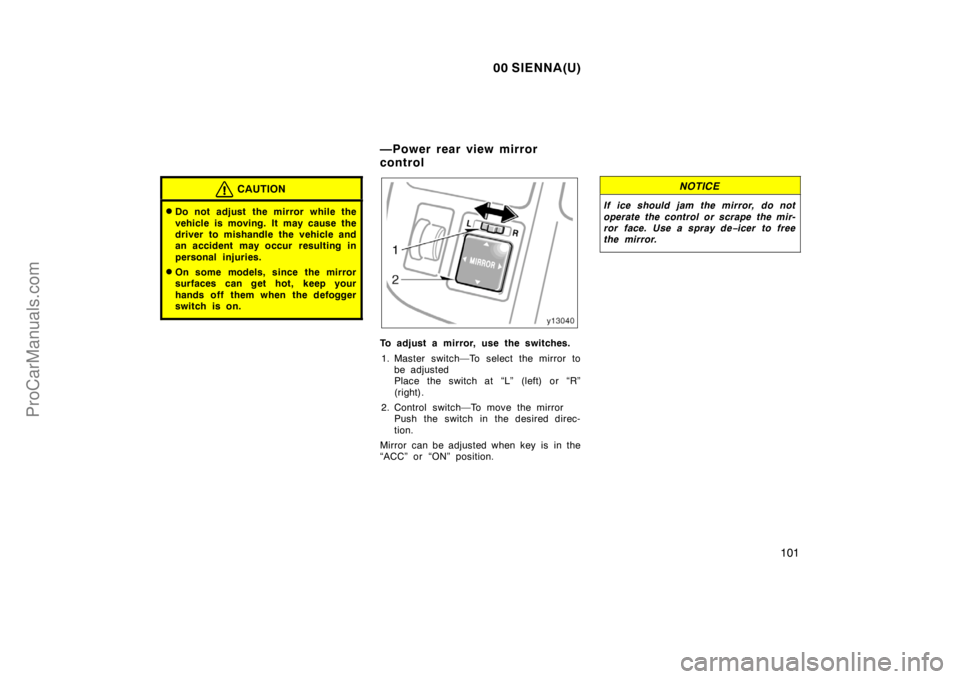

To adjust a mirror, use the switches.
1. Master switch—To select the mirror to
be adjusted
Place the switch at “L” (left) or “R”
(right).
2. Control switch—To move the mirror
Push the switch in the desired direc-
tion.
Mirror can be adjusted when key is in the
“ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray de−icer to free
the mirror.
—Power rear view mirror
control
ProCarManuals.com

00 SIENNA(U)
102
—Folding rear view mirrors
The rear view mirrors can be folded
backward for parking in restricted
areas.
To fold the rear view mirrors, push back-
ward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
personal injuries.
Anti−glare inside rear view
mirror
ProCarManuals.com

00 SIENNA(U)
103

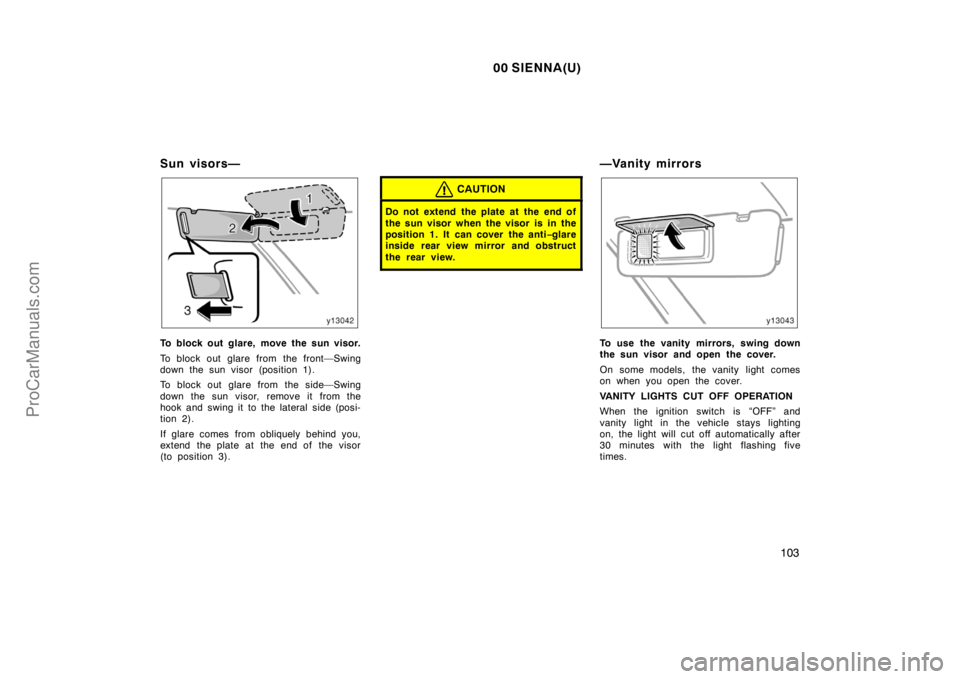

Sun visors—
To block out glare, move the sun visor.
To block out glare from the front—Swing
down the sun visor (position 1).
To block out glare from the side—Swing
down the sun visor, remove it from the
hook and swing it to the lateral side (posi-
tion 2).
If glare comes from obliquely behind you,
extend the plate at the end of the visor
(to position 3).
CAUTION
Do not extend the plate at the end of
the sun visor when the visor is in the
position 1. It can cover the anti−glare
inside rear view mirror and obstruct
the rear view.
—Vanity mirrors
To use the vanity mirrors, swing down
the sun visor and open the cover.
On some models, the vanity light comes
on when you open the cover.
VANITY LIGHTS CUT OFF OPERATION
When the ignition switch is “OFF” and
vanity light in the vehicle stays lighting
on, the light will cut off automatically after
30 minutes with the light flashing five
times.
ProCarManuals.com

00 SIENNA(U)
104
You can cancel the cut off operation by:
Turning the key to the “ACC” position.
Opening or closing any of front and
sliding doors
Turning off all the “ON” lights.
All the lights are cut off when all the
doors are locked by key or wireless re-
mote control transmitter.
The key must be in the “OFF” position.
