This system is designed to inform you of
the approximate distance between your
vehicle and an obstacle by indicator and
buzzer.
Rear sensorsDistance shown as A in
mm (in.)
Indicator and buzzer
Approximately 1800—900
(70.9—35.4)Intermittent
Approximately
900—550 (35.4—21.7)Fast
intermittent
Approximately
550 (21.7) or lessContinuous
Rear corner sensors
Distance shown as B in
mm (in.)
Indicator and buzzer
Approximately
850—520 (33.5—20.5)Intermittent
Approximately
520—250 (20.5—9.8)Fast
intermittent
Approximately
250 (9.8) or lessContinuous
1: Rear corner sensors
2: Rear sensors
Perceptible area
A: Approximately 1800 mm (70.9 in.)
B: Approximately 850 mm (33.5 in.)
Perceptible area is limited as shown in
the previous illustration. Check the area
around the vehicle before driving and start
driving slowly.

04 SIENNA_U (L/O 0408)
336
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
CAUTION
The Toyota park assist system is
intended as an aid to assist you to
park and is not a substitute for
your personal judgment. Make your
driving decisions based on your ob-
servations.
Do not attach accessories or other
objects to the vehicle within the
sensor perceptible area. Doing so
may cause the system to malfunc-
tion, which might result in an acci-
dent.
In certain situations, the system
will not function properly and when
the vehicle approaches certain ob-
jects, the system will not detect
those objects. Therefore, always ob-
serve the area around the vehicle
and do not rely solely on the sys-
tem.
For vehicles sold in Canada
This ISM device compiles with Cana-
dian ICES001.
In the following cases, the system may
not work properly.
When ice, snow, mud or other objects
build up on the sensor.
When the vehicle is parked in extreme-
ly high or extremely low temperature
for a long period.
When driving on bumpy or graveled
roads or on grass
When a device such as a horn from
another vehicle, motorcycle engine, or
an air brake sound from a heavy −duty
vehicle, issues ultrasonic waves, near
your vehicle
When attaching a two −way radio anten-
na
When rain or water splashes on the
sensor.
When operating the vehicle on an in-
clined surface
When a radio antenna or fender pole
is mounted on your vehicle.
When a towing hitch is mounted on
your vehicle.

04 SIENNA_U (L/O 0408)
337
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
The system may not detect the follow-
ing.
Thin objects such as a wire or rope
Objects with a surface area too small
to reflect ultrasonic waves such as
wire gauze
Sound wave absorbing objects or mate-
rial such as cotton or snow
A person near the vehicle (depending
on the type of clothes worn)
Objects with a sharp edge
Small or short objects
Tall objects with an upper part project-
ing toward the vehicle
Objects just under the bumper
Objects very close to your vehicle
In the following cases, have your
Toyota dealer check the system.
When the bumper is damaged.
When the indicator is continuously on. The rear view monitor system assists
the driver by displaying an image of
the rear of the vehicle while backing
up. The displayed image on the screen
is a horizontally reversed mirror image
of the inside rear view mirror.
To display the rear view image on the
screen, place the selector lever in the
“R” position when the ignition switch
in the “ON” position.
If you move the selector lever out of the
“R” position, the screen returns to the
previous screen. Operating another func-
tion of the navigation system will display
another screen.
The rear view monitor system is a supple-
ment device intended to assist back up.
When backing up, be sure to check be-
hind and all around the vehicle visually.
CAUTION
Never depend on the rear view
monitor system entirely when back-
ing up. Always make sure your in-
tended oath is clear.
Use caution just as you would when
backing up any vehicle.
Never back up while looking only at
the screen. The image on the
screen is different from actual con-
ditions. Depicted distances between
objects and flat surfaces will differ
from actual distances. If you back
up while looking only at the screen,
you may hit a vehicle, a person or
an object. When backing up, be
sure to check behind and all around
the vehicle visually and with mir-
rors before proceeding.
Do not use the system when the
back door is not completely closed.
Rear view monitor system

04 SIENNA_U (L/O 0408)
338
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
If the back of the vehicle is hit, the
position and mounting angle of the
camera may change. Be sure to
have the camera’s position and
mounting angle checked at your
Toyota dealer.
If the temperature changes rapidly,
such as when hot water is poured
on the vehicle in cold weather, the
system may not operate normally.
If the camera lens becomes dirty, it
cannot transmit a clear image. If
water droplets, snow, or mud ad-
here to the lens, rinse with water
and wipe with a soft cloth. If the
lens is extremely dirty, wash it with
a mild cleanser and rinse.
The displayed image may become
darker and moving images may be
slightly distorted when the system
is cold. When backing up, be sure
to check behind and all around the
vehicle visually and with mirror be-
fore proceeding.
AREA DISPLAYED ON SCREEN
Image is displayed approximately level
on screen.
On screenCorners of bumper

04 SIENNA_U (L/O 0408)
339
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
The area detected by the camera is
limited. The camera does not detect
objects which are close to either
corner of the bumper or under the
bumper.
The area displayed on the screen
may vary according to vehicle orien-
tation or road conditions.
THE REAR VIEW MONITOR SYSTEM
CAMERA
The rear view monitor system camera is
located on the back door as shown in the
illustration. The camera uses a special
lens. The distance of the image that ap-
pears on the screen differs from the actu-
al distance.
In the following cases, it may become
difficult to see the images on the screen,
even when the system is functioning.
In the dark (for example, at night)
When the temperature near the lens is
high or low
When water droplets are adhering to
the camera, or when humidity is high
(for example, when it rains)
When foreign matter (for example,
snow or mud) is adhering to the cam-
era
When the sun or the beam of head-
lights is shining directly into the cam-
era lens

04 SIENNA_U (L/O 0408)
340
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
If a bright light (for example, sunlight re-
flected off the vehicle body) is picked up
by the camera, the smear effect
∗ peculiar
to the camera may occur.
∗: Smear effect—A phenomenon that oc-
curs when a bright light (for example, sun-
light reflected off the vehicle body) is
picked up by the camera; when trans-
mitted by the camera, the light source
appears to have a vertical streak above
and below it.
Front
Rear
The power outlets (12 VDC) are de-
signed for power supply for car acces-
sories.
The key must be in the “ACC” or “ON”
position for the power outlets to be used.
NOTICE
 To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of 12
VDC/120W (front and rear outlets
together).
 To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
 Close the power outlet lids when
the power outlets are not in use.
Inserting anything other than an ap-
propriate plug that fits the outlet,
or allowing any liquid to get into
the outlet may cause electrical fail-
ure or short circuits.
Power outlets (12 VDC)

04 SIENNA_U (L/O 0408)
341
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Beside second seat
Beside third seat
The power outlets (115 VAC) are de-
signed for use as a power supply for
electric appliances in the vehicle.
The key must be in the “ON” position for
the power outlet to be used.
The maximum capacity for this power out-
let is 115 VAC/100W. If you attempt to
use an appliance that requires more than
115 VAC or 100W, the protection circuit
will activate and cut the power supply.
The power supply will restart automatically
when you use an appliance that operates
within the 115 VAC/100W limits.
Main switch
To use the power outlet, push the main
switch on the instrument panel.
An indicator light will illuminate to indicate
that the power outlet is ready for use.
Push the main switch once again to turn
the power outlet off. When the power out-
let is not in use, make sure that the main
switch is turned off.
Power outlets (115 VAC)

04 SIENNA_U (L/O 0408)
342
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
NOTICE
To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
 Close the power outlet lids when
the power outlets are not in use.
Inserting anything other than an ap-
propriate plug that fits the outlet,
or allowing any liquid to get into
the outlet may cause electrical fail-
ure or short circuits.
The power outlet is not designed for
the following electric appliances even
though their power consumption is un-
der 115 VAC/100W. These appliances
may not operate properly.
Appliances with high initial peak watt-
age: cathode− ray tube type televisions,
compressor −driven refrigerators, electric
pumps, electric tools, etc.
Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.
Other appliances requiring an extremely
stable power supply: microcomputer −
controlled electric blankets, touch sen-
sor lamps, etc. Certain electrical appliances may cause
radio noise.
To use the glove box, do this.
To open: Pull the lever.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Glove box

04 SIENNA_U (L/O 0408)
343
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
The box is designed to store a garage
door opener transmitter.

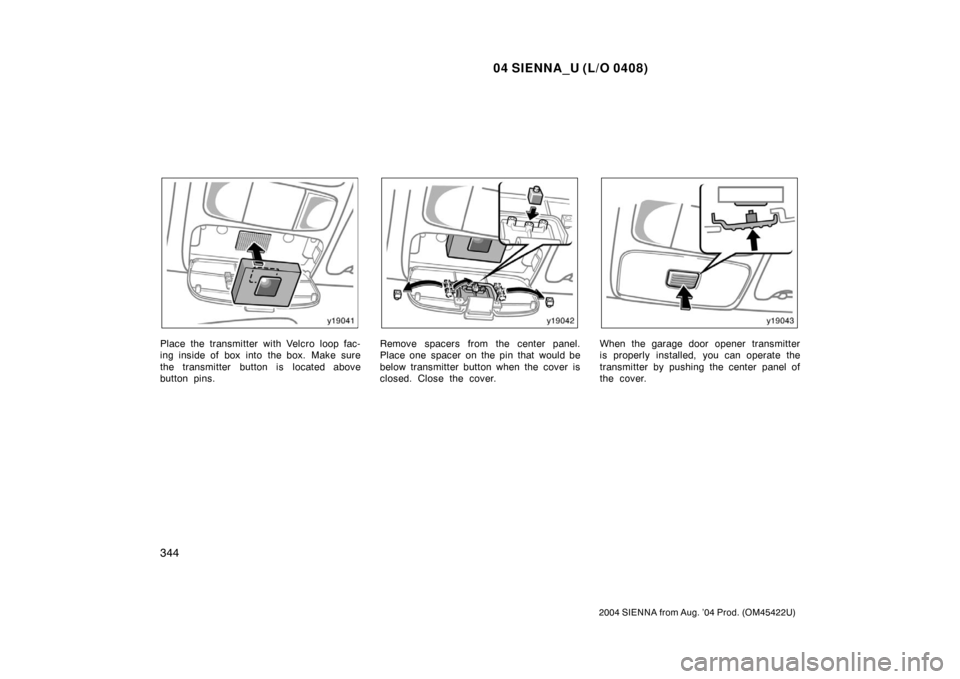

Open the cover and remove the Velcro
loop.Remove the paper strip covering the adhe-
sive on back side of loop and adhere loop
to back side of the transmitter near cen-
ter.Please note if transmitter has wire clip for
sun visor, this clip must be removed prior
to adhesion of the Velcro.
Garage door opener box

04 SIENNA_U (L/O 0408)
344
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

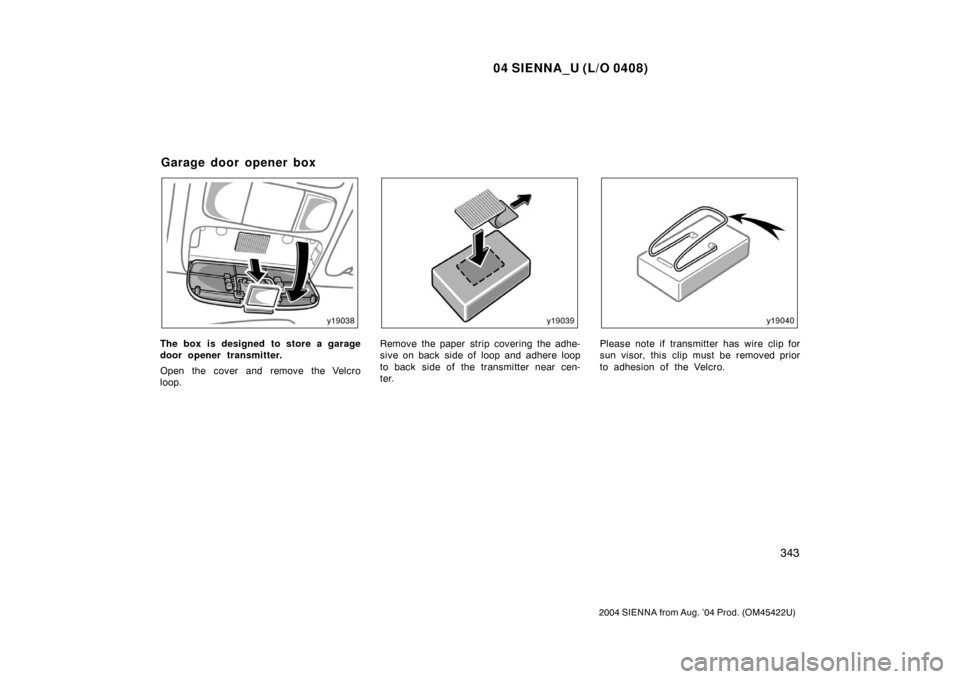

Place the transmitter with Velcro loop fac-
ing inside of box into the box. Make sure
the transmitter button is located above
button pins.Remove spacers from the center panel.
Place one spacer on the pin that would be
below transmitter button when the cover is
closed. Close the cover.When the garage door opener transmitter
is properly installed, you can operate the
transmitter by pushing the center panel of
the cover.
