The traction control system automatical-
ly helps prevent the spinning of 4
wheels when the vehicle is started or
accelerated on slippery road surfaces.
When the ignition key is turned to “ON”,
the system automatically turns on.
CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power against 4 wheels cannot be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which may
cause the vehicle to lose traction
control. In situations where the road
surface is covered with ice or snow,
your vehicle should be fitted with
snow tires or tire chains. Always
drive at an appropriate and cautious
speed for the present road condi-
tions.
NORMAL DRIVING MODE
Leave the system on during the ordi-
nary driving so that it can operate
when needed.
You may hear a sound in the engine
compartment for a few seconds just after
the vehicle begins to move. This means
that the traction control system is in the
self−check mode, but does not indicate a
malfunction. When the traction control system is oper-
ating, the following conditions occur:
The system controls the spinning of the
4 wheels. At this time, the slip indica-
tor light blinks.
You may feel vibration or noise in your
vehicle, caused by operation of the
brakes. This indicates the system is
functioning properly.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.
Traction control system
(allwheel drive models)

04 SIENNA_U (L/O 0408)
186
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
“VSC” warning light
This light warns that there is a problem
somewhere in the traction control system
or the vehicle stability control system.
The light will come on when the ignition
key is turned to “ON” and will go off after
a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing.In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
The vehicle stability control system
helps provide integrated control of the
systems such as an antilock brake
system, brake assist system, traction
control, engine control, etc. This sys-
tem automatically controls the brakes
and engine to help prevent the vehicle
from skidding when cornering on a slip-
pery road surface or operating steering
wheel abruptly.
This system activates when the vehicle
speed is about more than 15 km/h (9
mph).
You may hear a sound in the engine
compartment for a few seconds just after
the vehicle begins to move. This means
that the system is in the self
−check mode,
but does not indicate a malfunction.
Vehicle stability control
system

04 SIENNA_U (L/O 0408)
192
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Ty p e A
Ty p e B
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Fully depress the parking brake
pedal. For better holding power, first de-
press the brake pedal and hold it while
setting the parking brake.
To release: Depress the parking brake
pedal once again.
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
The cruise control allows you to cruise
the vehicle at a desired speed over 40
km/h (25 mph) even with your foot off
the accelerator pedal.
Your cruising speed can be maintained up
or down grades within the limits of engine
performance, although a slight speed
change may occur when driving up or
down the grades. On steeper hills, a
greater speed change will occur so it is
better to drive without the cruise control.
CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snowcovered) or
winding roads.
Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.
Parking brakeCruise control

04 SIENNA_U (L/O 0408)
194
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
If you need acceleration—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CANCELLING THE PRESET SPEED
You can cancel the preset speed by:
a. Pulling the lever in the “CANCEL” di-rection and releasing it.
b.
Depressing the brake pedal.
If the vehicle speed falls below about 40
km/h (25 mph), the preset speed will auto-
matically cancel out.
If the vehicle speed drops 16 km/h (10
mph) below the preset speed, the preset
speed will also automatically cancel out.
If the preset speed automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity. RESETTING TO A FASTER SPEED
Push the lever up in the “+ RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction.
RESETTING TO A SLOWER SPEED
Push the lever down in the “
− SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “− SET” direction.
Even if you downshift from “D” to “4”, with
the cruise control on, engine braking will
not be enabled because the cruise control
is not cancelled. To decrease the vehicle
speed, reset to a slower speed with the
cruise control lever or depress the brake
pedal. If you use the brake pedal, cruise
control is cancelled. RESUMING THE PRESET SPEED
If the preset speed is cancelled by pulling
the control lever or by depressing the
brake pedal, pushing the lever up in the
“+ RES” direction will restore the speed
set prior to cancellation.
However, once the vehicle speed falls be-
low about 40 km/h (25 mph), the preset
speed will not be resumed.
CRUISE CONTROL FAILURE WARNING
If the “CRUISE” indicator light in the
instrument cluster flashes when using the
cruise control, press the “ON
−OFF” button
to turn the system off and then press it
again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.

04 SIENNA_U (L/O 0408)
199
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
On roads with heavy traffic or
sharp bends, an appropriate speed
cannot be maintained and an acci-
dent may occur.
On slippery road surfaces (icy or
snowcovered road surfaces), the
tires will race and you will be un-
able to control the vehicle.
When there is no vehicle detected
ahead on steep downhill slopes, the
preset speed will be easily exceed-
ed because of inefficient engine
braking. (In this case, automatic
braking will not work.) If there is a
vehicle detected ahead, the delay in
deceleration timing could cause se-
rious injury or death.
When the alarm sounds frequently
(because acceleration or decelera-
tion was repeated or sufficient ve-
hicletovehicle distance was not
maintained), an appropriate vehicle
speed cannot be attained and an
accident may occur.On roads with steep and short in-
clines and declines, failure to de-
tect the vehicle ahead will shorten
the distance between your vehicle
and the vehicle ahead and an acci-
dent may occur.
Deceleration cruising function and
approach warning do not operate
when the vehicle ahead is at a stop
or driving very slowly.
If the vehicle ahead of you deceler-
ates abruptly or if another vehicle
cuts in ahead of you, your vehicle
may collide with the vehicle ahead
unless you manually depress the
brake pedal to slow down your ve-
hicle.
Depending on the road configura-
tion (curved, left and right continu-
ous curved, the start or end of a
curve, or narrow driving lanes due
to road construction) or your ve-
hicle condition (steering wheel ma-
neuvering, position in the lane, or
unstable driving because of an acci-
dent or breakdown), vehicles in oth-
er lanes or surrounding objects
may be detected, resulting in a con-
trol failure or the approach warning
activation. This may also result in
a very close distance between vehi-
cles due to a failure to detect the
vehicle ahead.

04 SIENNA_U (L/O 0408)
202
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
In the following cases, the preset speed
automatically cancels out:a. The vehicle speed falls below about 40 km/h (25 mph). (40 km/h (25 mph) is
designated as a cancel speed.)
b. The slip indicator light blinks and an alarm sounds. (This occurs when the
vehicle is about to skid.)
If cancelled by a. or b., the “READY”
indicator comes on and the dynamic laser
cruise control enters the ready mode.
If one of the warning codes “E1”, “E2” or
“E3” appears on the display, the preset
speed automatically cancels out. See
“VEHICLE −TO −VEHICLE DISTANCE
CONTROL MODE FAILURE WARNING” on
page 206.
If the preset speed automatically cancels
out for other than the above reasons, do
not operate the dynamic laser cruise con-
trol. Although there is no problem to con-
tinue driving, please contact your Toyota
dealer. RESETTING TO A FASTER SPEED
Push the lever up in the “+ RES” direction
and hold it. The displayed speed will in-
crease in increments of 5 mph (for the
U.S.A.) or 5 km/h (for Canada). Release
the lever when the desired speed is attai-
ned. The vehicle speed will gradually in-
crease to the display speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction.
CAUTION
When the vehicletovehicle distance
control is on, your cruising speed is
regulated in proportion to the speed
of the vehicle ahead, so increasing
the preset speed using the control
lever does not accelerate the vehicle.
However, if the vehicle ahead leaves
the lane, your cruising speed will in-
crease to the preset speed because
the preset speed has been set higher
using the control lever. Confirm the
setting on the display.
RESETTING TO A SLOWER SPEED
Push the lever down in the “
− SET” direc-
tion and hold it. The displayed speed will
decrease in increments of 5 mph (for the
U.S.A.) or 5 km/h (for Canada). Release
the lever when the desired speed is attai-
ned. The vehicle speed will gradually de-
crease to the display speed.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “− SET” direction.
If the control lever is released when the
vehicle speed exceeds the upper limit of
the preset speed traveling downhill while
you are pushing the lever down, the sys-
tem will memorize the upper limit of the
preset speed as a preset speed.
Even if you downshift from “D” to “4” in
the vehicle −to −vehicle distance control
mode, engine braking will not be enabled
because this mode is not cancelled. To
decrease the vehicle speed, reset to a
slower speed with the cruise control lever
or depress the brake pedal. If you use the
brake pedal, cruise control is cancelled.

04 SIENNA_U (L/O 0408)
204
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Select the vehicle−to −vehicle distance con-
sidering traffic conditions. The approximate
vehicle −to −vehicle distance based on time
interval when driving at 88 km/h (55 mph)
is shown below:
LONG about 75 m (245 ft.)
. . . . . . . . . . .
MIDDLE about 50 m (165 ft.)
. . . . . . . . . .
SHORT about 30 m (100 ft.)
. . . . . . . . . .
If the vehicle speed is slower than 88
km/h (55 mph), the distance will be short-
er than the above.
During long downhill driving, the vehicle −
to −vehicle distance will be shorter than
the selected distance.
BRAKING CONTROL
Dynamic laser cruise control is not a colli-
sion avoidance system. If the approach
warning is activated, depress the brake
pedal to decelerate to ensure an appropri-
ate vehicle− to−vehicle distance.
If you are getting closer to the vehicle
ahead at a relatively higher speed than
that of the vehicle ahead or if engine
braking cannot be applied properly, brak-
ing control is automatically activated. At
this time, the display flashes. Braking control is operating only when the
vehicle
−to −vehicle distance control mode
is selected and your vehicle speed ex-
ceeds about 40 km/h (25 mph). If the
speed decreases below about 40 km/h (25
mph), braking control will cease, requiring
the manual application of brakes.
CAUTION
Braking control will not ensure that
your vehicle will reduce speed ap-
propriately. You must depress the
brake pedal to slow down, ensuring
collision avoidance or that sufficient
vehicletovehicle distance is main-
tained.
APPROACH WARNING
While you are cruising in the vehicle −to −
vehicle distance control mode, if the ve-
hicle ahead decelerates abruptly or if
another vehicle cuts in ahead of you, in-
adequate braking will make your vehicle
become closer to the vehicle ahead of you
and the display will flash and beep.

04 SIENNA_U (L/O 0408)
207
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
If “E3” appears on the display, a system
malfunction has been detected.
If this code appears, stop your vehicle in
a safe place, turn the ignition off, and
then restart it to reset the system. If the
setting still cannot be made or the same
code appears again, the system might
have malfunctioned. Although there is no
problem to continue driving, please con-
tact your Toyota dealer. This mode allows you to cruise at a
desired speed over about 45 km/h (28
mph) with your foot off the accelerator
pedal.
Your cruising speed can be maintained up
or down grades within the limits of engine
performance, although a slight speed
change may occur when driving up or
down the grades. On steeper hills, a
greater speed change will occur so it is
better to drive without the cruise control.

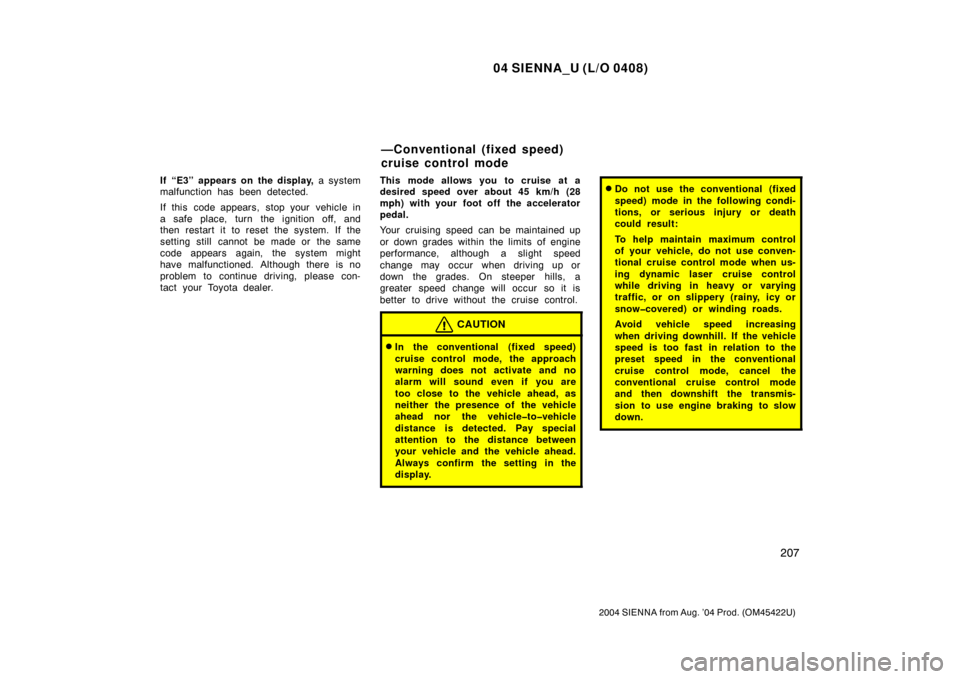

CAUTION
In the conventional (fixed speed)
cruise control mode, the approach
warning does not activate and no
alarm will sound even if you are
too close to the vehicle ahead, as
neither the presence of the vehicle
ahead nor the vehicletovehicle
distance is detected. Pay special
attention to the distance between
your vehicle and the vehicle ahead.
Always confirm the setting in the
display.
Do not use the conventional (fixed
speed) mode in the following condi-
tions, or serious injury or death
could result:
To help maintain maximum control
of your vehicle, do not use conven-
tional cruise control mode when us-
ing dynamic laser cruise control
while driving in heavy or varying
traffic, or on slippery (rainy, icy or
snowcovered) or winding roads.
Avoid vehicle speed increasing
when driving downhill. If the vehicle
speed is too fast in relation to the
preset speed in the conventional
cruise control mode, cancel the
conventional cruise control mode
and then downshift the transmis-
sion to use engine braking to slow
down.
—Conventional (fixed speed)
cruise control mode

04 SIENNA_U (L/O 0408)
244
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
NOTICE
Benzene or alkaline solutions may
damage the coated surface of the
screen .
 To prevent the battery from being
discharged, do not turn on the rear
seat entertainment system longer
than necessary when the engine is
not running.
The rear seat entertainment system can
be operated with the rear seat entertain-
ment system controller and buttons on the
DVD player unit. The system cannot be
operated by touching the switches on the
screen directly.
CAUTION
Do not disassemble or modify the
controller. It may cause an accident,
fire or electric shock.
NOTICE
Keep the controller away from direct
sunlight, high heat and high humidity.
These conditions could cause the
case to deform or the battery to ex-
plode or leak.
BEFORE USING THE CONTROLLER
(for new vehicle owners)
A battery is already set in the control-
ler with an insulating sheet, which pre-
vents the battery from being dis-
charged. Before using the controller,
remove the insulating sheet according
to the following procedure.
—Rear seat entertainment
system controller

04 SIENNA_U (L/O 0408)
289
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and
the doubleD symbol are trademarks of
Dolby Laboratories. Confidential unpub-
lished works.
19921997 Dolby Laboratories. All
rights reserved.
This product incorporates copyright
protection technology that is protected
by method claims of certain U.S. pat-
ents and other intellectual property
rights owned by Macrovision Corpora-
tion and other rights owners. Use of
this copyright protection technology
must be authorized by Macrovision Cor-
poration, and is intended for home and
other limited viewing uses only unless
otherwise authorized by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.
“DTS” is a trademark of Digital Theater
Systems, Inc. The rear entertainment system plays vid-
eos and sound when your audio system
is connected to the input terminal adapter.
For details, refer to the manufacturer’s
instructions.
To use the input terminal adapter, open
the cover.
The input terminal adapter is composed of
3 input terminal adapters.
Yellow: Image input adapter
Red: Audio input adapter
White: Audio input adapter
NOTICE
Close the input terminal adapter cover
when the input terminal adapter is not
in use. Inserting a foreign object oth-
er than the appropriate plug that fits
the adapter may cause electrical fail-
ure or short circuit.
—Input terminal adapter
