Tire inflation pressure
Check the pressure with a gauge ev-
ery two weeks, or at least once a
month. See page 463 in Section 7−2
for additional information.
Tire surface and wheel nuts
Check the tires carefully for cuts,
damage or excessive wear. See page
466 in Section 7− 2 for additional in-
formation. When checking the tires,
make sure no nuts are missing, and
check the nuts for looseness. Tighten
them if necessary.
Tire rotation
Rotate the tires according to the
maintenance schedule. (For sched-
uled maintenance information, please
refer to the “Scheduled Maintenance
Guide” or “Owner ’s Manual Supple-
ment”.) See page 468 in Section 7 −2
for additional information.Be on the alert for changes in perfor-
mance, sounds, and visual tip −offs that
indicate service is needed. Some impor-
tant clues are as follows:
Engine missing, stumbling, or pinging
Appreciable loss of power
Strange engine noises
A leak under the vehicle (however, wa-
ter dripping from the air conditioning
after use is normal.)
Change in exhaust sound (This may
indicate a dangerous carbon monoxide
leak. Drive with the windows open and
have the exhaust system checked im-
mediately.)
Flat −looking tire; excessive tire squeal
when cornering; uneven tire wear
Vehicle pulls to one side when driving
straight on a level road
Strange noises related to suspension
movement
Loss of brake effectiveness; spongy
feeling brake pedal; pedal almost
touches floor; vehicle pulls to one side
when braking
Engine coolant temperature continually
higher than normal If you notice any of these clues, take your
vehicle to your Toyota dealer as soon as
possible. It probably needs adjustment or
repair.
CAUTION
Do not continue driving with the ve-
hicle unchecked. It could result in se-
rious vehicle damage and possibly
personal injury.
Does your vehicle need
repairing?

04 SIENNA_U (L/O 0408)
448
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

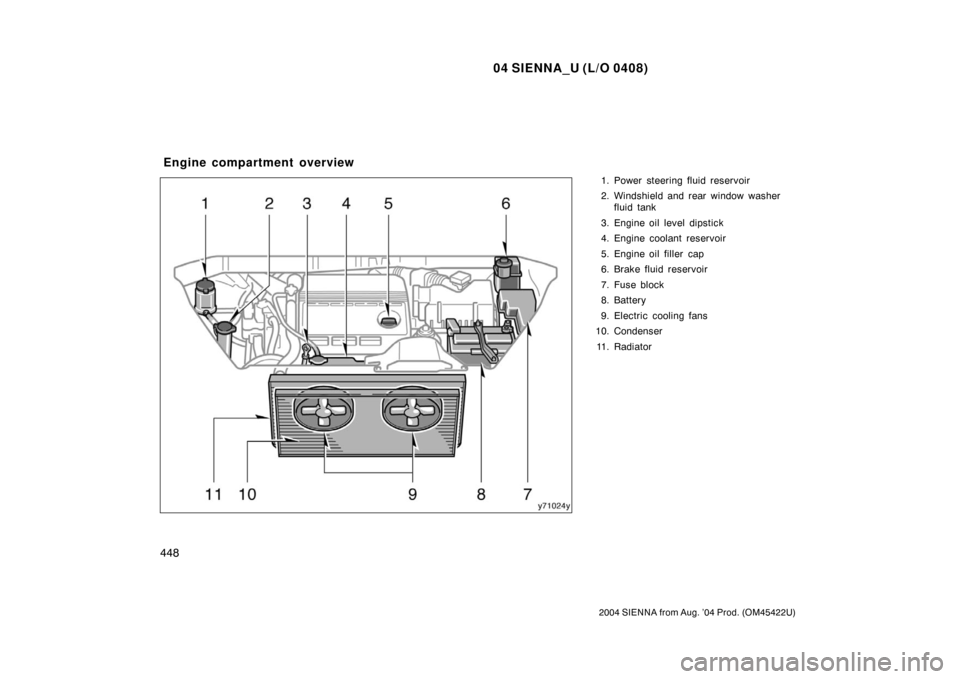

1. Power steering fluid reservoir
2. Windshield and rear window washerfluid tank
3. Engine oil level dipstick
4. Engine coolant reservoir
5. Engine oil filler cap
6. Brake fluid reservoir
7. Fuse block
8. Battery
9. Electric cooling fans
10. Condenser
11. Radiator
Engine compartment overview

04 SIENNA_U (L/O 0408)
460
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
If any of the above parts are extremely
dirty or you are not sure of their condi-
tion, take your vehicle to a Toyota dealer.
CAUTION
To prevent burning yourself, be care-
ful not to touch the radiator or con-
denser when the engine is hot.
NOTICE
To prevent damage to the radiator
and condenser, do not perform the
work by yourself.

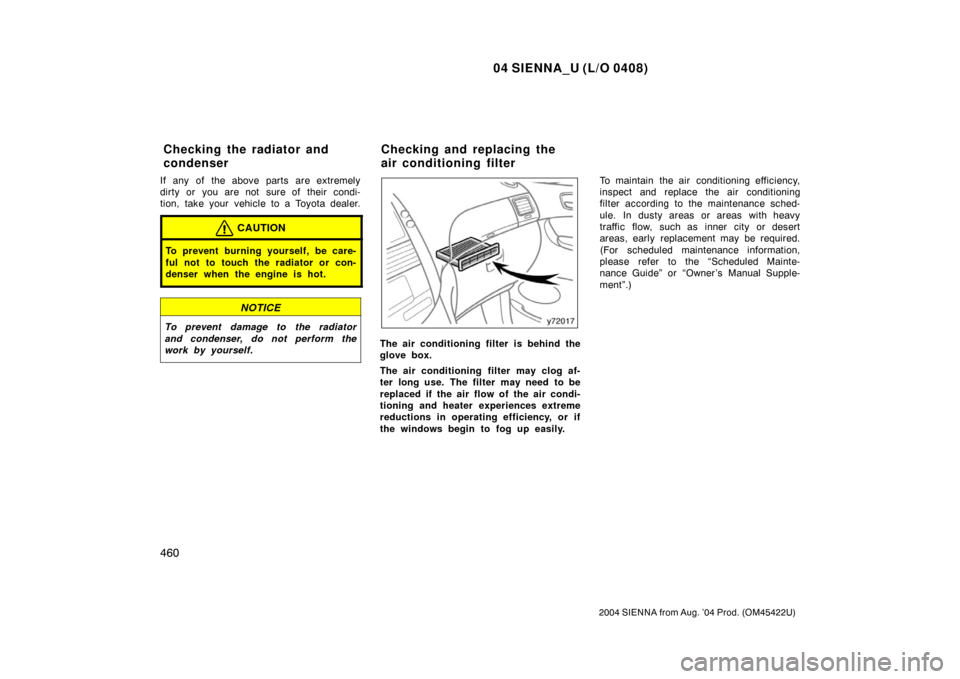

The air conditioning filter is behind the
glove box.
The air conditioning filter may clog af-
ter long use. The filter may need to be
replaced if the air flow of the air condi-
tioning and heater experiences extreme
reductions in operating efficiency, or if
the windows begin to fog up easily.To maintain the air conditioning efficiency,
inspect and replace the air conditioning
filter according to the maintenance sched-
ule. In dusty areas or areas with heavy
traffic flow, such as inner city or desert
areas, early replacement may be required.
(For scheduled maintenance information,
please refer to the “Scheduled Mainte-
nance Guide” or “Owner ’s Manual Supple-
ment”.)
Checking the radiator and
condenser
Checking and replacing the
air conditioning filter

04 SIENNA_U (L/O 0408)
477
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
NOTICE
Be sure the engine and all accesso-
ries are off before performing main-
tenance.
 When checking the battery, remove
the ground cable from the negative
terminal (“” mark) first and rein-
stall it last.
 Be careful not to cause a short cir-
cuit with tools.
 Take care no solution gets into the
battery when washing it.
If the battery is disconnected or run
down, the power window, power sliding
door, power back door and moon roof may
not operate automatically and the jam
protection function will not function cor-
rectly, and does not open the back door
after you reconnect, replace or recharge
the battery. In any of these cases, you
should normalize each system. To normal-
ize them, see “Power windows” on page
42, “Power sliding doors” on page 27,
“Power back door” on page 36 and “Elec-
tric moon roof” on page 53 in Section
1 −2.
Ty p e A
Green Dark Clear or
light yellow
Ty p e B Blue White Red
CHECKING BY INDICATOR
Check the battery condition by the indi-
cator color.
Indicator color
ConditionTy p e ATy p e B
GreenBlueGood
DarkWhite
Charging necessary.
Have battery
checked by your
Toyota dealer.
Clear orlight
yellow
Red
Have battery
checked by your
Toyota dealer.
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
2. Be sure the power switch on the re- charger is off when connecting the
charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an un-
confined area. Do not charge the
battery in a garage or closed room
where there is not sufficient ventila-
tion.
Only do a slow charge (5 A or
less). Charging at a quicker rate is
dangerous. The battery may ex-
plode, causing personal injuries.
NOTICE
Never recharge the battery while the
engine is running. Also, be sure all
accessories are turned off.
—Checking battery c ondition Battery recharging pr ecautions

04 SIENNA_U (L/O 0408)
493
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
13. DOME 10 A: Interior lights, personal
lights, vanity lights, door courtesy
lights, luggage compartment light, igni-
tion switch light, multi −information dis-
play
14. ECUB 10 A: Power sliding door, air
conditioning system, power windows,
multiplex communication system, meter
and gauge, wireless remote control
system
15. RAD NO.1 20 A: Audio system, navi-
gation system
16. SPARE 15 A: Spare fuse
17. SPARE 20 A: Spare fuse
18. SPARE 30 A: Spare fuse
19. SPARE 30 A: Spare fuse
20. SPARE 7.5 A: Spare fuse
21. HLP RH 10 A: Right−hand headlight
22. HLP LH 10 A: Left−hand headlight
23. RSE 7.5 A: Rear seat audio system,
rear seat entertainment system
24. MIR HTR 10 A: Outside rear view mir-
ror heaters
25. RAD2 7.5 A: Audio system, navigation
system, rear seat audio system, rear
seat entertainment system 26. PWR OUTLET 15 A:
Power outlets
27. CIG 15 A: Cigarette lighter
28. ECU ACC 7.5 A: Shift lock control
system, air c onditioning system, power
rear view mirror control
29. GAUGE2 7.5 A: Meter and gauge
30. IGN 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, SRS airbag system, multiplex
communication system
31. INJ 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
32. RR WIP 15 A: Rear window wiper
33. WIP 30 A: Windshield wiper and rear
window wiper
34. GAUGE1 10 A: Back−up lights, turn
signal lights, emergency flashers
35. SHTR 15 A: Seat heaters
36. WSH 20 A: Windshield washer and
rear window washer
37. HTR 10 A: Air conditioning system 38. ECUIG 10 A:
Toyota park assist sys-
tem, rear view monitor system, multi-
plex communication system, multiport
fuel injection system/sequential multi-
port fuel injection system, anti −lock
brake system, traction control system,
vehicle stability control system, shift
lock control system, dynamic laser
cruise control system, seat heaters,
power back door, electronic moon roof,
multi −information display, auto anti−
glare inside rear view mirror, power
windows, power outlets (115V)
39. PANEL 10 A: Air conditioning system,
seat heaters, audio system, navigation
system, power sliding door, power back
door, multi −information display, rear
wi

ndow defogger, emergency flashers,
instrument panel lights, steering switch
lights
40. TAIL 10 A: Stop/tail lights, license
plate lights, parking lights, side marker
lights
41. S/ROOF 25 A: Electronic moon roof
42. AC INV 15 A: Power outlets (115V)
43. FR DEF 15 A: Windshield wiper de−
icer
44. AM1 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system

04 SIENNA_U (L/O 0408)
494
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
45. STOP 10 A: Stop/tail lights, high
mounted stoplight, shift lock control
system, anti −lock brake system, trac-
tion control system, vehicle stability
control system, multiport fuel injection
system/s equential multiport fuel injec-
tion system, multiplex communication
system
46. P/W 25 A: Power windows
47. OBD 7.5 A: On−board diagnosis sys-
tem
48. FOG 15 A: Front fog lights
49. P/VENT 15 A: Power quarter windows
50. ST 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
51. A/C 7.5 A: Manual air conditioning sys-
tem
Fuses (type B)
52. MAIN 30 A: Headlights, daytime run-
ning light system, “H −LP RL” and “H −
LP LL” fuses
53. AM2 30 A: “INJ”, “IGN” and “GAUGE2”
fuses
54. P/SEAT 30 A: Power seats
55. PWR 30 A: Power windows Fuses (type C)
56. SPARE 50 A: Spare fuse
57. HTR 50 A: Air conditioning system,
“A/C” fuse
58. FAN 50 A: Electric cooling fans
59. PBD 30 A: Power back door
60. RPSD 30 A: Right side power sliding
door
61. LPSD 30 A: Left side power sliding
door
62. RR A/C 40 A: Rear air conditioning
system
63. DEF 40 A: Rear window defogger,
“MIR HTR” fuse
64. ABS1 50 A: Anti−lock brake system,
traction control system, vehicle stability
control system
65. ABS2 30 A: Anti−lock brake system,
traction control system, vehicle stability
control system
66. ST 30 A: Starting system
Fuse (type D)
67. ALT 140 A: Charging system, “RR
A/C”, “HTR”, “FAN”, “PBD”, “R− PSD”,
“L −PSD” and “DEF” fuses
