fuse TOYOTA SIENNA 2004 XL20 / 2.G Owners Manual

04 SIENNA_U (L/O 0408)
340
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
If a bright light (for example, sunlight re-
flected off the vehicle body) is picked up
by the camera, the smear effect
∗ peculiar
to the camera may occur.
∗: Smear effect—A phenomenon that oc-
curs when a bright light (for example, sun-
light reflected off the vehicle body) is
picked up by the camera; when trans-
mitted by the camera, the light source
appears to have a vertical streak above
and below it.
Front
Rear

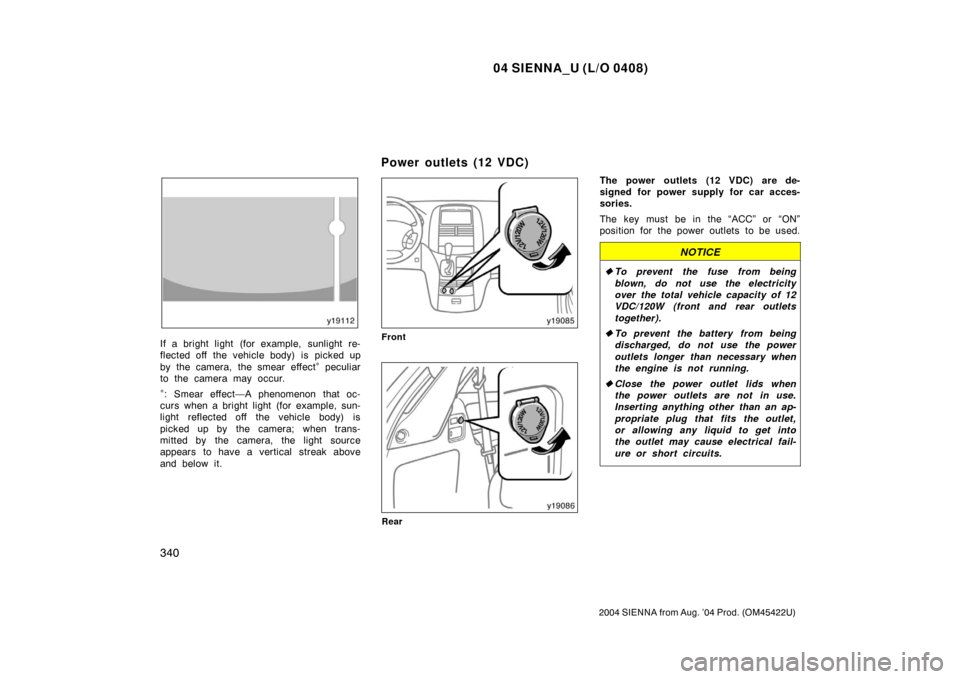

The power outlets (12 VDC) are de-
signed for power supply for car acces-
sories.
The key must be in the “ACC” or “ON”
position for the power outlets to be used.
NOTICE
 To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of 12
VDC/120W (front and rear outlets
together).
 To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
 Close the power outlet lids when
the power outlets are not in use.
Inserting anything other than an ap-
propriate plug that fits the outlet,
or allowing any liquid to get into
the outlet may cause electrical fail-
ure or short circuits.
Power outlets (12 VDC)

04 SIENNA_U (L/O 0408)
447
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
DOITYOURSELF MAINTENANCE
Introduction
Engine compartment overview448
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse locations 449
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Do −it− yourself service precautions 450
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Positioning the jack 451
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Parts and tools 453
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
SECTION 7 1

04 SIENNA_U (L/O 0408)
448
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
1. Power steering fluid reservoir
2. Windshield and rear window washerfluid tank
3. Engine oil level dipstick
4. Engine coolant reservoir
5. Engine oil filler cap
6. Brake fluid reservoir
7. Fuse block
8. Battery
9. Electric cooling fans
10. Condenser
11. Radiator
Engine compartment overview

04 SIENNA_U (L/O 0408)
449
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

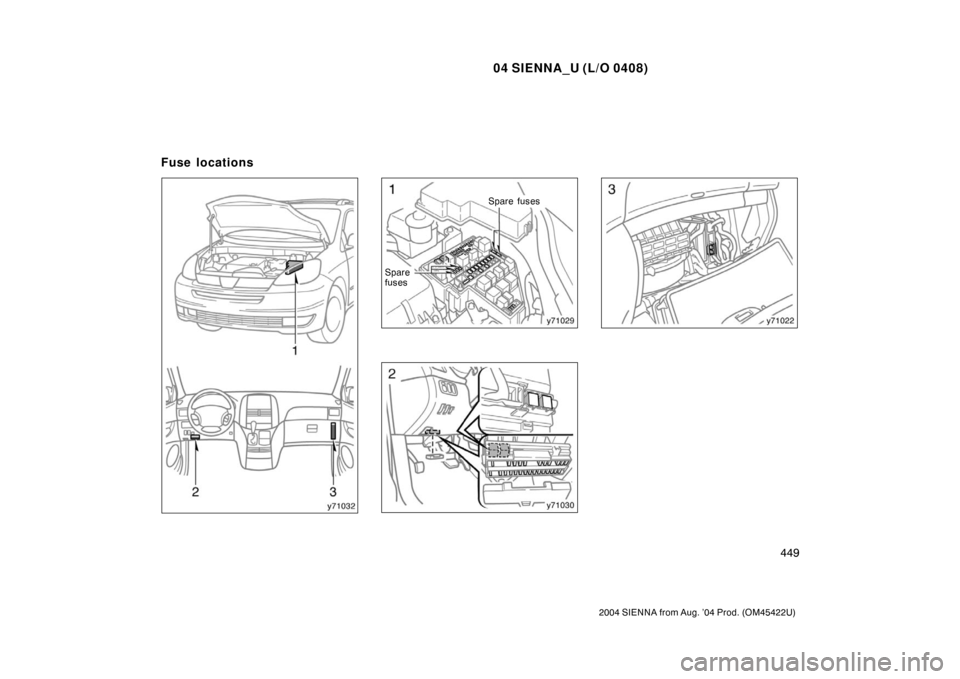

Spare fuses
Spare
fuses
Fuse locations

04 SIENNA_U (L/O 0408)
453
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Here is a list of parts and tools you will
need to perform do−it−yourself mainte-
nance. Remember all Toyota parts are de-
signed in metric sizes, so your tools must
be metric.
CHECKING THE ENGINE OIL LEVEL
Parts (if level is low):
“Toyota Genuine Motor Oil” or equiva-
lent
See page 456 in Section 7 −2 for de-
tails about engine oil selection.
Tools:
Rag or paper towel
Funnel (only for adding oil)
CHECKING THE ENGINE COOLANT
LEVEL
Parts (if level is low):
“Toyota Genuine Long Life Coolant” or
equivalent
See page 458 in Section 7 −2 for de-
tails about coolant type selection.
Demineralized or distilled water
Tools:
Funnel (only for adding coolant) CHECKING BRAKE FLUID
Parts (if level is low):
SAE J1703 or FMVSS No.116 DOT 3
brake fluid
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING POWER STEERING FLUID
Parts (if level is low):
Automatic transmission fluid
DEXRON®II or III
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING BATTERY CONDITION
Tools:
Warm water
Baking soda
Grease
Conventional wrench (for terminal
clamp bolts) CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):
Genuine Toyota fuse or equivalent with
same amperage rating as original
ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze (for
winter use)
Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in
“Replacing light bulbs” on page 480 in
Section 7 −3.)
Tools:
Screwdriver
Wrench
Parts and tools

04 SIENNA_U (L/O 0408)
475
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
DOITYOURSELF MAINTENANCE
Electrical components
Checking battery condition476
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 477
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses 478
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 479
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Replacing light bulbs 480
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 7 3

04 SIENNA_U (L/O 0408)
478
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

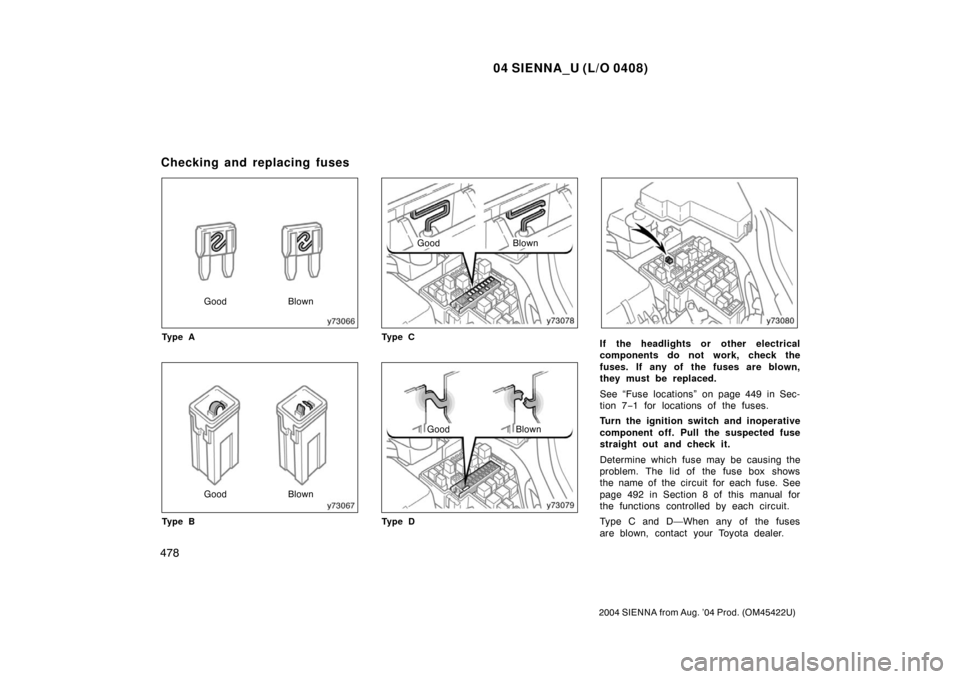

GoodBlown
Ty p e A
Good Blown
Ty p e B
Good Blown
Ty p e C
Good Blown
Ty p e D
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 449 in Sec-
tion 7 −1 for locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 492 in Section 8 of this manual for
the functions controlled by each circuit.
Type C and D—When any of the fuses
are blown, contact your Toyota dealer.
Checking and replacing fuses

04 SIENNA_U (L/O 0408)
479
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Type A fuses can be pulled out by the
pull−out tool. The location of the pull −out
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “HTR” (10
A), “AC INV” or “RAD NO.1” fuse, which
may be dispensable for normal driving,
and use it if its amperage rating is the
same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies. If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.
If any washer does not work or the low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Adding washer fluid

04 SIENNA_U (L/O 0408)
487
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
SPECIFICATIONS
Specifications
Dimensions and weights488
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Engine 488
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 489
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 489
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 491
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 492
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

04 SIENNA_U (L/O 0408)
492
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

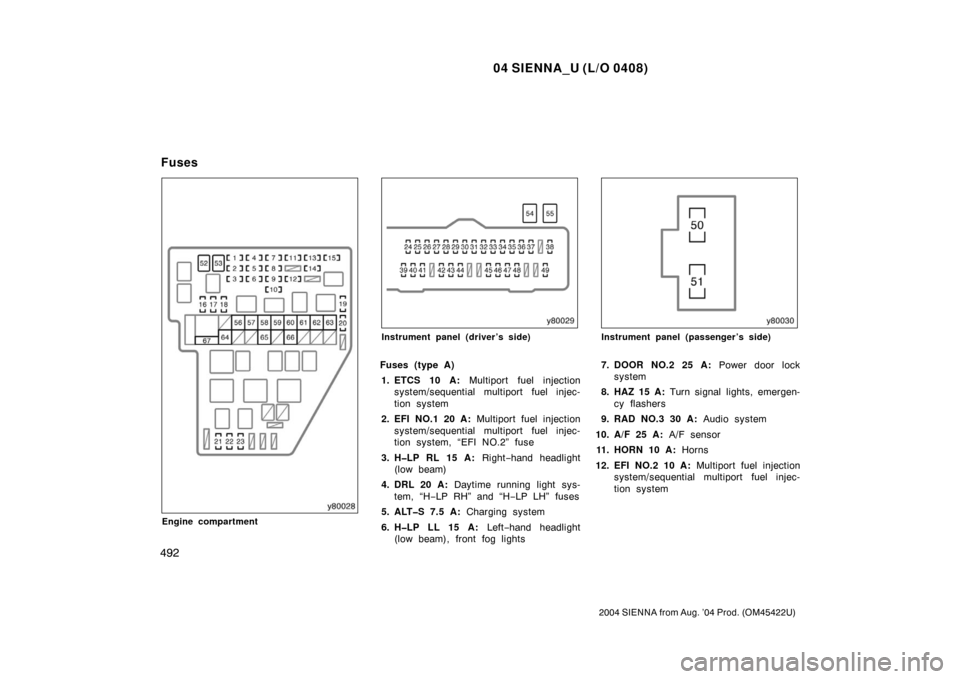

Engine compartment
Instrument panel (driver’s side)
Fuses (type A)1. ETCS 10 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system
2. EFI NO.1 20 A: Multiport fuel injection
system/se quential multiport fuel injec-
tion system, “EFI NO.2” fuse
3. HLP RL 15 A: Right−hand headlight
(low beam)
4. DRL 20 A: Daytime running light sys-
tem, “H −LP RH” and “H −LP LH” fuses
5. ALTS 7.5 A: Charging system
6. HLP LL 15 A: Left−hand headlight
(low beam), front fog lights
Instrument panel (passenger’s side)
7. DOOR NO.2 25 A: Power door lock
system
8. HAZ 15 A: Turn signal lights, emergen-
cy flashers
9. RAD NO.3 30 A: Audio system
10. A/F 25 A: A/F sensor
11. HORN 10 A: Horns
12. EFI NO.2 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
Fuses
