TOYOTA SIENNA 2005 XL20 / 2.G Navigation Manual

131
CHANGING THE AUDIO FORMAT
DVD audio only —
Each time you touch “Audio”, another au-
dio format stored on the disc is selected.
When you touch “Back”, the previous screen
returns.CHANGING THE ANGLE
The angle can be selected for discs that
are multiangle compatible when the
angle mark appears on the screen.
Each time you touch “Angle”, the angle
changes.
When you touch “Back”, and the previous
screen returns.Setup Menu 1 screen
Setup Menu 2 screen

132 SETUP MENU
There are initial setting switches on the
“Setup Menu 1” screen and “Setup Menu
2” screen.
To change the screen, touch the “Page1” or
“Page2” switch on the screen.
After you change the initial setting, touch the
“Enter” switch. The initial setting switch will
be turned off and return to the picture pre-
viously.
When the “Default” switch on “Setup Menu 2”
is touched, all menus are initialized.
The initial setting can be changed.
Audio language
You can change the audio language.
1. Touch “Audio Language”.
2. Touch the language you want to hear
on the “Select Audio Language” screen.
If you cannot find the language you want to
hear on this screen, touch “Others” and enter
a language code. For the entry of language
code, see the following “ENTER SUBTITLE
LANGUAGE CODE”.
Subtitle language
You can change the subtitle language.
1. Touch “Subtitle Language”.
2. Touch a language you want to read on
the “Select Subtitle Lang.” screen.If you cannot find the language you want to
read on this screen, touch “Others” and enter
a language code. For the entry of language
code, see the following “ENTER SUBTITLE
LANGUAGE CODE”.
To return to the “Setup Menu 1” screen, touch
the “Back” switch.
DVD language
You can change the language on the DVD
video menu.
1. Touch “DVD Language”.
2. Touch the language you want to read
on the “Select DVD Language” screen.
If you cannot find the language you want to
read on this screen, touch “Others” and enter
a language code. For the entry of language
code, see the following “ENTER SUBTITLE
LANGUAGE CODE”.
To return to the “Setup Menu 1” screen, touch
the “Back” switch.
Angle mark
The multiangle mark can be turned on or
off on the screen while the disc which is
multiangle compatible is being played.
Each time you touch “Angle Mark”, the
angle mark on the screen turns on or off al-
ternately.
Parental lock
The level of viewer restrictions can be
changed.1. Touch “Parental Lock”.
2. Enter the 4digit personal code on the
“Enter Personal Code” screen.
If you enter the wrong numbers, touch “Clear”
to delete the numbers.
10 touches of “Clear” will initialized the per-
sonal code.
To return to the “Setup Menu 1” screen, touch
the “Back” switch.
3. Touch a parental level (1 — 8) on the
“Select Restriction Level”. Touch the
“Back” switch to return to the “Setup
Menu 1” screen.
Each time you touch the “Display Mode”
on the “Setup Menu 2” screen, the display
mode is changed from wide mode to auto
mode.

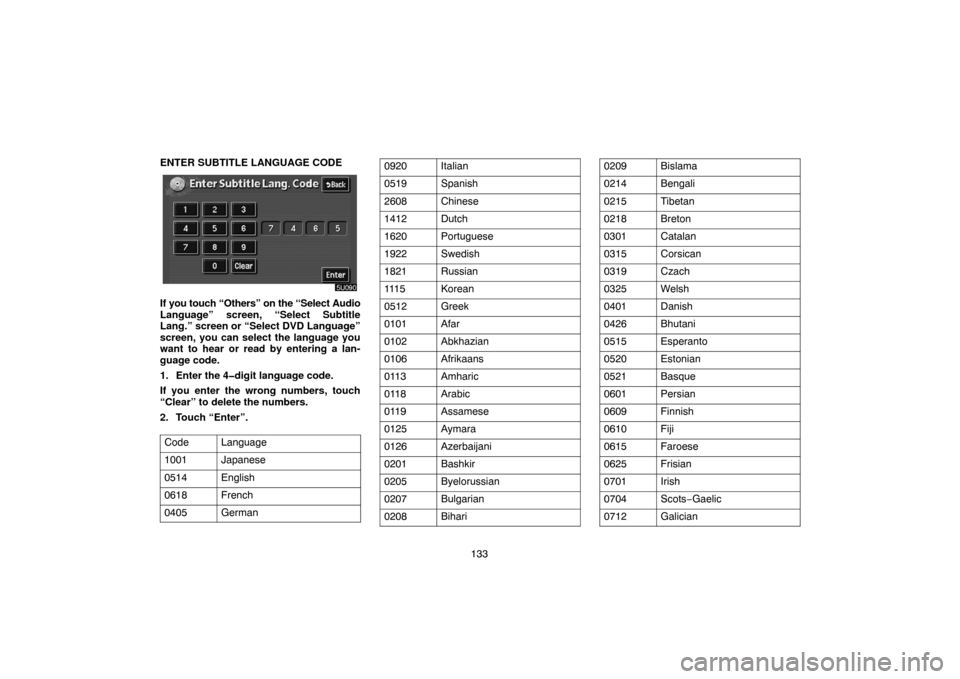

133 ENTER SUBTITLE LANGUAGE CODE
If you touch “Others” on the “Select Audio
Language” screen, “Select Subtitle
Lang.” screen or “Select DVD Language”
screen, you can select the language you
want to hear or read by entering a lan-
guage code.
1. Enter the 4digit language code.
If you enter the wrong numbers, touch
“Clear” to delete the numbers.
2. Touch “Enter”.
Code
Language
1001Japanese
0514English
0618French
0405German
0920Italian
0519Spanish
2608Chinese
1412Dutch
1620Portuguese
1922Swedish
1821Russian
111 5Korean
0512Greek
0101Afar
0102Abkhazian
0106Afrikaans
0113Amharic
0118Arabic
0119Assamese
0125Aymara
0126Azerbaijani
0201Bashkir
0205Byelorussian
0207Bulgarian
0208Bihari
0209Bislama
0214Bengali
0215Tibetan
0218Breton
0301Catalan
0315Corsican
0319Czach
0325Welsh
0401Danish
0426Bhutani
0515Esperanto
0520Estonian
0521Basque
0601Persian
0609Finnish
0610Fiji
0615Faroese
0625Frisian
0701Irish
0704Scots−Gaelic
0712Galician

134 0714
Guarani
0721Gujarati
0801Hausa
0809Hindi
0818Croatian
0821Hungarian
0825Armenian
0901Interlingua
0905Interlingue
0911Inupiak
0914Indonesian
0919Icelandic
0923Hebrew
1009Yiddish
1023Javanese
1101Georgian
1111Kazakh
111 2Greenlandic
111 3Cambodian
111 4Kannada
111 9Kashmiri
1121Kurdish
1125Kirghiz
1201Latin
1214Lingala
1215Laothian
1220Lithuanian
1222Latvian
1307Malagasy
1309Maori
1311Macedonian
1312Malayalam
1314Mongolian
1315Moldavian
1318Marathi
1319Malay
1320Maltese
1325Burmese
1401Nauru
1405Nepali
1415Norwegian
1503Occitan
1513(Afan)Oromo
1518Oriya
1601Panjabi
1612Polish
1619Pashto, Pushto
1721Quechua
1813Rhaeto−Romance
1814Kirundi
1815Romanian
1823Kinyarwanda
1901Sanskrit
1904Sindhi
1907Sangho
1908Serbo−Croatian
1909Sinhalese
1911Slovak
1912Slovenian
1913Samoan
1914Shona
1915Somali
1917Albanian

135 1918
Serbian
1919Siswati
1920Sesotho
1921Sundanese
1923Swahili
2001Tamil
2005Telugu
2007Tajik
2008Thai
2009Tigrinya
2011Turkmen
2012Tagalog
2014Setswana
2015Tonga
2018Turkish
2019Tsonga
2020Tatar
2023Tw i
2111Ukrainian
2118Urdu
2126Uzbek
2209Vietnamese
2215Volapük
2315Wolof
2408Xhosa
2515Yoruba
2621Zulu
(f) Operating a video CD

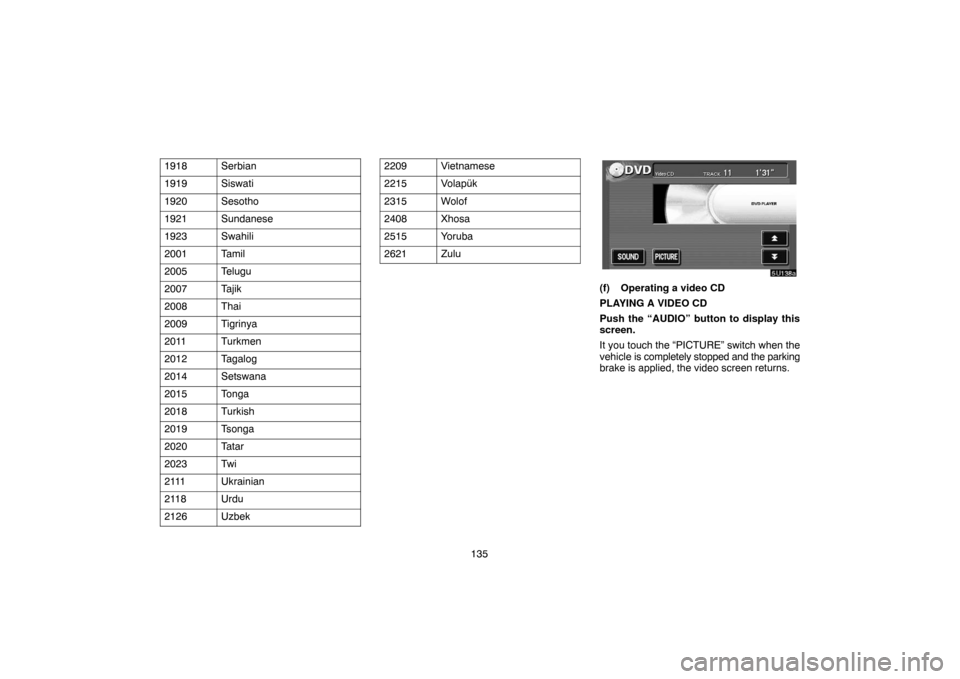

PLAYING A VIDEO CD
Push the “AUDIO” button to display this
screen.
It you touch the “PICTURE” switch when the
vehicle is completely stopped and the parking
brake is applied, the video screen returns.

136

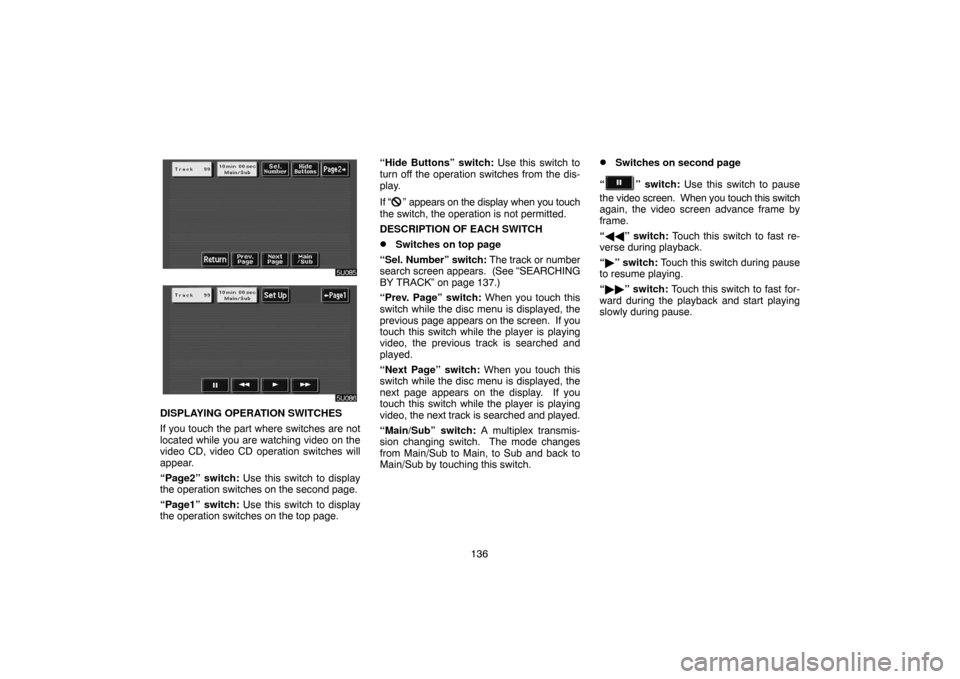

DISPLAYING OPERATION SWITCHES
If you touch the part where switches are not
located while you are watching video on the
video CD, video CD operation switches will
appear.
“Page2” switch: Use this switch to display
the operation switches on the second page.
“Page1” switch: Use this switch to display
the operation switches on the top page.“Hide Buttons” switch: Use this switch to
turn off the operation switches from the dis-
play.
If “
” appears on the display when you touch
the switch, the operation is not permitted.
DESCRIPTION OF EACH SWITCH
Switches on top page
“Sel. Number” switch: The track or number
search screen appears. (See “SEARCHING
BY TRACK” on page 137.)
“Prev. Page” switch: When you touch this
switch while the disc menu is displayed, the
previous page appears on the screen. If you
touch this switch while the player is playing
video, the previous track is searched and
played.
“Next Page” switch: When you touch this
switch while the disc menu is displayed, the
next page appears on the display. If you
touch this switch while the player is playing
video, the next track is searched and played.
“Main/Sub” switch: A multiplex transmis-
sion changing switch. The mode changes
from Main/Sub to Main, to Sub and back to
Main/Sub by touching this switch.
Switches on second page
“
” switch: Use this switch to pause
the video screen. When you touch this switch
again, the video screen advance frame by
frame.
“” switch: Touch this switch to fast re-
verse during playback.
“” switch: Touch this switch during pause
to resume playing.
“” switch: Touch this switch to fast for-
ward during the playback and start playing
slowly during pause.

137

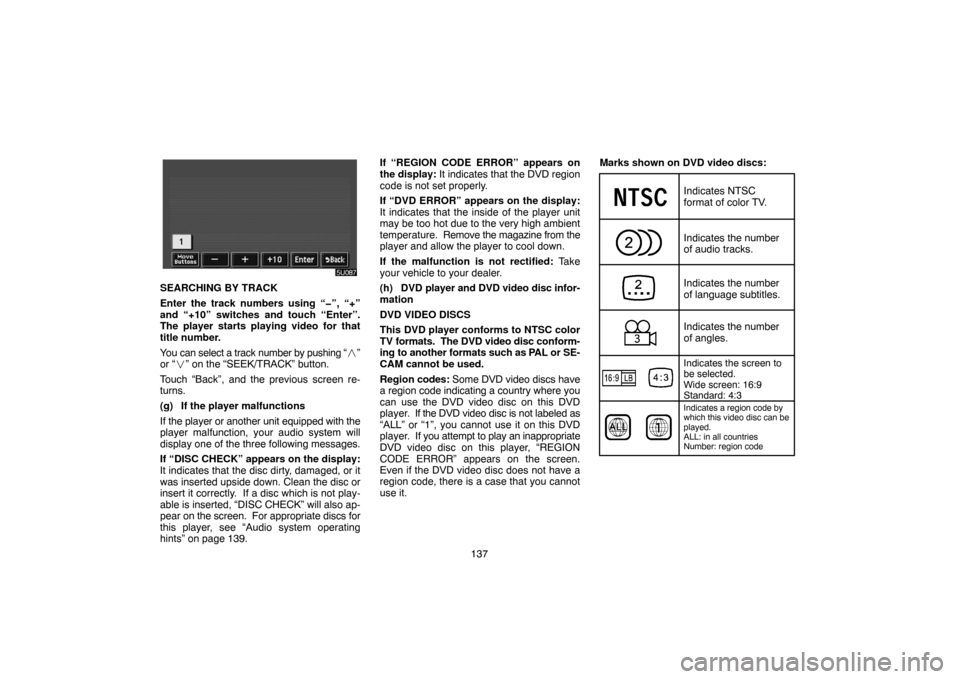

SEARCHING BY TRACK
Enter the track numbers using “”, “+”
and “+10” switches and touch “Enter”.
The player starts playing video for that
title number.
You can select a track number by pushing “”
or “” on the “SEEK/TRACK” button.
Touch “Back”, and the previous screen re-
turns.
(g) If the player malfunctions
If the player or another unit equipped with the
player malfunction, your audio system will
display one of the three following messages.
If “DISC CHECK” appears on the display:
It indicates that the disc dirty, damaged, or it
was inserted upside down. Clean the disc or
insert it correctly. If a disc which is not play-
able is inserted, “DISC CHECK” will also ap-
pear on the screen. For appropriate discs for
this player, see “Audio system operating
hints” on page 139.If “REGION CODE ERROR” appears on
the display: It indicates that the DVD region
code is not set properly.
If “DVD ERROR” appears on the display:
It indicates that the inside of the player unit
may be too hot due to the very high ambient
temperature. Remove the magazine from the
player and allow the player to cool down.
If the malfunction is not rectified: Take
your vehicle to your dealer.
(h) DVD player and DVD video disc infor-
mation
DVD VIDEO DISCS
This DVD player conforms to NTSC color
TV formats. The DVD video disc conform-
ing to another formats such as PAL or SE-
CAM cannot be used.
Region codes: Some DVD video discs have
a region code indicating a country where you
can use the DVD video disc on this DVD
player. If the DVD video disc is not labeled as
“ALL” or “1”, you cannot use it on this DVD
player. If you attempt to play an inappropriate
DVD video disc on this player, “REGION
CODE ERROR” appears on the screen.
Even if the DVD video disc does not have a
region code, there is a case that you cannot
use it.Marks shown on DVD video discs:
Indicates NTSC
format of color TV.
Indicates the number
of audio tracks.
Indicates the number
of language subtitles.
Indicates the number
of angles.
Indicates the screen to
be selected.
Wide screen: 16:9
Standard: 4:3
Indicates a region code by
which this video disc can be
played.
ALL: in all countries
Number: region code

138 DVD VIDEO DISC GLOSSARY
DVD video discs: Digital versatile Disc that
holds video. DVD video discs have adopted
“MPEG2”, one of the world standards of digi-
tal compression technologies. The picture
data is compressed by 1/40 on average and
stored. Variable rate encoded technology in
which the volume of data assigned to the pic-
ture is changed depending on the picture for-
mat has also been adopted. Audio data is
stored using PCM and Dolby digital, which
enables higher quality of sound. Further-
more, multi−angle and multi−language fea-
tures will also help you enjoy the more ad-
vanced technology of DVD video.
Viewer restrictions: This feature limits what
can be viewed in conformity with a level of re-
strictions of the country. The level of restric-
tions varies depending on the DVD video
disc. Some DVD video discs cannot be
played at all, or violent scenes are skipped or
replaced with other scenes.
Level 1: DVD video discs for children can be
played.
Level 2 − 7: DVD video discs for children and
G−rated movie can be played.
Level 8: All types of the DVD video discs can
be played.
Multiangle feature: You can enjoy the
same scene at different angles.Multilanguage feature: You can select a
language of the subtitle and audio.
Region codes: The region codes are pro-
vided on DVD players and DVD discs. If the
DVD video disc does not have the same re-
gion code as the DVD player, you cannot play
the disc on the DVD player. For region codes,
see page 137.
Audio: This DVD player can play liner PCM,
Dolby digital and MPEG audio format DVD.
Other decoded type cannot be played.
Title and chapter: Video and audio pro-
grams stored in DVD video disc are divided in
parts by title and chapter.
Title: The largest unit of the video and audio
programs stored on DVD video discs. Usual-
ly, one piece of movie, one album, or one au-
dio program is assigned as a title.
Chapter: The unit smaller than that of title. A
title comprises plural chapters.
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and
the doubleD symbol are trademarks of
Dolby Laboratories. Confidential unpub-
lished works.
19921997 Dolby Laboratories. All
rights reserved.This product incorporates copyright
protection technology that is protected by
method claims of certain U.S. patents and
other intellectual property rights owned
by Macrovision Corporation and other
rights owners. Use of this copyright
protection technology must be authorized
by Macrovision Corporation, and is in-
tended for home and other limited viewing
uses only unless otherwise authorized by
Macrovision Corporation. Reverse engi-
neering or disassembly is prohibited.
“DTS” is a trademark of Digital Theater
Systems, Inc.

139
Audio system operating hints
NOTICE
To ensure correct audio system opera-
tions:
Be careful not to spill beverages over
the audio system.
Do not put anything other than a
Compact Disc into the slot.
Do not put anything other than an ap-
propriate disc into the DVD player.
The use of a cellular phone inside or
near the vehicle may cause a noise
from the speakers of the audio sys-
tem which you are listening to. How-
ever, this does not indicate a mal-
function.
RADIO RECEPTION
Usually, a problem with radio reception does
not mean there is a problem with your radio —
it is just the normal result of conditions outside
the vehicle.For example, nearby buildings and terrain
can interfere with FM reception. Power lines
or telephone wires can interfere with AM sig-
nals. And of course, radio signals have a lim-
ited range. The farther you are from a station,
the weaker its signal will be. In addition, re-
ception conditions change constantly as your
vehicle moves.
Here are some common reception problems
that probably do not indicate a problem with
your radio:
FM
Fading and drifting stations — Generally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may no-
tice fading and drifting, which increase with
the distance from the radio transmitter. They
are often accompanied by distortion.
Multi−path — FM signals are reflective, mak-
ing it possible for two signals to reach your an-
tenna at the same time. If this happens, the
signals will cancel each other out, causing a
momentary flutter or loss of reception.
Static and fluttering — These occur when sig-
nals are blocked by buildings, trees, or other
large objects. Increasing the bass level may
reduce static and fluttering.Station swapping — If the FM signal you are
listening to is interrupted or weakened, and
there is another strong station nearby on the
FM band, your radio may tune in the second
station until the original signal can be picked
up again.
AM
Fading — AM broadcasts are reflected by the
upper atmosphere — especially at night.
These reflected signals can interfere with
those received directly from the radio station,
causing the radio station to sound alternately
strong and weak.
Station interference — When a reflected sig-
nal and a signal received directly from a radio
station are very nearly the same frequency,
they can interfere with each other, making it
difficult to hear the broadcast.
Static — AM is easily affected by external
sources of electrical noise, such as high ten-
sion power lines, lightening, or electrical mo-
tors. This results in static.

140 CARING FOR YOUR COMPACT DISC
PLAYER, DVD PLAYER AND DISCS
Your compact disc player is intended for
use with 12 cm (4.7 in.) discs only.
Extremely high temperatures can keep
your compact disc player and DVD player
from working. On hot days, use the air
conditioning to cool the vehicle interior be-
fore you use the players.
Bumpy roads or other vibrations may
make your compact disc player and DVD
player skip.
If moisture gets into your compact disc
player and DVD player, you may not play
even though they appear to be working.
Remove the disc from the player and wait
until it dries.
CAUTION
Compact disc players and DVD players
use an invisible laser beam which could
cause hazardous radiation exposure if
directed outside the unit. Be sure to op-
erate the players correctly.
Compact disc player
Use only compact discs marked as shown
above. The following products may not be
playable on your compact disc player.
Copy−protected CD
CD−R (CD−Recordable)
CD−RW (CD−Re−writable)
CD−ROM
Audio CDs
DVD video
discs
Video CDs
DVD audio
discs
DVD player
Use only discs marked as shown above.
The following products may not be play-
able on your DVD player.
SACD
Copy−protected CD
CD−R (CD−Recordable)
CD−RW (CD−Re−writable)
CD−ROM
DVD−R
DVD+R
DVD−RW
DVD+RW
DVD−ROM
DVD−RAM
