TOYOTA SIENNA 2005 XL20 / 2.G Owners Manual

05 SIENNA_U (L/O 0409)
353
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
The box is designed to store a garage
door opener transmitter.
Open the cover and remove the Velcro
loop.Remove the paper strip covering the adhe-
sive on back side of loop and adhere loop
to back side of the transmitter near cen-
ter.Please note if transmitter has wire clip for
sun visor, this clip must be removed prior
to adhesion of the Velcro.
Garage door opener box

05 SIENNA_U (L/O 0409)
354
2005 SIENNA from Sep. ’04 Prod. (OM45431U)

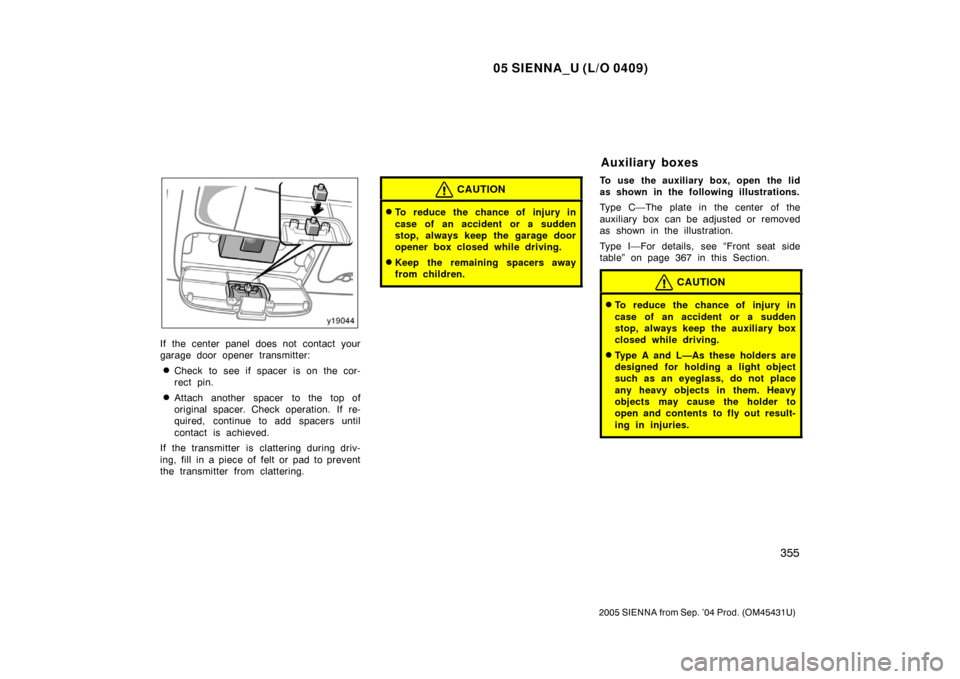

Place the transmitter with Velcro loop fac-
ing inside of box into the box. Make sure
the transmitter button is located above
button pins.Remove spacers from the center panel.
Place one spacer on the pin that would be
below transmitter button when the cover is
closed. Close the cover.When the garage door opener transmitter
is properly installed, you can operate the
transmitter by pushing the center panel of
the cover.

05 SIENNA_U (L/O 0409)
355
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
If the center panel does not contact your
garage door opener transmitter:
Check to see if spacer is on the cor-
rect pin.
Attach another spacer to the top of
original spacer. Check operation. If re-
quired, continue to add spacers until
contact is achieved.
If the transmitter is clattering during driv-
ing, fill in a piece of felt or pad to prevent
the transmitter from clattering.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the garage door
opener box closed while driving.
Keep the remaining spacers away
from children.
To use the auxiliary box, open the lid
as shown in the following illustrations.
Type C—The plate in the center of the
auxiliary box can be adjusted or removed
as shown in the illustration.
Type I—For details, see “Front seat side
table” on page 367 in this Section.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
Type A and L—As these holders are
designed for holding a light object
such as an eyeglass, do not place
any heavy objects in them. Heavy
objects may cause the holder to
open and contents to fly out result-
ing in injuries.
Auxiliary boxes

05 SIENNA_U (L/O 0409)
356
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
NOTICE
Type A and L—During hot weather,
the interior of the vehicle becomes
very hot. Do not leave anything
flammable or deformable such as a
lighter, glasses, etc. inside.
 Type L—To prevent damage to the
auxiliary box, do not place any ob-
ject heavier than 250 g (0.55 lb.) in
it.
Type A (driver’s side roof)
Type B (instrument panel)
Position 1 Position 2
Type C (instrument panel without seat
heater switches)

05 SIENNA_U (L/O 0409)
357
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
Type D (instrument panel with seat heater
switches)
Type E (upper side of the glove box)
Type F (front door)
Type G (quarter trim)
Type H (spare tire cover)
Type I (front seat side table)

05 SIENNA_U (L/O 0409)
358
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
Type J (rear side of console box)
Type K (front passenger’s seat)
Type L (center roof with rear seat audio
system)To use the coin holder, push the but-
ton.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop
while driving, keep the coin holder
closed when it is not in use.
Coin holder

05 SIENNA_U (L/O 0409)
359
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
The cup holder is designed for holding
cups or drinkcans. To use them, ob-
serve the following illustrations.
Type C and D—For details, see “Front
seat side table” on page 367 in this Sec-
tion.
Type G—For details, see “Removable con-
sole box” on page 362 in this Section.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about and possibly injure
people in the vehicle during sudden
braking or in an accident.
Type A and F—To reduce the
chance of injury in case of an acci-
dent or a sudden stop while driv-
ing, keep the cup holder closed
when it is not in use.
Type A (instrument panel)
Type B (quarter trim)
Type C (front side of the front seat side
table)
Type D (rear side of the front seat side
table)
Cup holders

05 SIENNA_U (L/O 0409)
360
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
Type E (front side of console box)
Type F (rear side of console box)
Type G (console box tray)

05 SIENNA_U (L/O 0409)
361
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
Front door
Sliding door
The bottle holders are designed to hold
bottles securely.
CAUTION
Do not attempt to use the holder for
any other purpose for which it was
intended. Inappropriately sized or
shaped objects may be thrown about
in the compartment and possibly in-
jure people in the vehicle during a
sudden braking or an accident.
NOTICE
Do not put a cup or open bottle in
the bottle holder because the con-
tents may spill when the door opens
or closes.
This box is designed to place things
like bottles.
Bottle holdersStorage box

05 SIENNA_U (L/O 0409)
362
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
UPPER TRAY
To access the upper tray, raise the con-
sole box lid.
CONSOLE BOX
To access the console box, pull up the
lock release lever and raise the console
box lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
Removable console box
