Compact spare tire
The compact spare tire is designed
for temporary emergency use only.
The compact spare tire is identified
by the distinctive wording
“TEMPORARY USE ONLY” molded
into the side wall of the tire.
The compact spare tire saves space
in your luggage compartment, and its
lighter weight helps to improve fuel
economy and permits easier installa-
tion in case of a flat tire.The compact spare tire can be used
many times, if necessary. It has tread
life of up to 4800 km (3000 miles) de-
pending on road conditions and your
driving habits. When tread wear indi-
cators appear on the tire, replace the
tire.
See also the tire information on page
471 in Section 7−
2 for details on the
tread wear indicators and other ser-
vice information.CAUTION
 The compact spare tire was de-
signed especially for your To-
yota. Do not use it on any other
vehicle.
 Do not use more than one com-
pact spare tire at the same
time.
 The pressure for the compact
spare tire must be 420 kPa (4.2
kgf/cm
2 or bar, 60 psi).
 Do not exceed 80 km/h (50
mph) when driving with the
compact spare tire.
Replace the compact spare tire
with the standard tire as soon
as possible.
 Avoid sudden a cceleration,
sudden d eceleration and sharp
turns with the compact spare
tire.
NOTICE
Your ground clearance is re-
duced when the compact spare
tire is installed so avoid driving
over obstacles and drive slowly
on rough, unpaved roads and
speed bumps. Also, do not at-
tempt to go through an auto-
matic car wash as the vehicle
may get caught, resulting in
damage.
—Compact spare tire

05 SIENNA_U (L/O 0409)
424
2005 SIENNA from Sep. ’04 Prod. (OM45431U)

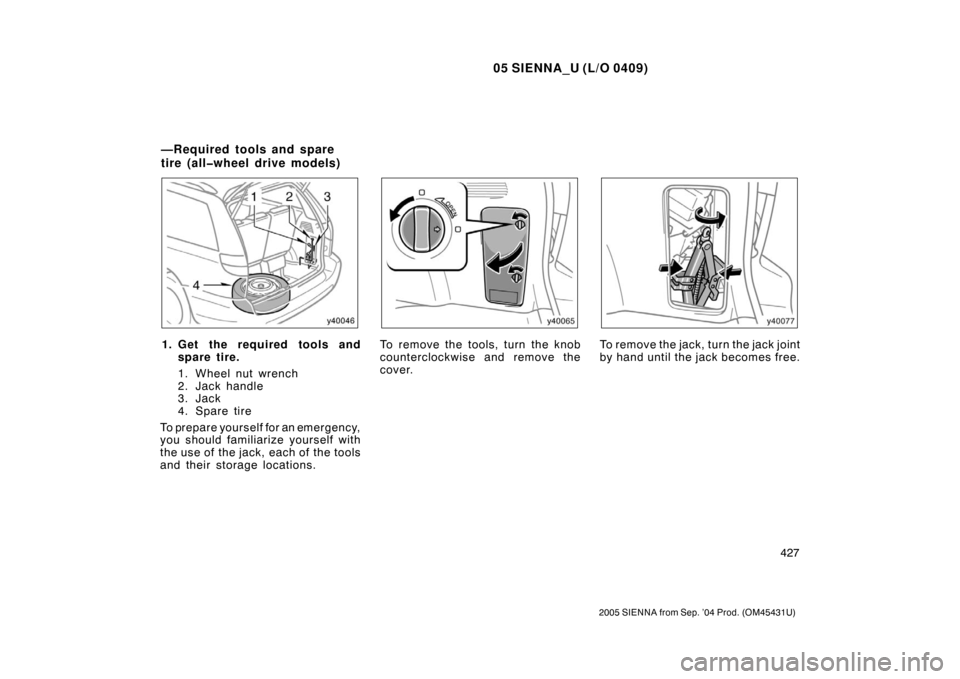

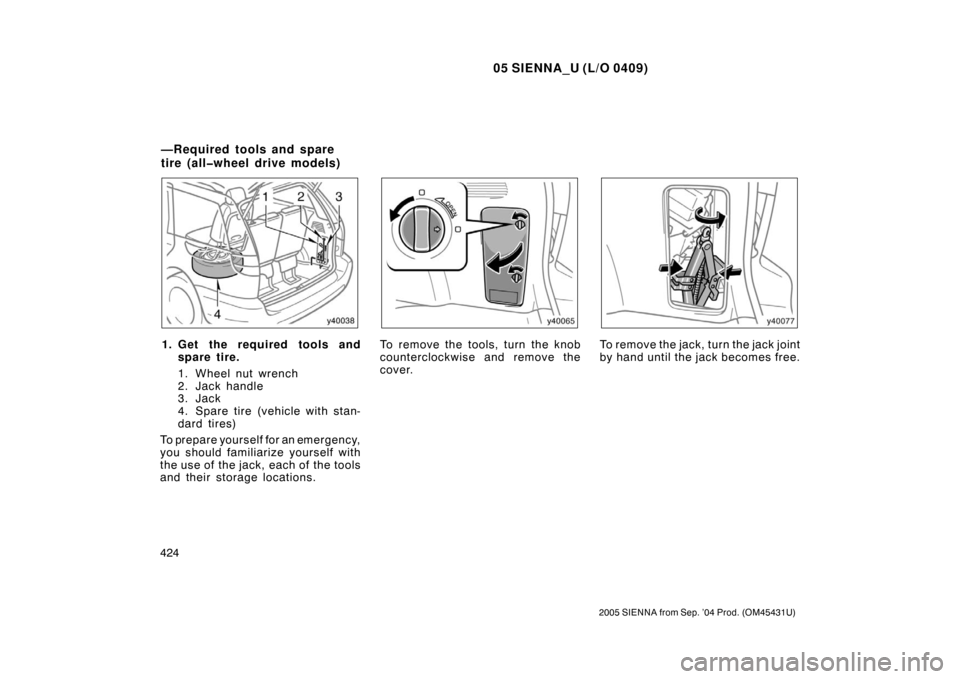

1. Get the required tools andspare tire.
1. Wheel nut wrench
2. Jack handle
3. Jack
4. Spare tire (vehicle with stan-
dard tires)
To prepare yourself for an emergency,
you should familiarize yourself with
the use of the jack, each of the tools
and their storage locations.To remove the tools, turn the knob
counterclockwise and remove the
cover.To remove the jack, turn the jack joint
by hand until the jack becomes free.
—Required tools and spare
tire (allwheel drive models)

05 SIENNA_U (L/O 0409)
425
2005 SIENNA from Sep. ’04 Prod. (OM45431U)

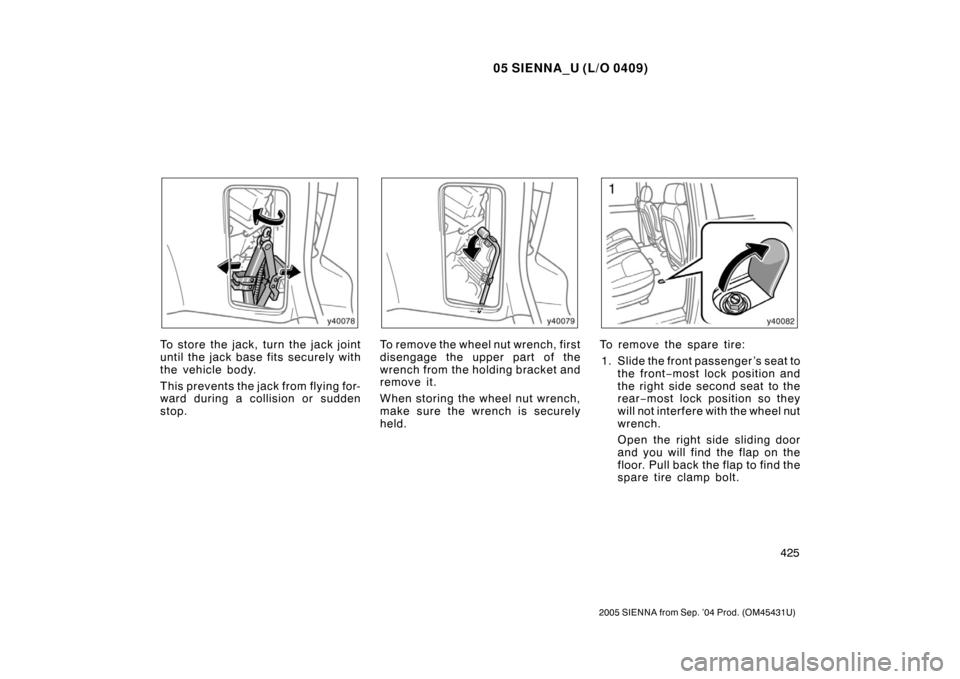

To store the jack, turn the jack joint
until the jack base fits securely with
the vehicle body.
This prevents the jack from flying for-
ward during a collision or sudden
stop.To remove the wheel nut wrench, first
disengage the upper part of the
wrench from the holding bracket and
remove it.
When storing the wheel nut wrench,
make sure the wr ench is securely
held.To remove the spare tire:
1. Slide the front passenger ’s seat to the front −most lock position and
the right side second seat to the
rear −most lock position so they
will not interfere with the wheel nut
wrench.
Open the right side sliding door
and you will find the flap on the
floor. Pull back the flap to find the
spare tire clamp bolt.

05 SIENNA_U (L/O 0409)
426
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
2. Loosen the spare tire clamp boltby turning it counterclockwise with
the wheel nut wrench.3. After the tire is lowered completelyto the ground, remove the holding
bracket.
When storing the spare tire, put it in
place with the outer side of the wheel
facing up. Then secure the tire, taking
care that the tire goes straight up
without catching on any other part, to
prevent it from flying forward during
a collision or sudden braking.
As the tire carrier is designed for the
compact spare tire, the standard tire
cannot be stored there.
CAUTION
Do not remove the spare tire
when jacking up the vehicle. The
tire carrier and the spare tire may
interfere with the jack and cause
a serious accident.
NOTICE
 To secure spare tire clamp
bolt:
Do not use impact wrench,
but wheel nut wrench.
 After taking out or stowing
the spare tire, make sure to
secure the tire carrier by
tightening the clamp bolt to
prevent the holding bracket
from hitting the under body
of the vehicle during driving.
 Do not store the flat spare
tire with the tire carrier so it
may not be held securely.

05 SIENNA_U (L/O 0409)
427
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
1. Get the required tools andspare tire.
1. Wheel nut wrench
2. Jack handle
3. Jack
4. Spare tire
To prepare yourself for an emergency,
you should familiarize yourself with
the use of the jack, each of the tools
and their storage locations.To remove the tools, turn the knob
counterclockwise and remove the
cover.To remove the jack, turn the jack joint
by hand until the jack becomes free.
—Required tools and spare
tire (allwheel drive models)

05 SIENNA_U (L/O 0409)
428
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
To store the jack, turn the jack joint
until the jack base fits securely with
the vehicle body.
This prevents the jack from flying for-
ward during a collision or sudden
stop.To remove the wheel nut wrench, first
disengage the upper part of the
wrench from the holding bracket and
remove it.
When storing the wheel nut wrench,
make sure the wr ench is securely
held.To remove the spare tire:

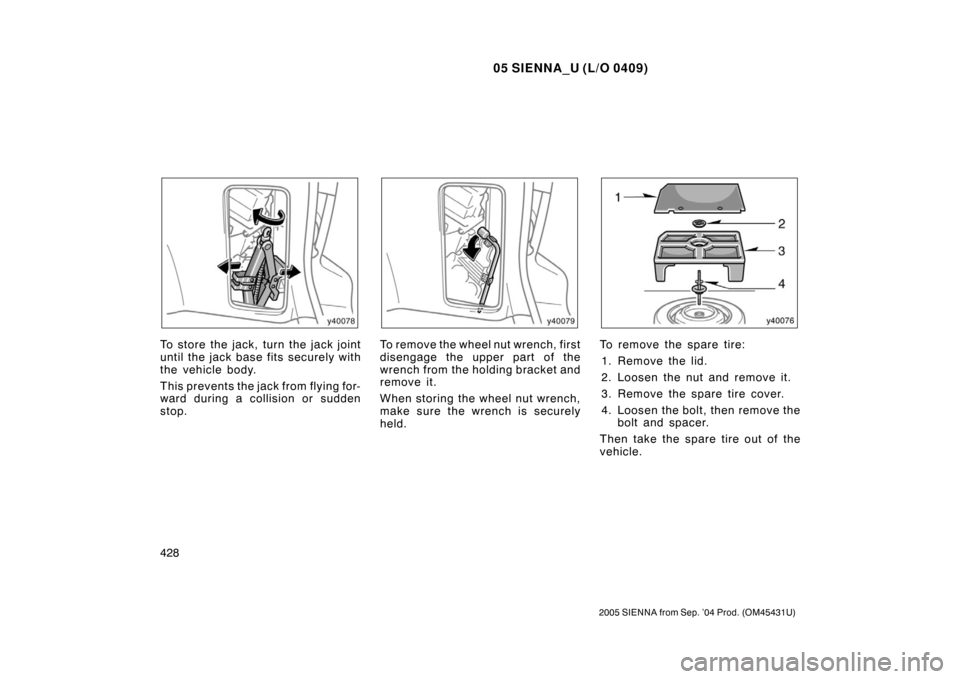

1. Remove the lid.
2. Loosen the nut and remove it.
3. Remove the spare tire cover.
4. Loosen the bolt, then remove the bolt and spacer.
Then take the spare tire out of the
vehicle.

05 SIENNA_U (L/O 0409)
429
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
When storing the spare tire, put it in
place with the outer side of the wheel
facing up. Then secure the tire by re-
peating the above removal steps in
reverse order to prevent it from flying
forward during a collision or sudden
braking.

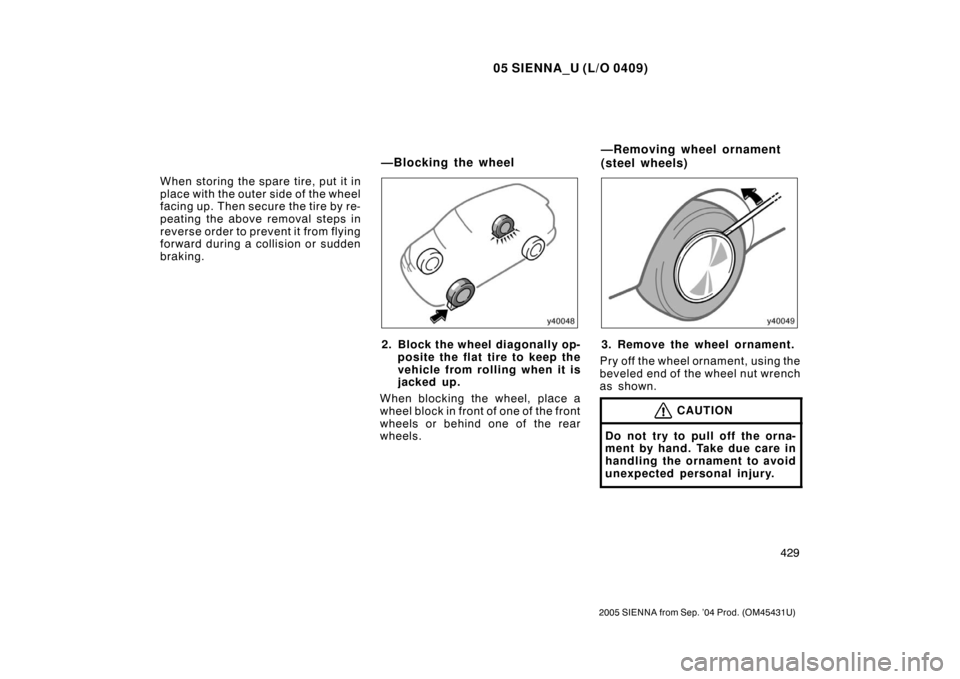

2. Block the wheel diagonally op-posite the flat tire to keep the
vehicle from rolling when it is
jacked up.
When blocking the wheel, place a
wheel block in front of one of the front
wheels or behind one of the rear
wheels.3. Remove the wheel ornament.
Pry off the wheel ornament, using the
beveled end of the wheel nut wrench
as shown.
CAUTION
Do not try to pull off the orna-
ment by hand. Take due care in
handling the ornament to avoid
unexpected personal injury.
—Blocking the wheel —Removing wheel ornament
(steel wheels)

05 SIENNA_U (L/O 0409)
430
2005 SIENNA from Sep. ’04 Prod. (OM45431U)

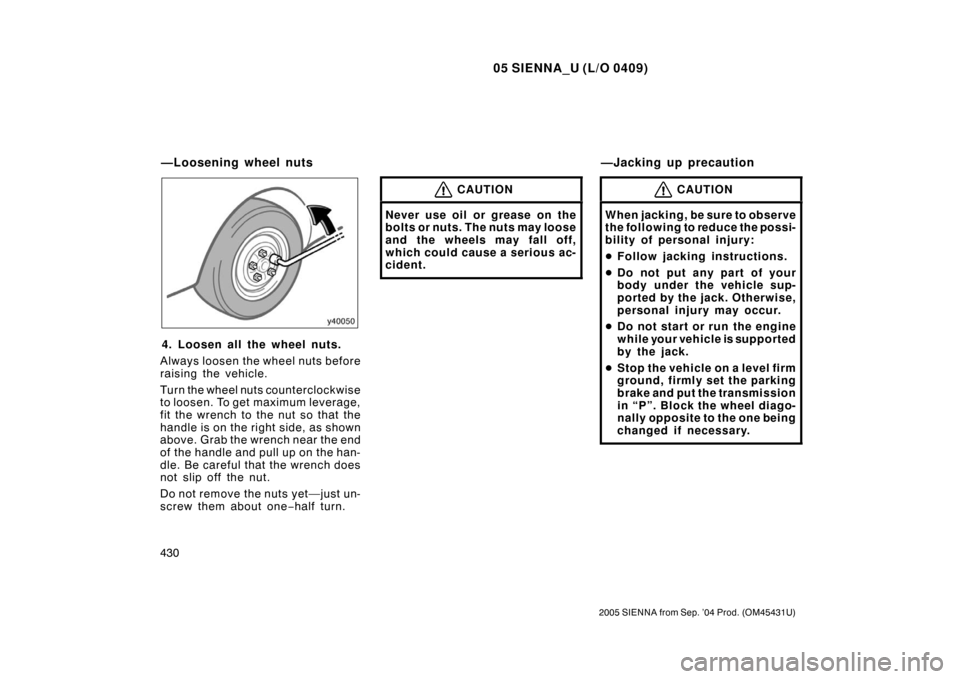

4. Loosen all the wheel nuts.
Always loosen the wheel nuts before
raising the vehicle.
Turn the wheel nuts counterclockwise
to loosen. To get maximum leverage,
fit the wrench to the nut so that the
handle is on the right side, as shown
above. Grab the wrench near the end
of the handle and pull up on the han-
dle. Be careful that the wrench does
not slip off the nut.
Do not remove the nuts yet—just un-
screw them about one −half turn.
CAUTION
Never use oil or grease on the
bolts or nuts. The nuts may loose
and the wheels may fall off,
which could cause a serious ac-
cident.
CAUTION
When jacking, be sure to observe
the following to reduce the possi-
bility of personal injury:
 Follow jacking instructions.
 Do not put any part of your
body under the vehicle sup-
ported by the jack. Otherwise,
personal injury may occur.
 Do not start or run the engine
while your vehicle is supported
by the jack.
 Stop the vehicle on a level firm
ground, firmly set the parking
brake and put the transmission
in “P”. Block the wheel diago-
nally opposite to the one being
changed if necessary.
—Loosening wheel nuts —Jacking up precaution

05 SIENNA_U (L/O 0409)
431
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
Make sure to set the jack prop-
erly in the jack point. Raising
the vehicle with jack improper-
ly positioned will damage the
vehicle or may allow the ve-
hicle to fall off the jack and
cause personal injury.
 Never get under the vehicle
when the vehicle is supported
by the jack alone.
 Use the jack only for lifting
your vehicle during wheel
changing.
 Do not raise the vehicle with
someone in the vehicle.
 When raising the vehicle, do
not place any objects on top
of or underneath the jack.
 Raise the vehicle only high
enough to remove and change
the tire.When jacking up the vehicle,
t u rn of f th e po w er sl i d i n g do o r
system and the power back
door system, and close the
sliding door and the back door
completely.

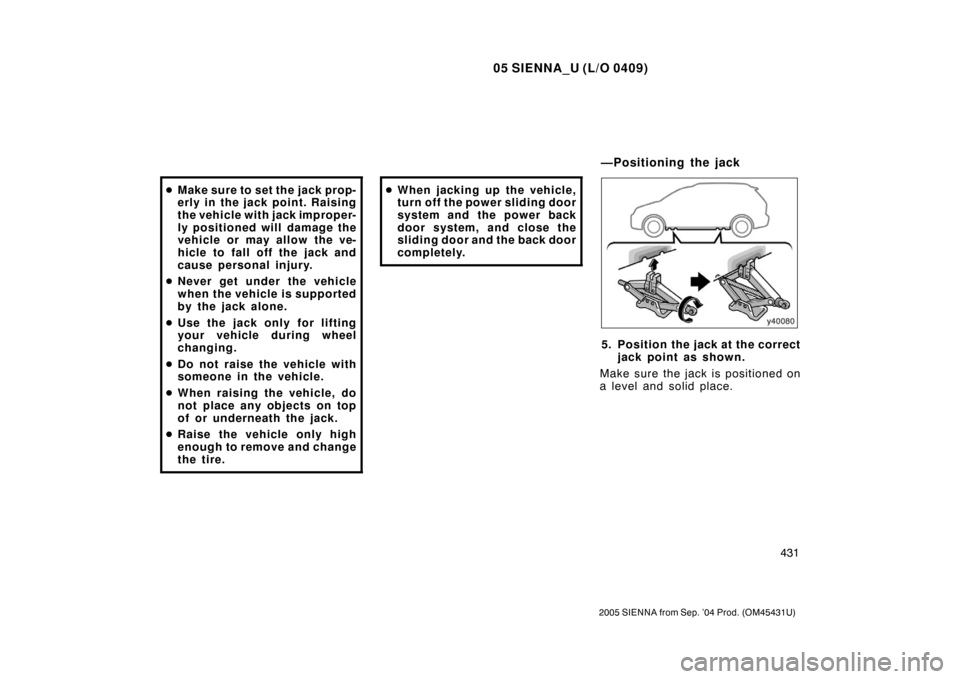

5. Position the jack at the correct
jack point as shown.
Make sure the jack is positioned on
a level and solid place.
—Positioning the jack

05 SIENNA_U (L/O 0409)
432
2005 SIENNA from Sep. ’04 Prod. (OM45431U)

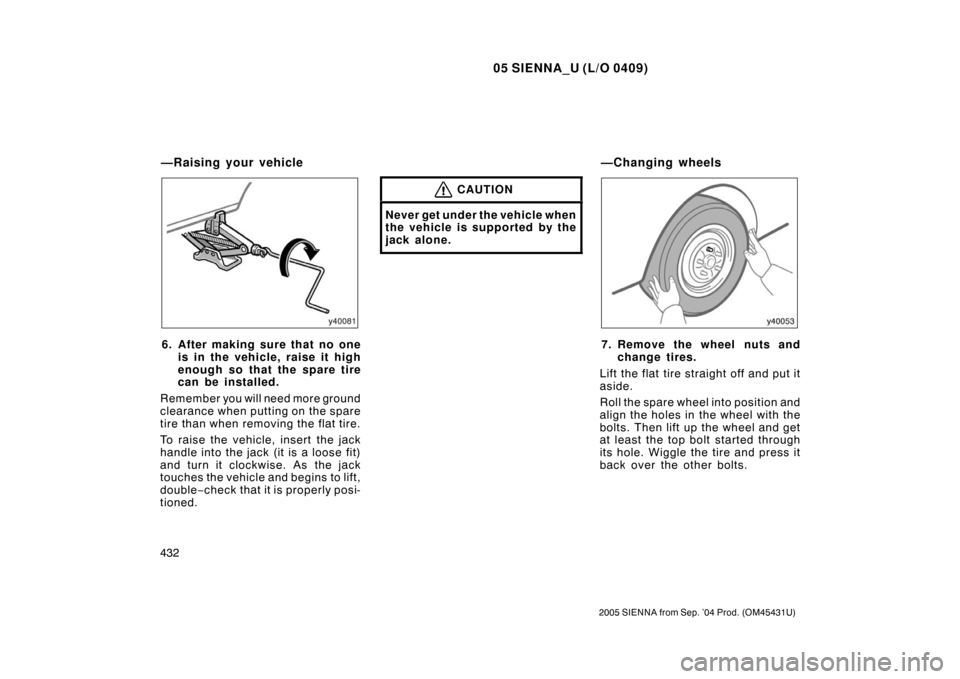

6. After making sure that no oneis in the vehicle, raise it high
enough so that the spare tire
can be installed.
Remember you will need more ground
clearance when putting on the spare
tire than when removing the flat tire.
To raise the vehicl e, insert the jack
handle into the jack (it is a loose fit)
and turn it clockwise. As the jack
touches the vehicle and begins to lift,
double −check that it is properly posi-
tioned.
CAUTION
Never get under the vehicle when
the vehicle is supported by the
jack alone.
7. Remove the wheel nuts and change tires.
Lift the flat tire straight off and put it
aside.
Roll the spare wheel into position and
align the holes in the wheel with the
bolts. Then lift up the wheel and get
at least the top bolt started through
its hole. Wiggle the tire and press it
back over the other bolts.
—Raising your vehicle —Changing wheels
