05 SIENNA_U (L/O 0409)
33
2005 SIENNA from Sep. ’04 Prod. (OM45431U)

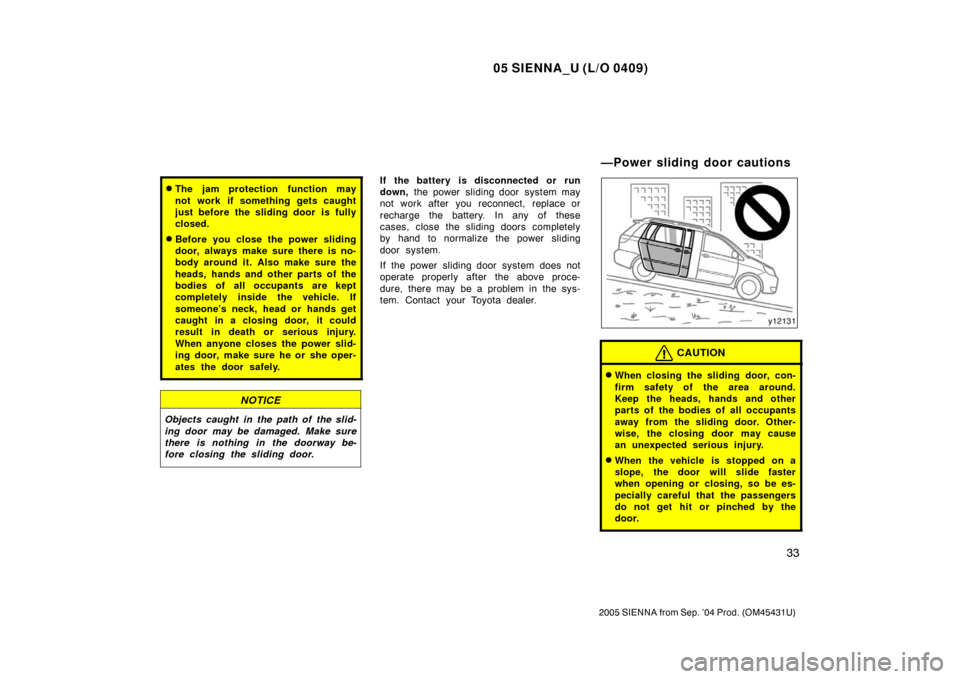

The jam protection function may
not work if something gets caught
just before the sliding door is fully
closed.
Before you close the power sliding
door, always make sure there is no-
body around it. Also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing door, it could
result in death or serious injury.
When anyone closes the power slid-
ing door, make sure he or she oper-
ates the door safely.
NOTICE
Objects caught in the path of the slid-
ing door may be damaged. Make sure
there is nothing in the doorway be-
fore closing the sliding door.
If the battery is disconnected or run
down, the power sliding door system may
not work after you reconnect, replace or
recharge the battery. In any of these
cases, close the sliding doors completely
by hand to normalize the power sliding
door system.
If the power sliding door system does not
operate properly after the above proce-
dure, there may be a problem in the sys-
tem. Contact your Toyota dealer.
CAUTION
When closing the sliding door, con-
firm safety of the area around.
Keep the heads, hands and other
parts of the bodies of all occupants
away from the sliding door. Other-
wise, the closing door may cause
an unexpected serious injury.
When the vehicle is stopped on a
slope, the door will slide faster
when opening or closing, so be es-
pecially careful that the passengers
do not get hit or pinched by the
door.
—Power sliding door cautions

05 SIENNA_U (L/O 0409)
34
2005 SIENNA from Sep. ’04 Prod. (OM45431U)

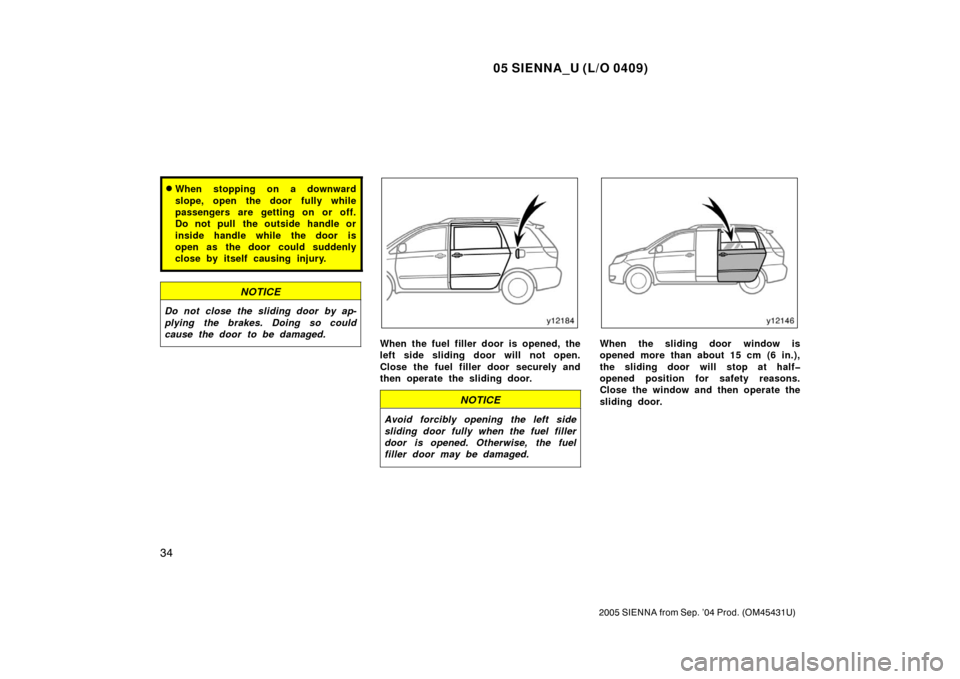

When stopping on a downward
slope, open the door fully while
passengers are getting on or off.
Do not pull the outside handle or
inside handle while the door is
open as the door could suddenly
close by itself causing injury.
NOTICE
Do not close the sliding door by ap-
plying the brakes. Doing so could
cause the door to be damaged.
When the fuel filler door is opened, the
left side sliding door will not open.
Close the fuel filler door securely and
then operate the sliding door.
NOTICE
Avoid forcibly opening the left side
sliding door fully when the fuel filler
door is opened. Otherwise, the fuel
filler door may be damaged.
When the sliding door window is
opened more than about 15 cm (6 in.),
the sliding door will stop at half
opened position for safety reasons.
Close the window and then operate the
sliding door.

05 SIENNA_U (L/O 0409)
35
2005 SIENNA from Sep. ’04 Prod. (OM45431U)

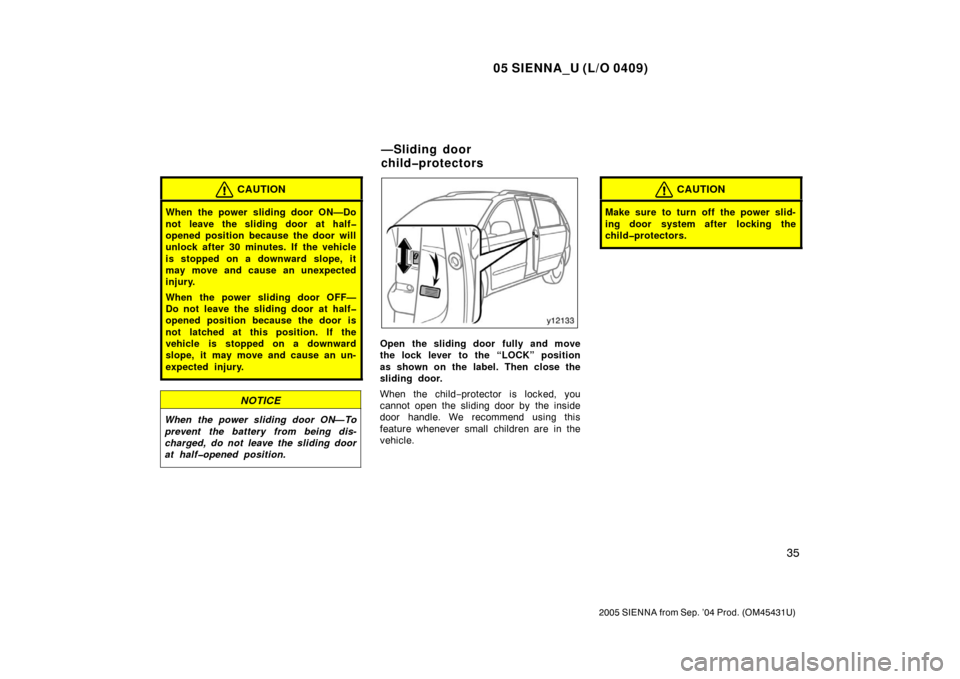

CAUTION
When the power sliding door ON—Do
not leave the sliding door at half
opened position because the door will
unlock after 30 minutes. If the vehicle
is stopped on a downward slope, it
may move and cause an unexpected
injury.
When the power sliding door OFF—
Do not leave the sliding door at half
opened position because the door is
not latched at this position. If the
vehicle is stopped on a downward
slope, it may move and cause an un-
expected injury.
NOTICE
When the power sliding door ON—To
prevent the battery from being dis-
charged, do not leave the sliding door
at halfopened position.
Open the sliding door fully and move
the lock lever to the “LOCK” position
as shown on the label. Then close the
sliding door.
When the child −protector is locked, you
cannot open the sliding door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
CAUTION
Make sure to turn off the power slid-
ing door system after locking the
childprotectors.
—Sliding door
childprotectors

05 SIENNA_U (L/O 0409)
36
2005 SIENNA from Sep. ’04 Prod. (OM45431U)

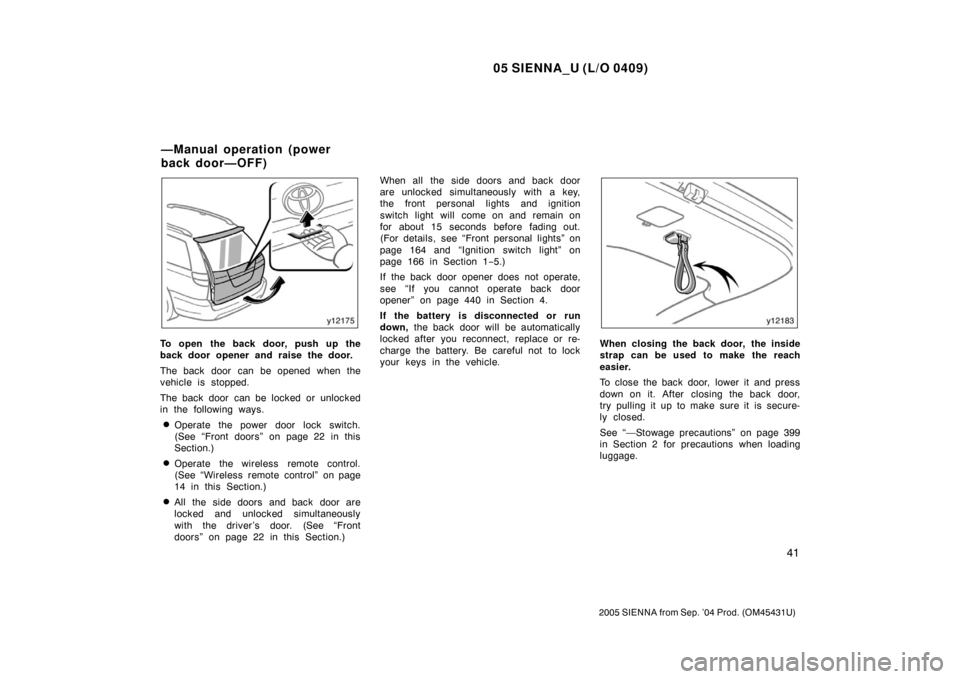

To open the back door, push up the
back door opener and raise the door.
The back door can be opened when the
vehicle is stopped.
The back door can be locked or unlocked
in the following ways.
Operate the power door lock switch.
(See “Front doors” on page 22 in this
Section.)
Operate the wireless remote control.
(See “Wireless remote control” on page
14 in this Section.)
All the side doors and back door are
locked and unlocked simultaneously
with the driver ’s door. (See “Front
doors” on page 22 in this Section.)When all the side doors and back door
are unlocked simultaneously with a key,
the front personal lights and ignition
switch light will come on and remain on
for about 15 seconds before fading out.
(For details, see “Front personal lights” on
page 164 and “Ignition switch light” on
page 166 in Section 1
−5.)
If the back door opener does not operate,
see “If you cannot operate back door
opener” on page 440 in Section 4.
If the battery is disconnected or run
down, the back door will be automatically
locked after you reconnect, replace or re-
charge the battery. Be careful not to lock
your keys in the vehicle.
When closing the back door, the inside
strap can be used to make the reach
easier.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
See “—Stowage precautions” on page 399
in Section 2 for precautions when loading
luggage.
Back door (nonpowered)

05 SIENNA_U (L/O 0409)
37
2005 SIENNA from Sep. ’04 Prod. (OM45431U)

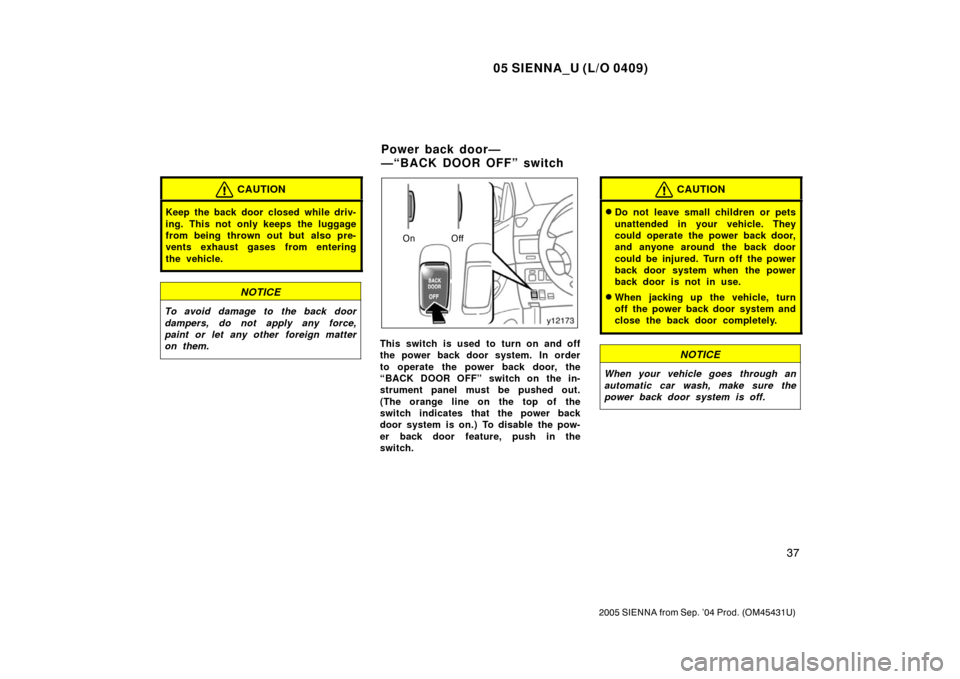

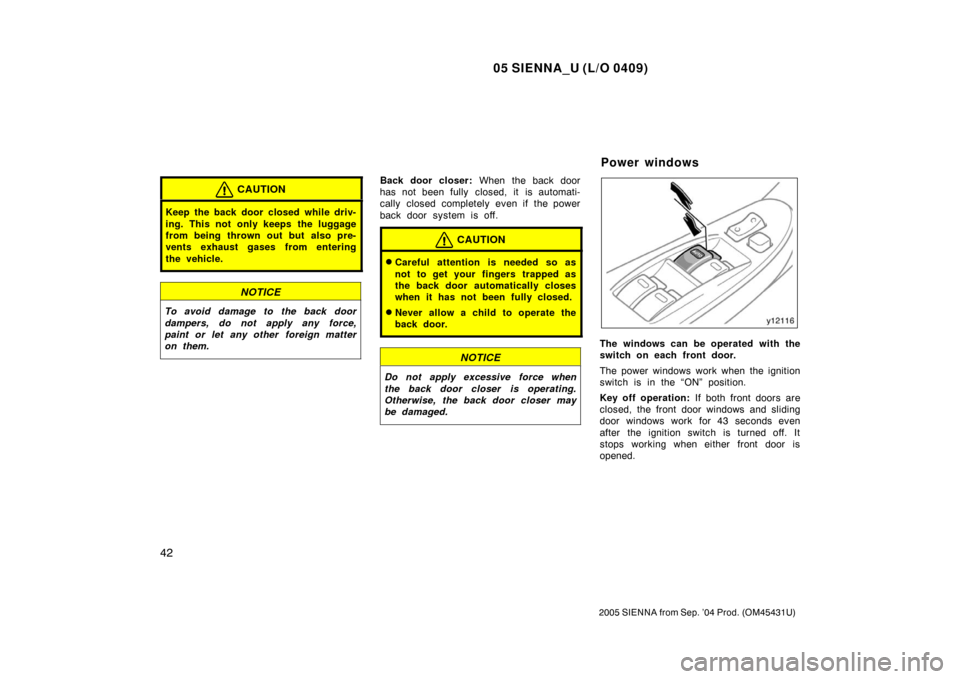

CAUTION
Keep the back door closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
NOTICE
To avoid damage to the back door
dampers, do not apply any force,
paint or let any other foreign matter
on them.
On Off
This switch is used to turn on and off
the power back door system. In order
to operate the power back door, the
“BACK DOOR OFF” switch on the in-
strument panel must be pushed out.
(The orange line on the top of the
switch indicates that the power back
door system is on.) To disable the pow-
er back door feature, push in the
switch.
CAUTION
Do not leave small children or pets
unattended in your vehicle. They
could operate the power back door,
and anyone around the back door
could be injured. Turn off the power
back door system when the power
back door is not in use.
When jacking up the vehicle, turn
off the power back door system and
close the back door completely.
NOTICE
When your vehicle goes through an
automatic car wash, make sure the
power back door system is off.
Power back door—
—“BACK DOOR OFF” switch

05 SIENNA_U (L/O 0409)
38
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
The power back door can be operated
automatically in the following ways:
Operates with the power back door
switch on the overhead console
Operates with the wireless remote con-
trol transmitter
Assists closing by hand
The power back door system can be can-
celed by the “BACK DOOR OFF” switch.
When the system is canceled, see
“—Manual operation” on page 41 in this
Section.
When closing or opening the back door
automatically, two beeps will be heard and
the turn signal lights will flash twice.
The beep sound can be changed. For de-
tails, contact your Toyota dealer.

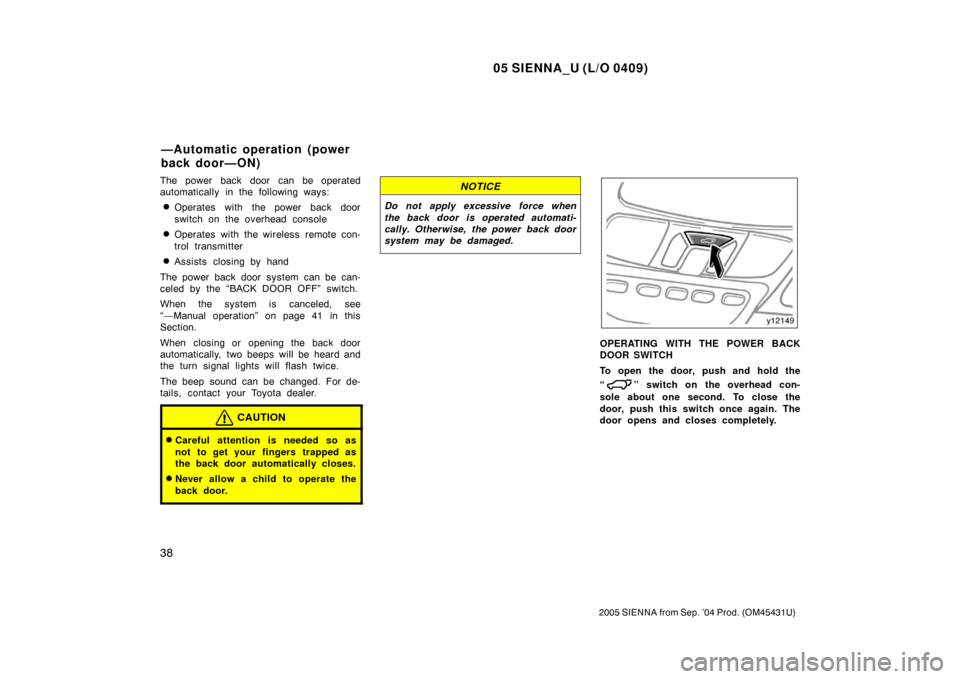

CAUTION
Careful attention is needed so as
not to get your fingers trapped as
the back door automatically closes.
Never allow a child to operate the
back door.
NOTICE
Do not apply excessive force when
the back door is operated automati-
cally. Otherwise, the power back door
system may be damaged.
OPERATING WITH THE POWER BACK
DOOR SWITCH
To open the door, push and hold the
“
” switch on the overhead con-
sole about one second. To close the
door, push this switch once again. The
door opens and closes completely.
—Automatic operation (power
back door—ON)

05 SIENNA_U (L/O 0409)
39
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
Opening operation can be performed by
the switch under the following condi-
tions:
The back door is unlocked.
The power back door system is on.
(The “BACK DOOR OFF” switch is
pushed out.)
The back door is between in the fully−
closed position and half −opened posi-
tion.
When the ignition key is in the “ON”
position, the transmission selector lever
must be in “P”.
Closing operation can be performed by
the switch under the following condi-
tions:
The power back door system is on.
(The “BACK DOOR OFF” switch is
pushed out.)
The back door is between in the fully −
opened position and half −opened posi-
tion.
The time of pushing the switches for oper-
ating the back door can be changed. For
details, contact your Toyota dealer. OPERATING WITH THE WIRELESS
REMOTE CONTROL TRANSMITTER
To open or close the door, push and
hold the “
” switch on the wireless
remote control transmitter about one
second. (Only when the power back
door system is on.) For details, see
“Wireless remote control” on page 14
in this Section.
ASSISTS CLOSING BY HAND
When the power back door system is on
(the “BACK DOOR OFF” switch is pushed
out), if you move the back door about
10—15 cm (4—6 in.) from its fully −opened
position, the back door will automatically
and completely close.
When the power back door system is off,
the back door can be closed manually.
The assisting function when closing the
back door can be disabled and the assist-
ing function when opening the back door
can be added. For details, contact your
Toyota dealer.
JAM PROTECTION FUNCTION
If anything with sufficient resistance ob-
structs the power back door while it is
closing or opening, the back door will au-
tomatically reverse to the opposite direc-
tion.
If the jam protection function operates
continuously at the closing operation more
than 2 times, the back door will be
stopped at that position.

05 SIENNA_U (L/O 0409)
40
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
Before operating the power back door,
make sure there is nobody near the back
door.
The resistance must be as strong as the
force of the moving door, or stronger. As
the back door approaches the fully−closed
or fully −opened position, its moving force
increases significantly.
The jam protection function may not work
if something gets caught just before the
back door is fully closed.
If the back door receives a strong impact,
this function may operate even if nothing

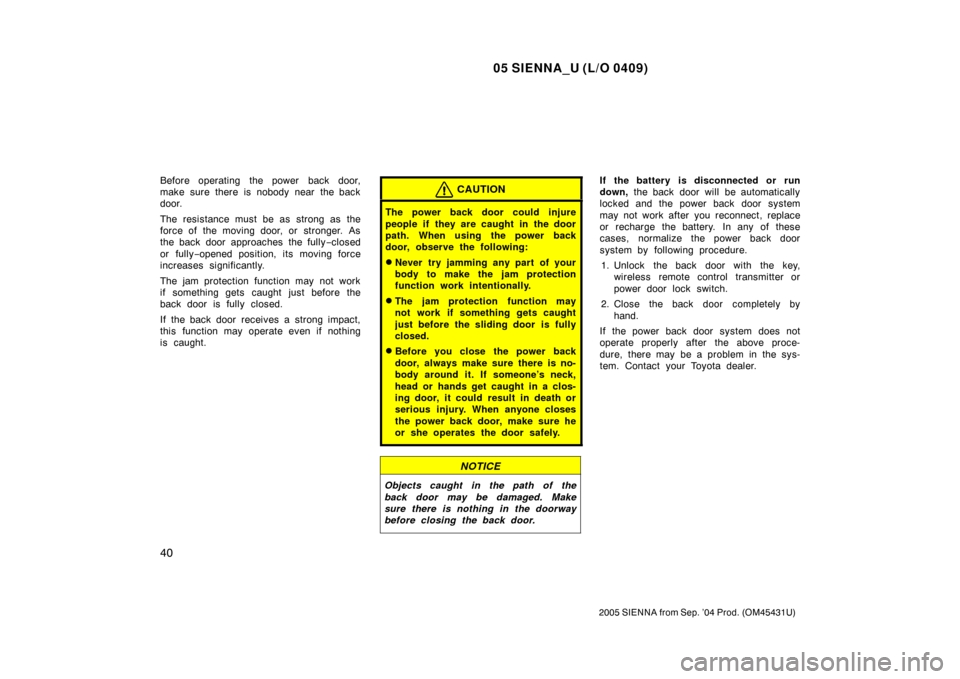

is caught.CAUTION
The power back door could injure
people if they are caught in the door
path. When using the power back
door, observe the following:
Never try jamming any part of your
body to make the jam protection
function work intentionally.
The jam protection function may
not work if something gets caught
just before the sliding door is fully
closed.
Before you close the power back
door, always make sure there is no-
body around it. If someone’s neck,
head or hands get caught in a clos-
ing door, it could result in death or
serious injury. When anyone closes
the power back door, make sure he
or she operates the door safely.
NOTICE
Objects caught in the path of the
back door may be damaged. Make
sure there is nothing in the doorway
before closing the back door.
If the battery is disconnected or run
down, the back door will be automatically
locked and the power back door system
may not work after you reconnect, replace
or recharge the battery. In any of these
cases, normalize the power back door
system by following proc edure.
1. Unlock the back door with the key, wireless remote control transmitter or
power door lock switch.
2. Close the back door completely by hand.
If the power back door system does not
operate properly after the above proce-
dure, there may be a problem in the sys-
tem. Contact your Toyota dealer.

05 SIENNA_U (L/O 0409)
41
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
To open the back door, push up the
back door opener and raise the door.
The back door can be opened when the
vehicle is stopped.
The back door can be locked or unlocked
in the following ways.
Operate the power door lock switch.
(See “Front doors” on page 22 in this
Section.)
Operate the wireless remote control.
(See “Wireless remote control” on page
14 in this Section.)
All the side doors and back door are
locked and unlocked simultaneously
with the driver ’s door. (See “Front
doors” on page 22 in this Section.)When all the side doors and back door
are unlocked simultaneously with a key,
the front personal lights and ignition
switch light will come on and remain on
for about 15 seconds before fading out.
(For details, see “Front personal lights” on
page 164 and “Ignition switch light” on
page 166 in Section 1
−5.)
If the back door opener does not operate,
see “If you cannot operate back door
opener” on page 440 in Section 4.
If the battery is disconnected or run
down, the back door will be automatically
locked after you reconnect, replace or re-
charge the battery. Be careful not to lock
your keys in the vehicle.
When closing the back door, the inside
strap can be used to make the reach
easier.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
See “—Stowage precautions” on page 399
in Section 2 for precautions when loading
luggage.
—Manual operation (power
back door—OFF)

05 SIENNA_U (L/O 0409)
42
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
CAUTION
Keep the back door closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
NOTICE
To avoid damage to the back door
dampers, do not apply any force,
paint or let any other foreign matter
on them.
Back door closer: When the back door
has not been fully closed, it is automati-
cally closed completely even if the power
back door system is off.
CAUTION
Careful attention is needed so as
not to get your fingers trapped as
the back door automatically closes
when it has not been fully closed.
Never allow a child to operate the
back door.
NOTICE
Do not apply excessive force when
the back door closer is operating.
Otherwise, the back door closer may
be damaged.
The windows can be operated with the
switch on each front door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both front doors are
closed, the front door windows and sliding
door windows work for 43 seconds even
after the ignition switch is turned off. It
stops working when either front door is
opened.
Power windows
