ECO mode TOYOTA SIENNA 2005 XL20 / 2.G Owners Manual

05 SIENNA_U (L/O 0409)
15
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
Ty p e C
1. Lock switch
2. Unlock switch
3. Sliding door open switch (right side)
4. Sliding door open switch (left side)
5. Back door open switch
6. Alarm switchThe wireless remote control system is
designed to lock or unlock all the side
doors and back door, or activate the
panic mode from a distance within
approximately 1 m (3 ft.) of the vehicle.
On some models, the system also al-
lows you to activate the theft deterrent
system from the same distance.
When you operate any switch, push it
slowly and securely.
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the wireless remote control
transmitter.Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information. If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see “—Replacing
battery” on page 20.
If you lose your wireless remote control
transmitter, contact your Toyota dealer as
soon as possible to avoid the possibility
of theft, or an accident. (See “If you lose
your wireless remote control transmitter”
on page 439 in Section 4.)
MADE IN U.S.A.
This complies with Part 15 of the FCC
rules. Operation is subject to the follow-
ing two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.

05 SIENNA_U (L/O 0409)
31
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
When the ignition key is in the “ON”
position, the transmission selector lever
must be in “P”.
The child−protector is unlocked.
(switches on the center pillar only)
Closing operation can be performed by
the switches under the following condi-
tions:
The power sliding door system is on.
(The “SLIDE DOOR OFF” switch is
pushed out.)
The sliding door is between the fully −
opened position and half −opened posi-
tion.
Left and right side power sliding door
models—The left side power sliding door
does not operate when the fuel filler door
is opened.
The length of time required to push the
switches for operating the sliding door can
be changed. For details, contact your
Toyota dealer.
CAUTION
If you shift the automatic transmis-
sion selector lever out of “P” and
accelerate before the power sliding
door is closed completely, the sliding
door may reverse to the open posi-
tion. A child or others could fall out
of the vehicle and be injured. Always
make sure the power sliding door is
closed and latched before you start
driving.
OPERATING WITH THE WIRELESS
REMOTE CONTROL TRANSMITTER
To open or close the door, push the
“
” or “” switches on the wire-
less remote control transmitter about
one second. (Only when the power slid-
ing door system is on.) For details, see
“Wireless remote control” on page 14
in this Section.
ASSISTS OPERATION WITH THE
OUTSIDE OR INSIDE HANDLE BY HAND
When the power sliding door system is on
(the “SLIDE DOOR OFF” switch is pushed
out), if you pull the outside handle or slide
the inside handle, the sliding door will
automatically and completely open or
close.
When the power sliding door system is
off, the sliding door can be operated
manually by the outside or inside handle.

05 SIENNA_U (L/O 0409)
67
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
BEFORE TUMBLING SECOND SEATS
(7passenger models only)1. Stow the second seat belt buckles as shown in the illustration.
This prevents the buckles from sticking
out when you tumble the second seats.
NOTICE
To prevent damage to the seat belt
buckles, the buckles must be stowed
before you fold the seatback.
2. Make sure the shoulder belt passes through the hanger when folding the
second seat.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
TUMBLING SECOND SEATS 1. Lower the head restraint to the low- est position. Hold the center of the
lever and pull it up. Then slide the
seat to the rearmost lock position.
—Tumbling second seats
(outer seats)

05 SIENNA_U (L/O 0409)
68
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
2. 7passenger models only: Pull thearmrests up.3. Fold down the seatback while pullingthe seatback angle adjusting lever or
strap and swing up the seat.
If the front seat is in the way, adjust it
so it will not interfere.
CAUTION
Make sure the seat is free of people
or luggage. Then, hold the seat and
slowly move it. Otherwise, people
may be injured or luggage may be
damaged if the seat hits them.
To avoid serious injury, do not sit
on the folded seatback.
4. Take the holding strap out of the pocket. Pass the strap through the
assist grip, and hook it as shown in
the illustration.
When returning the second seat to its
original position, put the holding strap into
the pocket.
NOTICE
 Do not use anything other than the
assist grip to hold the second seat.
 The holding strap must be stowed
into the pocket when it is not in
use.

05 SIENNA_U (L/O 0409)
74
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
BEFORE REMOVING SECOND SEATS
(7passenger models only)1. Stow the second seat belt buckles as shown in the illustration.
This prevents the buckles from sticking
out when you fold up the second seats.
NOTICE
To prevent damage to the seat belt
buckles, the buckles must be stowed
before you fold the seatback.
2. Make sure the shoulder belts pass through the hangers when folding
the second seat.
This prevents the shoulder belt from being
damaged.
CAUTION
The seat belt must be removed from
the hanger when the seat belt is in
use.
REMOVING SECOND SEATS 1. Lower the head restraint to the low- est position. Hold the center of the
lever and pull it up. Then slide the
seat to the rearmost lock position.
—Removing second seats
(outer seats)

05 SIENNA_U (L/O 0409)
76
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
To prevent personal injury in a colli-
sion or sudden stop:
Do not sit on or place anything on
the folded seatback while driving.
Do not leave the removed seat
loose in the vehicle.
Do not try to sit on or place any-
thing on the removed seat.
NOTICE
Avoid putting heavy loads on the
removed seat. The metallic tips of
the seat leg may be damaged and
the seat cannot be reinstalled.
 Do not carry the removed seat with
holding the seat position adjusting
lever. Otherwise, the seat may slide
and not installed properly. If you
slide the removed seat, return the
seat to the rearmost position be-
fore it is installed.
Front of the vehicle
7passenger modelsFront of the vehicle
8passenger models
—Installing second seats
(outer seats)

05 SIENNA_U (L/O 0409)
80
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
Install each seat in the same posi-
tion from which it was removed.
Failure to do so will prevent the
occupants from using seat belts
properly.
Do not reinstall the seat with its
back facing forward.
Make sure the seat is securely
locked in the proper position.
NOTICE
Do not carry the removed seat by
holding the seat position adjusting le-
ver. Otherwise, the seat may slide and
not be installed properly. If you slide
the removed seat, return the seat to
the rearmost position before it is
installed.
7passenger models only: The right
side seat can be moved to the inside
when the console box is not installed
between the second seats.

05 SIENNA_U (L/O 0409)
101
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
To release the concave end tab, insert the
key into the hole on buckle 1 and allow
the belt to retract.CAUTION
Do not use the center seat belt of the
third seats with either buckle re-
leased. Fastening only the shoulder
belt or lap belt may cause serious
personal injury in case of a sudden
braking or a collision.
Second (7passenger models)
Third
—Stowing seat belt buckles of
the second and third seats

05 SIENNA_U (L/O 0409)
102
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
The seat belt buckles of the second
seats (7passenger models) and third
seats can be stowed when not in use.
Seat belt buckles must be stowed before
you fold the seat back. (See “—Tumbling
second seats (outer seats)” on page 67,
“—Removing second seats (outer seats)”
on page 74 and “—Stowing third seats” on
page 89 in this Section.)

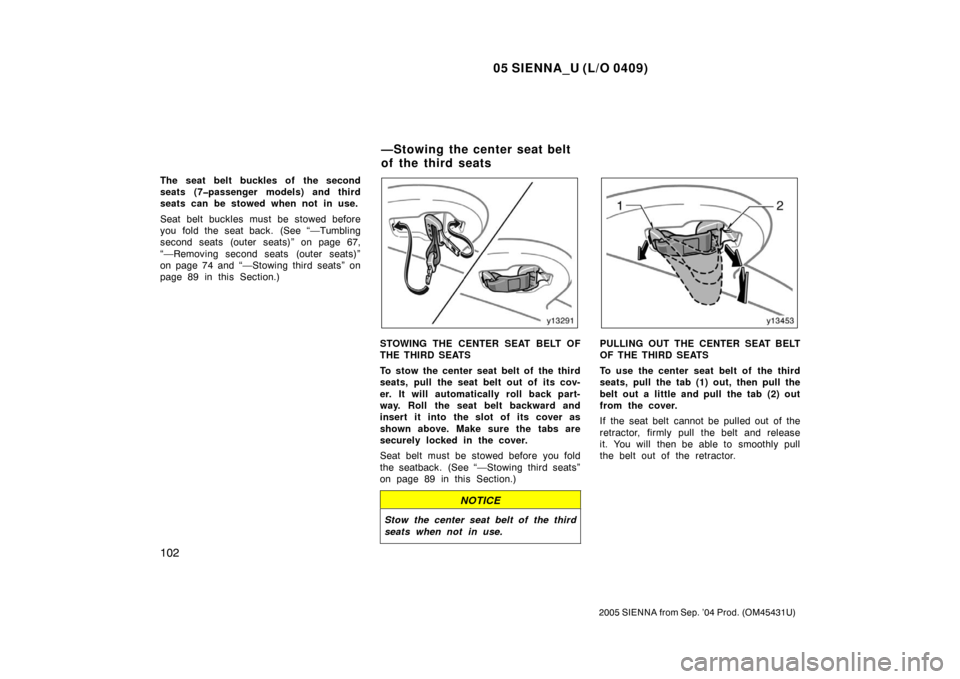

STOWING THE CENTER SEAT BELT OF
THE THIRD SEATS
To stow the center seat belt of the third
seats, pull the seat belt out of its cov-
er. It will automatically roll back part-
way. Roll the seat belt backward and
insert it into the slot of its cover as
shown above. Make sure the tabs are
securely locked in the cover.
Seat belt must be stowed before you fold
the seatback. (See “—Stowing third seats”
on page 89 in this Section.)
NOTICE
Stow the center seat belt of the third
seats when not in use.
PULLING OUT THE CENTER SEAT BELT
OF THE THIRD SEATS
To use the center seat belt of the third
seats, pull the tab (1) out, then pull the
belt out a little and pull the tab (2) out
from the cover.
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
—Stowing the center seat belt
of the third seats

05 SIENNA_U (L/O 0409)
142
2005 SIENNA from Sep. ’04 Prod. (OM45431U)

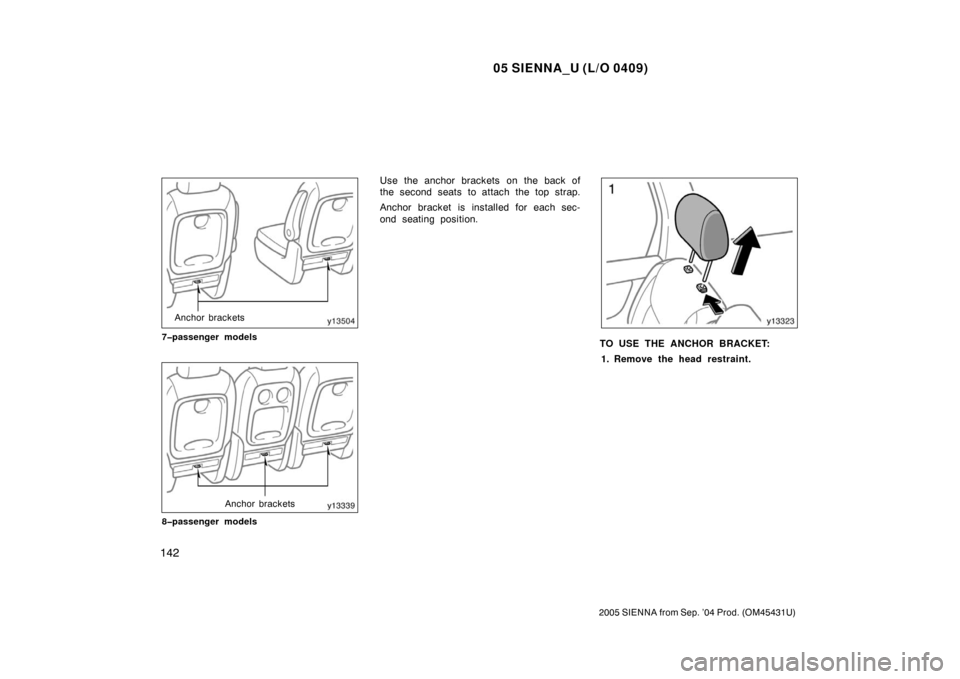

Anchor brackets
7passenger models
Anchor brackets
8passenger models
Use the anchor brackets on the back of
the second seats to attach the top strap.
Anchor bracket is installed for each sec-
ond seating position.
TO USE THE ANCHOR BRACKET: 1. Remove the head restraint.
