mirror controls TOYOTA SIENNA 2005 XL20 / 2.G Owners Manual

05 SIENNA_U (L/O 0409)
3
2005 SIENNA from Sep. ’04 Prod. (OM45431U)

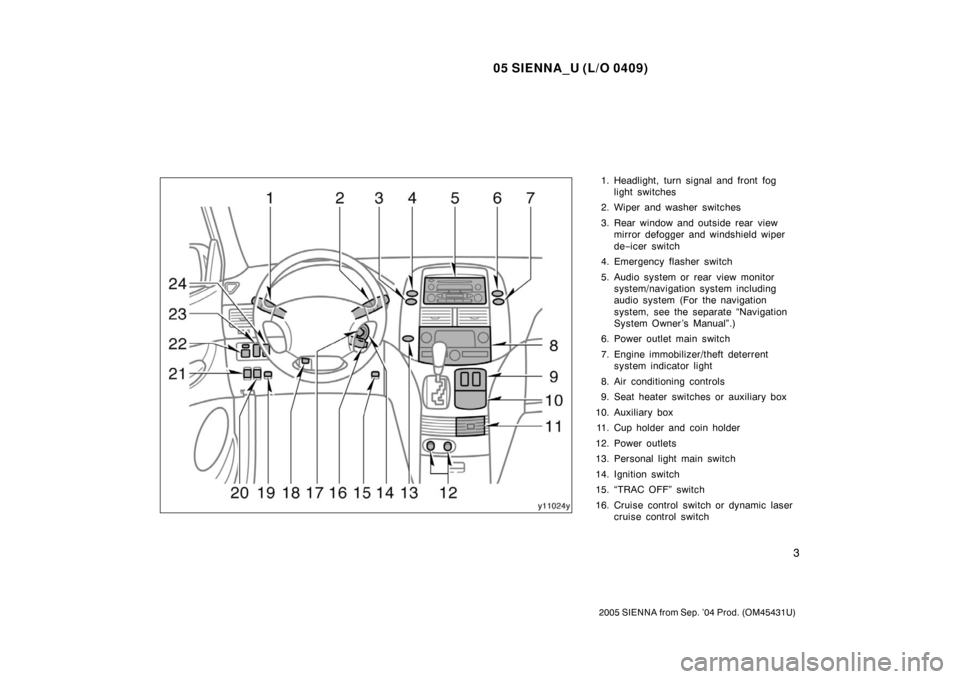

1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Rear window and outside rear view mirror defogger and windshield wiper
de− icer switch
4. Emergency flasher switch
5. Audio system or rear view monitor system/navigation system including
audio system (For the navigation
system, see the separate “Navigation
System Owner ’s Manual”.)
6. Power outlet main switch
7. Engine immobilizer/theft deterrent system indicator light
8. Air conditioning controls
9. Seat heater switches or auxiliary box
10. Auxiliary box 11. Cup holder and coin holder
12. Power outlets
13. Personal light main switch
14. Ignition switch
15. “TRAC OFF” switch
16. Cruise control switch or dynamic laser cruise control switch

05 SIENNA_U (L/O 0409)
151
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt and telescopic steering wheel152
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors 152
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Anti −glare inside rear view mirror 154
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti −glare inside rear view mirror 155
. . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirrors 156
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
SECTION 1 4

05 SIENNA_U (L/O 0409)
157
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals158
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight beam level control 161
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 162
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Instrument panel light control 163
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 163
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Front personal lights 164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Rear personal lights 165
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Luggage compartment light 166
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 166
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Windshield wipers and washer 167
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window wiper and washer 168
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror defoggers and windshield wiper de −icer 169
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 5

05 SIENNA_U (L/O 0409)
325
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Multi−information display 326
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 337
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Conversation mirror 338
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Toyota park assist system 339
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear view monitor system 347
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets 350
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Glove box 352
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Garage door opener box 353
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Auxiliary boxes 355
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Coin holder 358
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Cup holders 359
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Bottle holders 361
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Storage box 361
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Removable console box 362
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Note pad holder 366
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Front seat side table 367
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Coat hooks 368
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Grocery bag hooks 369
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Cargo net hooks 370
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Tie −down hooks 371
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Roof luggage carrier 371
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Sun shade 372
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Floor mat 373
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 10

05 SIENNA_U (L/O 0409)
404
2005 SIENNA from Sep. ’04 Prod. (OM45431U)
1. Check the area around the vehicle be-fore entering it.
2. Adjust seat position, seatback angle, seat cushion height, head restraint
height and steering wheel angle.
3. Adjust the inside and outside rear view mirrors.
4. Lock all doors.
5. Fasten seat belts. 1. Apply the parking brake firmly.
2. Turn off unnecessary lights and acces-
sories.
3. Put the selector lever in “P”. If you need to restart the engine while the
vehicle is moving, put the selector le-
ver in “N”. A starter safety device will
prevent the starter from operating if the
selector lever is in any drive position.
4. Depress the brake pedal and hold it to the floor until driving off. Before starting the engine, be sure to fol-
low the instructions in “(a) Before crank-
ing”.
Normal starting procedure
The multiport fuel injection system/sequen-
tial multiport fuel injection system in your
engine automatically controls the proper
air
−fuel mixture for starting. You can start
a cold or hot engine as follows:
With your foot off the accelerator pedal,
crank the engine by turning the key to
“START”. Release it when the engine
starts.
Engine should be warmed up by driving,
not in idle. For warming up, drive with
smoothly turning engine until engine cool-
ant temperature is within normal range.
If the engine stalls...
Simply restart it, using the correct proce-
dure given in normal starting.
If the engine will not start...
See “If your vehicle will not start” on page
416 in Section 4.
Before starting the engine How to start the engine—
(a) Before cranking
(b) Starting the engine
