TOYOTA SIENNA 2006 XL20 / 2.G Navigation Manual

141
Deleting a Bluetooth phone
1. Touch “Delete” of “Bluetooth Tele-
phone”.
2. Select the telephone you want to delete
and touch “OK”.
3. Touch “YES”.
When you delete the telephone while
another Bluetooth phone is connecting,
this message is displayed.
Touch “YES”.

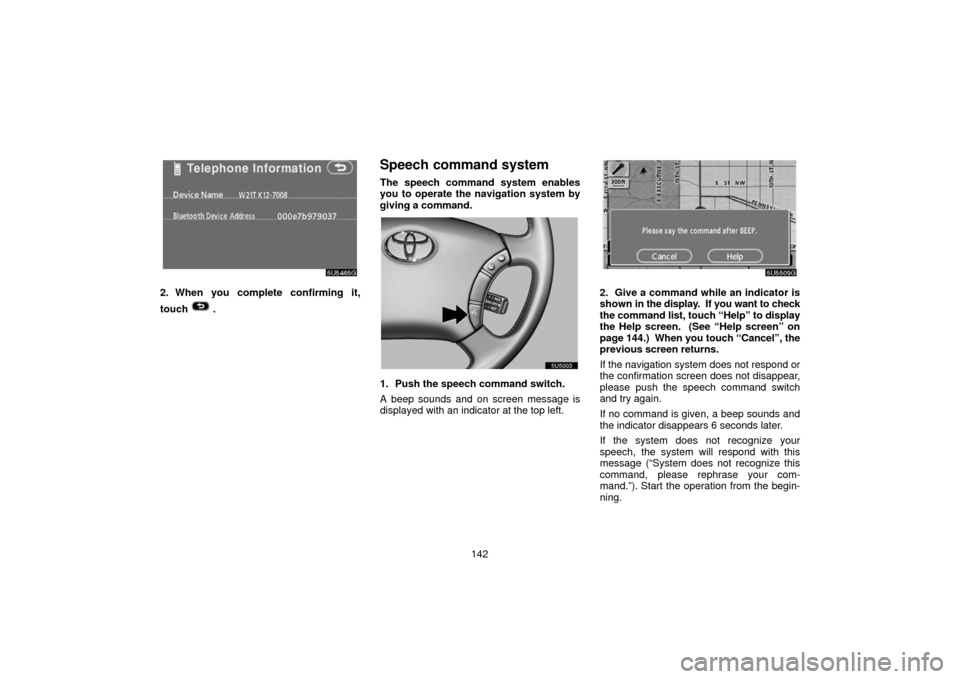

Displaying the information of the Blue-
tooth phone you delete
You can display the information of the
Bluetooth phone before you delete it and
you can make sure whether the telephone
you delete is correct or not.
1. Select the telephone you want to dis-
play the information about.

142
2. When you complete confirming it,
touch
.
Speech command system
The speech command system enables
you to operate the navigation system by
giving a command.
1. Push the speech command switch.
A beep sounds and on screen message is
displayed with an indicator at the top left.
2. Give a command while an indicator is
shown in the display. If you want to check
the command list, touch “Help” to display
the Help screen. (See “Help screen” on
page 144.) When you touch “Cancel”, the
previous screen returns.
If the navigation system does not respond or
the confirmation screen does not disappear,
please push the speech command switch
and try again.
If no command is given, a beep sounds and
the indicator disappears 6 seconds later.
If the system does not recognize your
speech, the system will respond with this
message (“System does not recognize this
command, please rephrase your com-
mand.”). Start the operation from the begin-
ning.

143

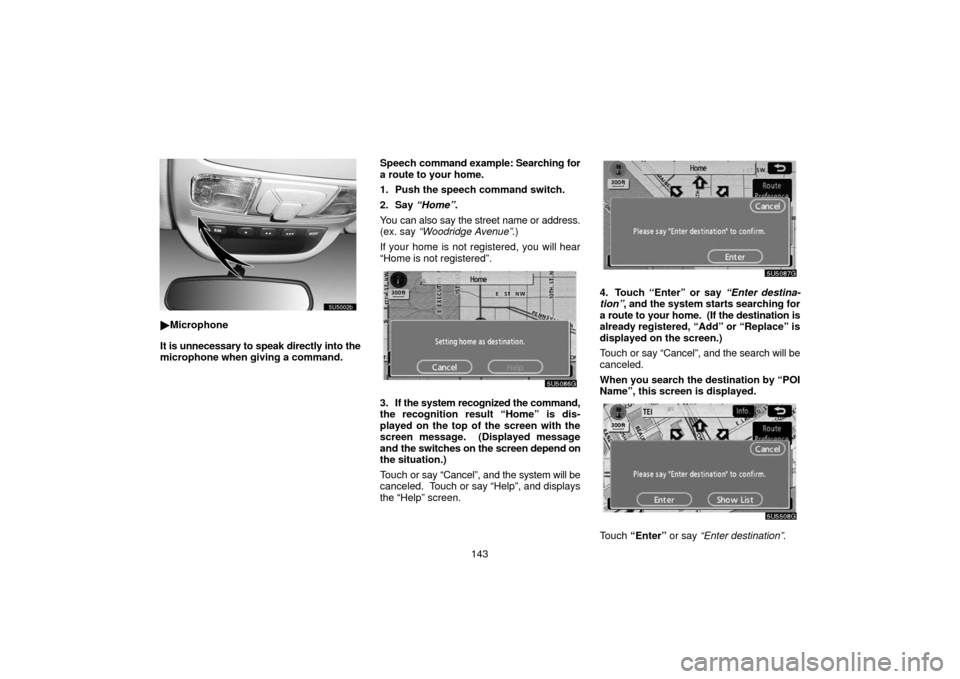

Microphone
It is unnecessary to speak directly into the
microphone when giving a command. Speech
command example: Searching for
a route to your home.
1. Push the speech command switch.
2. Say “Home” .
You can also say the street name or address.
(ex. say “Woodridge Avenue” .)
If your home is not registered, you will hear
“Home is not registered”.
3. If the system recognized the command,
the recognition result “Home” is dis-
played on the top of the screen with the
screen message. (Displayed message
and the switches on the screen depend on
the situation.)
Touch or say “Cancel”, and the system will be
canceled. Touch or say “Help”, and displays
the “Help” screen.
4. Touch “Enter” or say “Enter destina-
tion” , and the system starts searching for
a route to your home. (If the destination is
already registered, “Add” or “Replace” is
displayed on the screen.)
Touch or say “Cancel”, and the search will be
canceled.
When you search the destination by “POI
Name”, this screen is displayed.
Touch “Enter” or say “Enter destination” .

144
When you touch “Show List”, you can
search another spot in its category.
INFORMATION
In the following conditions, the system
may not recognize the command
proper-
ly.
 The command is not correct or clear.
 There are some noises such as wind
noise, etc.
Help screen
This system has a function which displays
the voice recognition help screen. You
can see the command list and operating
guide on it.

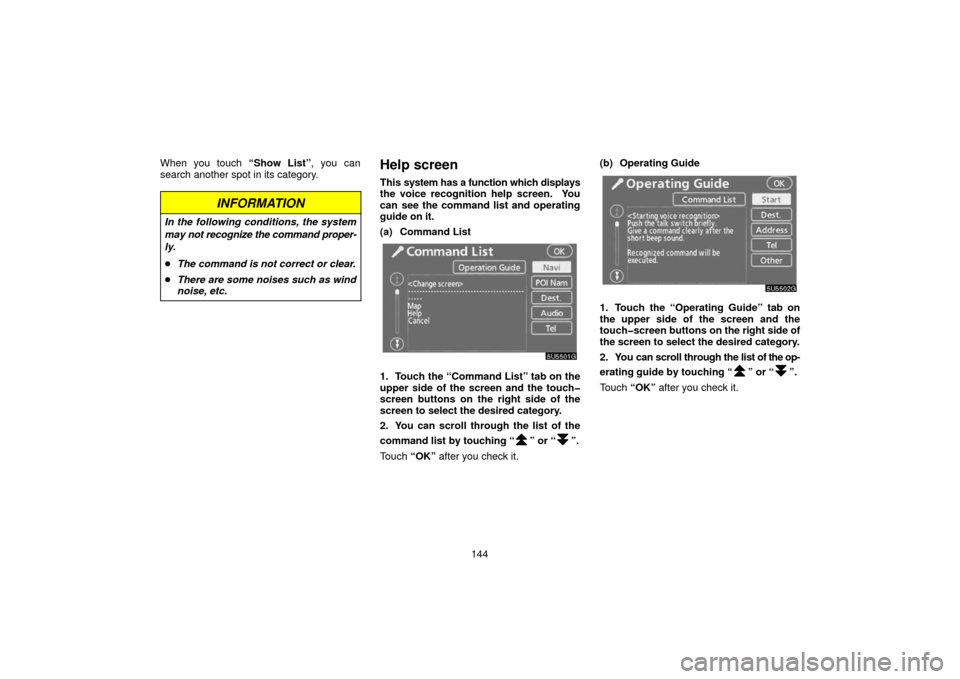

(a) Command List
1. Touch the “Command List” tab on the
upper side of the screen and the touch
screen buttons on the right side of the
screen to select the desired category.
2. You can scroll through the list of the
command list by touching “
” or “”.
Touch “OK” after you check it. (b) Operating Guide
1. Touch the “Operating Guide” tab on
the upper side of the screen and the
touchscreen buttons
on the right side of
the screen to select the desired category.
2. You can scroll through the list of the op-
erating guide by touching “
” or “”.
Touch “OK” after you check it.

145
Screen adjustment
The brightness or contrast of the screen
can be adjusted depending on the bright-
ness of your surroundings. You can also
turn the display off.
To display the “Display” screen, push the
“DISPLAY” button.

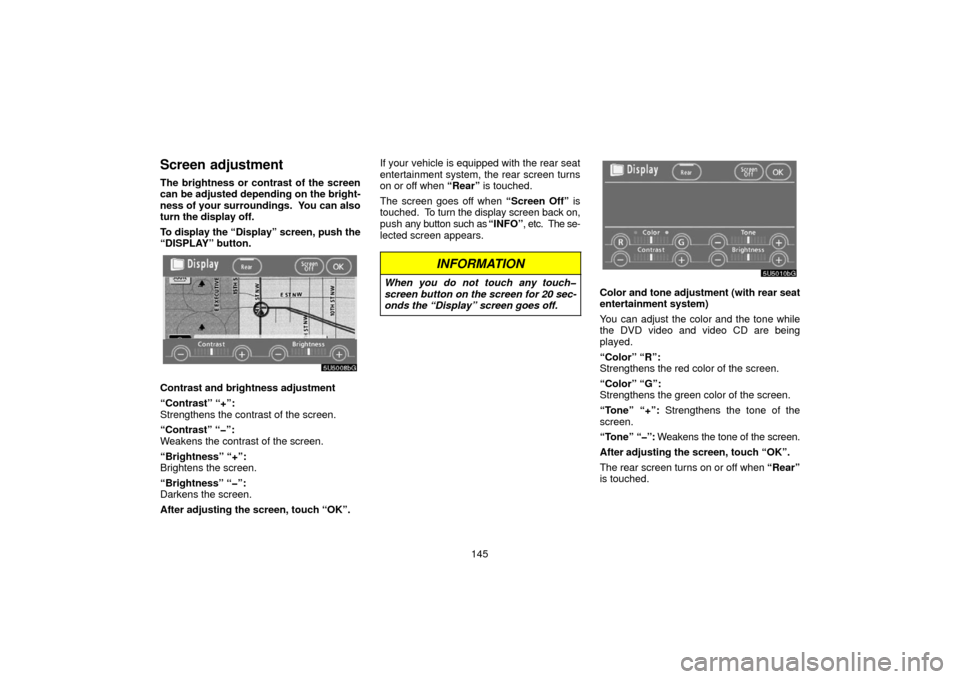

Contrast and brightness adjustment
“Contrast” “+”:
Strengthens the contrast of the screen.
“Contrast” “”:
Weakens the contrast of the screen.
“Brightness” “+”:
Brightens the screen.
“Brightness” “”:
Darkens the screen.
After adjusting the screen, touch “OK”.If your vehicle is equipped with the rear seat
entertainment system, the rear screen turns
on or off when
“Rear” is touched.
The screen goes off when “Screen Off” is
touched. To turn the display screen back on,
push any button such as “INFO”, etc. The se-
lected screen appears.
INFORMATION
When you do not touch any touch
screen button on the screen for 20 sec-
onds the “Display” screen goes off.Color and tone adjustment (with rear seat
entertainment system)
You can adjust the color and the tone while
the DVD video and video CD are being
played.
“Color” “R”:
Strengthens the red color of the screen.
“Color” “G”:
Strengthens the green color of the screen.
“Tone” “+”: Strengthens the tone of the
screen.
“Tone” “”: Weakens the tone of the screen.
After adjusting the screen, touch “OK”.
The rear screen turns on or off when “Rear”
is touched.

146
The screen turns off when
“Screen Off” is
touched. To turn the screen back on, push
any button such as “INFO”, etc. The selected
screen appears.
INFORMATION
When you do not touch any touch
screen button on the screen for 20 sec-
onds the “Display” screen goes off.

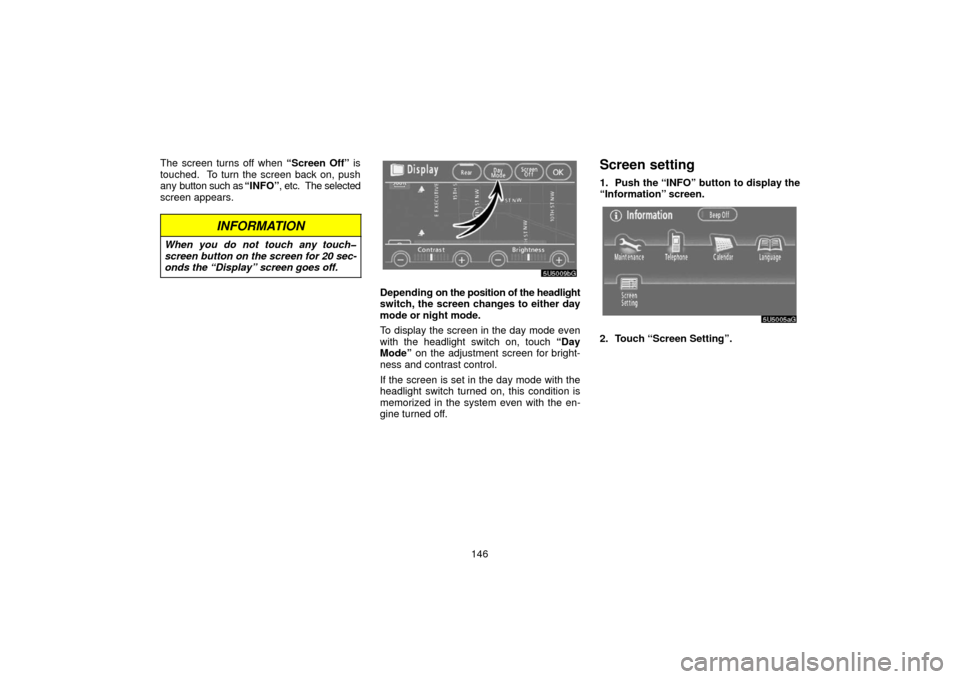

Depending on the position of the headlight
switch, the screen changes to either day
mode or night mode.
To display the screen in the day mode even
with the headlight switch on, touch “Day
Mode” on the adjustment screen for bright-
ness and contrast control.
If the screen is set in the day mode with the
headlight switch turned on, this condition is
memorized in the system even with the en-
gine turned off.
Screen setting
1. Push the “INFO” button to display the
“Information” screen.
2. Touch “Screen Setting”.

147

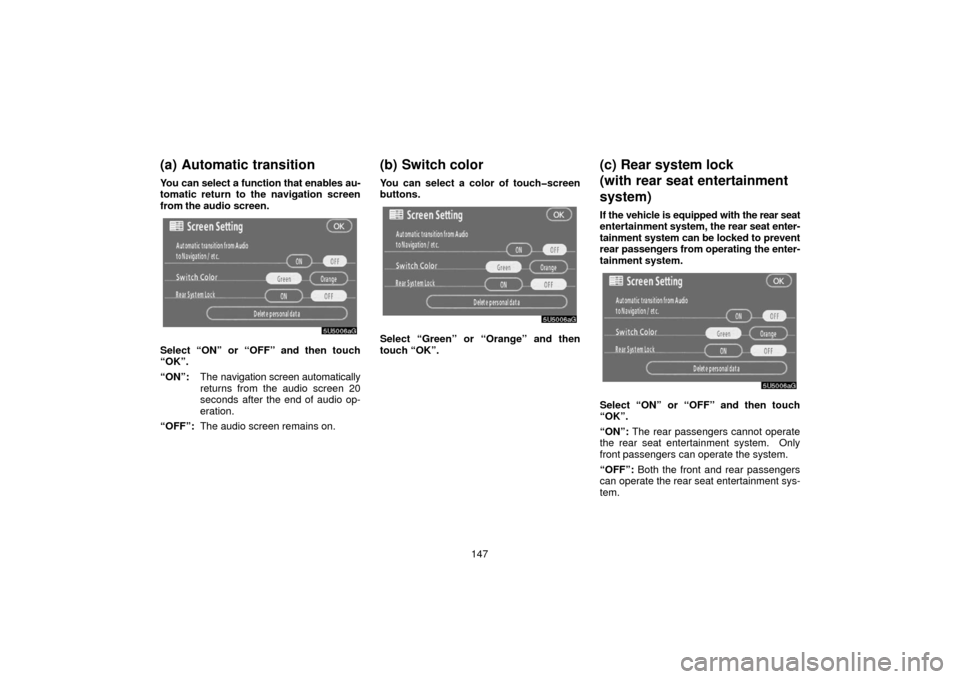

(a) Automatic transition
You can select a function that enables au-
tomatic return to the navigation screen
from the audio screen.
Select “ON” or “OFF” and then touch
“OK”.
“ON”:The navigation screen automatically
returns from the audio screen 20
seconds after the end of audio op-
eration.
“OFF”: The audio screen remains on.
(b) Switch color
You can select a color of touchscreen
buttons.
Select “Green” or “Orange” and then
touch “OK”.
(c) Rear system lock
(with rear seat entertainment
system)
If the vehicle is equipped with the rear seat
entertainment system, the rear seat enter-
tainment system can be locked to prevent
rear passengers from operating the enter-
tainment system.
Select “ON” or “OFF” and then touch
“OK”.
“ON”: The rear passengers cannot operate
the rear seat entertainment system. Only
front passengers can operate the system.
“OFF”: Both the front and rear passengers
can operate the rear seat entertainment sys-
tem.

148

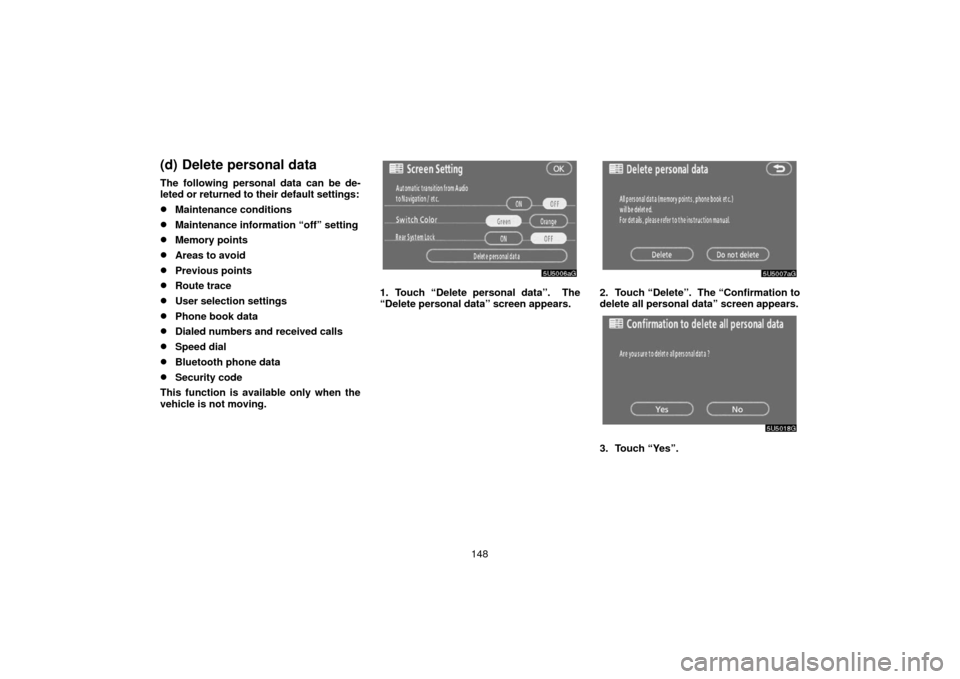

(d) Delete personal data
The following personal data can be de-
leted or returned to their default settings:
Maintenance conditions
Maintenance information “off” setting
Memory points
Areas to avoid
Previous points
Route trace
User selection settings
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code
This function is available only when the
vehicle is not moving.
1. Touch “Delete personal data”. The
“Delete personal data” screen appears.2. Touch “Delete”. The “Confirmation to
delete all personal data” screen appears.
3. Touch “Yes”.

149
Beep setting
You can set a beep sound off.
Touch “Beep Off”. “Beep Off” is high-
lighted. To set the beep sound on, touch
“Beep Off” again.

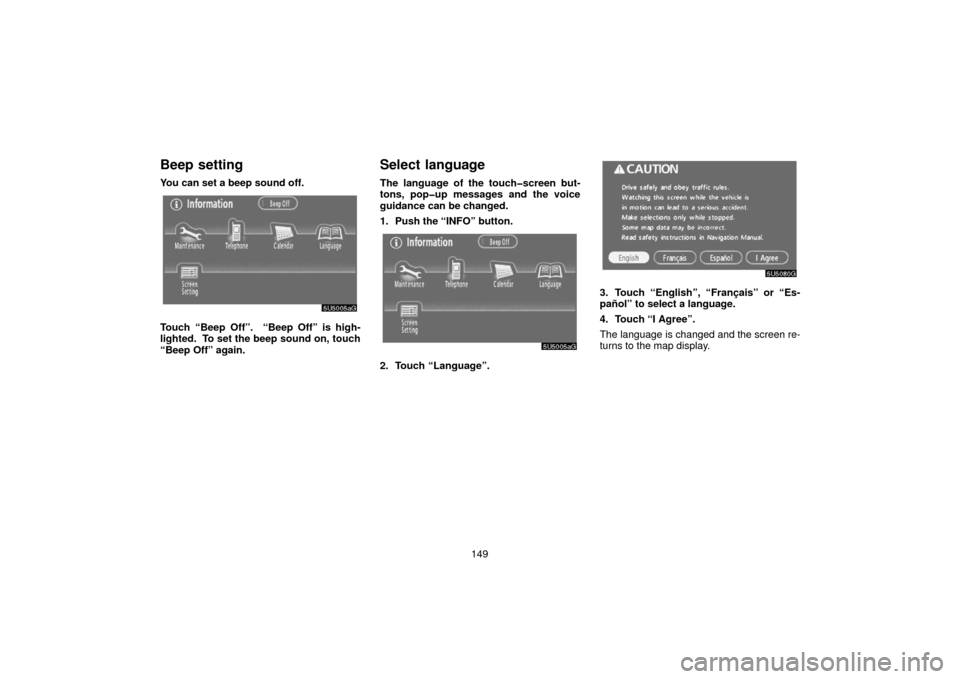

Select language
The language of the touchscreen but-
tons, popup messages and the voice
guidance can be changed.
1. Push the “INFO” button.
2. Touch “Language”.
3. Touch “English”, “Français” or “Es-
pañol” to select a language.
4. Touch “I Agree”.
The language is changed and the screen re-
turns to the map display.

150
