TOYOTA SIENNA 2006 XL20 / 2.G Navigation Manual

191
Audio CDs
DVD video
discs
Video CDs
DVD player
Use only discs marked as shown above.
The following products may not be play-
able on your player.
SACD
Copy−protected CD
CD−ROM
DVD−R
DVD+R
DVD−RW
DVD+RW
DVD−ROM
DVD−RAM Special shaped discs
Transparent/translucent discs
Low quality discs
Labeled discs

192
NOTICE
Do not use special shaped, transparent/
translucent, low quality or labeled discs
such as those shown in the illustrations.
The use of such discs may damage the
player or changer, or it may be impossi-
ble to eject the disc.
 Correct Wrong
Handle discs carefully, especially when
you are inserting them. Hold them on the
edge and do not bend them. A void getting
fingerprints on them, particularly on the
shiny side.
Dirt, scratches, warping, pin holes, or oth-
er disc damage could cause the player to
skip or to repeat a section of a track. (To
see a pin hole, hold the disc up to the
light.)
Remove discs from the players when you
are not using them. Store them in their
plastic cases away from moisture, heat,
and direct sunlight.
To clean a compact disc: Wipe it with a soft,
lint−free cloth that has been dampened with
water. Wipe in a straight line from the center
to the edge of the disc (not in circles). Dry it
with another soft, lint −free cloth. Do not use
a conventional record cleaner or anti −static
device.

193
MP3/WMA FILES
MP3 (MPEG Audio Layer 3) and WMA
(Windows Media Audio) are audio com-
pression standards.
The MP3/WMA player can play MP3 and
WMA files on CD
−ROM, CD− R and CD−
RW discs.
The unit can play disc recordings compat-
ible with ISO 9660 level 1 and level 2 and
with the Romeo and Joliet file system.
When naming an MP3 or WMA file, add
the appropriate file extension (.mp3 or
.wma).
The MP3/WMA player plays back files
with .mp3 or .wma file extensions as MP3
or WMA files. To prevent noise and play-
back errors, use the appropriate file ex-
tensions.
The player can play only the first session
using multi− session compatible CDs.
MP3 files are compatible with the ID3 Tag
Ver. 1.0, Ver. 1.1, Ver. 2.2, and Ver. 2.3 for-
mats. The unit cannot display disc title,
track title and artist name in other formats.
WMA files can contain a WMA tag that is
used in the same way as an ID3 tag. WMA
tags carry information such as track title,
artist name.
The emphasis function is available only
when playing MP3/WMA files recorded at
32, 44.1 and 48 kHz. (The system can
play MP3 files with sampling frequencies
of 16, 22.05, and 24 kHz. However, the
emphasis function is not available for files
recorded at these frequencies.)
The sound quality of MP3/WMA files gen-
erally improves with higher bit rates. In or-
der to achieve a reasonable level of sound
quality, discs recorded with a bit rate of at
least 128 kbps are recommended.
Playable bit rates
MP3 files:
MPEG1 LAYER3—64 to 320 kbps
MPEG2 LSF LAYER3—64 to 160 kbps
WMA files:
Ver. 7, 8 CBR—48 to 192 kbps
Ver. 9 CBR—48 to 320 kbps
The MP3/WMA player does not play back
MP3/WMA files from discs recorder using
packet write data transfer (UDF format).
Discs should be recorded using “pre −
mastering” software rather than packet −
write software.
M3u playlists are not compatible with the
audio player.
MP3i (MP3 interactive) and MP3PRO for-
mats are not compatible with the audio
player.
The MP3 player is compatible with VBR
(Variable Bit Rate).
When playing back files recorded as VBR
(Variable Bit Rate) files, the play time will
not be correctly displayed if fast−forward
or reverse operations are used.
It is not possible to check folders that do
not include MP3/WMA files.
MP3/WMA files in folders up to 8 levels
deep can be played. However, the start of
playback may be delayed when using
discs containing numerous levels of fol-
ders. For this reason, we recommend
creating discs with no more than two lev-
els of folders.
It is possible to play up to 192 folders or
255 files on one disc.

194
001.mp3
002.wmaFolder 1
003.mp3
Folder 2
004.wma
005.mp3Folder 3
006.mp3
The play order of the compact disc with
the structure shown on the left is as fol-
lows:
CDR and CDRW discs
CD−R/CD−RW discs that have not been
subject to the “finalizing process” (a pro-
cess that allows discs to be played on a
conventional CD player) cannot be
played.
It may not be possible to play CD −R/CD−
RW discs recorded on a music CD record-
er or a personal computer because of disc
characteristics, scratches or dirt on the
disc, or dirt, condensation, etc. on the
lens of the unit.
It may not be possible to play discs re-
corded on a personal computer depend-
ing on the application settings and the en-
vironment. Record with the correct
format. (For det ails, contact the appropri-
ate application manufacturers of the ap-
plications.)
CD−R/CD−RW discs may be damaged by
direct exposure to sunlight, high tempera-
tures or other storage conditions. The unit
may be unable to play some damaged
discs.
If you insert a CD−RW disc into the
MP3/WMA player, playback will begin
more slowly than with a conventional CD
or CD− R disc.
Recordings on CD −R/CD− RW cannot be
played using the DDCD (Double Density
CD) system. TERMS
Packet write—
This is a
general term that describes the pro-
cess of writing data on −demand to CD−R,
etc., in the same way that data is written to
floppy or hard discs.
ID3 Tag—
This is a method of embedding track −related
information in an MP3 file. This embedded in-
formation can include the track title, the art-
ist’s name, the album title, the music genre,
the year of production, comments and other
data. The contents can be freely edited using
software with ID3 tag editing functions. Al-
though the tags are restricted to the number
of characters, the information can be viewed
when the track is played back.
WMA Tag—
WMA files can contain a WMA tag that is used
in the same way as an ID3 tag. WMA tags
carry information such as track title, artist
name.

195
ISO 9660 format—
This is the international standard for the for-
matting of CD
−ROM folders and files. For the
ISO 9660 format, there are two levels of regu-
lations.
Level 1:
The file name is in 8.3 format (8 character file
names, with a 3 character file extension. File
names must be composed of one −byte capi-
tal letters and numbers. The “_” symbol may
also be included.)
Level 2:
The file name can have up to 31 characters
(including the separation mark “.” and file ex-
tension). Each folder must contain fewer than
8 hierarchies.
m3u—
Playlists created using “WINAMP” software
have a playlist file extension (.m3u). MP3—
MP3 is an audio compression standard deter-
mined by a working group (MPEG) of the ISO
(International Standard Organization). MP3
compresses
audio data to about 1/10 the size
of that on conventional discs.
WMA—
WMA (Windows Media Audio) is an audio
compression format developed by Microsoft.
It compresses files into a size smaller than
that of MP3 files. The decoding formats for
WMA files are Ver. 7, 8, and 9.

196

197
APPENDIX
Appendix
Limitations of the navigation system198
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 200
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION VII

198
Limitations of the navigation
system
This navigation system calculates the cur-
rent vehicle position using satellite sig-
nals, various vehicle signals, map data,
etc. However, the accurate position may
not be shown depending on the satellite
condition, road configuration, vehicle
condition or other circumstances.
The Global Positioning System (GPS) devel-
oped and operated by the U.S. Department of
Defense provides an accurate current vehicle
position using 3 to 4 satellites. The GPS sys-
tem has a certain level of inaccuracy. While
the navigation system will compensate for
this most of the time, occasional positioning
errors of up to 300 feet (100 m) can and
should be expected. Generally, position er-
rors will be corrected within a few seconds.
When your vehicle is receiving signals from
the satellites, the “GPS” mark appears at the
top left of the screen.
The GPS signal may be physically ob-
structed, leading to inaccurate vehicle posi-
tion on the map display. Tunnels, tall build-
ings, trucks, or even the placement of objects
on the instrument panel may obstruct the
GPS signals.
The GPS satellites may not send signals due
to repairs or improvements being made to
them.
Even when the navigation system is receiving
clear GPS signals, the vehicle position may
not be shown accurately or inappropriate
route guidance may occur in some cases.
NOTICE
The installation of window tinting may
obstruct the GPS signals. Most window
tinting contains some metallic content
that will interfere with GPS signal recep-
tion. We advise against the use of win-
dow tinting on vehicles equipped with
navigation systems.

199
(a) Accurate current vehicle position
may not be shown in the following cases:
When
driving on a small angled Y −shaped
road.
When driving on a winding road.
When driving on a slippery road such as
in sand, gravel, snow, etc.
When driving on a long straight road.
When freeway and surface streets run in
parallel.
After moving by ferry or vehicle carrier.
When a long route is searched during high
speed driving.
When driving without setting the current
position calibration correctly.
After repeating a change of direction by
going forward and backward, or turning on
a turntable in the parking lot.
When leaving a covered parking lot or
parking garage.
When a roof carrier is installed.
When driving with tire chains installed.
When the tires are worn.
After replacing a tire or tires.
When using tires that are smaller or larger
than the factory specifications.
When the tire pressure in any of the four
tires is not correct.
INFORMATION
If your vehicle cannot receive GPS sig-
nals, you can correct the current posi-
tion manually. For information on set-
ting the current position calibration, see
“
 Current position/tire change calibra-
tion” on page 87.
(b) Inappropriate route guidance may oc-
cur in the following cases:
When turning at an intersection off the
designated route guidance.
If you set more than one destination but
skip any of them, auto reroute will display
a route returning to the destination on the
previous route.
When turning at an intersection for which
there is no route guidance.
When passing through an intersection,
there is no route guidance.
During auto reroute, the route guidance
may not be available for the next turn to
the right or left.
It may take a long time to operate auto re-
route during high speed driving. In auto
reroute, a detour route may be shown.
After auto reroute, the route may not be
changed.
An unnecessary U− turn may be shown or
announced.
A location may have multiple names and
the system will announce one or more.
Some routes may not be searched.
If the route to your destination includes
gravel, unpaved roads or alleys, the route
guidance may not be shown.

200
Your destination point might be shown on
the opposite side of the street.
When a portion of the route has regula-
tions prohibiting the entry of the vehicle
that vary by time or season or other rea-
sons.
The road and map data stored in your nav-
igation system may not be complete or
may not be the latest version.
After replacing the tire, implement the op-
eration described in the “  Current posi-
tion/tire change calibration”. (See page
87.)
This navigation system uses tire turning data
and is designed to work with factory −speci-
fied tires for your vehicle. Installing tires that
are larger or smaller than the originally
equipped diameter may cause inaccurate
display of the vehicle’s position. The tire pres-
sure also affects the diameter of the tires so
please make sure the tire pressure of all four
tires is correct.
Map database information and
updates
This system uses the maps of DENSO.

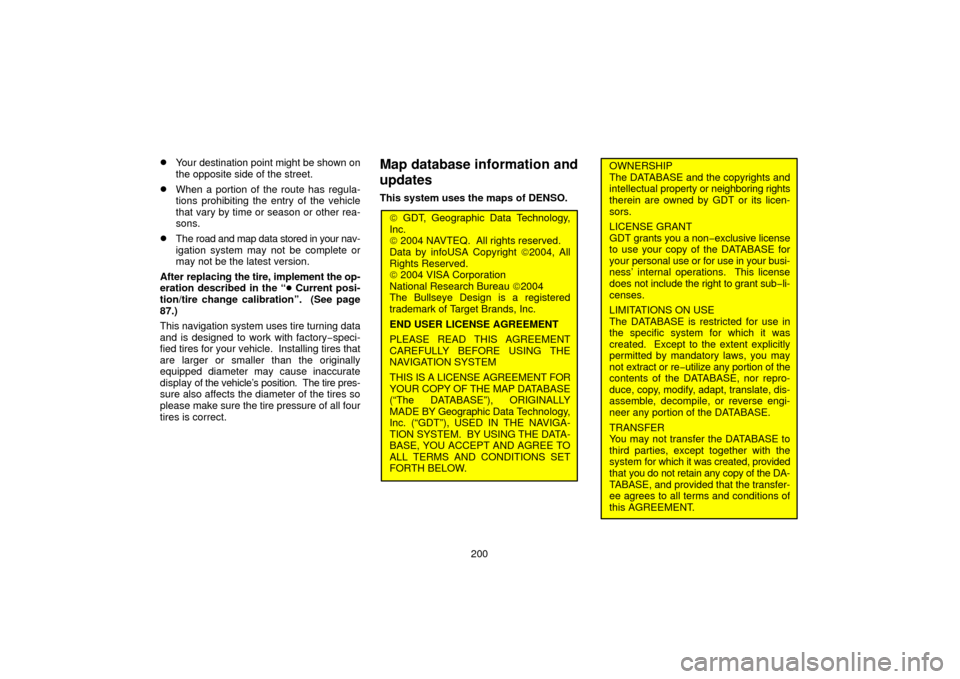

© GDT, Geographic Data Technology,
Inc.
© 2004 NAVTEQ. All rights reserved.
Data by infoUSA Copyright ©2004, All
Rights Reserved.
© 2004 VISA Corporation
National Research Bureau ©2004
The Bullseye Design is a registered
trademark of Target Brands, Inc.
END USER LICENSE AGREEMENT
PLEASE READ THIS AGREEMENT
CAREFULLY BEFORE USING THE
NAVIGATION SYSTEM
THIS IS A LICENSE AGREEMENT FOR
YOUR COPY OF THE MAP DAT ABASE
(“The DATABASE”), ORIGINALLY
MADE BY Geographic Data T echnology,
Inc. (“GDT”), USED IN THE NAVIGA-
TION SYSTEM. BY USING THE DATA-
BASE, YOU ACCEPT AND AGREE TO
ALL TERMS AND CONDITIONS SET
FORTH BELOW.
OWNERSHIP
The DATABASE and the copyrights and
intellectual property or neighboring rights
therein are owned by GDT or its licen-
sors.
LICENSE GRANT
GDT grants you a non− exclusive license
to use your copy of the DATABASE for
your per sonal use or for use in your busi-
ness’ internal operations. This license
does not include the right to grant sub −li-
censes.
LIMITATIONS ON USE
The DATABASE is restricted for use in
the specific system for which it was
created. Except to the extent explicitly
permitted by mandatory laws, you may
not extract or re− utilize any portion of the
contents of the DATABASE, nor repro-
duce, copy, modify , adapt, translate, dis-
assemble, decompile, or reverse engi-
neer any portion of the DATABASE.
TRANSFER
You may not transfer the DATABASE to
third parties, except together with the
system for which it was created, provided
that you do not retain any copy of the DA-
TABASE, and provided that the transfer-
ee agrees to all terms and conditions of
this AGREEMENT.
