ECO mode TOYOTA SIENNA 2006 XL20 / 2.G Navigation Manual

x
8“Traffic Restrict. Notification”
Notification of seasonal restrictions can be
selected. 85 . . . . . . . . . . . . . . . . . . . . . . . . . .
9“Voice Recognition Guidance”
Voice recognition guidance can be set. 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10“Voice Guidance in All Modes”
Voice guidance can be set in all modes. 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11“Auto Voice Guidance”
Automatic voice guidance can be set. 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12“Popup Message”
Selection of either ON or OFF to display the
pop−up message is possible. 87 . . . . . . . . .
13“Calibration”
Adjustment of the current vehicle position
mark can be done manually, or mis −calcula-
tion by changing tire will be adjusted.
87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14“Default”
This touch− screen button initializes all of the
settings. 80
. . . . . . . . . . . . . . . . . . . . . . . . . . .
15“?”
Function help for the “Setup” screen can be
viewed. 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . .

63
:To indicate the next destination.
:To preview the route to the next des-
tination.
: To preview the route to the next des-
tination in fast −forward mode.
: To stop the preview.
:To review the route to the previous
destination or starting point.
: To review the route to the previous
destination or starting point in fast −
forward mode.
: To indicate the previous destination
or starting point.
— Route trace
It is possible to store the traveled route up to
124 miles (200 km) and retrace the route on
the display.
INFORMATION
This feature is available on the map with
more detailed map scale than 30 mile (50
km).
Touch “Map View”.
“Record”: To start recording the route trace.
“Stop”: To stop recording the route trace.
If you touch “Stop” to display the following
screen.
Touching “Yes” stops recording and the
route trace remains displayed on the screen.
Touching “No” stops recording and the route
trace is erased.

86
Voice recognition guidance
When the “Voice Recognition Guidance” fea-
ture is turned on, the voice recognition guid-
ance can be heard automatically.
To turn the “Voice R ecognition Guidance” on:
1. Touch “Setup” on the “Menu” screen.
Then touch
to display page 2 of the “Set-
up” screen.
2. Touch “ON” of “Voice Recognition
Guidance”.
The selected button is highlighted.
3. Touch “OK”.
Voice guidance in all modes
When the “Voice Guidance in All Modes” fea-
ture is turned on, the voice guidance in all
modes can be heard.
When the “Voice Guidance in All Modes” fea-
ture is turned off, voice guidance cannot be
heard when using the audio system.
To turn the “Voice Guidance in All Modes” on:
1. Touch “Setup” on the “Menu” screen.
Then touch
to display page 2 of the “Set-
up” screen.
2. Touch “ON” of “Voice Guidance in All
Modes”.
The selected button is highlighted.
3. Touch “OK”.
Auto voice guidance
When the “Auto Voice Guidance” feature is
turned on, the voice guidance can be heard
automatically.
When the “Auto Voice Guidance” feature is
turned off, the voice guidance can be heard
only if the “MAP/VOICE” button is pushed.
To turn the “Auto Voice Guidance” mode on:
1. Touch “Setup” on the “Menu” screen.
Then touch
twice to display page 3 of the
“Setup” screen.
2. Touch “ON” of “Auto V oice Guidance”.
The selected button is highlighted.
3. Touch “OK”.

121

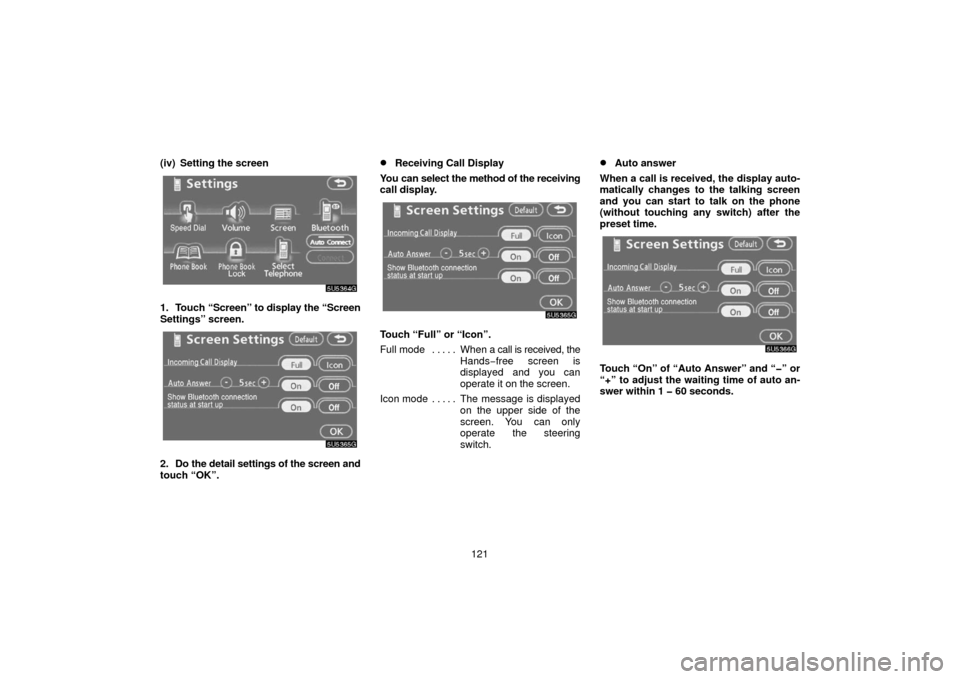

(iv) Setting the screen
1. Touch
“Screen” to display the “Screen
Settings” screen.
2. Do the detail settings of the screen and
touch “OK”.
Receiving Call Display
You can select the method of the receiving
call display.
Touch “Full” or “Icon”.
Full mode When a call is received, the
. . . . .
Hands −free screen is
displayed and you can
operate it on the screen.
Icon mode The message is displayed . . . . .
on the upper side of the
screen. You can only
operate the steering
switch.
Auto answer
When a call is received, the display auto-
matically changes to the talking screen
and you can start to talk on the phone
(without touching any switch) after the
preset time.
Touch “On” of “Auto Answer” and “” or
“+” to adjust the waiting time of auto an-
swer within 1 60 seconds.

155
(b) Tone and balance
How good an audio program sounds to you is
largely determined by the mix of the treble,
midrange, and bass levels. In fact, different
kinds of music and vocal programs usually
sound better with different mixes of treble,
mid−range, and bass.
A good balance of the left and right stereo
channels
and of the front and rear sound lev-
els is also important.
Keep in mind that if you are listening to a ste-
reo recording or broadcast, changing the
right/left balance will increase the volume of
one group of sounds while decreasing the vol-
ume of another.
Touching “SOUND” displayed on the
screen at the audio control mode will dis-
play the sound control mode. Adjust the
tone and balance as follows:
To adjust the tone, touch “+” or “” on the
screen. To adjust the balance between the
front and rear speakers, touch “FRONT”
or “REAR” on the screen, and to adjust the
balance between the left and right, touch
“L” or “R” on the screen.
“TREB”: Adjusts high− pitched tones.
“MID”: Adjusts mid− pitched tones.
“BASS”: Adjusts low −pitched tones.
As the yellow display approaches “+”, each
tone is more emphasized. (c) DSP control
Touching “DSP” displayed on the screen
at the audio control mode will display the
DSP control mode. You can turn on/off the
surround function and the automatic
sound levelizer on the DSP screen.
Surround function:
Select “ON” of “SURROUND” and touch
“OK”.
The surround function will turn on.
Automatic sound levelizer (ASL):
When
the audio sound becomes difficult to be
heard due to road noise, wind noise or other
noises while driving, the system adjusts to the
optimum volume according to the noise level.
Select “ON” of “ASL” and touch “OK”.

157
(f) Your DVD player
(with rear seat entertainment system)
The sound of the rear seat entertainment sys-
tem can be enjoyed by pushing the
“DISC·AUX” button.
(g) AUX adapter
The sound of portable audio players con-
nected to the AUX adapter can be enjoyed.
Push the “DISC·AUX” button to switch to AUX
mode. For details, refer to the “Owner’s
Manual”.
— Radio operation
(a) Listening to the radio
Push these buttons to choose either an
AM or FM station.
“AM”, “FM1” or “FM2” appears on the screen.
Turn the knob clockwise to step up the sta-
tion band or counterclockwise to step
down.
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the screen. If the
signal becomes weak, the radio reduces the
amount of channel separation to prevent the
weak signal from creating noise. If the signal
becomes extremely weak, the radio switches
from stereo to mono reception. In this case,
“ST” disappears from the screen.

158
(b) Presetting a station
1. Tune in the desired station.
2. Touch one of the touchscreen but-
tons (1 — 6) you want and hold it until a
beep is heard. This sets the station to the
touchscreen button and the frequency
appears on the touchscreen button.
Each radio mode (AM, FM1 or FM2) can store
up to 6 stations. To change the preset station
to a different one, follow the same procedure.
The preset station memory is cancelled when
the power source is interrupted by battery dis-
connection or a blown fuse. (c) Selecting a station
Tune in the desired station using one of the
following methods.
Preset tuning:
Touch the touch− screen but-
ton (1 — 6) for the station you want. The
touch−screen button is highlighted and the
station frequency appears on the screen.
Seek tuning: Push the “SEEK/TRACK” but-
ton on either side. The radio will begin seek-
ing up or down for a station of the nearest fre-
quency and will stop on reception. Each time
you push the button, the stations will be
searched automatically one after another.
To scan all the frequencies: Touch “SCAN”
on the screen or push the “SCAN” button
briefly. “SCAN” appears on the screen. The
radio will find the next station and stay there
for a few seconds, and then scan again. To
select a station, touch “SCAN” or push the
“SCAN” button again.
To scan the preset stations: Touch “SCAN”
on the screen or push the “SCAN” button for
longer than a second. “P . SCAN” appears on
the screen. The radio will tune in the next pre-
set station, stay there for a few seconds, and
then move to the next preset station. To se-
lect a station, touch “SCAN” or push the
“SCAN” button again. (d) Radio Data System
Your audio system is equipped with Radio
Data Systems (RDS). RDS mode provides
you to receive text messages from radio sta-
tions that utilize RDS transmitters.
When RDS is on, the radio can
— only select stations of a particular program
type,
— display messages from radio stations,
— search for a stronger signal station.
RDS features are available for the use only on
FM stations which broadcast RDS informa-
tion.

178
This “DVD Hint!” screen appears when the
video screen is first displayed after the
ignition switch is set at ACC or ON.
Touch “OK” when you read the message.PLAYING A DVD DISC
Push the “AUDIO” button to display this
screen.
When you touch “WIDE”, the screen mode
can be changed.
It you touch “PICTURE” when the vehicle is
completely stopped and the parking brake is
applied, the video screen returns.
DISPLAYING DVD CONTROLS
If you touch a part of the screen, where con-
trols are not located while watching video,
DVD controls will appear.
“Page2”: Touching this will display on the
second page of DVD controls.
“Page1”: Touching this will display the top
page of DVD controls.

186

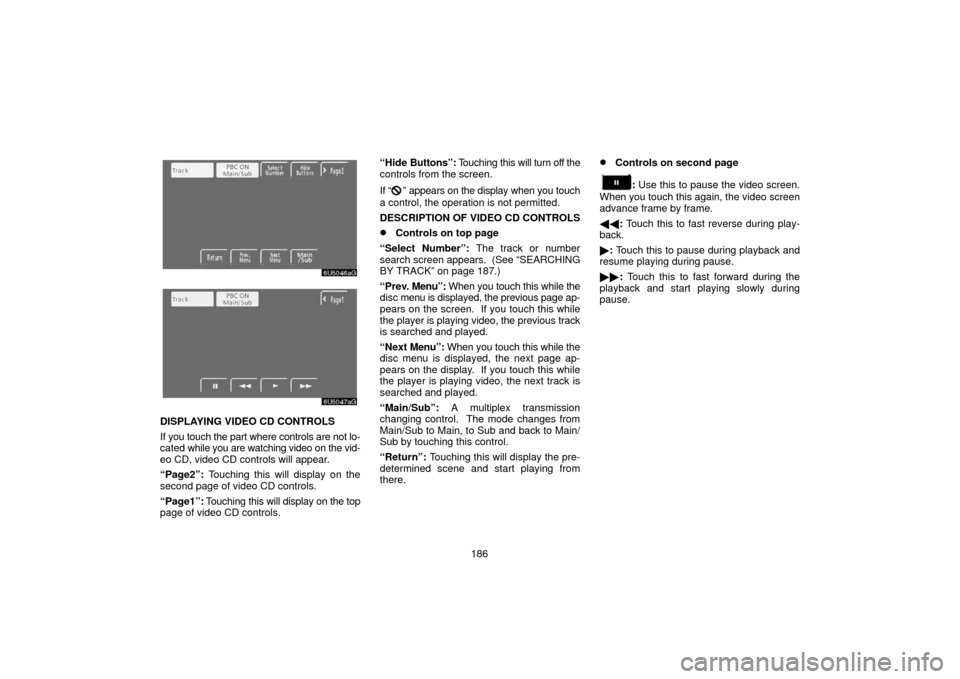

DISPLAYING VIDEO CD CONTROLS
If you touch the part where controls are not lo-
cated while you are watching video on the vid-
eo CD, video CD controls will appear.
“Page2”: Touching this will display on the
second page of video CD controls.
“Page1”: Touching this will display on the top
page of video CD controls. “Hide
Buttons”: Touching this will turn off the
controls from the screen.
If “
” appears on the display when you touch
a control, the operation is not permitted.
DESCRIPTION OF VIDEO CD CONTROLS
Controls on top page
“Select Number”: The track or number
search screen appears. (See “SEARCHING
BY TRACK” on page 187.)
“Prev. Menu”: When you touch this while the
disc menu is displayed, the previous page ap-
pears on the screen. If you touch this while
the player is playing video, the previous track
is searched and played.
“Next Menu”: When you touch this while the
disc menu is displayed, the next page ap-
pears on the display. If you touch this while
the player is playing video, the next track is
searched and played.
“Main/Sub”: A multiplex transmission
changing control. The mode changes from
Main/Sub to Main, to Sub and back to Main/
Sub by touching this control.
“Return”: Touching this will display the pre-
determined scene and start playing from
there.
Controls on second page
: Use this to pause the video screen.
When you touch this again, the video screen
advance frame by frame.
 : Touch this to fast reverse during play-
back.
 : Touch this to pause during playback and
resume playing during pause.
 : Touch this to fast forward during the
playback and start playing slowly during
pause.
