TOYOTA SIENNA 2006 XL20 / 2.G Owners Manual

06 SIENNA_U (L/O 0603)
103
2006 SIENNA from March ‘06 Prod. (OM45443U)
If the engine is started during operating,
the seat operation may also be stopped.
If an object is caught between the seat
and floor, the object prevents the seat
from moving. Do not continue the op-
eration. Remove the object before oper-
ating the seat again.
If the indicator light above the switches
flashes even though there is no object
between the seatback and seat cushion,
contact your Toyota dealer.
CAUTION
When stowing or returning the seats,
observe the following precautions in
order to prevent personal injury:
Make sure that the seat path is
clear before moving the seat. Other-
wise, injury may result from contact
with the seat.
Be careful not to allow hands or
feet to get caught or pinched in the
seat. Be sure to operate the seats
from outside the vehicle.
When the indicator above the stowing
switch and returning switch come on
or flash, do not continue the opera-
tion. An object or a person may be
caught in the seat. If a person is
caught, serious injury may result.
When returning the seats to their
original position, make sure the seat
belts are not twisted or caught in the
seatback. It could result in serious
injuries in a sudden braking or a col-
lision.
Do not shift the automatic transmis-
sion selector lever out of “P” with
the ignition key in “ON” during the
operation. Doing so may cause the
vehicle to move and result in serious
personal injury.
NOTICE
Make sure that the seat path is clear
before stowing or returning the seat.
Otherwise, the seat cushion and seat
legs may be damaged if the seat
comes into contact with the luggage.
This “3RD SEAT” warning light warns the
third seat operation is not yet complete
when the ignition key is turned to the
“ON” position.

06 SIENNA_U (L/O 0603)
104
2006 SIENNA from March ‘06 Prod. (OM45443U)
Front and second seats
Third seats
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Third seats—When an occupant sits on
the seat, always pull up the head restraint
to the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
To adjust the armrest, lower the armrest
to the lowest position and raise it to the
desired angle. Raising the armrest to the
highest position unlocks the armrest to let
you return it to the lowest position.
NOTICE
To prevent damage to the armrest,
avoid putting heavy loads on it.
Head restraintsArmrests

06 SIENNA_U (L/O 0603)
105
2006 SIENNA from March ‘06 Prod. (OM45443U)
To turn on the seat heater, move the
dial upward (“L” dial for the left front
seat or “R” dial for the right front
seat). At this time, the indicator light
will illuminate to indicate the seat heat-
er is operating.
Move the dial upward or downward to ad-
just to the desired temperature.
To turn it off, move the dial downward
until it stops.
When the seat heater is not in use, move
the dial fully downward.
The key must be in the “ON” position to
operate seat heaters.
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or persons with
physical disabilities
Persons who have sensitive skin
Persons who are exhausted
Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat from overheating,
do not use the seat heater with a
blanket, cushion, or other insulating
objects which cover the seat.
NOTICE
 Do not put unevenly weighed ob-
jects on the seat and do not stick
sharp objects (needles, nails, etc.)
into the seat.
 When cleaning the seats, do not
use organic substances (paint thin-
ner, benzine, alcohol, gasoline,
etc.). They may damage the heater
and seat surface.
 To prevent the battery from being
discharged, turn the switch off
when the engine is not running.
Seat heaters

06 SIENNA_U (L/O 0603)
106
2006 SIENNA from March ‘06 Prod. (OM45443U)
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle’s seat belts. See “Child restraint”
on page 137 in this Section for details.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle’s seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child. Do not allow any children to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. Holding a child in your arms
does not provide sufficient restraint.
Pregnant woman.
Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
driver and the front passenger are
sitting up straight and well back in
the seats. If you are reclined, the
lap belt may slide past your hips
and apply restraint forces directly
to the abdomen or your neck may
contact the shoulder belt. In the
event of a frontal co llision, the
more the seat is reclined, the great-
er the risk of death or personal in-
jury.
Seat belts—
—Seat belt precautions

06 SIENNA_U (L/O 0603)
107
2006 SIENNA from March ‘06 Prod. (OM45443U)
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers, or allow them to come into
contact with the belts—they may
severely weaken the belts. (See
“Cleaning the interior” on page 447
in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
Ta bBuckle
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely. When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see “Child
restraint” on page 137 in this Section.) To
free the belt again, fully retract the belt
and then pull the belt out once more.
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from death or serious
injury.
—Fastening front and rear
seat belts

06 SIENNA_U (L/O 0603)
108
2006 SIENNA from March ‘06 Prod. (OM45443U)
Ta k e u p
slack
To o h i g h
Keep as low on
hips as possible
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hips—not on your waist, then ad-
just it to a snug fit by pulling the s houlder
portion upward through the latch plate.
CAUTION
Both highpositioned lap belts and
loosefitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended event. Keep the
lap belt positioned as low on hips
as possible.
Do not place the shoulder belt un-
der your arm.
Seat belts for seats with outside arm-
rests—
Fasten your belt, ensuring that the shoul-
der portion of the belt passes over the top
of the outside armrest and that the lap
portion of the belt passes under the out-
side armrest as shown.
CAUTION
Always wear the belt with the shoul-
der portion over the outside armrest
and the lap portion under the outside
armrest. Failure to do so may in-
crease the chance of injury in an ac-
cident.

06 SIENNA_U (L/O 0603)
109
2006 SIENNA from March ‘06 Prod. (OM45443U)
Seat belts with an adjustable shoulder
anchor—
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment make sure the anchor is
locked in position.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
serious injuries in a collision.
To release the belt, press the buckle
release button and allow the belt to
retract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it re-
tracts.

06 SIENNA_U (L/O 0603)
11 0
2006 SIENNA from March ‘06 Prod. (OM45443U)
CENTER SEAT BELT OF THE THIRD
SEATS
The center seat belt of the third seats is
a 3−point type restraint with 2 buckles.
Both seat belt buckles must be correctly
located and securely latched for proper
operation.
Make sure buckle 1 is securely latched
for ready use of the center seat belt of
the third seats.Two buckles and tabs for center seat
belt of the third seats
The two tabs have different shapes to
prevent the belt from being buckled in the
wrong place.
Buckle 1—Matches the tab with the
hooked end
Buckle 2—Matches the tab with the
concave end
CAUTION
Make sure the both buckles are cor-
rectly located and securely latched.
Failure to properly match the buckle
and tab may cause serious injury in
case of an accident or a co llision.

06 SIENNA_U (L/O 0603)
111
2006 SIENNA from March ‘06 Prod. (OM45443U)

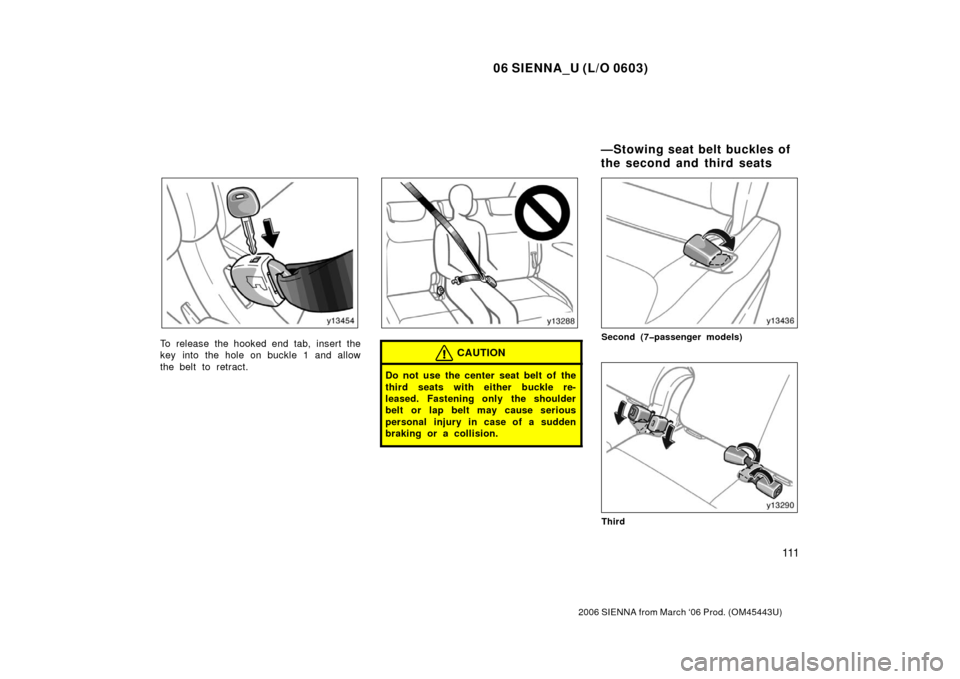

To release the hooked end tab, insert the
key into the hole on buckle 1 and allow
the belt to retract.CAUTION
Do not use the center seat belt of the
third seats with either buckle re-
leased. Fastening only the shoulder
belt or lap belt may cause serious
personal injury in case of a sudden
braking or a collision.
Second (7passenger models)
Third
—Stowing seat belt buckles of
the second and third seats

06 SIENNA_U (L/O 0603)
11 2
2006 SIENNA from March ‘06 Prod. (OM45443U)
The seat belt buckles of the second
seats (7passenger models) and third
seats can be stowed when not in use.
Seat belt buckles must be stowed before
you fold the seat back.
STOWING THE CENTER SEAT BELT OF
THE THIRD SEATS
To stow the center seat belt of the third
seats, pull the seat belt out of its cov-
er. It will automatically roll back part-
way. Roll the seat belt backward and
insert it into the slot of its cover as
shown above. Make sure the tabs are
securely locked in the cover.
Seat belt must be stowed before you fold
the seatback.
NOTICE
Stow the center seat belt of the third
seats when not in use.
PULLING OUT THE CENTER SEAT BELT
OF THE THIRD SEATS
To use the center seat belt of the third
seats, pull the tab (1) out, then pull the
belt out a little and pull the tab (2) out
from the cover.
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
—Stowing the center seat belt
of the third seats
