TOYOTA SIENNA 2006 XL20 / 2.G User Guide

06 SIENNA_U (L/O 0603)
3
2006 SIENNA from March ‘06 Prod. (OM45443U)

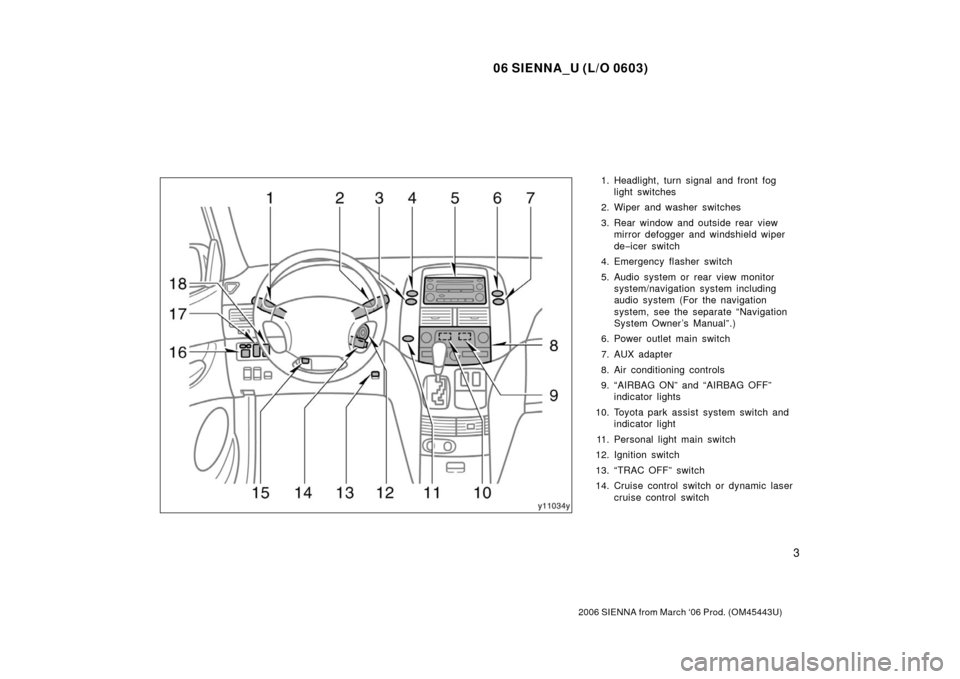

1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Rear window and outside rear view mirror defogger and windshield wiper
de− icer switch
4. Emergency flasher switch
5. Audio system or rear view monitor system/navigation system including
audio system (For the navigation
system, see the separate “Navigation
System Owner ’s Manual”.)
6. Power outlet main switch
7. AUX adapter
8. Air conditioning controls
9. “AIRBAG ON” and “AIRBAG OFF” indicator lights
10. Toyota park assist system switch and indicator light
11. Personal light main switch
12. Ignition switch
13. “TRAC OFF” switch
14. Cruise control switch or dynamic laser cruise control switch

06 SIENNA_U (L/O 0603)
4
2006 SIENNA from March ‘06 Prod. (OM45443U)
15. Tilt and telescopic steering lock releaselever
16. Power rear view mirror control switches
17. “REAR VENT” switch
18. Headlight beam level control dial

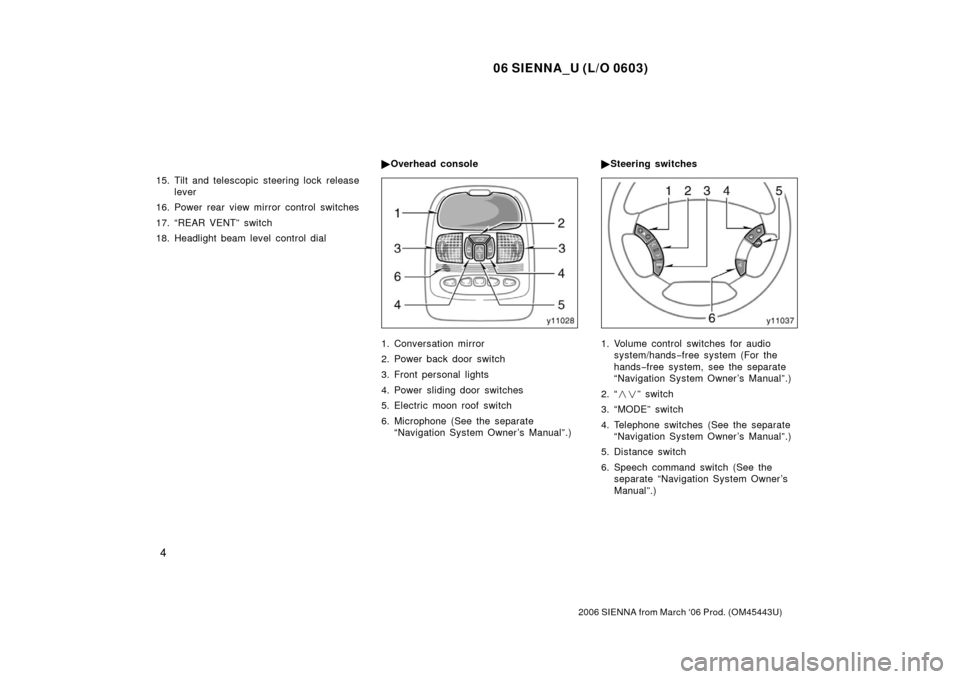

1. Conversation mirror
2. Power back door switch
3. Front personal lights
4. Power sliding door switches
5. Electric moon roof switch
6. Microphone (See the separate “Navigation System Owner ’s Manual”.)1. Volume control switches for audiosystem/hands −free system (For the
hands −free system, see the separate
“Navigation System Owner ’s Manual”.)
2. “ ” switch
3. “MODE” switch
4. Telephone switches (See the separate “Navigation System Owner ’s Manual”.)
5. Distance switch
6. Speech command switch (See the separate “Navigation System Owner ’s
Manual”.)

Overhead console Steering switches

06 SIENNA_U (L/O 0603)
5
2006 SIENNA from March ‘06 Prod. (OM45443U)

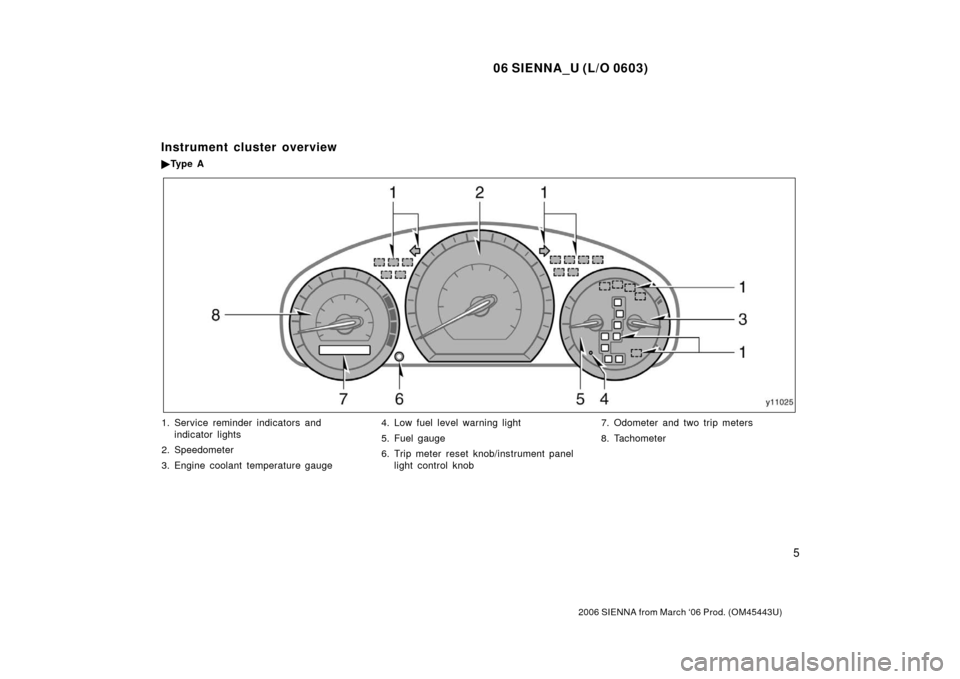

1. Service reminder indicators andindicator lights
2. Speedometer
3. Engine coolant temperature gauge 4. Low fuel level warning light
5. Fuel gauge
6. Trip meter reset knob/instrument panel
light control knob 7. Odometer and two trip meters
8. Tachometer
Instrument cluster overview

Ty p e A

06 SIENNA_U (L/O 0603)
6
2006 SIENNA from March ‘06 Prod. (OM45443U)

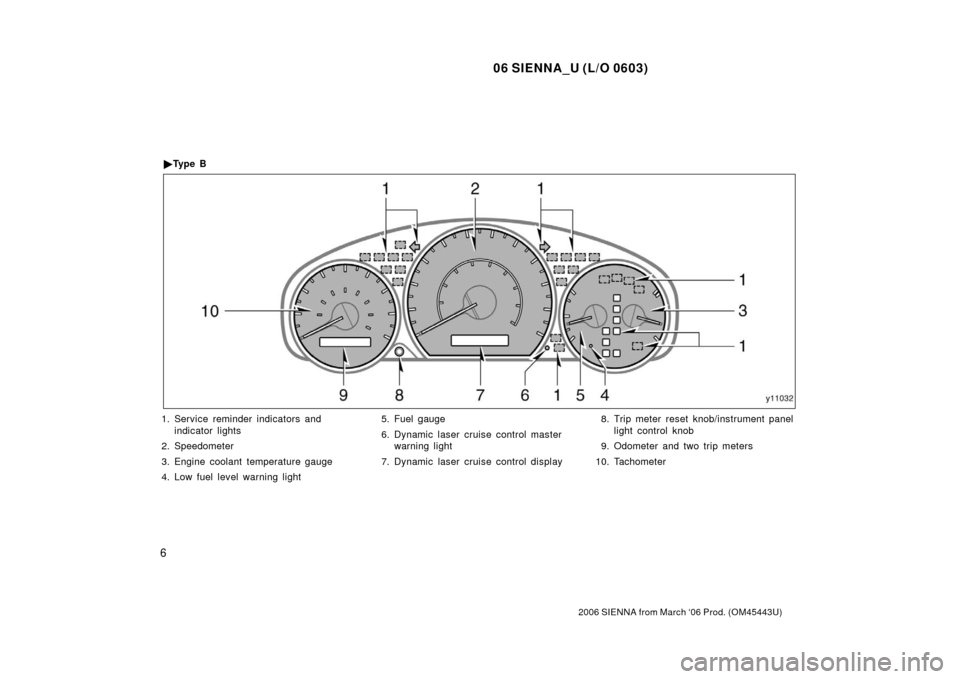

1. Service reminder indicators andindicator lights
2. Speedometer
3. Engine coolant temperature gauge
4. Low fuel level warning light 5. Fuel gauge
6. Dynamic laser cruise control master
warning light
7. Dynamic laser cruise control display 8. Trip meter reset knob/instrument panel
light control knob
9. Odometer and two trip meters
10. Tachometer

Ty p e B

06 SIENNA_U (L/O 0603)
7
2006 SIENNA from March ‘06 Prod. (OM45443U)
Brake system warning light∗1or
Driver ’s seat belt reminder light∗1
or Malfunction indicator lamp∗1
Charging system warning light∗1
Low engine oil pressure warning light∗1
or Anti −lock brake system warning light∗
1
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning
light∗1
Low tire pressure warning light∗1
Front passenger ’s seat belt reminder light∗1
Vehicle stability control system/traction control
system warning light∗1
Engine oil replacement reminder light∗1
(for vehicles sold in U.S.A.)
Indicator symbols on the instrument panel

06 SIENNA_U (L/O 0603)
8
2006 SIENNA from March ‘06 Prod. (OM45443U)
Cruise control indicator light∗2 or dynamic laser
cruise control indicator light∗ 3
Automatic transmission indicator lights Headlight high beam indicator light
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 187 in Section 1 −6.
∗
2: If this light flashes, see “Cruise control” on page 213 in
Section 1 −7.
∗
3: If this light flashes, see “Dynamic laser cruise control” on
page 216 in Section 1 −7.
Slip indicator light
Traction control system off indicator light
(two
−wheel drive models)
Turn signal indicator lights
Dynamic laser cruise control ready mode
indicator light
Conventional cruise control mode indicator light
Engine immobilizer/theft deterrent system
indicator light
“AIRBAG ON” indicator light
“AIRBAG OFF” indicator light
Third seat warning light∗
1
Headlight indicator light
Tail light indicator light

06 SIENNA_U (L/O 0603)
9
2006 SIENNA from March ‘06 Prod. (OM45443U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Engine immobilizer system 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Front doors 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Sliding doors 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Power sliding doors 28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Back door 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Power back door 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Power windows 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Manual quarter windows 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Power quarter windows 46
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Hood 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Theft deterrent system 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Fuel tank cap 50
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Electric moon roof 52
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
SECTION 1 2

06 SIENNA_U (L/O 0603)
10
2006 SIENNA from March ‘06 Prod. (OM45443U)

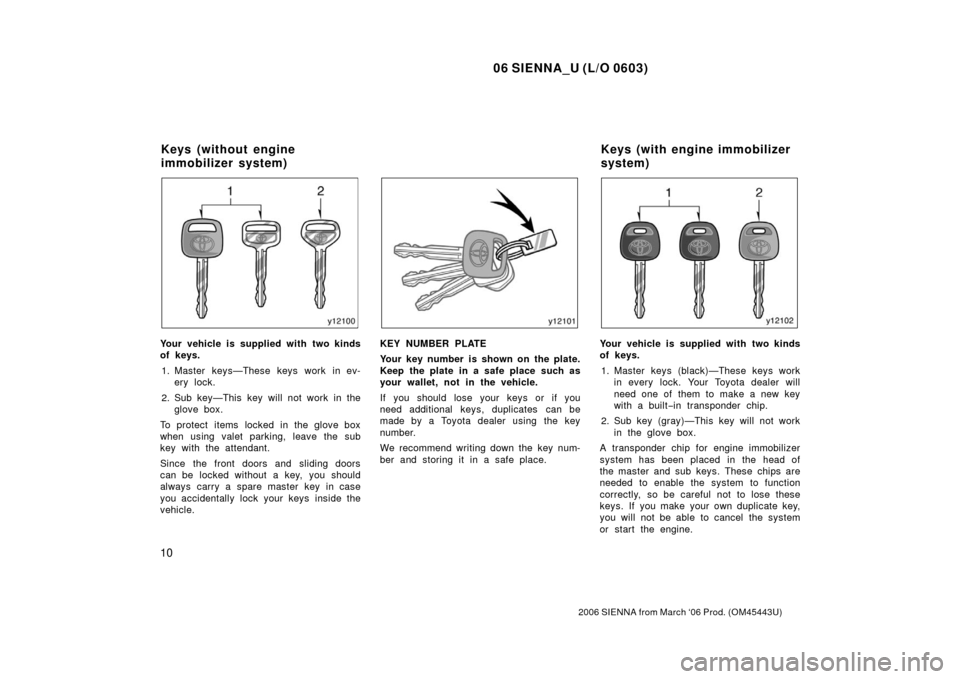

Your vehicle is supplied with two kinds
of keys.1. Master keys—These keys work in ev- ery lock.
2. Sub key—This key will not work in the glove box.
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the front doors and sliding doors
can be locked without a key, you should
always carry a spare master key in case
you accidentally lock your keys inside the
vehicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.Your vehicle is supplied with two kinds
of keys. 1. Master keys (black)—These keys work in every lock. Your Toyota dealer will
need one of them to make a new key
with a built −in transponder chip.
2. Sub key (gray)—This key will not work in the glove box.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (without engine
immobilizer system) Keys (with engine immobilizer
system)

06 SIENNA_U (L/O 0603)
11
2006 SIENNA from March ‘06 Prod. (OM45443U)
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the front doors and sliding doors
can be locked without a key, you should
always carry a spare master key in case
you accidentally lock your keys inside the
vehicle.

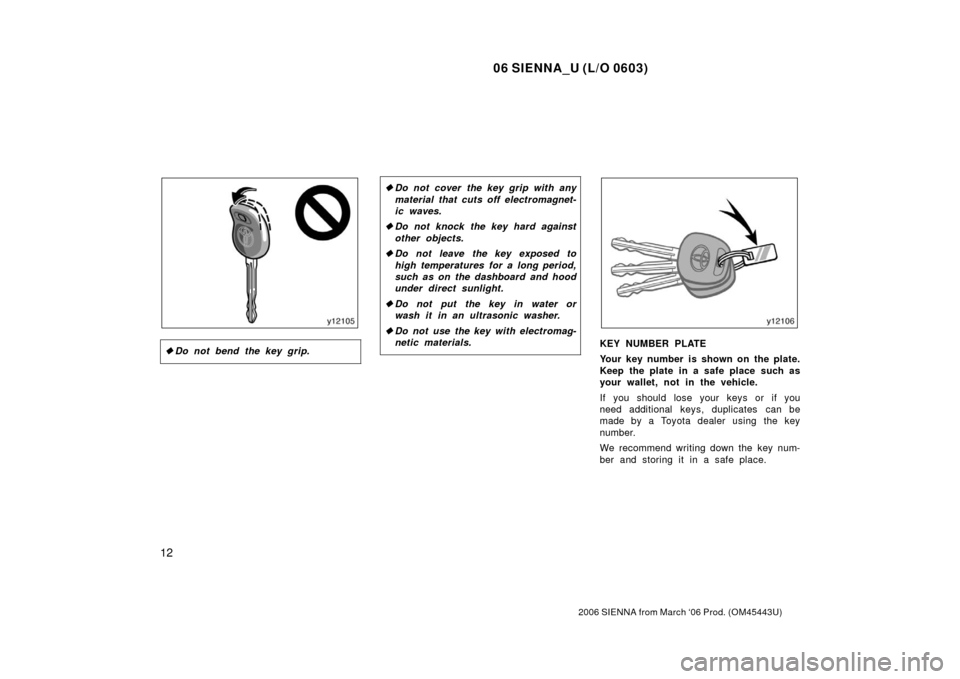

NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

06 SIENNA_U (L/O 0603)
12
2006 SIENNA from March ‘06 Prod. (OM45443U)
Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
