CAUTION
As the runflat tire allows you to
continue driving if any tire goes
flat, the tire performance is not
the same as normal condition. If
the runflat tire goes flat, take
your vehicle to the nearest Toyo-
ta dealer or authorized tire dealer
as soon as possible, observing
the following instructions:
Decelerate as soon as possible
to the lowest appropriate
speed that conditions permit.
Do not drive for longer than
160 km (100 miles) or over 90
km/h (55 mph).
 Avoid abrupt steering wheel
maneuvering and braking. If
t h e veh i cl e ti res det eri o rat e,
you could lose control of the
steering wheel or the brakes,
causing death or serious inju-
ry.
Do not replace or repair the tire
by yourself. When the tires
must be replaced or repaired,
consult your Toyota dealer or
authorized tire dealer.NOTICE
 Take due care not to go over
a curb stone and be careful
of holes in the road because
deflated tire pressure affects
tire cushion performance.
The wheels, tires, body, sus-
pension and other compo-
nents could be damaged.
 Your ground clearance is re-
duced if the runflat tire
goes flat, so avoid driving
over obstacles and drive
slowly on rough, unp aved
roads and speed bumps.
Also, do not attempt to go
through an automatic car
wash as the vehicle may get
caught, resulting in damage.

06 SIENNA_U (L/O 0603)
424
2006 SIENNA from March ‘06 Prod. (OM45443U)

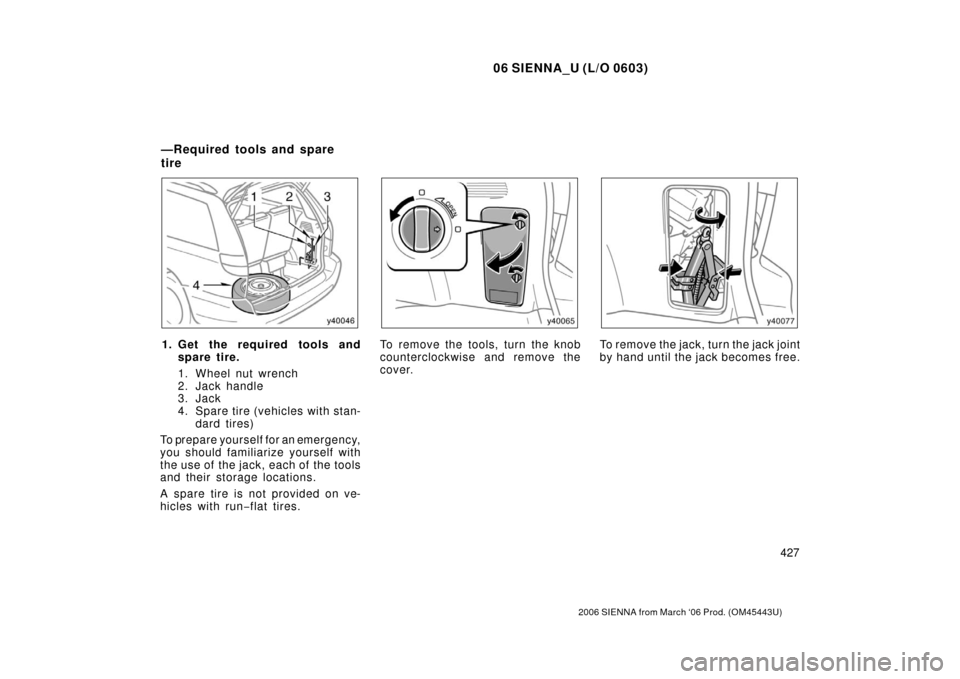

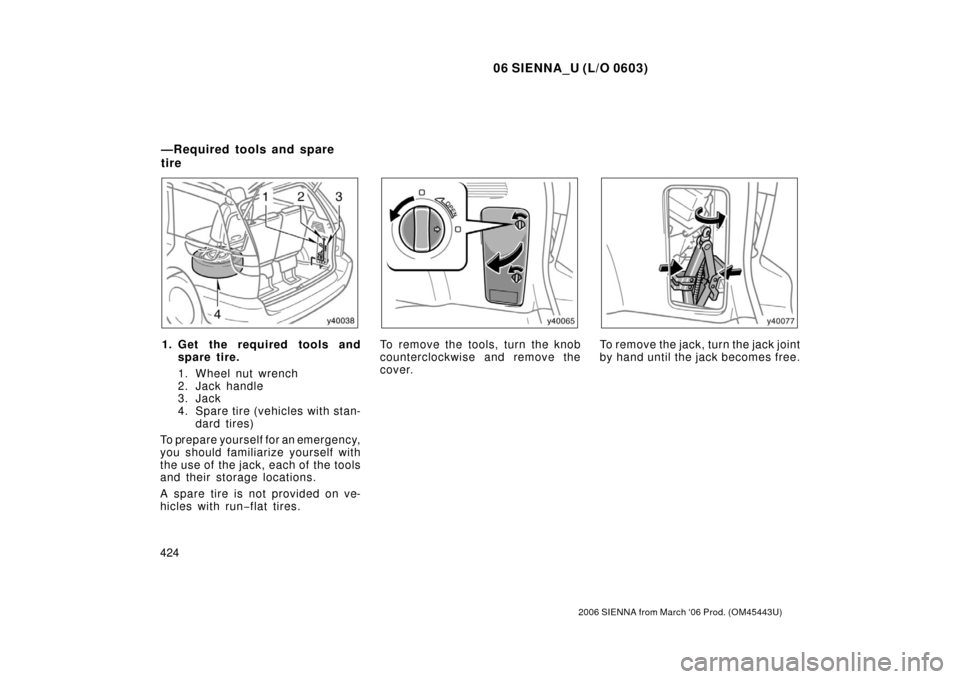

1. Get the required tools andspare tire.
1. Wheel nut wrench
2. Jack handle
3. Jack
4. Spare tire (vehicles with stan- dard tires)
To prepare yourself for an emergency,
you should familiarize yourself with
the use of the jack, each of the tools
and their storage locations.
A spare tire is not provided on ve-
hicles with run −flat tires.To remove the tools, turn the knob
counterclockwise and remove the
cover.To remove the jack, turn the jack joint
by hand until the jack becomes free.
—Required tools and spare
tire

06 SIENNA_U (L/O 0603)
425
2006 SIENNA from March ‘06 Prod. (OM45443U)
To store the jack, turn the jack joint
until the jack base fits securely with
the vehicle body.
This prevents the jack from flying for-
ward during a collision or sudden
stop.To remove the wheel nut wrench, first
disengage the upper part of the
wrench from the holding bracket and
remove it.
When storing the wheel nut wrench,
make sure the wr ench is securely

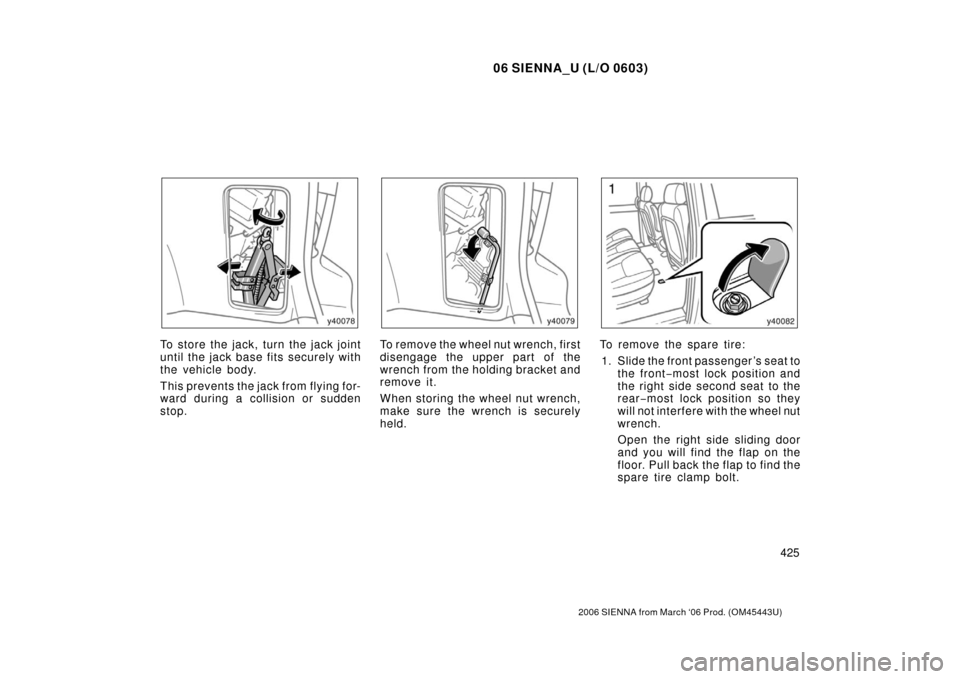

held.To remove the spare tire:
1. Slide the front passenger ’s seat to the front −most lock position and
the right side second seat to the
rear −most lock position so they
will not interfere with the wheel nut
wrench.
Open the right side sliding door
and you will find the flap on the
floor. Pull back the flap to find the
spare tire clamp bolt.

06 SIENNA_U (L/O 0603)
426
2006 SIENNA from March ‘06 Prod. (OM45443U)
2. Loosen the spare tire clamp boltby turning it counterclockwise with
the wheel nut wrench.3. After the tire is lowered completelyto the ground, remove the holding
bracket.
When storing the spare tire, put it in
place with the outer side of the wheel
facing up. Then secure the tire, taking
care that the tire goes straight up
without catching on any other part, to
prevent it from flying forward during
a collision or sudden braking.
As the tire carrier is designed for the
compact spare tire, the standard tire
cannot be stored there.
CAUTION
Do not remove the spare tire
when jacking up the vehicle. The
tire carrier and the spare tire may
interfere with the jack and cause
a serious accident.
NOTICE
 To secure spare tire clamp
bolt:
Do not use impact wrench,
but wheel nut wrench.
 After taking out or stowing
the spare tire, make sure to
secure the tire carrier by
tightening the clamp bolt to
prevent the holding bracket
from hitting the under body
of the vehicle during driving.
 Do not store the flat spare
tire with the tire carrier so it
may not be held securely.

06 SIENNA_U (L/O 0603)
427
2006 SIENNA from March ‘06 Prod. (OM45443U)
1. Get the required tools andspare tire.
1. Wheel nut wrench
2. Jack handle
3. Jack
4. Spare tire (vehicles with stan- dard tires)
To prepare yourself for an emergency,
you should familiarize yourself with
the use of the jack, each of the tools
and their storage locations.
A spare tire is not provided on ve-
hicles with run −flat tires.To remove the tools, turn the knob
counterclockwise and remove the
cover.To remove the jack, turn the jack joint
by hand until the jack becomes free.
—Required tools and spare
tire

06 SIENNA_U (L/O 0603)
428
2006 SIENNA from March ‘06 Prod. (OM45443U)
To store the jack, turn the jack joint
until the jack base fits securely with
the vehicle body.
This prevents the jack from flying for-
ward during a collision or sudden
stop.To remove the wheel nut wrench, first
disengage the upper part of the
wrench from the holding bracket and
remove it.
When storing the wheel nut wrench,
make sure the wr ench is securely

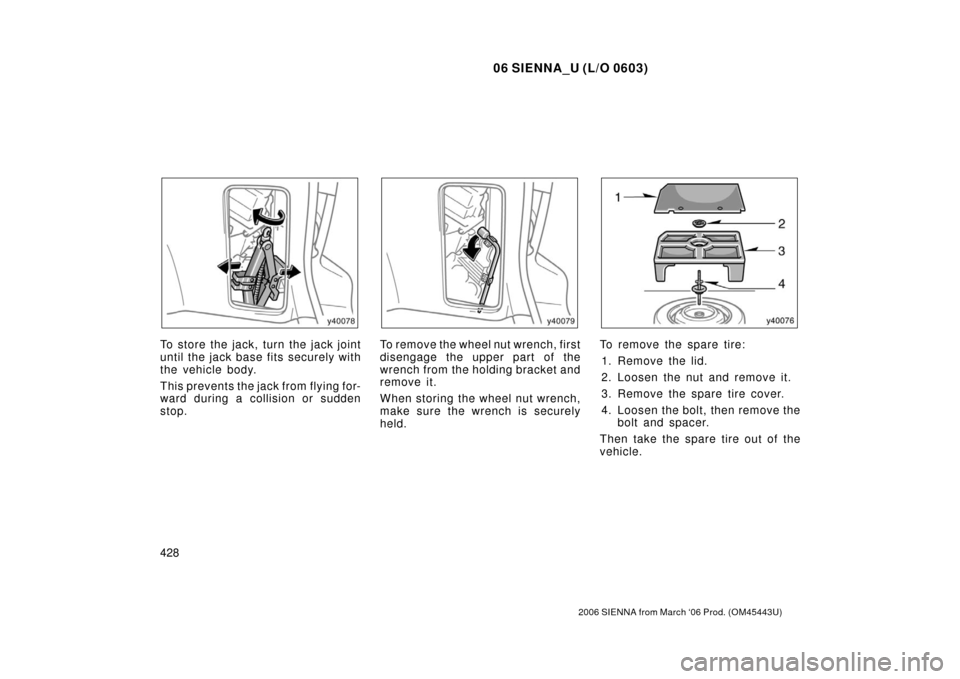

held.To remove the spare tire:
1. Remove the lid.
2. Loosen the nut and remove it.
3. Remove the spare tire cover.
4. Loosen the bolt, then remove the bolt and spacer.
Then take the spare tire out of the
vehicle.

06 SIENNA_U (L/O 0603)
429
2006 SIENNA from March ‘06 Prod. (OM45443U)
When storing the spare tire, put it in
place with the outer side of the wheel
facing up. Then secure the tire by re-
peating the above removal steps in
reverse order to prevent it from flying
forward during a collision or sudden
braking.

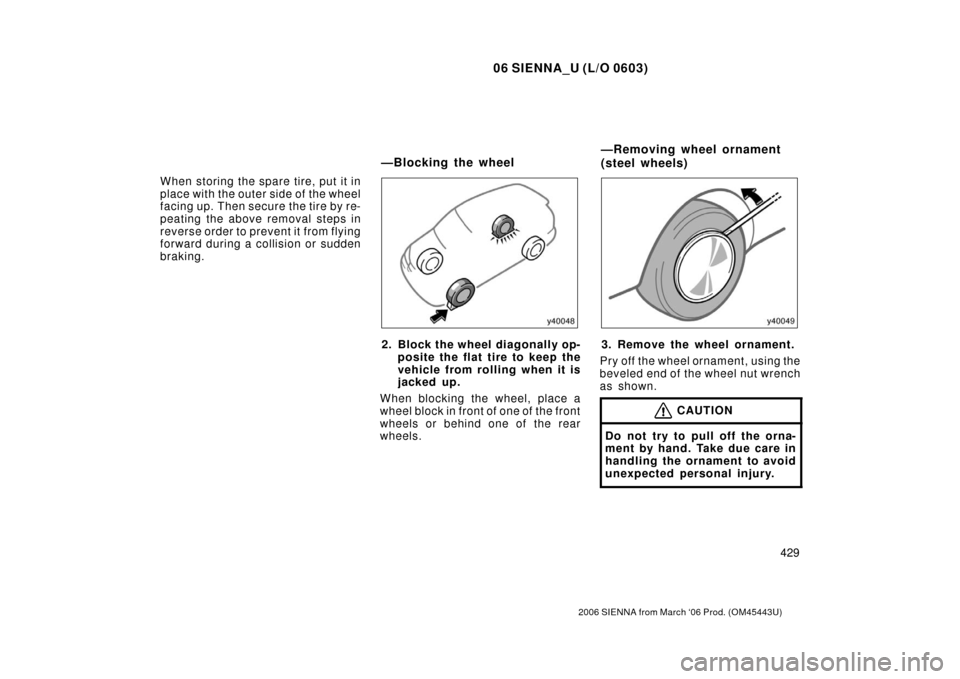

2. Block the wheel diagonally op-posite the flat tire to keep the
vehicle from rolling when it is
jacked up.
When blocking the wheel, place a
wheel block in front of one of the front
wheels or behind one of the rear
wheels.3. Remove the wheel ornament.
Pry off the wheel ornament, using the
beveled end of the wheel nut wrench
as shown.
CAUTION
Do not try to pull off the orna-
ment by hand. Take due care in
handling the ornament to avoid
unexpected personal injury.
—Blocking the wheel —Removing wheel ornament
(steel wheels)

06 SIENNA_U (L/O 0603)
430
2006 SIENNA from March ‘06 Prod. (OM45443U)

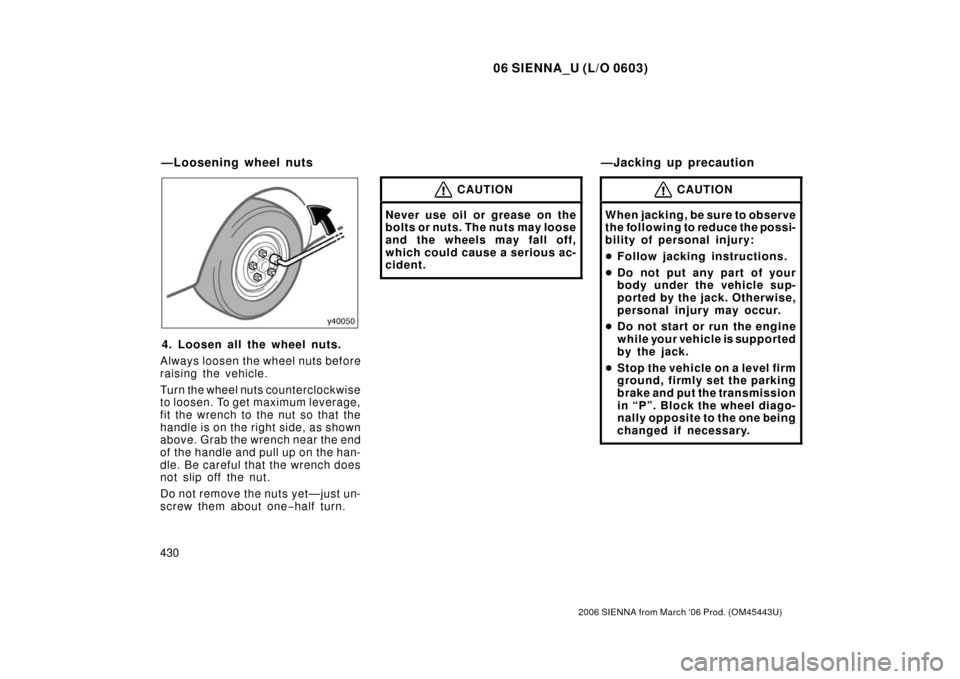

4. Loosen all the wheel nuts.
Always loosen the wheel nuts before
raising the vehicle.
Turn the wheel nuts counterclockwise
to loosen. To get maximum leverage,
fit the wrench to the nut so that the
handle is on the right side, as shown
above. Grab the wrench near the end
of the handle and pull up on the han-
dle. Be careful that the wrench does
not slip off the nut.
Do not remove the nuts yet—just un-
screw them about one −half turn.
CAUTION
Never use oil or grease on the
bolts or nuts. The nuts may loose
and the wheels may fall off,
which could cause a serious ac-
cident.
CAUTION
When jacking, be sure to observe
the following to reduce the possi-
bility of personal injury:
 Follow jacking instructions.
 Do not put any part of your
body under the vehicle sup-
ported by the jack. Otherwise,
personal injury may occur.
 Do not start or run the engine
while your vehicle is supported
by the jack.
 Stop the vehicle on a level firm
ground, firmly set the parking
brake and put the transmission
in “P”. Block the wheel diago-
nally opposite to the one being
changed if necessary.
—Loosening wheel nuts —Jacking up precaution

06 SIENNA_U (L/O 0603)
431
2006 SIENNA from March ‘06 Prod. (OM45443U)
Make sure to set the jack prop-
erly in the jack point. Raising
the vehicle with jack improper-
ly positioned will damage the
vehicle or may allow the ve-
hicle to fall off the jack and
cause personal injury.
 Never get under the vehicle
when the vehicle is supported
by the jack alone.
 Use the jack only for lifting
your vehicle during wheel
changing.
 Do not raise the vehicle with
someone in the vehicle.
 When raising the vehicle, do
not place any objects on top
of or underneath the jack.
 Raise the vehicle only high
enough to remove and change
the tire.When jacking up the vehicle,
t u rn of f th e po w er sl i d i n g do o r
system and the power back
door system, and close the
sliding door and the back door
completely.

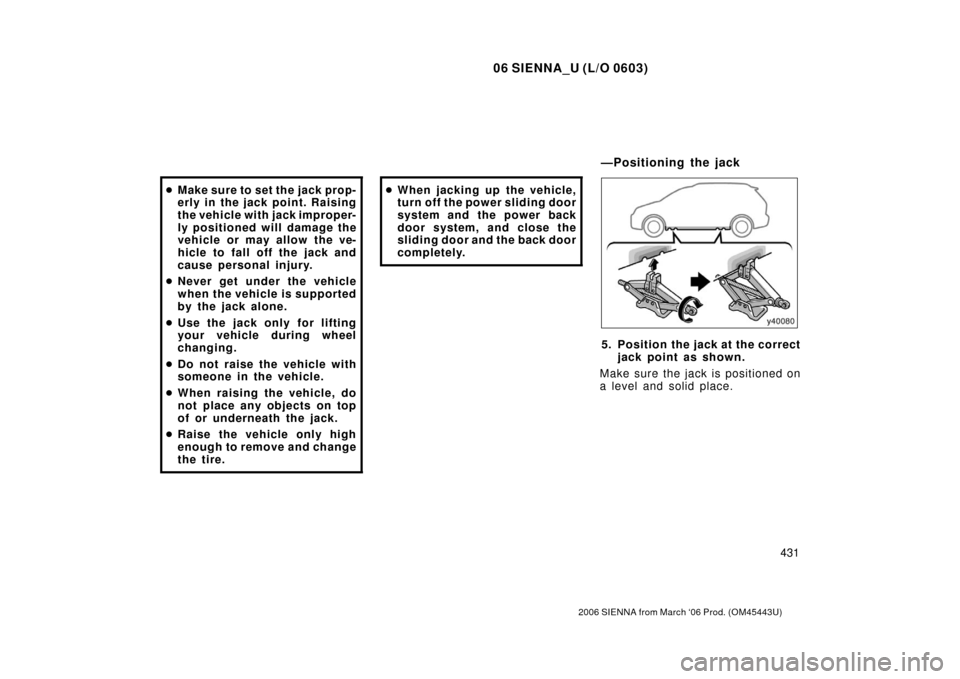

5. Position the jack at the correct
jack point as shown.
Make sure the jack is positioned on
a level and solid place.
—Positioning the jack

06 SIENNA_U (L/O 0603)
432
2006 SIENNA from March ‘06 Prod. (OM45443U)

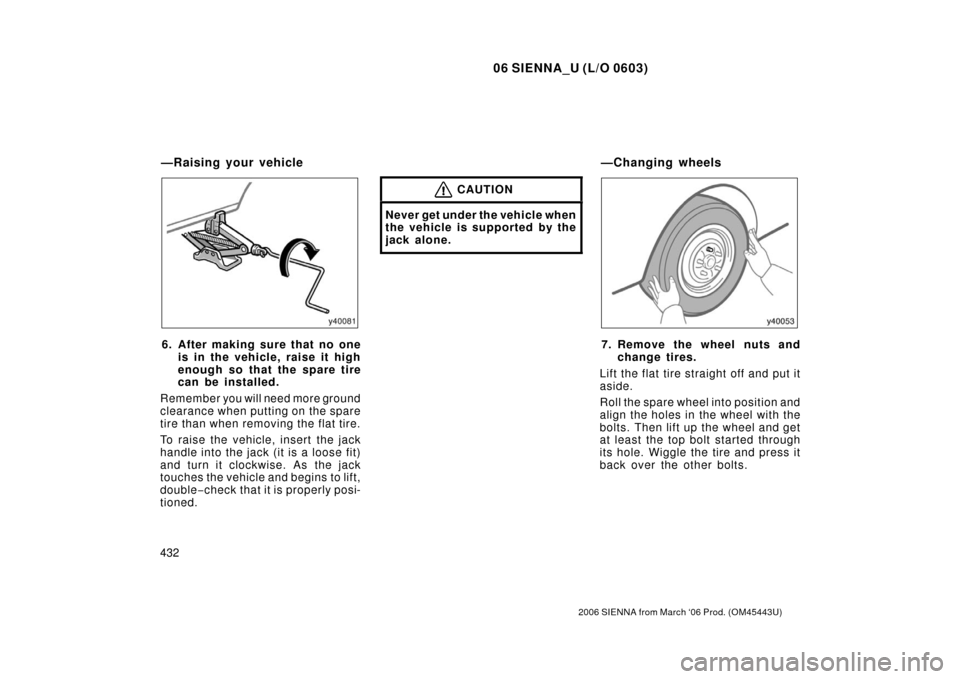

6. After making sure that no oneis in the vehicle, raise it high
enough so that the spare tire
can be installed.
Remember you will need more ground
clearance when putting on the spare
tire than when removing the flat tire.
To raise the vehicl e, insert the jack
handle into the jack (it is a loose fit)
and turn it clockwise. As the jack
touches the vehicle and begins to lift,
double −check that it is properly posi-
tioned.
CAUTION
Never get under the vehicle when
the vehicle is supported by the
jack alone.
7. Remove the wheel nuts and change tires.
Lift the flat tire straight off and put it
aside.
Roll the spare wheel into position and
align the holes in the wheel with the
bolts. Then lift up the wheel and get
at least the top bolt started through
its hole. Wiggle the tire and press it
back over the other bolts.
—Raising your vehicle —Changing wheels
